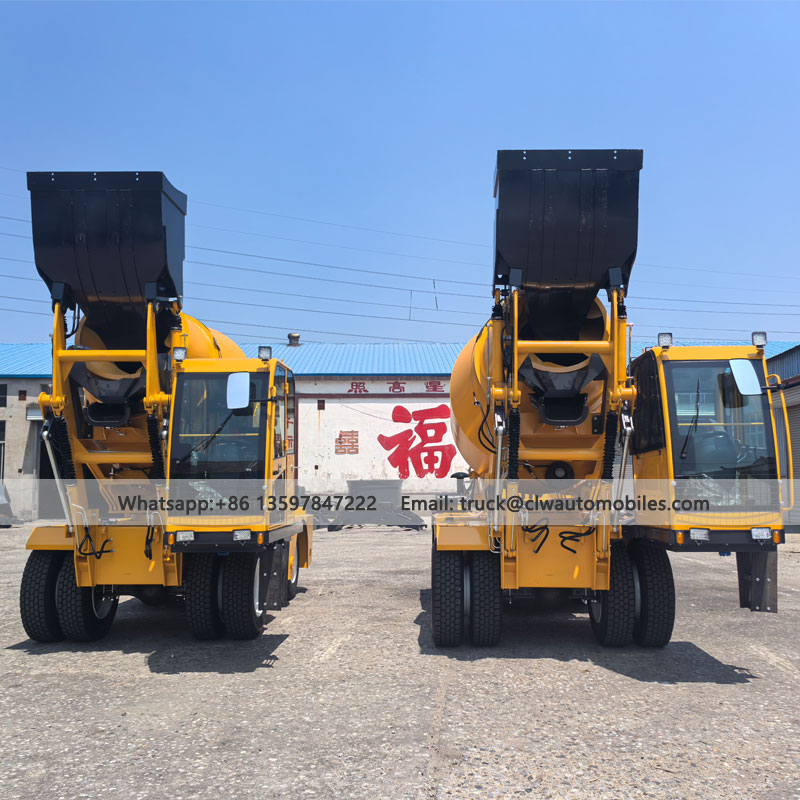

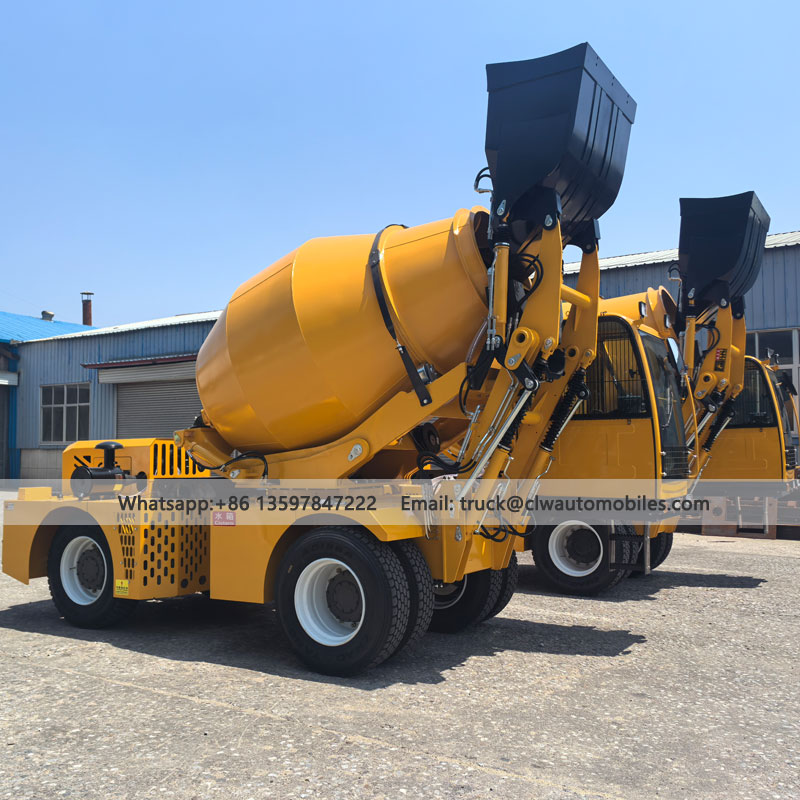

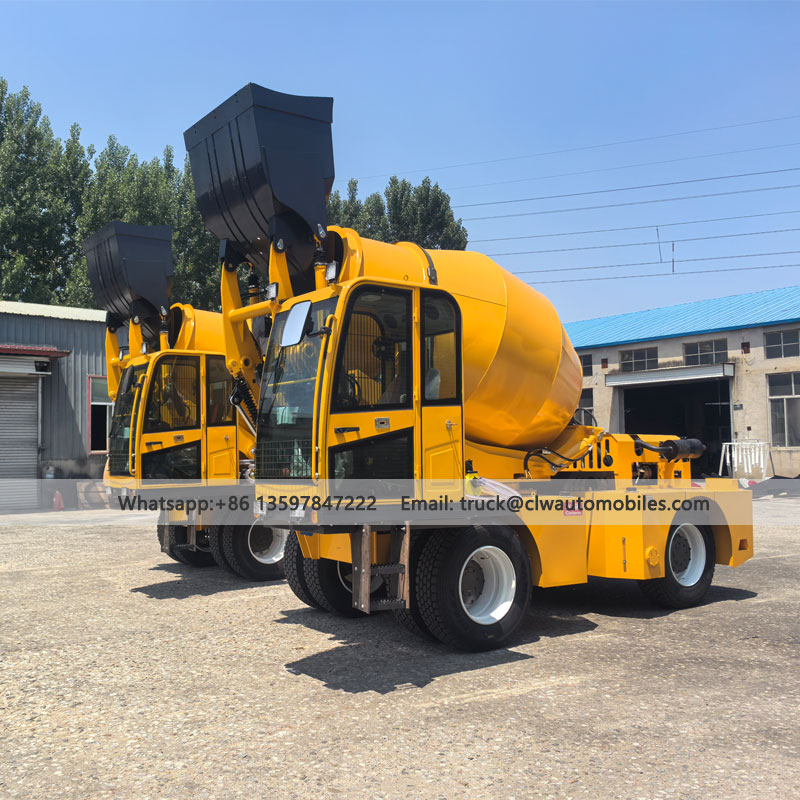

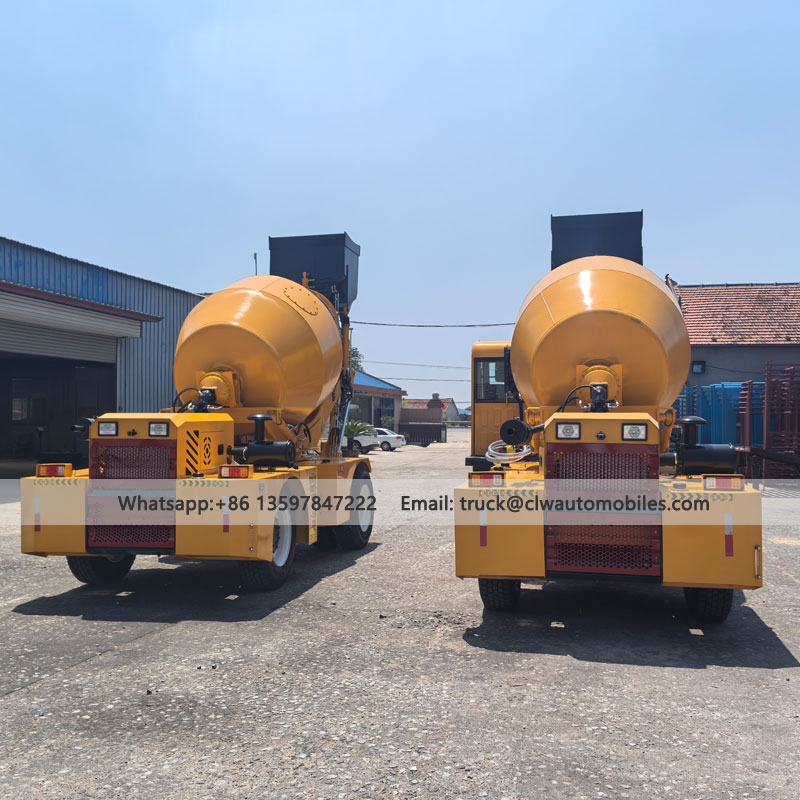

3.5CBM Self loading Mixer
- CLW
- Suizhou city, Hubei Province
- 55 working days after received your payment
- 100 units per month
- 22500-25000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of Self Loading Mixer
Diesel engines | Stirring and unloading |
Mode:YD4J22G Maximum power: 85 kW(116 hp) Maximum torque:390 Nm @2800 rev / min | The double cone Drum has a double spiral agitating screw and a convex bottom. Drum geometry.......... 5500 Liters Drum rotation speed:....16 Rev/ min. Concrete production: ....3.5Cubic Meters / Drum |
Electrical System | Steering |
Generator:28V--1500Wa(53.5A) Battery:2x12V--60AH(272A) Road lighting system | Articulated steering |
4*4four-wheel drive | Water supply syste |
Full-time four-drive speed is 0-36 km / h Torque converter gearbox, open hydraulic gear pump. | "Self-suction" 24V large capacity pump with quick suction function. Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
Shaft and tire | Operating Cab |
Aggravated special bridge, the planetary reduction gear, the flanged gear box,Rear axle, swing (± 28°), and swinging frame on the bridge.Tires... 16-70-20PR,Maximum load: 5150kg. 450kPa | The enclosed operating room is available with a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
Brake | Maintenance amount |
The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake | Fuel tank.... 120 liters Total hydraulic system capacity...... 100 liters Engine oil..... 20 liters |
Equipment hydraulic syste | Weight |
Aluminum heat exchanger is used for cooling hydraulic oil. Open oil inlet, hydraulic oil filter can be replaced externally. | Operating weight: ......8300 kg Maximum total weight....16500 kg Maximum load: .........8000 kg |
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
