FOTON 10.5m3 branch crushing truck Manufacturer
- CLW/FOTON
- Suizhou city, Hubei Province
- 55 working days after received your payment
- 100 units per month
- 40000-45000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of Crushing Truck
Brand of Vehicle | CL/FOTON | |
Model of Vehicle | CL5042TWF3AYC | |
Model of Chassis | BJ1065VDJDA-F1 | |
Dimension of Chassis | 5995*2060*3000mm | |
Curb Weight | 4365kg | |
Wheelbase | 3360mm | |
Engine | Model | ISF2.8s4148V/cummins |
Power | 110kw/148HP | |
Displacement | 2.78L | |
Fuel Type | Diesel | |
Emission Standard | Euro IV | |
Torque | 360N.m | |
Type | Turbocharged inter-cooled Bosch high-pressure common rail high-pressure direct injection SCR. | |
Transmission | Model | 5S368/ZF |
Type | Manual | |
Numbers | 5-gear | |
Tire | 205/75R17.5/CHAOYANG | |
Axle(front/rear) | 2.4T/4.5T | |
Top Speed | 95km/h | |
AC | yes | |
Braking system | Air-cutoff brake, exhaust brake. | |
2
Special Function of Crushing Truck
Hopper Capacity | 10.5m3 |
Model of Crusher | ZX-6500 Drum Type Double-Sided Cutter. |
Feeding platform height | 900mm |
Feed inlet size | 400*300mm |
Maximum crushing diameter | 200mm |
Feed roller height | ≤200mm adjustable |
Hydraulic oil Tank | 36L |
Temperature-controlled radiator, full-bin alarm, inclined discharge, utilizing PLC control system, physical buttons and touch switches for controlling mechanical operation | |

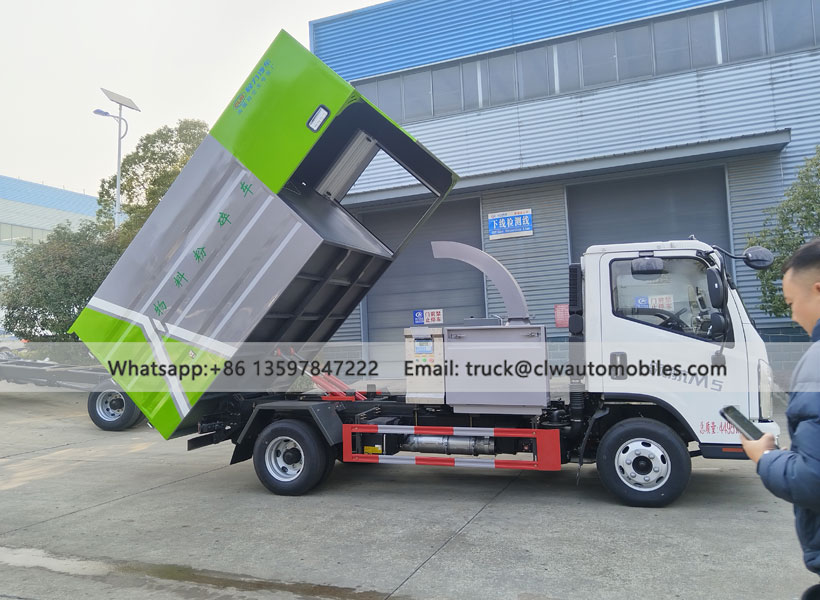

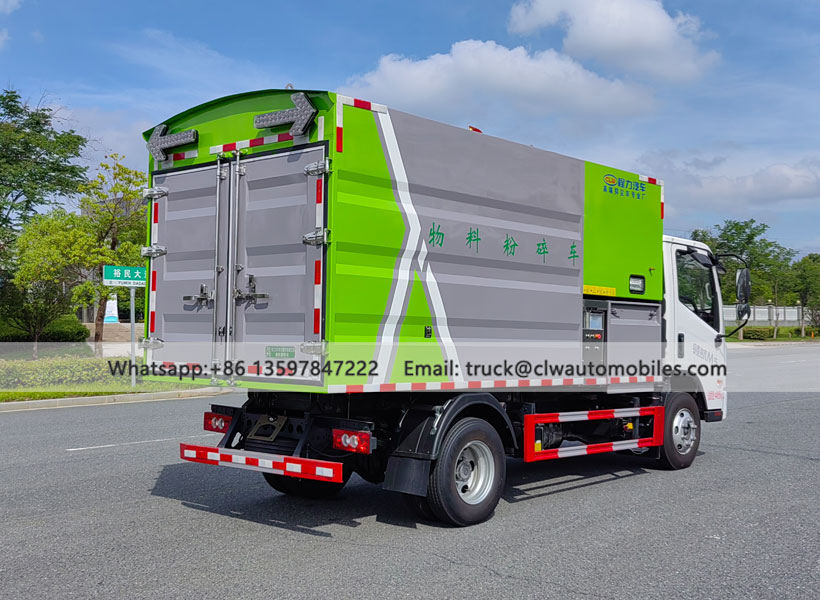

Crushing Truck
Crushing Truck
3
Application
In the agricultural sector, crushing truck can be utilized to crush agricultural waste such as crop straw, branches, and leaves, providing raw materials for subsequent composting or biomass energy production. In the forestry sector, material crushing vehicles can handle logging residues, branches, and other materials, reducing the risk of forest fires and promoting resource recycling. In the construction sector, crushing truck can crush construction waste for subsequent recycling or landfill disposal. In the waste disposal sector, material crushing vehicles can process various organic wastes, reducing waste volume and lowering disposal costs.
4

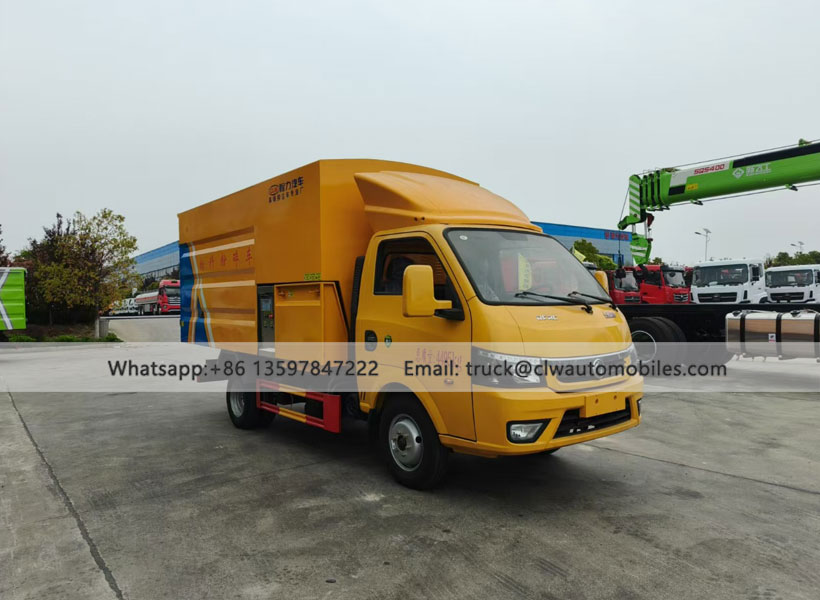

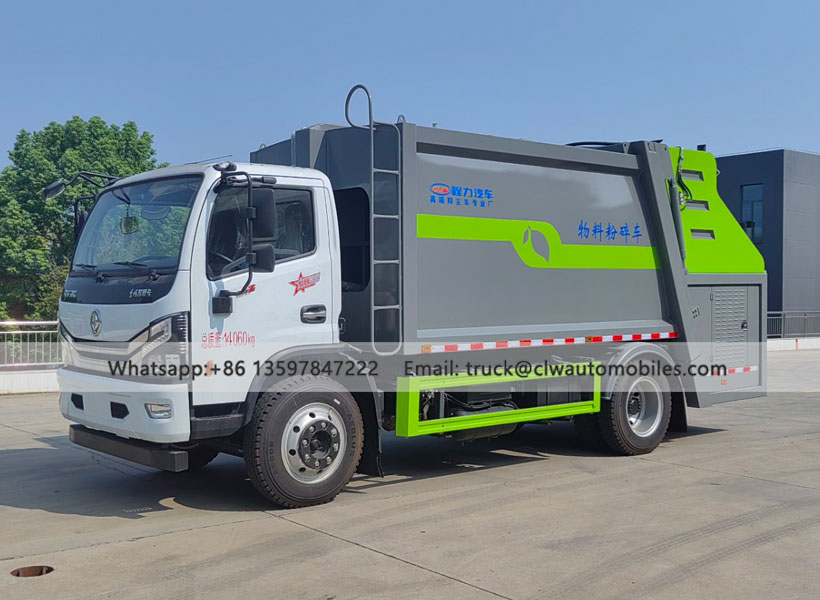

Other Brand For Choosing
Crushing Truck
Crushing Truck
5
Power and Drive System
Hydraulic drive: A large-displacement hydraulic motor drives the feed roller, providing high torque and real-time load detection to ensure continuous operation without stalling
Intelligent control: Some models are equipped with an intelligent control system that can automatically adjust parameters based on the wood material and monitor equipment status in real-time through IoT technology.
6
Video
Product Title
Product Title
7
Application scenarios and environmental benefits
Widely applicable scenarios: This crushing truck model can be widely used for the crushing, collection, transportation, and disposal of green waste in various scenic spots, parks, schools, residential areas, and along municipal roads.
Urban greening: For the rapid disposal of trimmed branches and leaves, ensuring no garbage residue throughout the process.
Infected Wood Treatment: crushing truck models are specifically designed for the crushing and disposal of pine wood nematode-infected wood. The entire process is monitored through information technology to prevent the loss of infected wood.
Resource utilization advantage:
"Reducing volume and increasing efficiency": One truckload of crushed wood chips is equivalent to the loading capacity of five or six trucks of untreated branches, significantly improving transportation efficiency.
Green closed loop: The crushed wood chips can be uniformly recycled and processed into composting materials or biomass fuel, realizing a green closed loop of "trimming - crushing - recycling - reuse".
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
