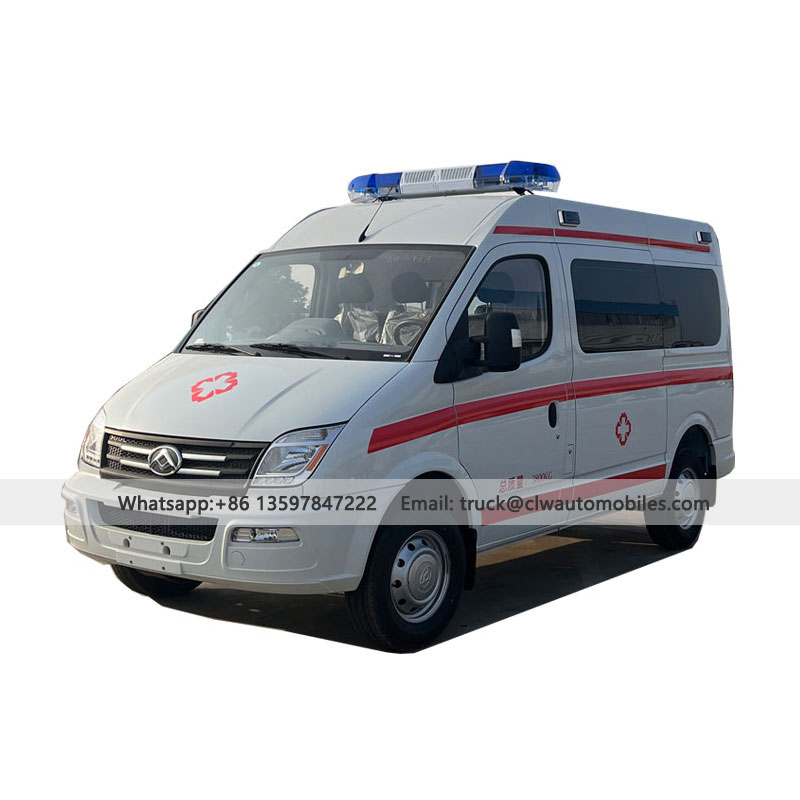

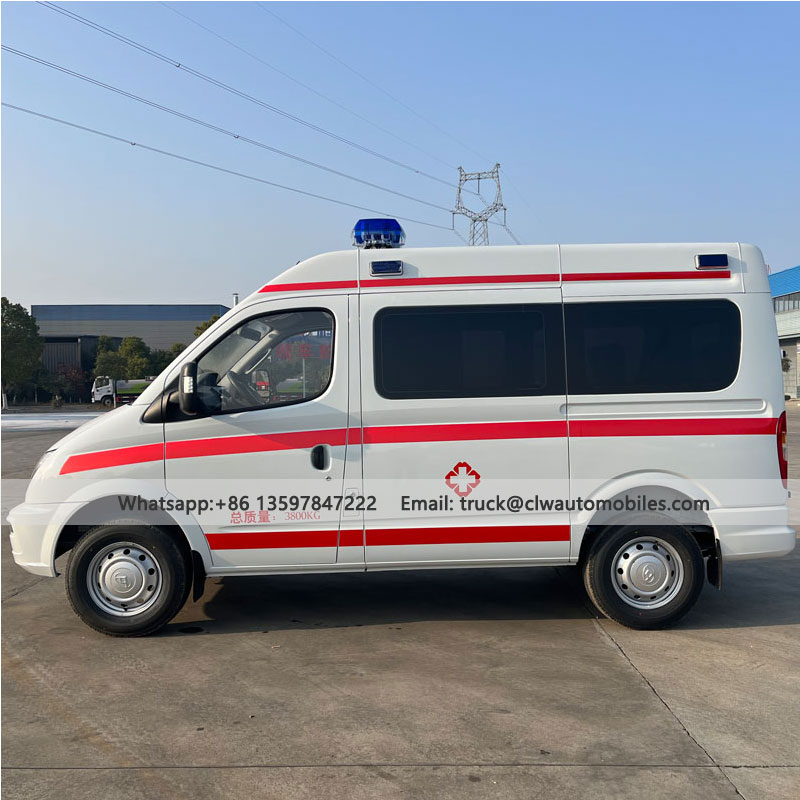

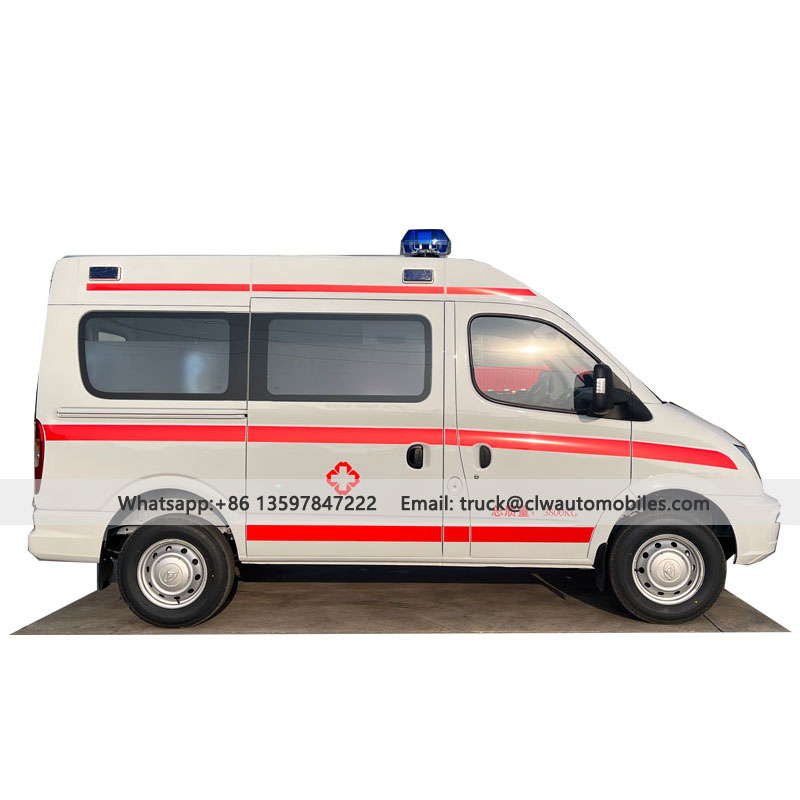

SAIC V90 New 4*2 Diesel Ambulance
- CLW
- Suizhou
- 30 days
- 100 units per month
The SAIC New 4*2 Diesel Ambulance covers the sub-areas of monitoring type (critical rescue), transport type (basic emergency rescue) and power engineering rescue vehicles, and is suitable for urban emergency rescue, construction site rescue and other needs.
The SAIC New 4*2 Diesel Ambulance is equipped with a centralized oxygen supply device, ultraviolet disinfection lamp, infusion stand and aluminum alloy stretcher to support basic treatment during emergency treatment
1
Basic Parameters of SAIC Ambulance
| Model of Ambulance | CLW5040XJHTD |
| Name of Ambulance | SAIC V90 New 4*2 Diesel Ambulance |
Size of Ambulance | 5498mm×2062mm×2600mm |
Medical cabin size | 2700mm×1700mm×1750mm |
Wheelbas | 3336mm |
Displacemen | 1.996L |
Powe | 93KW |
Gearbox | 6-speed |
Transmission | 6MT or 6AT |
Drive | Front Drive |
Fuel Typ | Diesel |
Passengers | 7 |
Top Spee | 160km/h |
Engine Model | SC20M150.1Q6 |
Rated Power | 110KW |
Fuel tank | 80L |
Minimum ground clearance | 150mm |
Vehicle appearance | The whole body is white, the red cross logo is pasted on the front, both sides of the body and the tailgate, and the body color bar is pasted around, which is bright, eye-catching and effective warning. Medical cabin glass is pasted with 2/3 frosted cellophane to effectively protect patients' privacy |
Body structure | It adopts steel reinforced frame structure design, safe and reliable. The right side of the car body is equipped with a sliding door, and the rear end adopts a double-open tailgate structure, with a large opening width, which is convenient for doctors and patients and stretchers Up and down. |
Warning lamps | Streamlined split embedded LED alarm lamp assembly (polymer injection molding), alarm horn power 100W, controlled by wire controller, equipped with LED light set. Blue flashing lights are installed on both sides and at the rear for effective warning. |
2
Medical cabin rescue facilities of SAIC Ambulance
Ambulance system | Automatic loading stretcher: the stretcher is made of high-strength aluminum alloy, PVC waterproof sponge mattress, and the backrest is adjustable; The thickened oval leg tube, the evenly distributed auxiliary loading wheel and aluminum block greatly increase the bearing capacity of the derrick, and the loading process can be easily completed by only one person. Stretcher platform: It is made of high-quality aluminum alloy materials to assist the stretcher to get on and off. Infusion frame: 1 set of aluminum alloy guide rail type infusion frame is installed on the top of the medical cabin, including 2 folding hooks. |
Medical oxygen control system | Two 10L steel oxygen cylinders with a nominal pressure of 15MPA (light weight, easy to load and replace) are equipped with two single-gauge pressure reducing valves, two German oxygen terminals, a respirator interface and a wall-type oxygen inhaler. When patients inhale oxygen, they can control the oxygen output, and are equipped with humidifying bottles to provide patients with moist oxygen, which is more conducive to oxygen inhalation. |
3
Medical Electrical System of SAIC Ambulance
Floodlight | Four 12V cabin lighting lamps with stable light source and large illumination area, and two infusion spotlights. |
Inverter | Vehicle-mounted sine wave 1000W, frequency stability, voltage stability, output power stability, for on-board equipment Power supply; Two sets of 220V/12V multi-function sockets (can be connected to two/three holes, AC/DC dual purpose). |
Disinfection lamp | 1 intelligent and regular ultraviolet disinfection to ensure the health and safety in the cabin. |
4
Air Circulation System of SAIC Ambulance
Air conditioning/heating | 1 set of rear air conditioner and rear heating device, with independent control of cooling and heating, and reasonable control of cabin temperature as require |
Ventilator | A set of DC12V multi-function ventilator with suction and exhaust is installed on the roof, which can effectively ensure the efficient circulation of air in the medical cabin. |
5

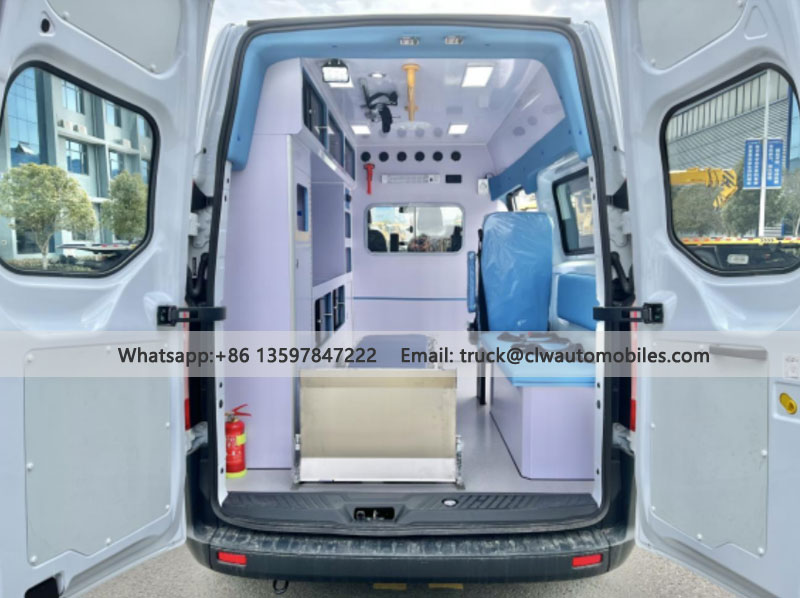

Medical cabin cabinet/Interior configuration of SAIC Ambulance
Middle partition assembly | A set of middle partition made of new environment-friendly materials is installed between the cab and the medical cabin. A glass observation window is set on the middle partition to facilitate observation and communication between the front and rear cabins. |
Cabinet assembly | Install a set of long equipment cabinet made of new environmental protection materials. The cabinet body is equipped with drawers, space cabinets and other storage spaces; Install a set of oxygen cylinder cabinet made of new environment-friendly materials, which can accommodate 2 10L oxygen cylinders; Install a set of wall cabinets made of new environmental protection materials. The wall cabinet adopts sliding door structure, which is convenient to open the cabinet door; Install a set of long seat cabinet, including cushion, backrest and two-point seat belt. |
Medical cabin interior | Interior of medical cabin: made of new lightweight materials, waterproof, mildew-proof, antibacterial and easy to clean. Medical cabin floor: made of medical floor leather material, which is anti-skid, waterproof, mildew-proof, antibacterial and easy to clean. |
Side sliding door sliding window | Flat sliding glass window. |
walkie-talkie | A hands-free microphone is installed in the cockpit and the medical cabin respectively to facilitate communication between the front and rear cabin personnel. |
Fire Extinguisher | The medical cabin is equipped with a set of 1kg dry powder fire extinguisher. |
Dirt bucket | The medical cabin is equipped with a foot-operated dirt bucket with a cover. |
Safety handrail | Install a long strip handrail on the top of the medical cabin |
Emergency hammer | Install an emergency hammer in the medical cabin. |
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
