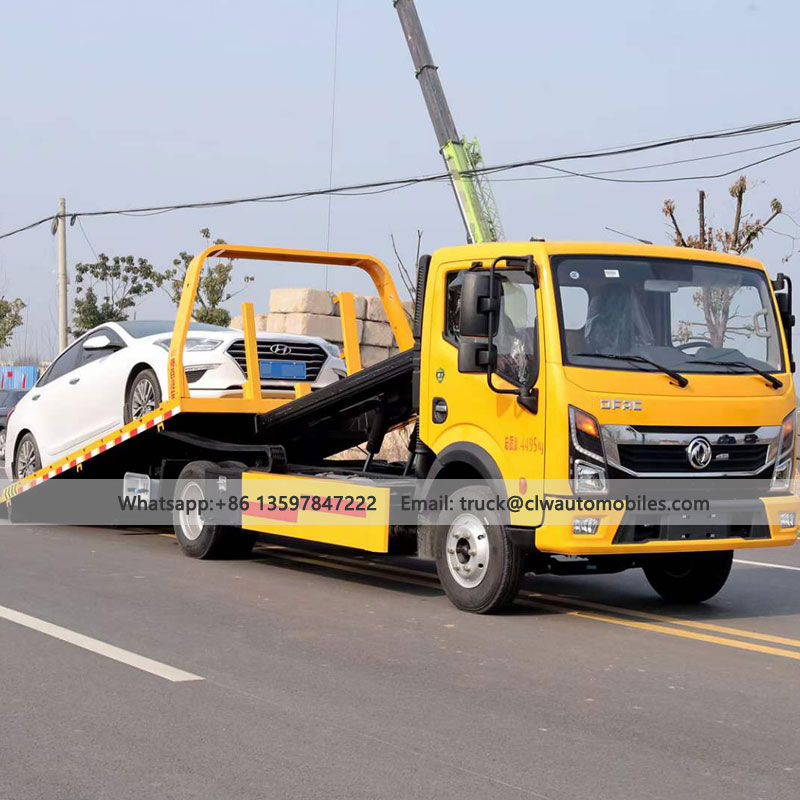

DFAC 4Tons One To Two Flatbed Tow Truck Manufacturer Wrecker Supply
- CLW/DFAC
- Suizhou city, Hubei Province
- 55 working days after received your payment
- 50 units per month
- 25000.00USD-32000.00USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Equipment usage and brief introduction
The full name of the vehicle is road clearance vehicle, also known as tow truck, road rescue vehicle; tow truck, with a number of functions such as lifting, pulling and lifting traction, etc. The vehicle is mainly used for road fault vehicles, urban vehicles and emergency rescue, etc.

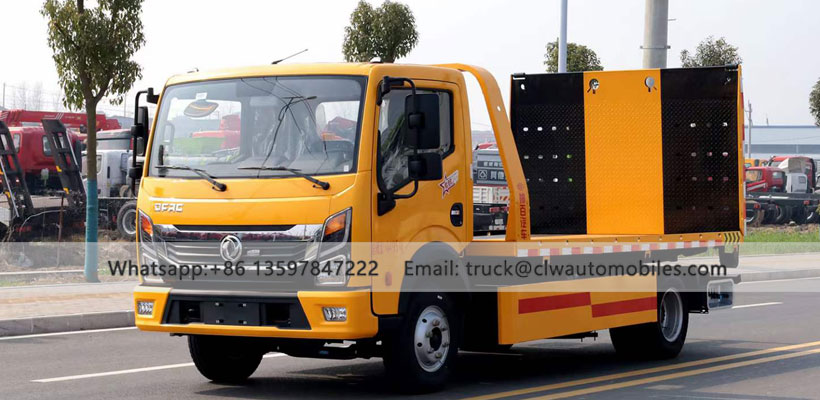

DFAC Tow Truck
D
FAC Tow Truck
2
Basic Parameters of DFAC Tow Truck
Brand of Vehicle | CLW/DFAC(New) | |
Vehicle Model | CLW5090TQZ6 | |
Chassis Model | EQ1095SJCD2 | |
Drive type | 4×2 Left hand drive | |
Overall Length | 7550mm | |
Overall width | 2350mm | |
Overall height | 2450mm | |
G.V.W | 9100kg | |
Wheelbase | 3800mm | |
Engine | Type | YCY24140-60 / 140HP |
Emission level | Euro VI | |
Maximum power | 103kw | |
Number of cylinders | 4 | |
System | diesel, in-line four cylinder | |
Transmission | Type | WLY |
Number of gears | 6-Speed | |
Tire specification | 7.50R16 Steel wire tyre | |
Fuel tank | 86L | |

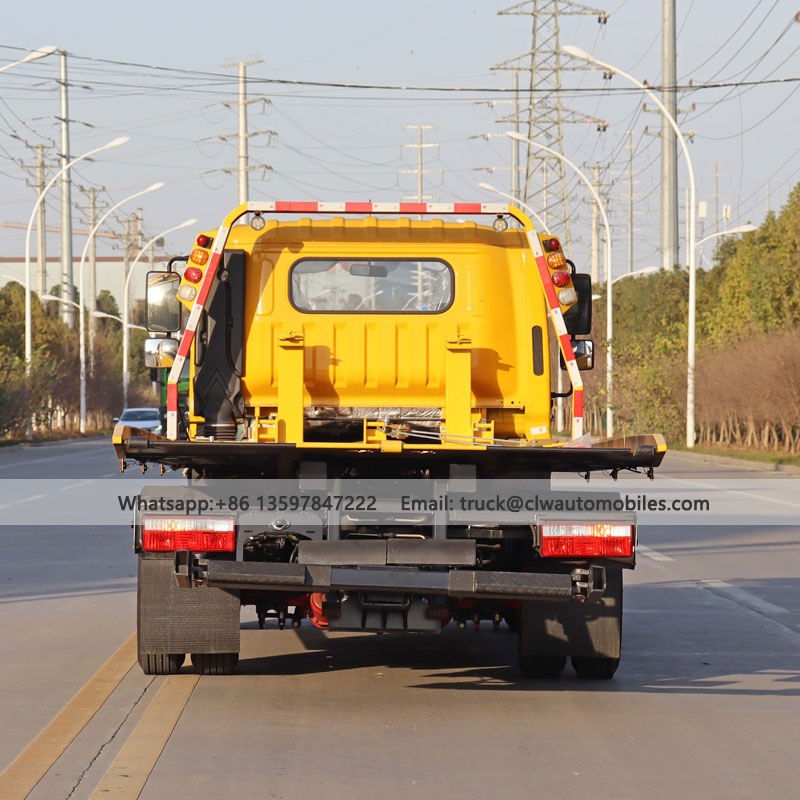

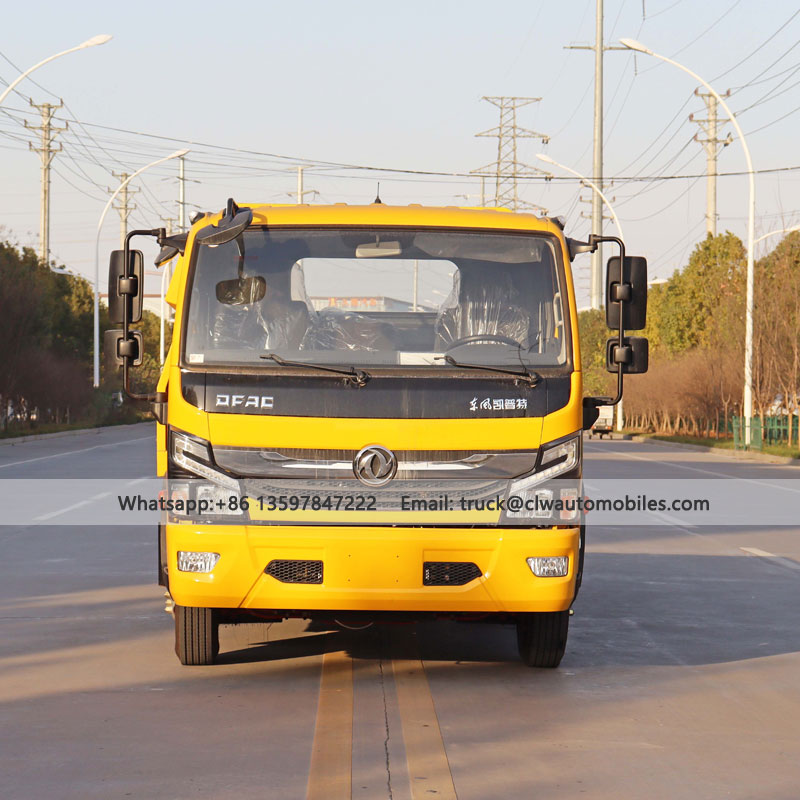

DFAC Tow Truck
DFAC Tow Truck
ISUZU Wrecker Truck
ISUZU Wrecker Truck
ISUZU Wrecker Truck
3
Parameters of Upper
Max. Loading Capacity | 4Tons | |
Flatbed Size | Length | 5.5m |
Fold-able length | 1.4m | |
Width | 2.35m | |
Thickness | 4mm | |
Winch | Capacity | 4T |
Length of wire | 25m | |
Lifting of Rear support arm | 2.5T | |
Auxiliary trolley | Two set | |
Binding belts | Four | |
Light | one | |
L-shaped trailer fork | One set | |
Rotating cylinder | One set | |
Winch of Wrecker
Washing Tank of Wrecker
4
Working

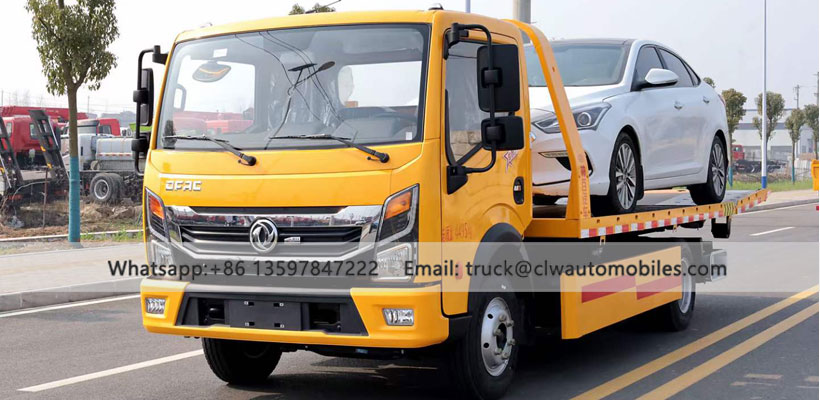

Tow Truck

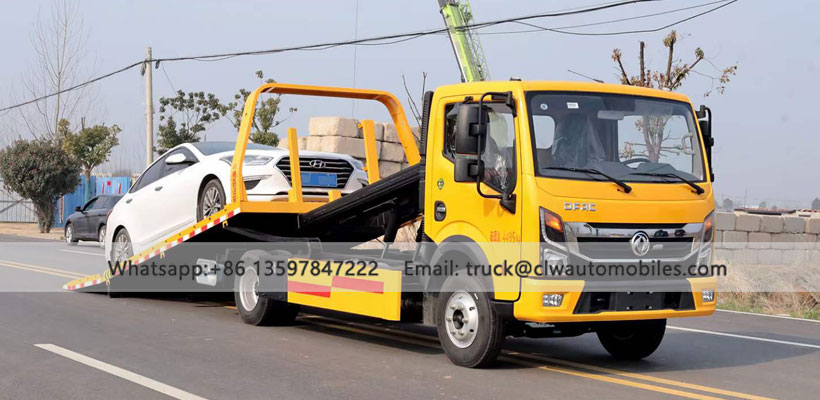

Flatbed Tow Truck
Flatbed Tow Truck
5
Instructions for Use
1. Operation of power take-off
The engagement or disengagement of the power take-off must be achieved through the clutch, that is, first depress the clutch pedal to disengage the clutch, turn on or off the power take-off, and then release the clutch pedal.
Note: The power take-off must not be forced to engage.
2. Operation of hydraulic winch
a Pull out the power take-off handle, the power take-off engages, and the oil pump works.
b Extend the flat plate to the appropriate position according to the operation sign.
c Operate the platform lifting handle to fit the platform to the ground.
d Use a chain or a fastening cable to firmly fix the wire rope in the appropriate position of the towing vehicle.
e Retract the wire rope, pull the vehicle onto the flat plate, and fix it with a hook.
3. Towing operation
a. Drive the tow truck to the appropriate position and make it in line with the towed vehicle;
b. Engage the power take-off (operation method as before)
c. Put the support arm in the appropriate position according to the operation sign
d. Extend the telescopic arm to the appropriate position (no less than 25 cm, i.e. the second hole of the telescopic arm)
e. Insert the rear bracket of the tire into the square hole of the front bracket, clamp the tire, and fix it with the front bracket with a pin
f. Use a fastening zipper to fix the tire on the bracket
g. Release the handbrake of the towed vehicle and put the gear lever in the neutral position. If the towed vehicle is lifted from the rear end, the steering wheel should be fixed and it cannot be turned;
i. Turn off the power take-off (operation method as before), tow and drive at a speed not exceeding 30km/h
j. Arrive at the designated location, put down the towed vehicle, and reset all parts.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
