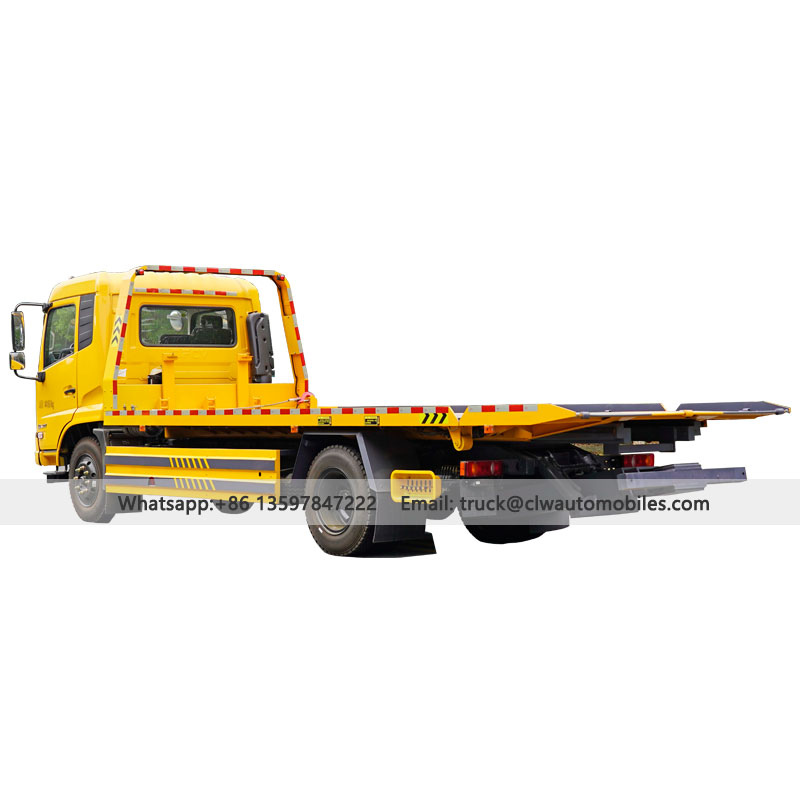

Towing Truck | Manufacturer DONGFENG 8Tons 4*2 Tow Truck With Crane

The One To Two tow truck supports hydraulic flatbed, electric winch (traction force 8 tons), tire clamp and other devices. Some models are equipped with 360° surround monitoring to adapt to narrow road operations.

BrandCLW/DONGFENG
Product originSuizhou city, Hubei Province
Delivery time55 working days after received your payment
Supply capacity50 units per month
Price30000USD-50000USD
Payment Methods30% Payment In Advance, 70% Payment Before Shipping From Factory

Tags:

Equipment usage and brief introduction

Chassis model DFH1180EX81, China VI emission standard, D530 flat-top half-cab, 5800mm wheelbase, engine B6.2NS6B210, Cummins 210 horsepower, 4.5/9T(416) front and rear axles, 8JS85E-C transmission, 4.33 speed ratio, 10.00R20×18PR tires, 8/10+8 leaf springs, 280x80x[7+4] frame section, steel 280L fuel tank, air conditioning, and dashcam.

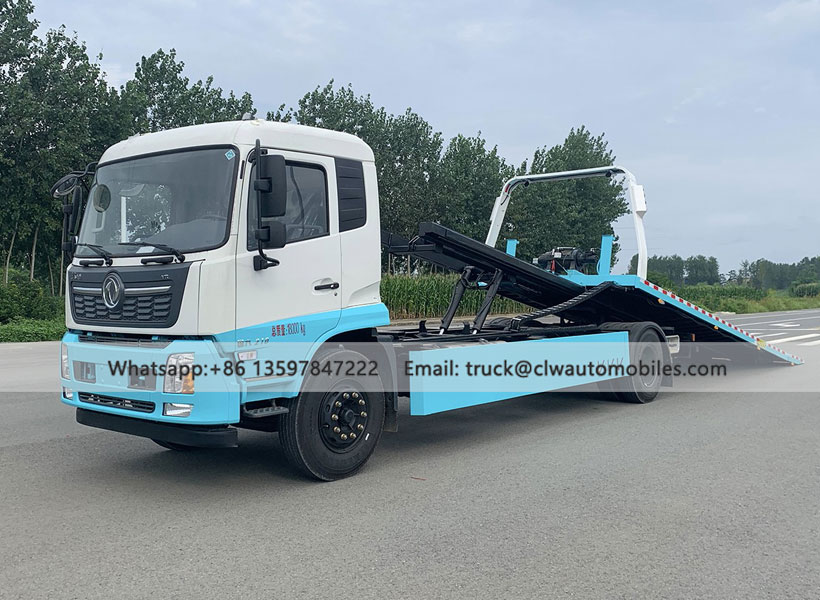

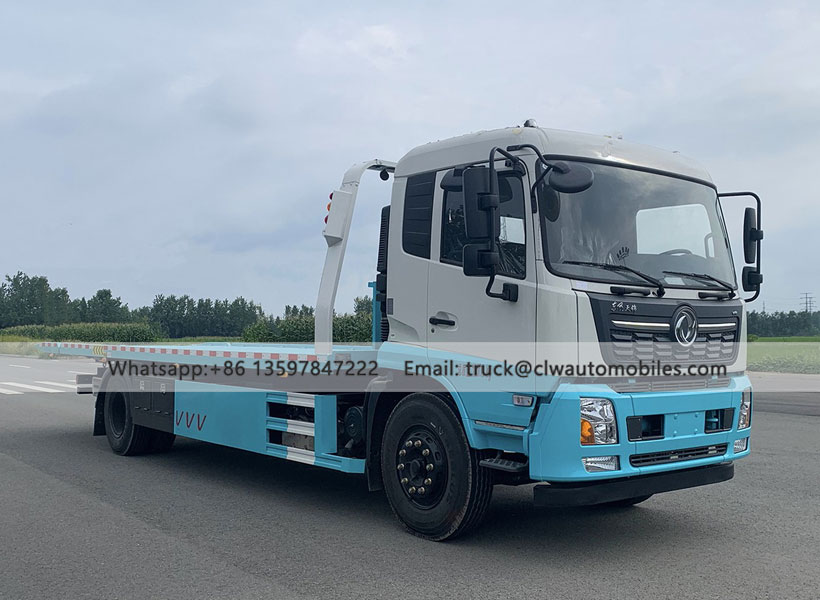

8Tons Tow Truck

Basic Parameters of DONGFENG Towing Truck

Brand of Vehicle		CLW/DONGFENG(New)
Vehicle Model		CLW5188TQZDFH6
Chassis Model		DFH1180EX81
Drive type		4×2 Left hand drive
Overall Length		10700mm
Overall width		2500mm
Overall height		2840mm
G.V.W		18000kg
Wheelbase		5800mm
Engine	Type	B6.2NS6B210 / 210HP / CUMMINS
	Emission level	Euro VI
	Maximum power	154kw
	Number of cylinders	6
	System	diesel, in-line four cylinder
Transmission	Type	FAST
	Number of gears	8-Speed
Tire specification		10.00R20 Steel wire tyre
Fuel tank		280L

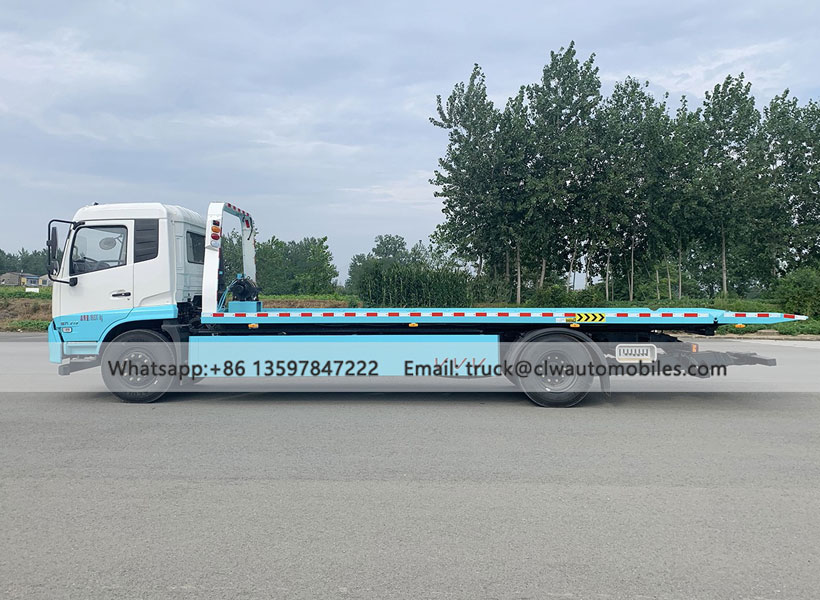

8Tons Tow Truck

Parameters of Upper For Towing Truck

Max. Loading Capacity		8Tons
Flatbed Size	Length	8.2m
	Fold-able length	2m
	Width	2.55m
	Thickness	6mm
Winch	Capacity	8T
Winch	Length of wire	25m
Lifting of Rear support arm		2.5T
Auxiliary trolley		Two set
Binding belts		Four
Light		one
L-shaped trailer fork		One set
Rotating cylinder		One set

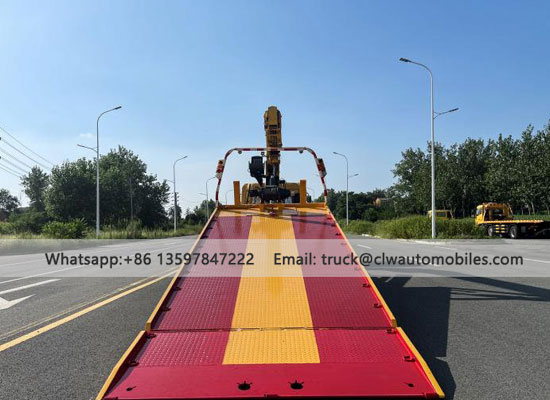

The flatbed is constructed of high-quality 5mm/6mm checkered plate, approximately 7 meters long and 2.55 meters wide. It features a 1.2-meter hydraulic tail tilt mechanism, imported hydraulic system operating valves, and slideways made of low-alloy 8mm/10mm C-section steel. The double subframes utilize a 1+1 structure of low-alloy 8mm/10mm square tubes. The flatbed telescopic system is oiled in 100g red, and the lifting cylinders are 80/90mm (all cylinders use imported seals). The rear support beam has three sections capable of carrying 8/10 tons. The 8/10-ton hydraulic reel is equipped with a pair of trailer seats, a pair of steel plate forks, a chain hook, a pair of L-shaped tire carriers, two tire fenders, two auxiliary castors, four tie-down straps, a chain hook, and a hand wash basin. An optional LED warning light is also included.

Winch of Wrecker

Washing Tank of Wrecker

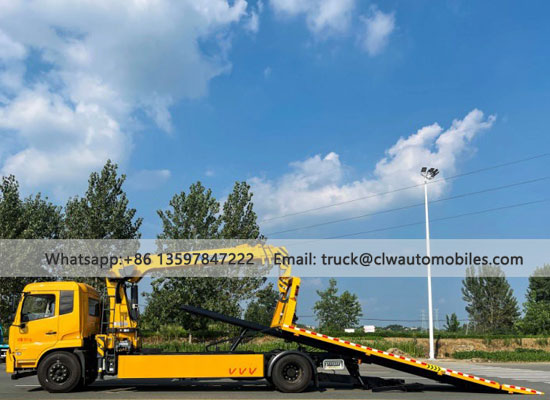

Working of Towing Truck

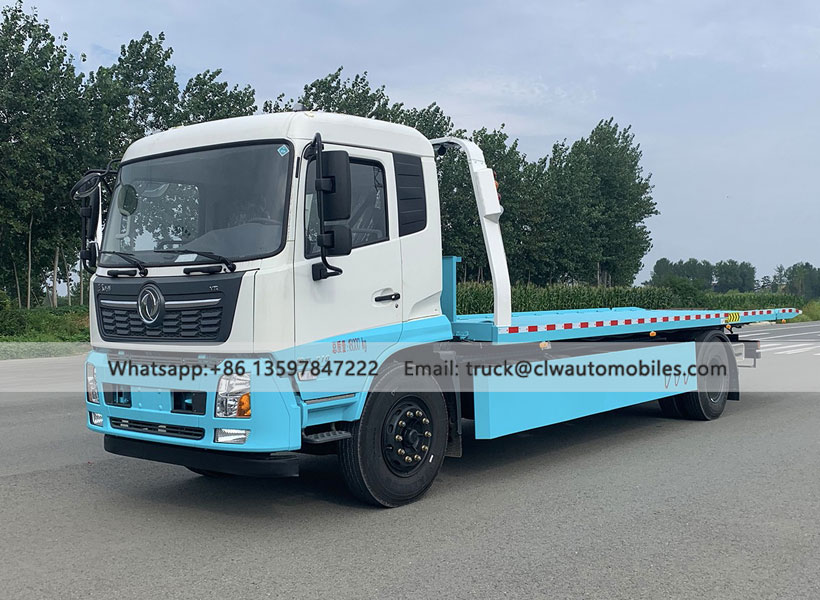

Tow Truck

Instructions for Use

1. Operation of power take-off

The engagement or disengagement of the power take-off must be achieved through the clutch, that is, first depress the clutch pedal to disengage the clutch, turn on or off the power take-off, and then release the clutch pedal.

Note: The power take-off must not be forced to engage.

2. Operation of hydraulic winch

a Pull out the power take-off handle, the power take-off engages, and the oil pump works.

b Extend the flat plate to the appropriate position according to the operation sign.

c Operate the platform lifting handle to fit the platform to the ground.

d Use a chain or a fastening cable to firmly fix the wire rope in the appropriate position of the towing vehicle.

e Retract the wire rope, pull the vehicle onto the flat plate, and fix it with a hook.

3. Towing operation

a. Drive the tow truck to the appropriate position and make it in line with the towed vehicle;

b. Engage the power take-off (operation method as before)

c. Put the support arm in the appropriate position according to the operation sign

d. Extend the telescopic arm to the appropriate position (no less than 25 cm, i.e. the second hole of the telescopic arm)

e. Insert the rear bracket of the tire into the square hole of the front bracket, clamp the tire, and fix it with the front bracket with a pin

f. Use a fastening zipper to fix the tire on the bracket

g. Release the handbrake of the towed vehicle and put the gear lever in the neutral position. If the towed vehicle is lifted from the rear end, the steering wheel should be fixed and it cannot be turned;

i. Turn off the power take-off (operation method as before), tow and drive at a speed not exceeding 30km/h

j. Arrive at the designated location, put down the towed vehicle, and reset all parts.

Opational Equipment

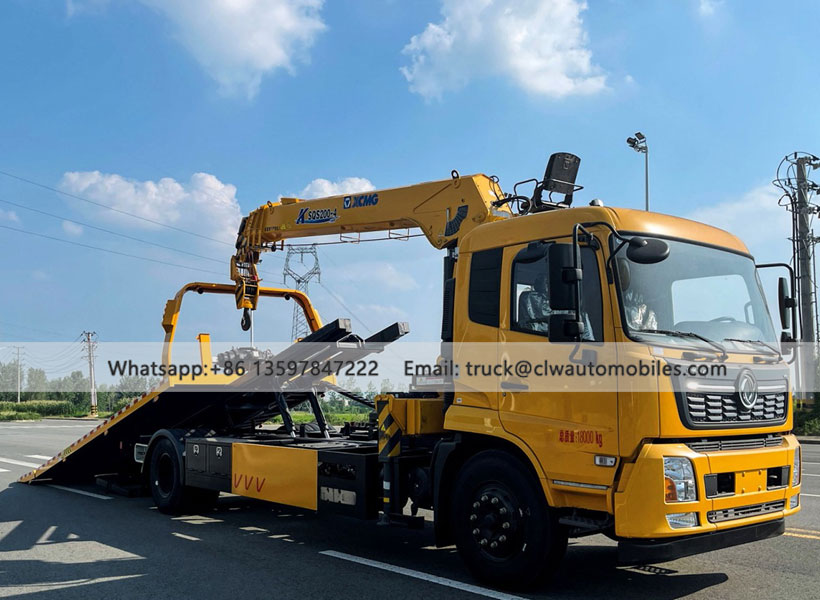

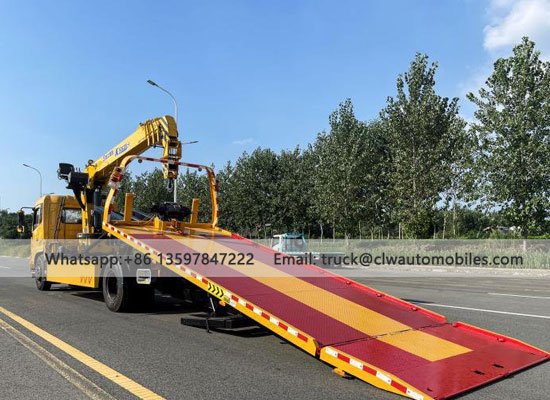

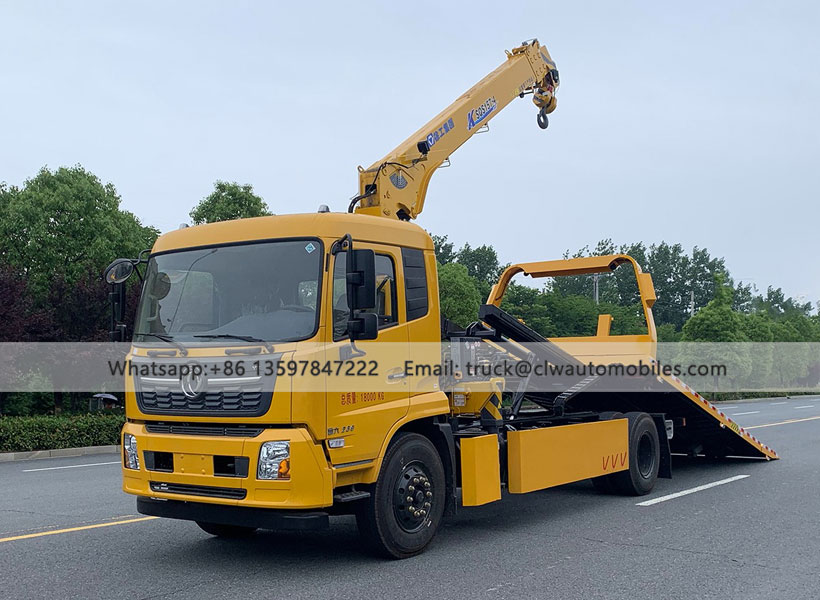

Tow Truck With Crane

What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balance
How about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.
How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
