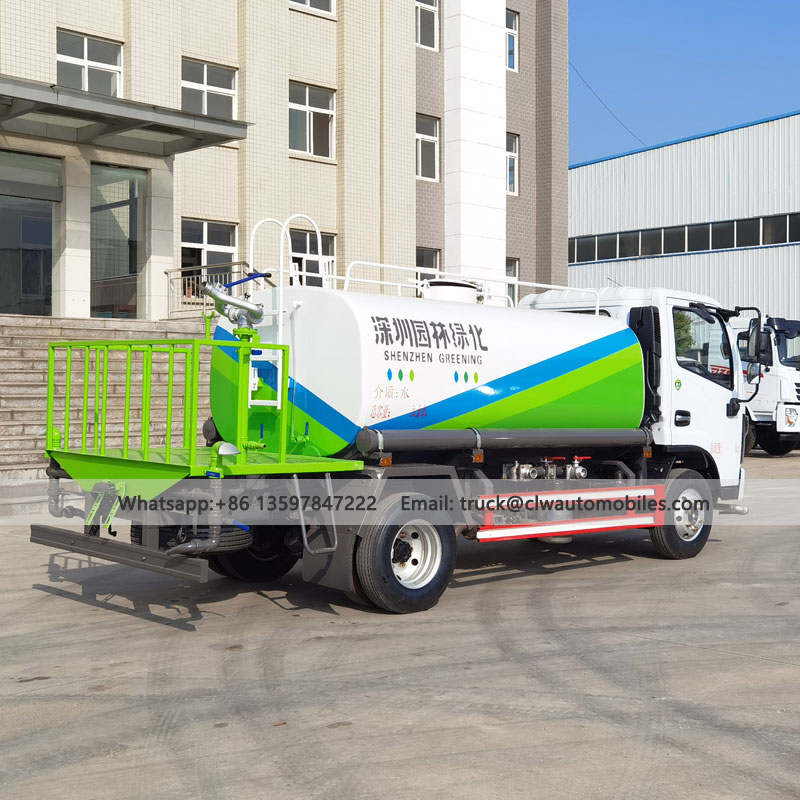

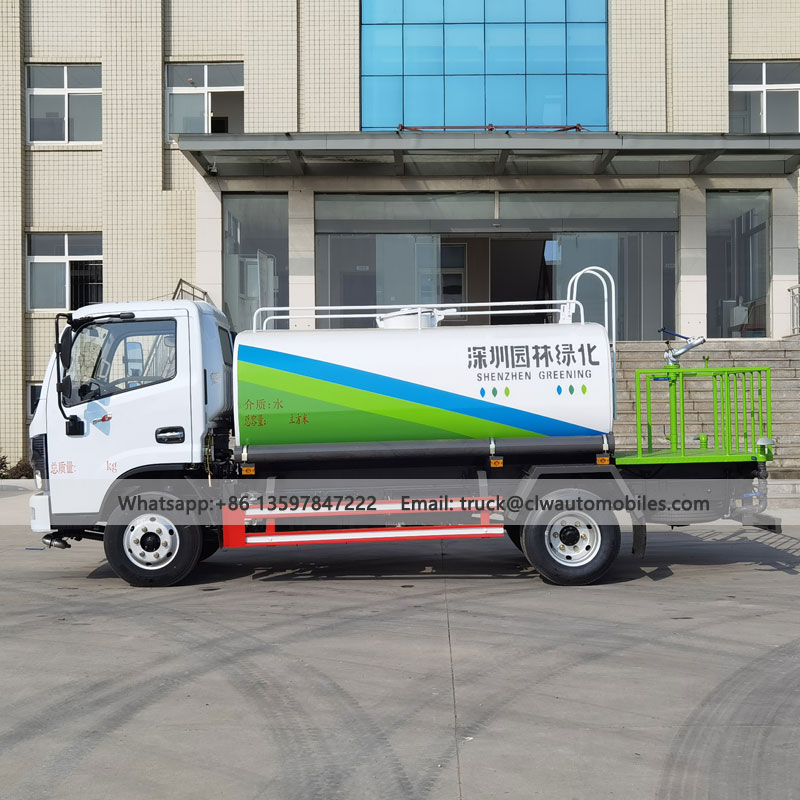

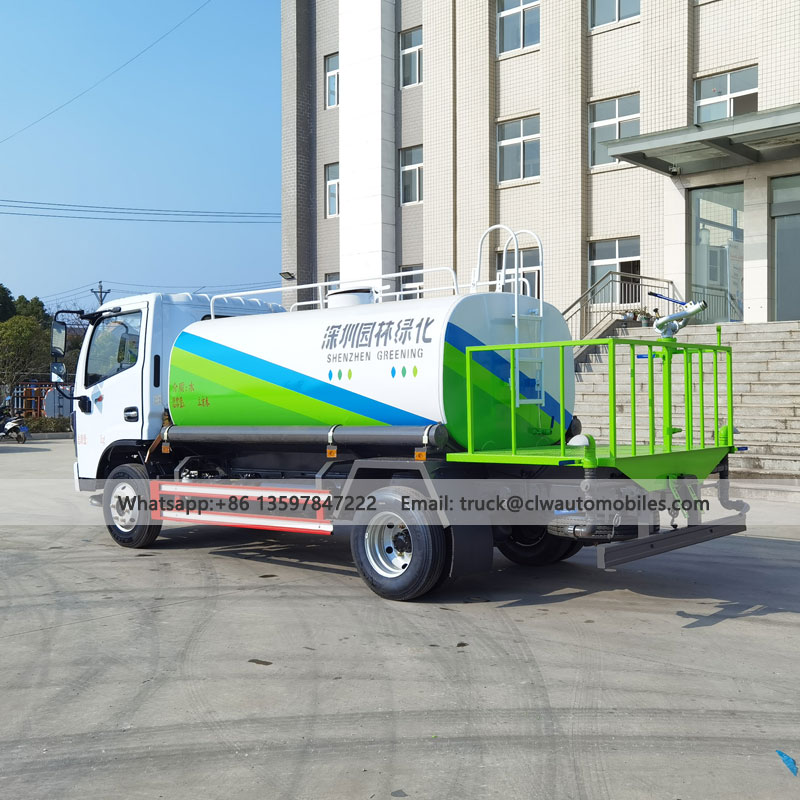

DFAC 5Tons Water Tank Truck | 4*2 5000L Water Truck For Watering
- CLW/DFAC
- Suizhou city, Hubei Province
- 55 working days after received your payment
- 100 units per month
- 8450USD-14000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of DFAC 5000L Water Truck
| Model of Vehicle | CLW5070GSSD6 | |
| Model of Chassis | EQ1075SJ3CDF | |
| Overall Size | 5990*2000*2380mm | |
| G.V.W. | 7360kg | |
| Curb Weight | 3375kg | |
| Top Speed | 110km/h | |
| Wheelbase | 3308mm | |
| Engine | Model | D20TCIF1 |
| Power | 93kw/125HP | |
| Displacement | 1999ml | |
| Fuel Type | Diesel | |
| emission | Euro VI | |
| Transmission | 5-Gear | |
| Tire | 7.00R16 | |
Optional Engine:
Model: YN4102QBZL, 115HP, Euro III.
Model: YC4FA120 33, 120HP, Euro III.
Model: LJ469Q-1AEB, 102HP, ISUZU, Euro III.
Model: D20TCIF1, 125HP, Euro VI.

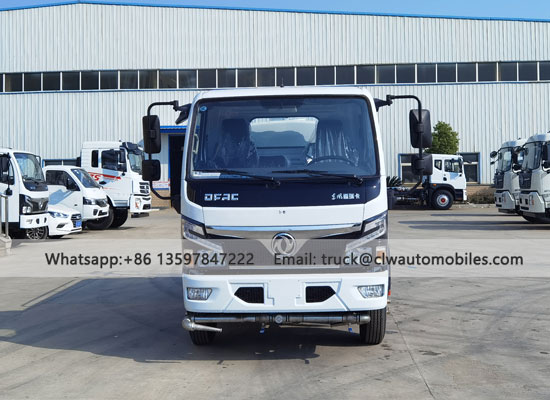

5000L Water Truck
5000L Water Truck
2
Special Function of 5000L Water Truck
| Volume of Tank | 5000L or 5Tons |
| Materials of tank and Thickness | Carbon steel, 6mm |
| Pump | Yifeng, 40/50 |
| Loading type | Self Loading |
| Control | Manual(Auto) |
| Self priming height | ≤7m |
| Sprinker width | ≥20m |
| Maximum range | ≥28m |

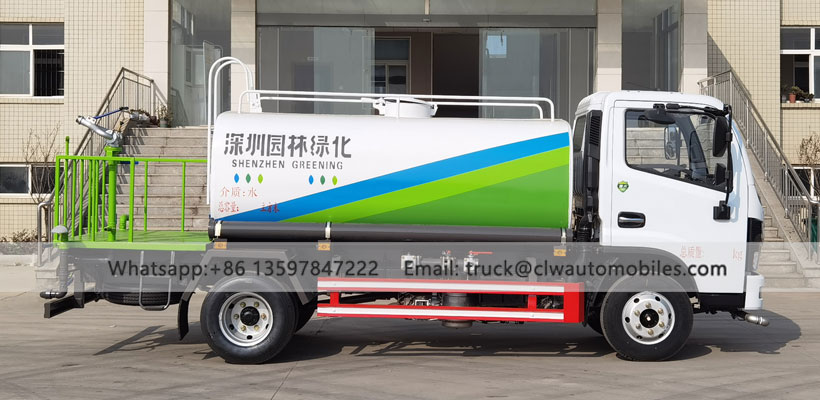

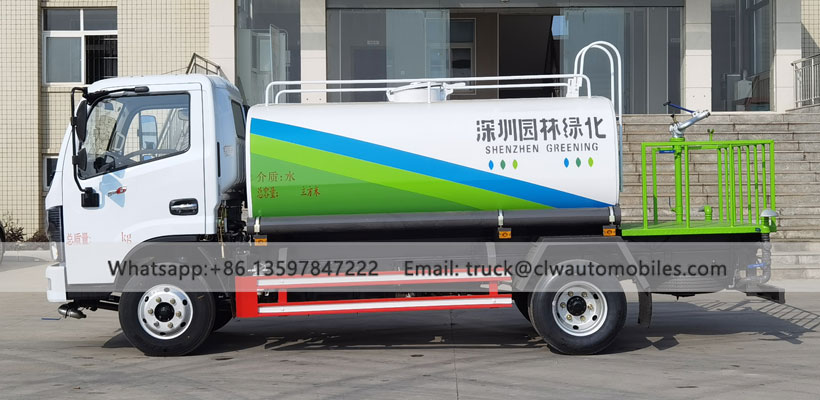

Water Tank Truck
Water Tank Truck
Water Tank Truck
Spraying System Configuration
Basic Functions: Standard front spray (width 14-15 meters), rear spray, side spray, and a 360-degree adjustable landscaping water cannon with a range of 25-30 meters.
Expanded Configurations: Optional 30m/40m air cylinder fog cannon (with dust suppression or pesticide spraying capabilities). The rear work platform supports a high-pressure water cannon (range over 30 meters).
Water Pump Performance: High-power dedicated water pump with a flow rate of 40 cubic meters per hour, a head of 50-90 meters, and supports fire-fighting water intake.
Water trucks are suitable for washing various roads, greening trees, green belts, lawns, roads, factory and mine construction, and high-altitude building washing. They have functions such as sprinkling water, suppressing dust, spraying at high and low positions, spraying pesticides, washing guardrails, and also have functions such as water transportation, drainage, and emergency firefighting.
Ball Valve
Adopt stainless steel large diameter ball valve, which has larger flow and longer service life.
Flange Pad
It uses a thickened 6-hole flange and original rubber sealing gasket to ensure that it will not be damaged during use.
Integral Pipe
The unibody aluminum alloy pipes offer a beautiful appearance.
An enlarged 80-type four-position tee is used to ensure adequate water flow to the pump.
PTO
Using an original or Jiashan power take-off (PTO) reduces the risk of failure and significantly reduces oil leaks, abnormal noise, and other issues.
Water Pump
Uses a renowned brand water pump.
The water seal is constructed of alloy steel + silicon carbide, minimizing the risk of failure.
3
Applicable Scenarios
Typical Uses: Urban road washing, green belt irrigation, construction site dust suppression, and emergency firefighting.
Advantages: Its compact size (6.0 × 2.0 × 2.4 m) allows it to access confined areas such as residential communities and townships.
4
Function

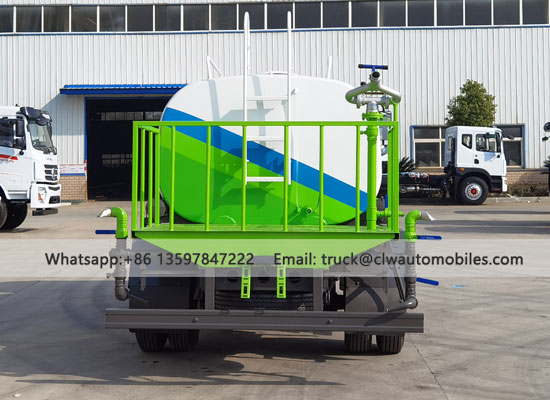

Water Truck
Water Truck
Water Truck
Water Truck
5
Video
Water Truck
Water Truck
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
