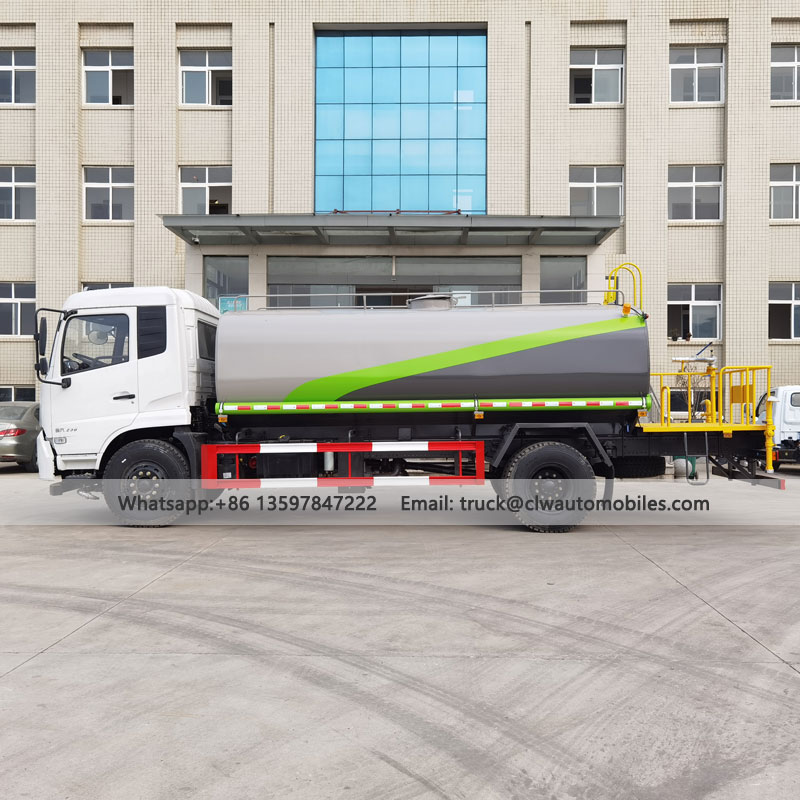

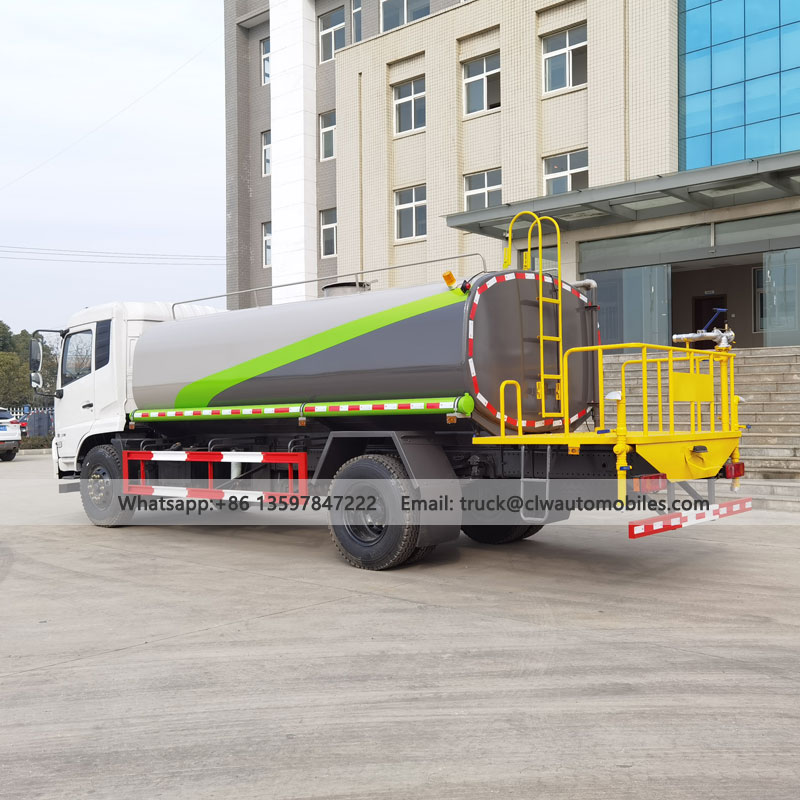

DONGFENG KR 15000L Water Trucks | 15Tons New Watering Truck Supply

Optional Engine:

Model: B190, 190HP, Euro III.

Model: C210 33, 210HP, Euro III.

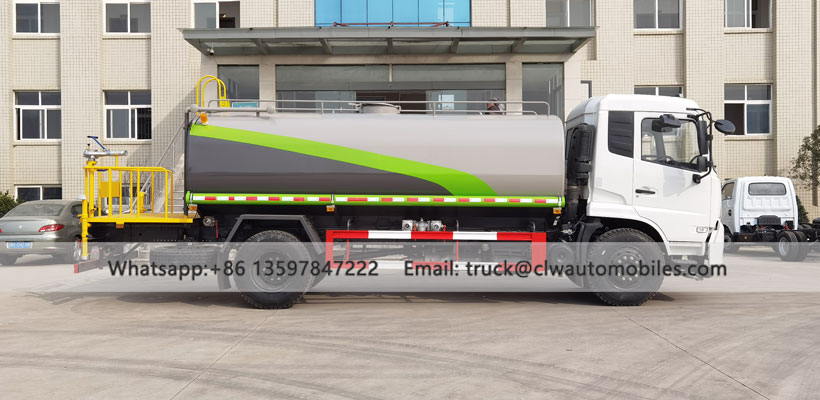

15000L Water Trucks

15000L Water Trucks

15000L Water Trucks

15000L Water Trucks

15000L Water Trucks

Spraying System Configuration

‌Basic Functions‌: Standard front spray (width 14-15 meters), rear spray, side spray, and a 360-degree adjustable landscaping water cannon with a range of 25-30 meters.

‌Expanded Configurations‌: Optional 30m/40m air cylinder fog cannon (with dust suppression or pesticide spraying capabilities). The rear work platform supports a high-pressure water cannon (range over 30 meters).

‌Water Pump Performance‌: High-power dedicated water pump with a flow rate of 40 cubic meters per hour, a head of 50-90 meters, and supports fire-fighting water intake.

Ball Valve

Adopt stainless steel large diameter ball valve, which has larger flow and longer service life.

Flange Pad

It uses a thickened 6-hole flange and original rubber sealing gasket to ensure that it will not be damaged during use.

Integral Pipe

The unibody aluminum alloy pipes offer a beautiful appearance.

An enlarged 80-type four-position tee is used to ensure adequate water flow to the pump.

PTO

Using an original or Jiashan power take-off (PTO) reduces the risk of failure and significantly reduces oil leaks, abnormal noise, and other issues.

Water Pump

Uses a renowned brand water pump.

The water seal is constructed of alloy steel + silicon carbide, minimizing the risk of failure.

Typical Uses: Urban road washing, green belt irrigation, construction site dust suppression, and emergency firefighting.

Water Truck

Water Truck

Water Truck

Water Truck

(1) The maintenance of the vehicle chassis and supporting pumps shall be carried out in accordance with the corresponding instruction manual.

(2) The vehicle shall be run-in according to the requirements of the vehicle instruction manual before use.

(3) When transporting the vehicle for long distances, the vehicle shall be equipped with fixed anti-skid devices at the front, back, left and right sides, and a gap of more than 200mm shall be left on all sides. If the vehicle is transported by itself, the front nozzle and rear sprinkler shall generally be removed to prevent loosening and loss.

(4) Check the outlet holes and ports for blockage regularly. If any blockage is found, it shall be cleaned in time.

(5) After each shift, the oil stains shall be cleaned, the pipes shall be neatly rolled up, the site shall be cleaned, and the doors shall be closed and locked.

(6) When the vehicle is not used for a long time or stored in winter, the remaining water in the tank, pump and pipes shall be drained. When stored, it shall be parked in the carport and wiped clean to avoid exposure to the sun and rain.
