HOWO 30000L Water Truck | 30Tons Water Tank Truck Supply
- CLW/HOWO
- Suizhou city, Hubei Province
- 55 working days after received your payment
- 50 units per month
- 55000USD-60000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of HOWO 30000L Water Truck
| Model of Vehicle | CLW5310GPSBBS | |
| Model of Chassis | ZZ5316XXYN466GF1 | |
| Overall Size | 11360*2550*3320mm | |
| G.V.W. | 31000kg | |
| Curb Weight | 12640kg | |
| Top Speed | 89km/h | |
| Wheelbase | 1800+3775+1400mm | |
| Engine | Model | D10.38-50 |
| Power | 276kw/380HP | |
| Displacement | 9726ml | |
| Fuel Type | Diesel | |
| emission | Euro V | |
| Transmission | 12-Gear | |
| Tire | 12.00R20 | |

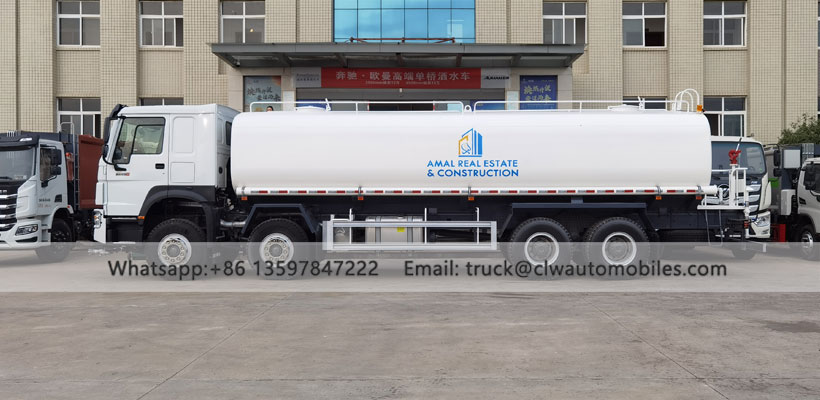

30000L Water Truck
30000L Water Truck
2
Special Function of 5000L Water Truck
| Volume of Tank | 30000L or 30Tons |
| Materials of tank and Thickness | Carbon steel, 6mm |
| Pump | Yifeng, 50/110 |
| Loading type | Self Loading |
| Control | Manual(Auto) |
| Self priming height | ≤7m |
| Sprinker width | ≥20m |
| Maximum range | ≥28m |

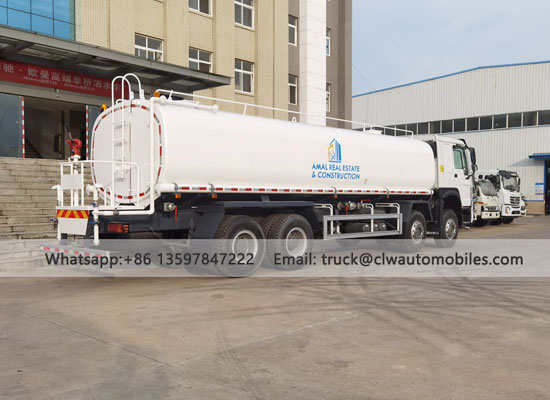

30000L Water Truck

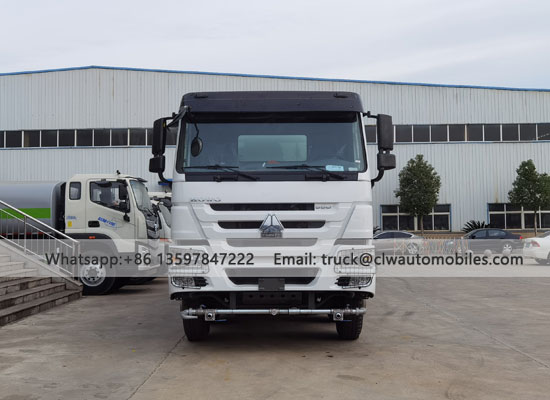

Water Tank Truck
Water Tank Truck
Spraying System Configuration
Basic Functions: Standard front spray (width 14-15 meters), rear spray, side spray, and a 360-degree adjustable landscaping water cannon with a range of 25-30 meters.
Expanded Configurations: Optional 30m/40m air cylinder fog cannon (with dust suppression or pesticide spraying capabilities). The rear work platform supports a high-pressure water cannon (range over 30 meters).
Water Pump Performance: High-power dedicated water pump with a flow rate of 40 cubic meters per hour, a head of 50-90 meters, and supports fire-fighting water intake.
Ball Valve
Adopt stainless steel large diameter ball valve, which has larger flow and longer service life.
Flange Pad
It uses a thickened 6-hole flange and original rubber sealing gasket to ensure that it will not be damaged during use.
Integral Pipe
The unibody aluminum alloy pipes offer a beautiful appearance.
An enlarged 80-type four-position tee is used to ensure adequate water flow to the pump.
PTO
Using an original or Jiashan power take-off (PTO) reduces the risk of failure and significantly reduces oil leaks, abnormal noise, and other issues.
Water Pump
Uses a renowned brand water pump.
The water seal is constructed of alloy steel + silicon carbide, minimizing the risk of failure.
3
Applicable Scenarios
Typical Uses: Urban road washing, green belt irrigation, construction site dust suppression, and emergency firefighting.
4
Function

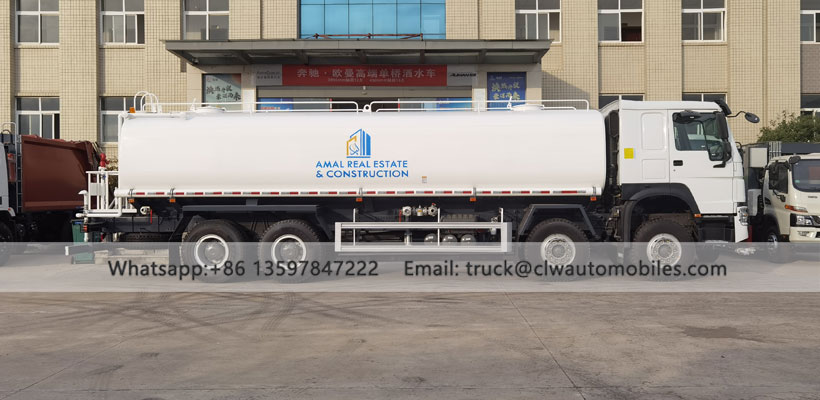

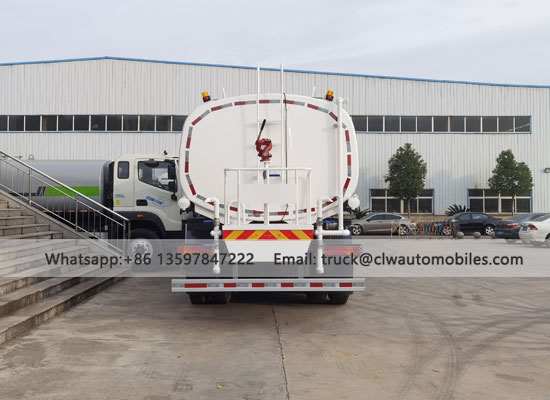

Water Truck
Water Truck
Water Truck
Water Truck
5
Video
Water Truck
Water Truck
6
Repair and Maintenance For Water Tanker
(1) The maintenance of the vehicle chassis and supporting pumps shall be carried out in accordance with the corresponding instruction manual.
(2) The vehicle shall be run-in according to the requirements of the vehicle instruction manual before use.
(3) When transporting the vehicle for long distances, the vehicle shall be equipped with fixed anti-skid devices at the front, back, left and right sides, and a gap of more than 200mm shall be left on all sides. If the vehicle is transported by itself, the front nozzle and rear sprinkler shall generally be removed to prevent loosening and loss.
(4) Check the outlet holes and ports for blockage regularly. If any blockage is found, it shall be cleaned in time.
(5) After each shift, the oil stains shall be cleaned, the pipes shall be neatly rolled up, the site shall be cleaned, and the doors shall be closed and locked.
(6) When the vehicle is not used for a long time or stored in winter, the remaining water in the tank, pump and pipes shall be drained. When stored, it shall be parked in the carport and wiped clean to avoid exposure to the sun and rain.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
