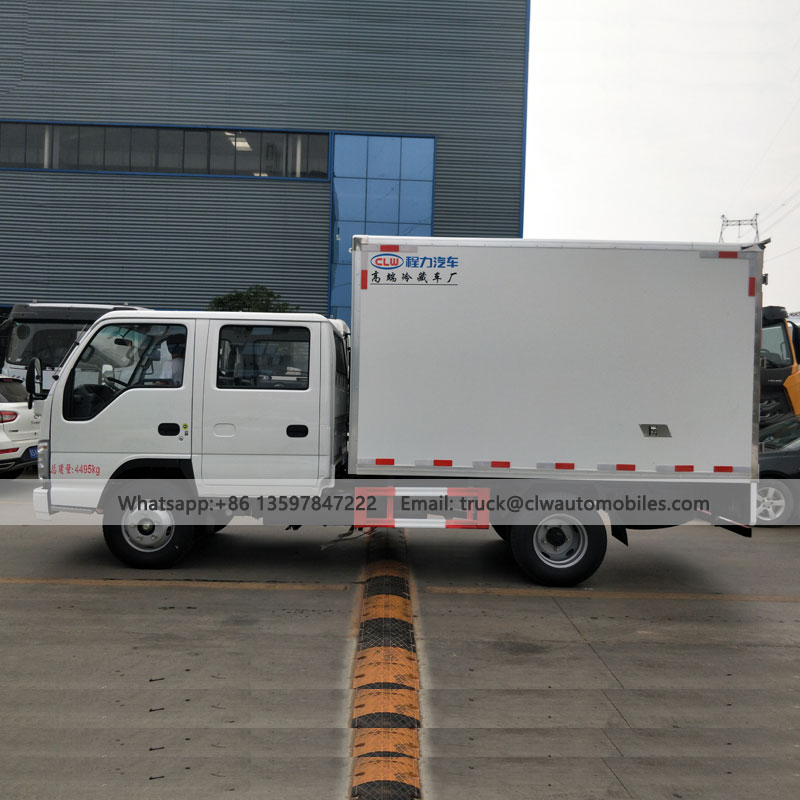

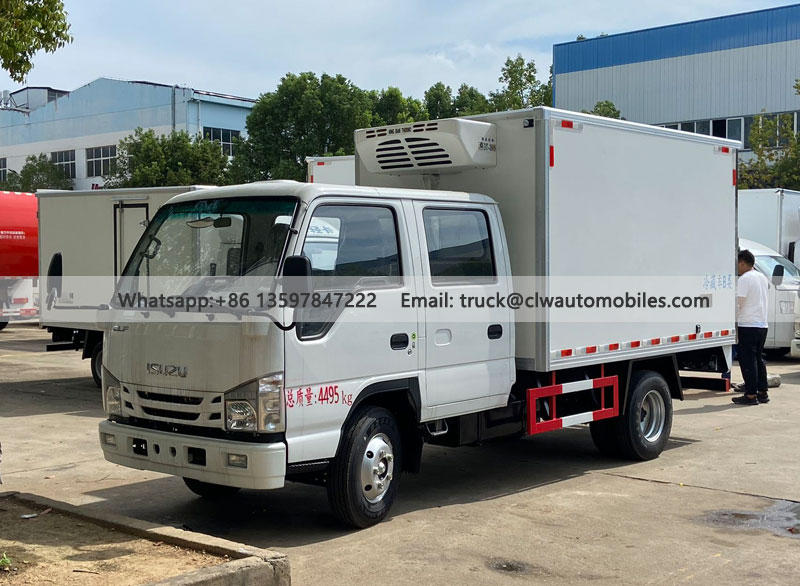

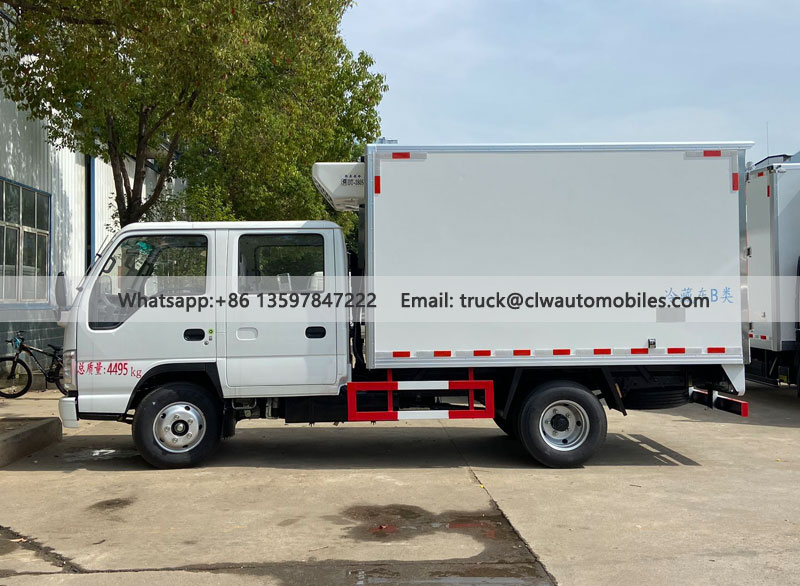

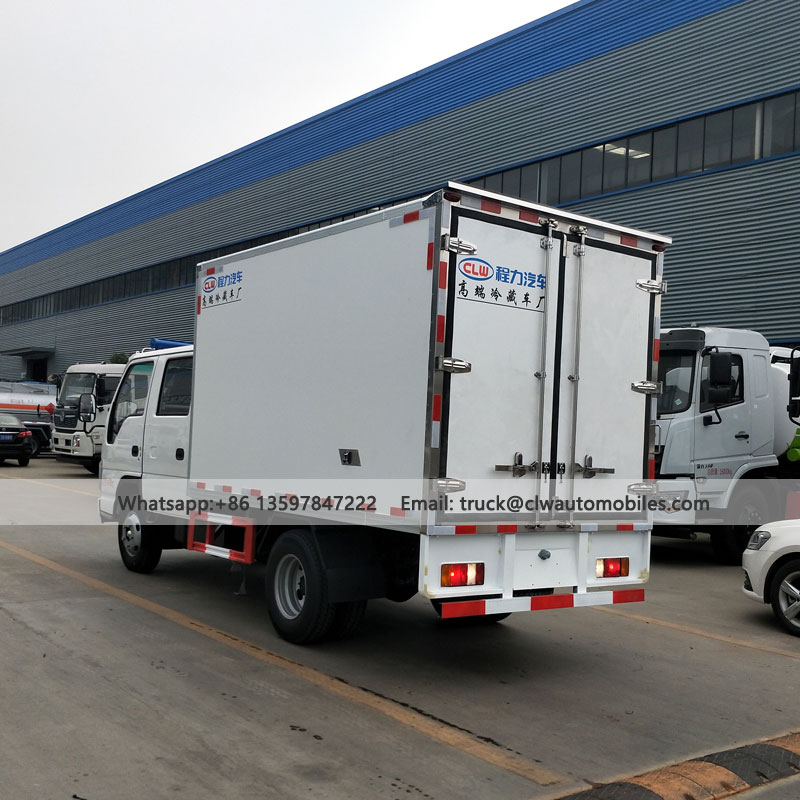

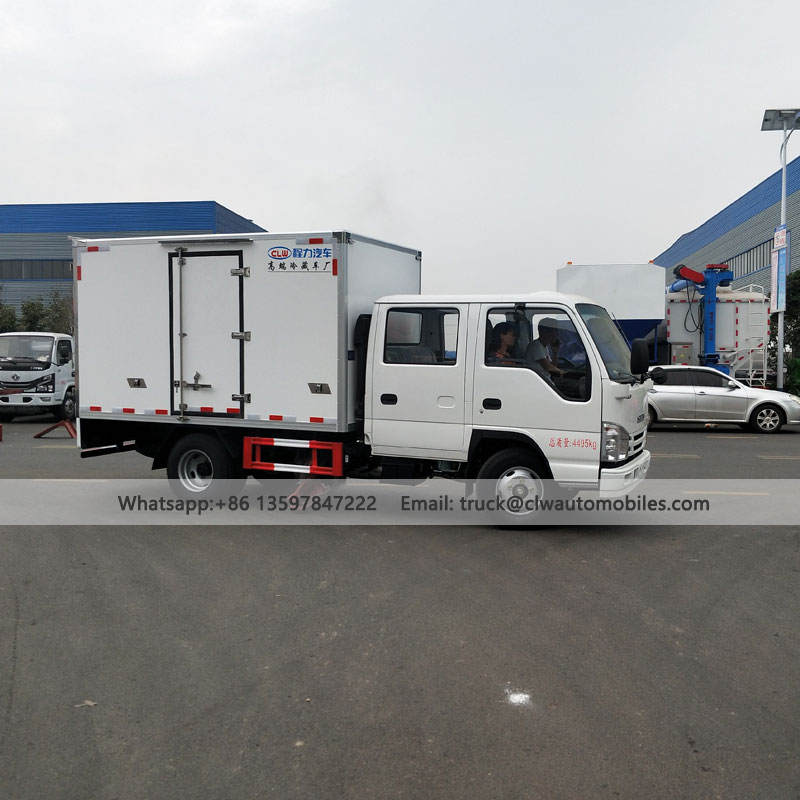

ISUZU Double Cabin Refrigerated Truck
1
Basic Parameters of ISUZU Double Cabin Refrigerated Truck
Chassis and power of ISUZU Double Cabin Refrigerated Truck
The chassis is Qingling Isuzu QL1040BUHWY, equipped with a 4KH1CN6LB engine, 120 horsepower, matched with a 5-speed gearbox, and meets the National VI emission standards.
The wheelbase is 3360mm, the tire specification is 700 steel tire, the hydraulic brake system is adopted, and the ABS anti-lock device is equipped.
Cargo box and thermal insulation performance

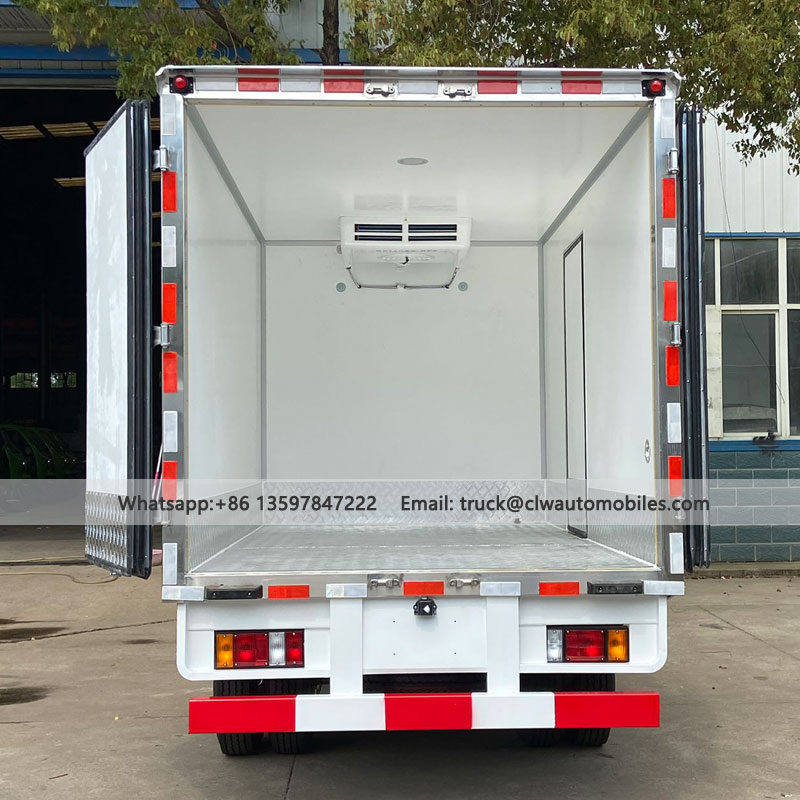

The size of the cargo box is 3150×1750×1750mm (about 3.15 meters long), the inner and outer layers are made of fiberglass, the middle is filled with an 8cm polyurethane insulation layer, and the bottom is paved with aluminum patterned plates.
| General | Truck Brand | CLW/ISUZU |
| Condition | Brand new | |
| Vehicle Model | CLW5041XLCQL6 | |
| Chassis Model | QL1040BUHWY | |
| Overall Size | 5995*1930*2870mm | |
| Van Size | 3150*1750*1750mm | |
| Total Weight | 4495kg | |
| Curb Weight | 3360kg | |
| Rated Loading Capacity | 1260kg | |
| Wheelbase | 3360mm | |
| Drive Type | 4*2, LHD | |
| Engine | Model | 4KH1CN6LB |
| Power | 88kw/120HP | |
| Displacement | 2999ml | |
| Emission Standard | Euro VI | |
| Tires | Size | 7.00R16 |
| Number | 6+1 | |
| Transmission | Type | Manual |
| Number of Gears | 6-gear | |
| Fuel | Type | Diesel |
| Capacity | 125L | |
| Axle | Front | 2.7T |
| Rear | 5.5T |
2
Technical Parameters of Insulation Van
| Size of Insulation Van | 3150*1750*1750mm | |
| Side Door | one | |
| Side Panel | 2mm Thermoplastic fiberboard | |
| Insulation | 8cm thick polyurethane foam. | |
Bottom Pane | 1mm Aluminium checkered plate. | |
Door lock | Stainless steel | |
| Refrigerator uint | Bran | KC-480 |
Temperatur | 10℃ to -18℃ | |
3
Inside of Cabin OF ISUZU Double Cabin Refrigerated Truck

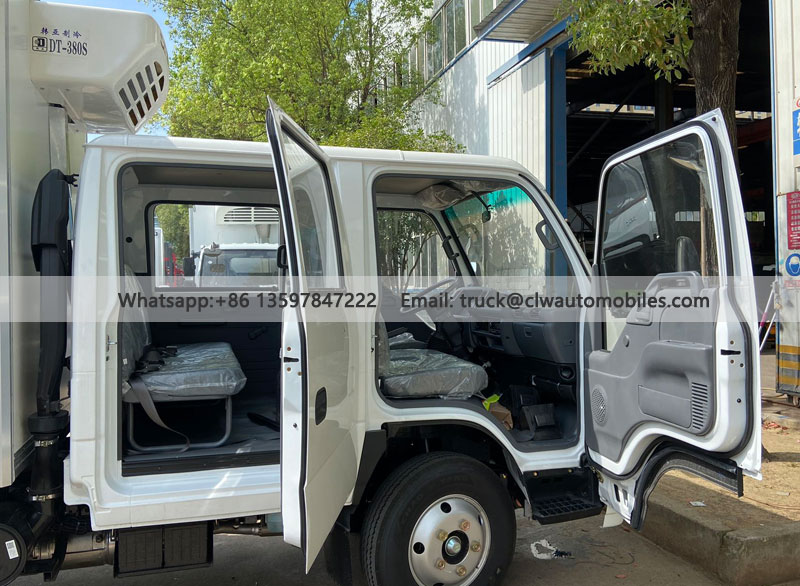

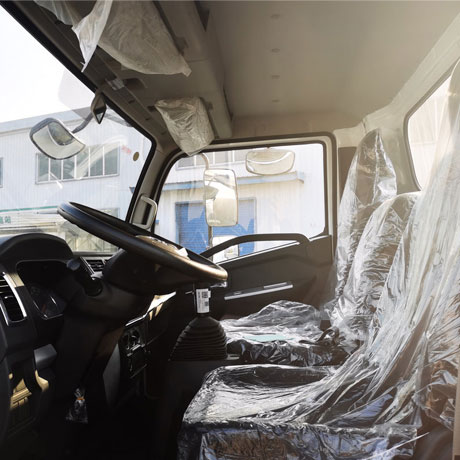

Cabin

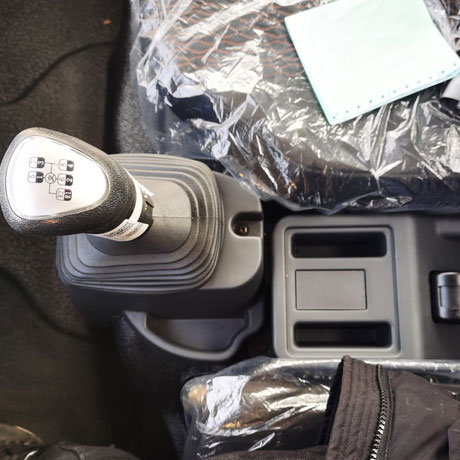

Gear

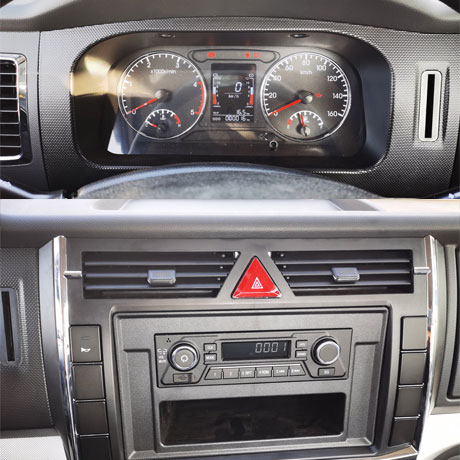

Center Control
4
Details of Chassis

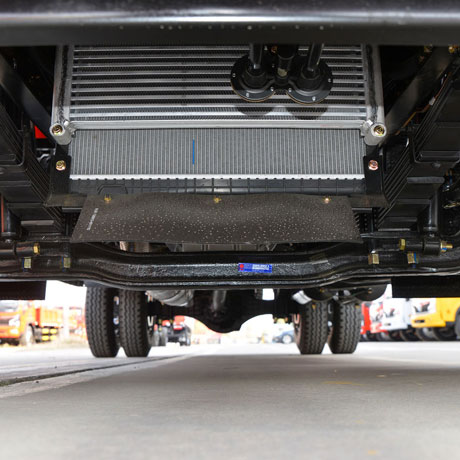

Bottom of Chassis

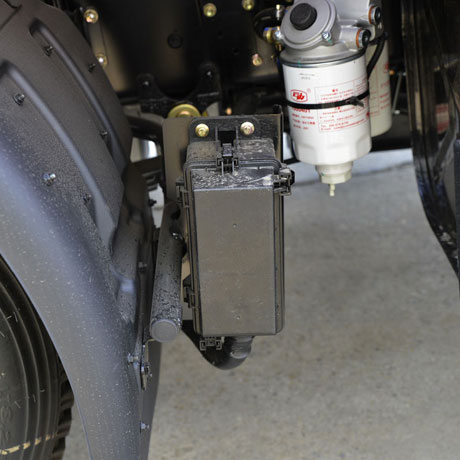

Filter

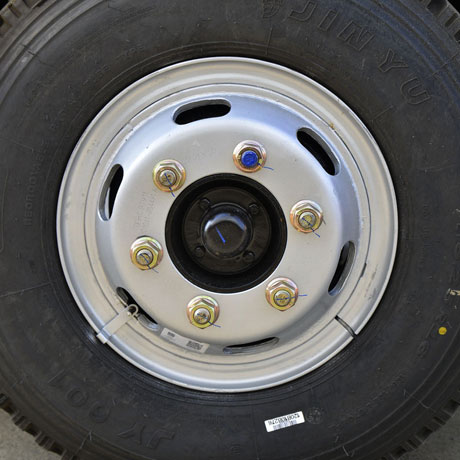

Tire
5
Standard Equipment
SIDE DOOR
The side doors of the box body are bonded with fully enclosed polyurethane panels. Stainless steel corners and thickened aluminum alloy edges are used at the joints between the side doors and the box body to ensure sealing and reduce air leakage.
The thickness of the side door is uniformly 80mm (consistent with the box body) and the width is about 1840mm, which meets the requirements of forklift loading and unloading.
Refrigerated Unit
The refrigeration unit is equipped with domestic units such as Hanxue and Kairui, which support conventional cold chain temperature control from -5℃ to -18℃, with high cost performance, suitable for urban distribution and short-distance transportation scenarios.
High-end units can be equipped with imported units such as Carrier, Thermo King , suitable for strict temperature control requirements such as medicine and deep-frozen food, with faster cooling speed and temperature fluctuation ≤±2℃.
DOOR LOCK
The door lock is made of 304/316 stainless steel, with a polished or brushed surface to adapt to the high humidity environment of cold chain transportation and is not easy to rust or deform after long-term use.
The door lock is equipped with a 3-5-point linkage lock to improve the sealing of the door and reduce the risk of air conditioning leakage.
Rubber Seal strip
It adopts a 5-blade structure with aluminum alloy strips, and enhances the sealing effect through multi-level contact surfaces to reduce cold air leakage.
EPDM: Excellent low temperature resistance (withstands extreme environment of -40℃), strong anti-aging, not easy to harden or crack after long-term use, widely used in pharmaceutical and deep-cold food transportation scenarios.

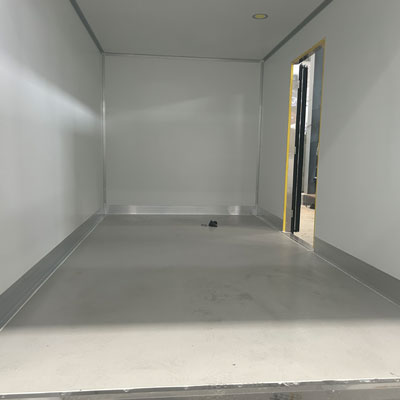

aluminum patterned plate
Anti-slip and wear-resistant : The surface of the aluminum patterned plate adopts a concave and convex pattern design, which significantly improves the anti-slip performance during cargo loading and unloading, and is especially suitable for transporting fresh, frozen and other easy-to-slide cargo scenes. Lightweight and corrosion-resistant : Made of aluminum alloy, it has both lightweight (about 20%-30% lighter than traditional steel plates) and corrosion-resistant properties, and is suitable for cold chain transportation in high humidity environments.
6
Optional Equipment

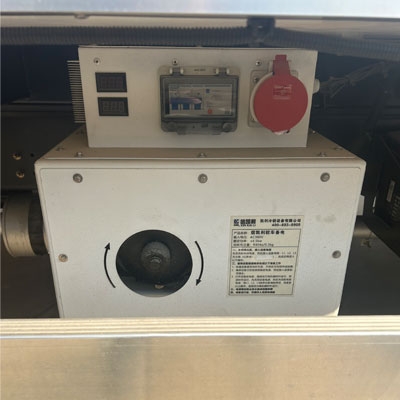

Emergency Power Supply
The emergency power supply of the refrigerated truck uses an external power supply (220V/380V) to drive an independent compressor, which keeps the refrigeration unit running when the vehicle is turned off or the engine fails, ensuring a constant temperature in the cargo compartment.
The emergency system of the refrigerated truck is linked to the original vehicle condenser through an independent refrigerant pipeline to achieve an uninterrupted refrigeration cycle, which is suitable for temporary parking or fault repair scenarios in long-distance transportation.

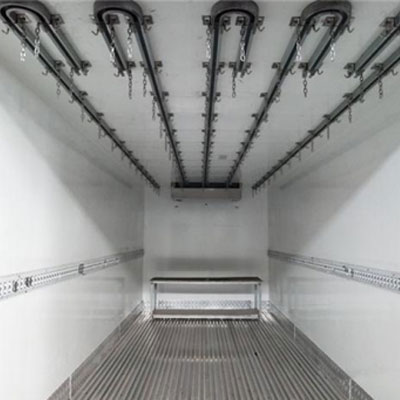

Meat Hook
The meat hook system achieves 360° circulation coverage of cold air by hanging white strips of meat (spacing ≥30cm), ensuring that the temperature of meat is stable at -15~-18℃ during transportation to prevent oxidation and deterioration.
The spacing of the horizontal bars on the top of the box is increased to 0.45 meters, and the detachable guide rails are made of stainless steel or aluminum alloy, which supports quick disassembly and assembly.
7
Pictures
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
