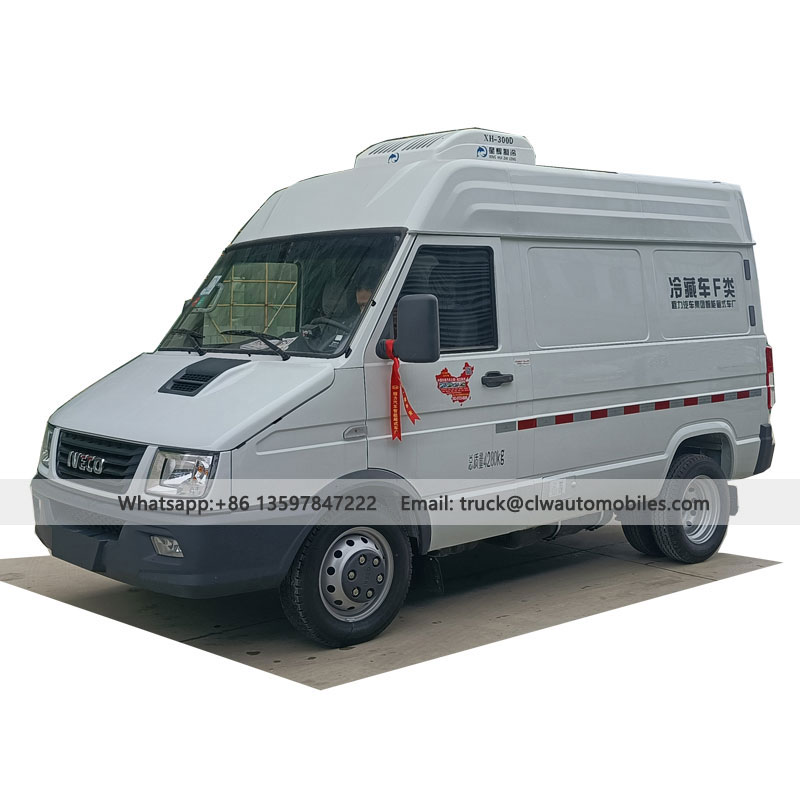

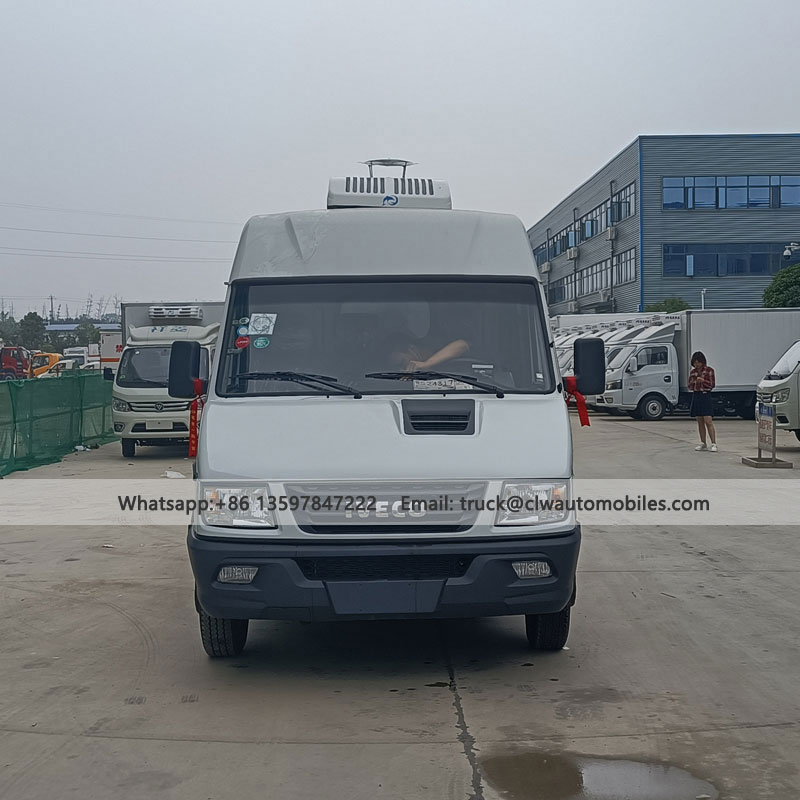

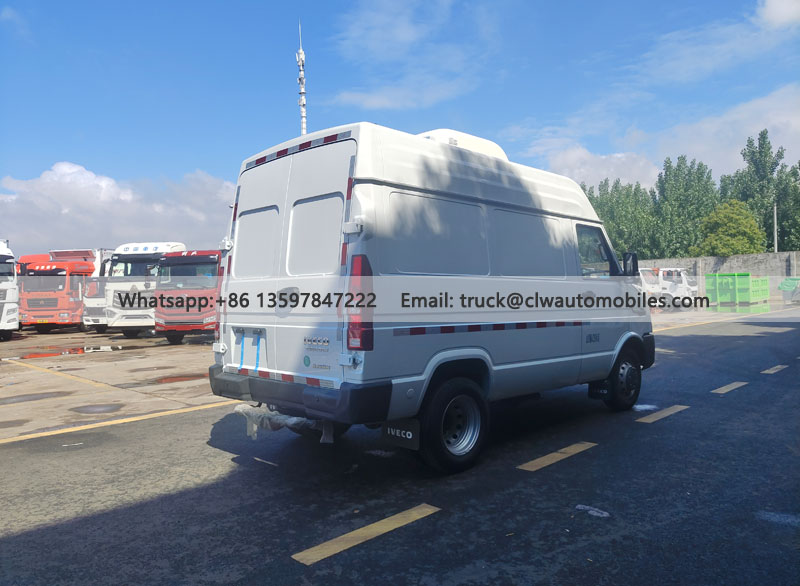

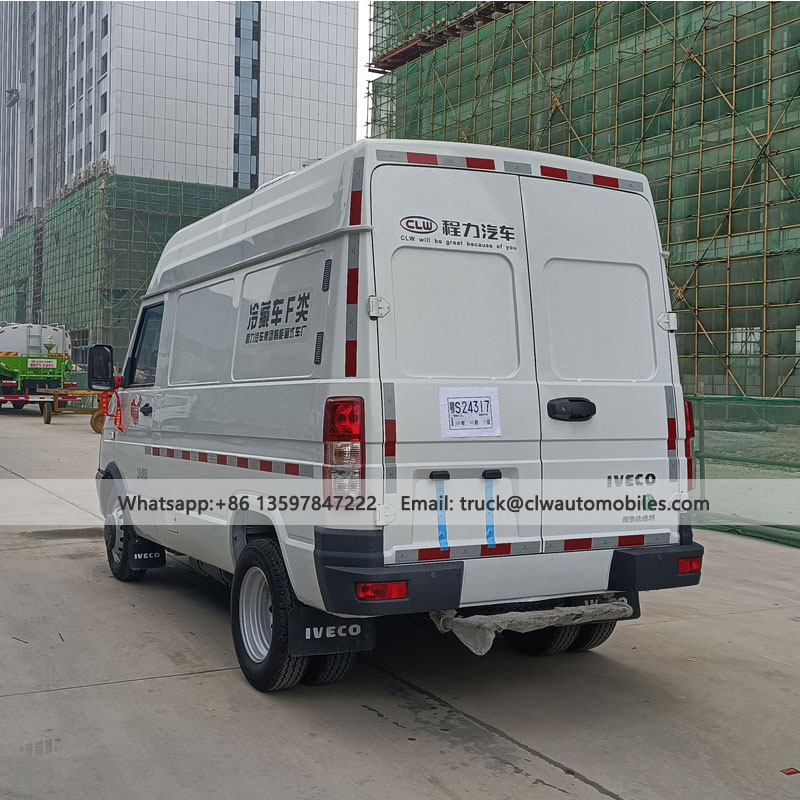

IVECO Van 2Tons Refrigerator Truck
- CLW/IVECO
- Suizhou
- 60 days
- 50 units per month
1
Basic Parameters of IVECO Van 2Tons Refrigerator Truck
| General | Truck Brand | CLW/IVECO |
| Condition | Brand new | |
| Vehicle Model | CLW5040XLCNJ6 | |
| Chassis Model | NJ5046XXYQZA | |
| Overall Size | 4875*2000*2730mm | |
| Van Size | 2150*1640*1550mm | |
| Total Weight | 4280kg | |
| Curb Weight | 2460kg | |
| Rated Loading Capacity | 1625kg | |
| Wheelbase | 2800mm | |
| Drive Type | 4*2, LHD | |
| Engine | Model | SOFIM8140.47Z6 |
| Power | 90kw/140HP | |
| Displacement | 2499ml | |
| Emission Standard | Euro VI | |
| Tires | Size | 195/75R16LT 10PR |
| Number | 6+1 | |
| Transmission | Type | Manual |
| Number of Gears | 5-gear | |
| Fuel | Type | Diesel |
| Capacity | 125L | |
| Axle | Front | 1.5T |
| Rear | 3T |
2

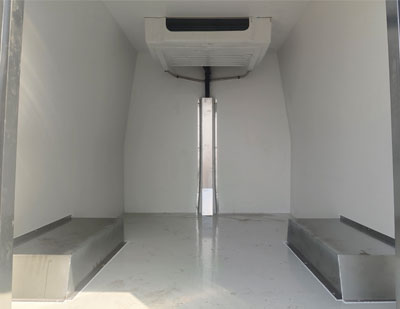

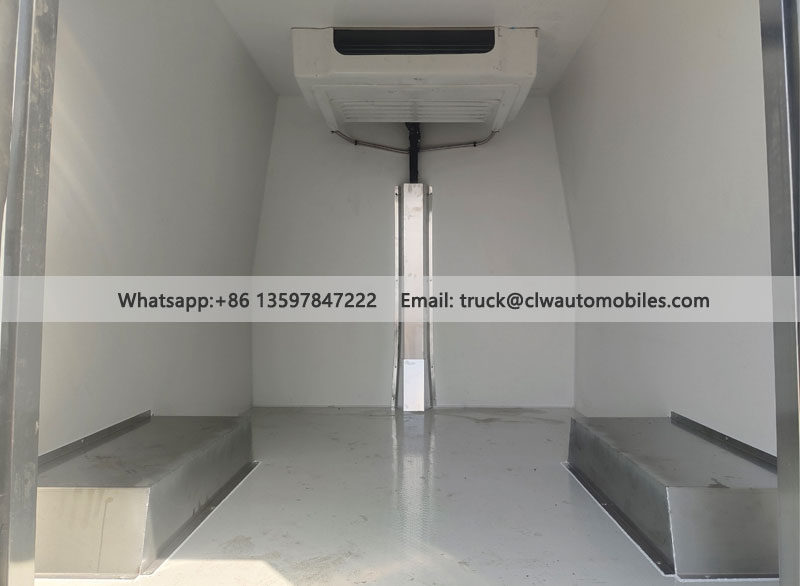

Technical Parameters of Insulation Van
| Size of Insulation Van | 2150*1640*1550mm | |
| Side Door | one | |
| Side Panel | 2mm Thermoplastic fiberboard | |
| Insulation | 8cm thick polyurethane foam. | |
Bottom Pane | 1mm Aluminium checkered plate. | |
Door lock | Stainless steel | |
| Refrigerator uint | Bran | KC-480 |
Temperatur | 10℃ to -18℃ | |
3

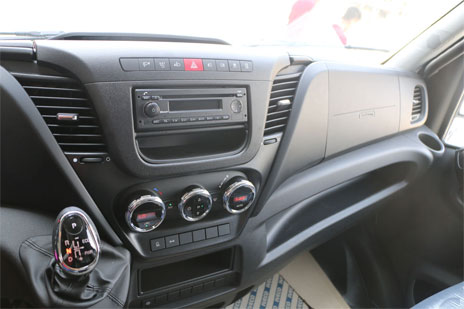

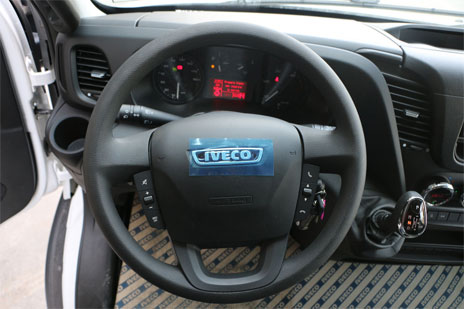

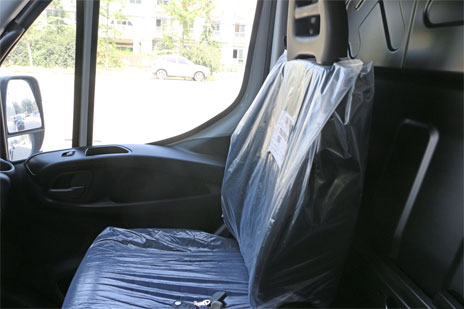

Inside of Cabin Of IVECO Van 2Tons Refrigerator Truck
Cabin
Gear
Center Control
4
Details of Chassis Of IVECO Van 2Tons Refrigerator Truck

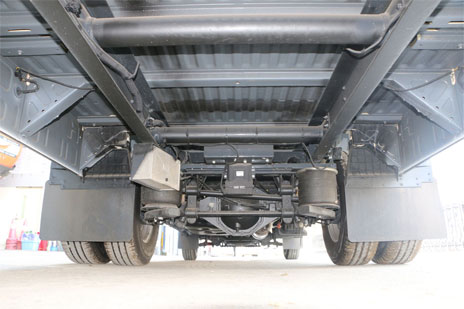

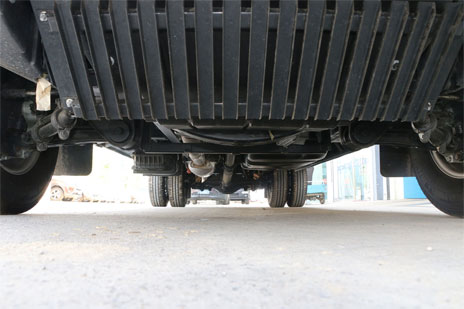

Bottom of Chassis
Filter

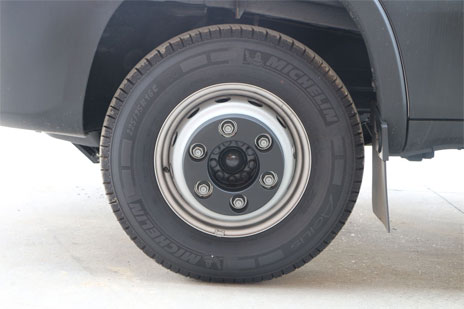

Tire
5
Standard Equipment

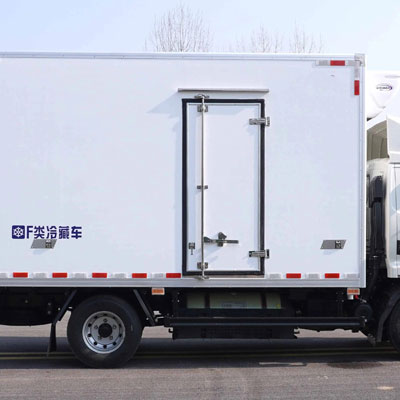

SIDE DOOR
The side doors of the box body are bonded with fully enclosed polyurethane panels. Stainless steel corners and thickened aluminum alloy edges are used at the joints between the side doors and the box body to ensure sealing and reduce air leakage.
The thickness of the side door is uniformly 80mm (consistent with the box body) and the width is about 1840mm, which meets the requirements of forklift loading and unloading.

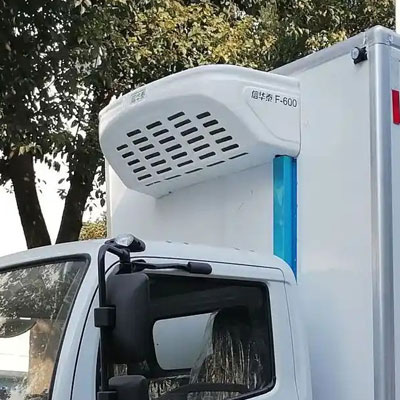

Refrigerated Unit
The refrigeration unit is equipped with domestic units such as Hanxue and Kairui, which support conventional cold chain temperature control from -5℃ to -18℃, with high cost performance, suitable for urban distribution and short-distance transportation scenarios.
High-end units can be equipped with imported units such as Carrier, Thermo King , suitable for strict temperature control requirements such as medicine and deep-frozen food, with faster cooling speed and temperature fluctuation ≤±2℃.

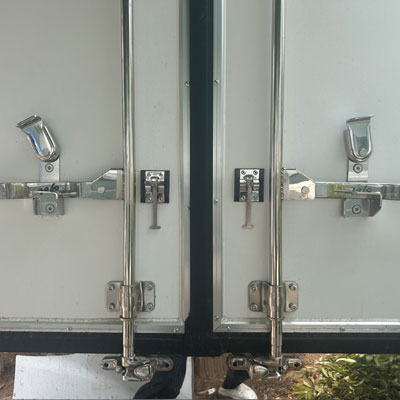

DOOR LOCK
The door lock is made of 304/316 stainless steel, with a polished or brushed surface to adapt to the high humidity environment of cold chain transportation and is not easy to rust or deform after long-term use.
The door lock is equipped with a 3-5-point linkage lock to improve the sealing of the door and reduce the risk of air conditioning leakage.

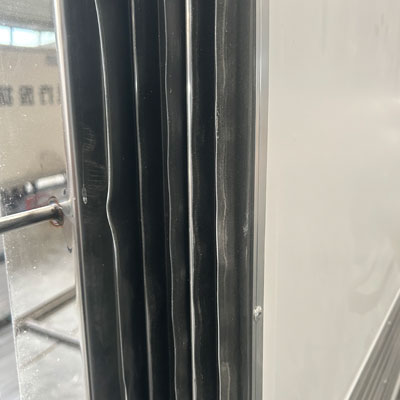

Rubber Seal strip
It adopts a 5-blade structure with aluminum alloy strips, and enhances the sealing effect through multi-level contact surfaces to reduce cold air leakage.
EPDM: Excellent low temperature resistance (withstands extreme environment of -40℃), strong anti-aging, not easy to harden or crack after long-term use, widely used in pharmaceutical and deep-cold food transportation scenarios.
aluminum patterned plate
Anti-slip and wear-resistant : The surface of the aluminum patterned plate adopts a concave and convex pattern design, which significantly improves the anti-slip performance during cargo loading and unloading, and is especially suitable for transporting fresh, frozen and other easy-to-slide cargo scenes. Lightweight and corrosion-resistant : Made of aluminum alloy, it has both lightweight (about 20%-30% lighter than traditional steel plates) and corrosion-resistant properties, and is suitable for cold chain transportation in high humidity environments.
7

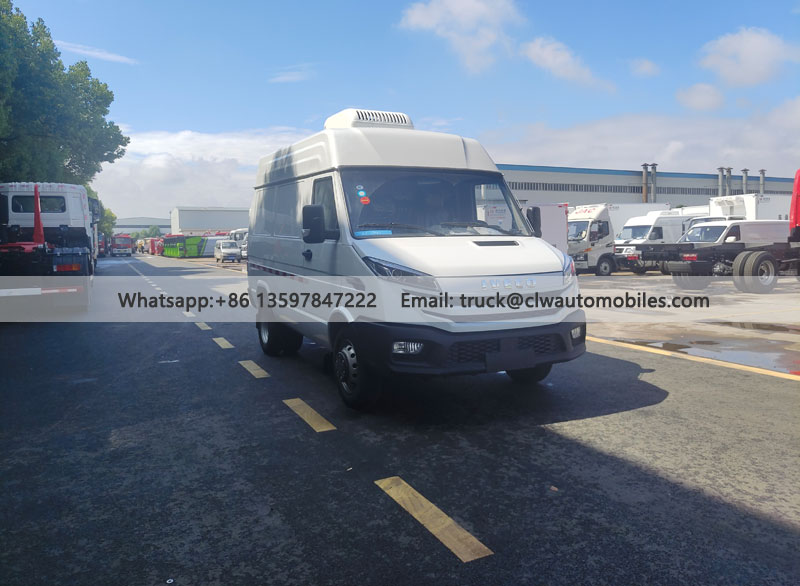

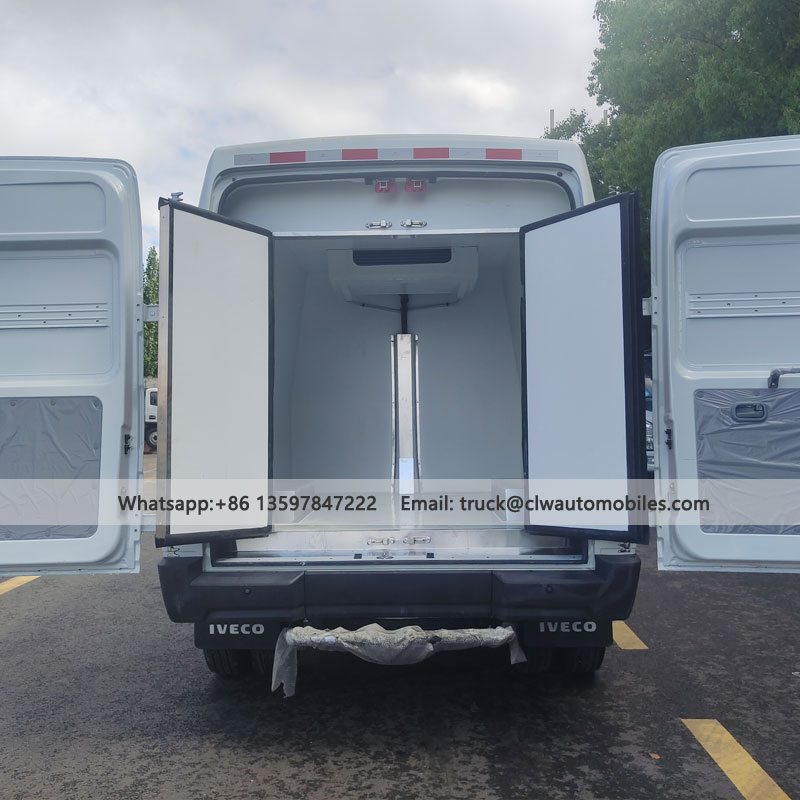

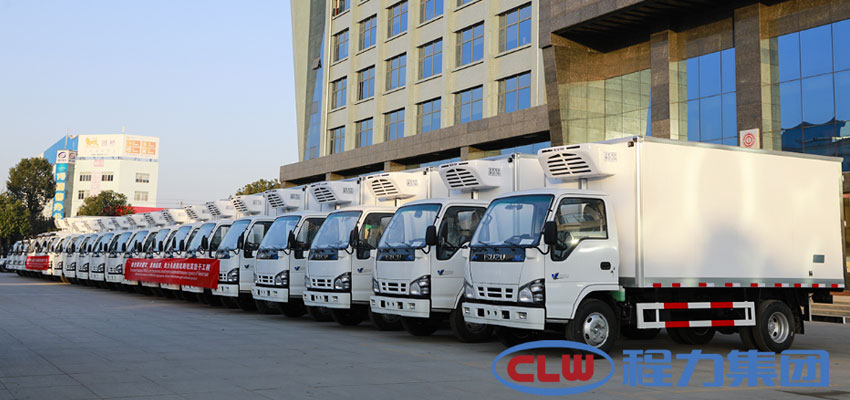

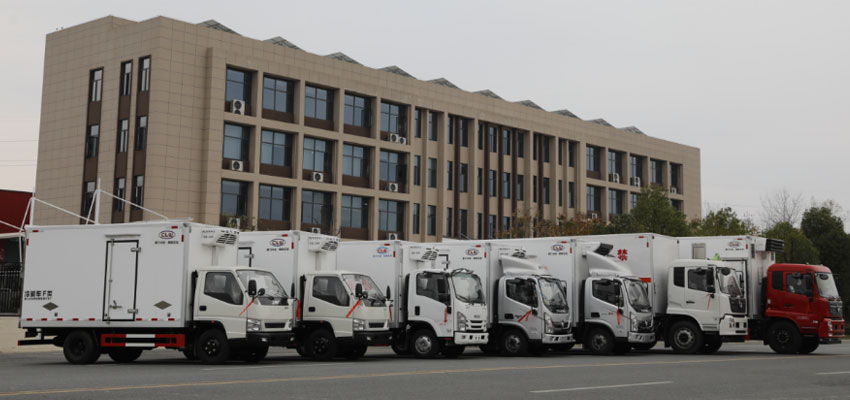

Pictures
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
