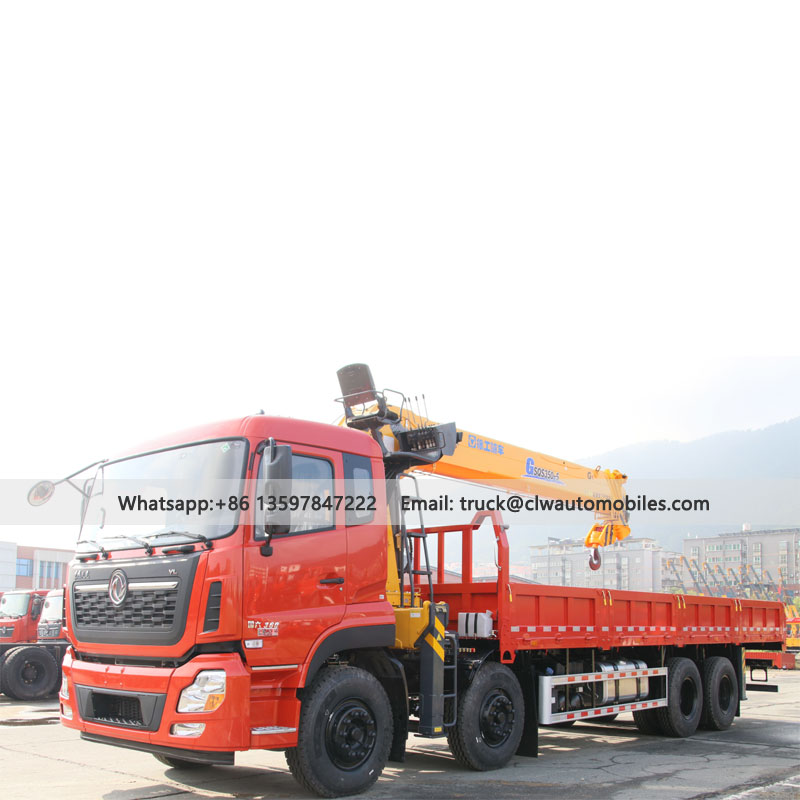

DONGFNEG 16Tons Manipulator 8*4 Truck Mounted Crane
- CLW/DONGFENG
- Suizhou city, Hubei Province
- 55 working days after received your payment
- 50 units per month
- 70000USD-80000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of DONGFENG 16Tons Truck Mounted Crane
| Model of Vehicle | CLW5310JSQAX1V | |
| Brand of Vehicle | CLW/DONGFENG (New) | |
| Drive Type | 8*4, LHD or RHD(Optional) | |
| Overall Size | 12000*2550*3910mm | |
| Net Weight | 19200kg | |
| Wheelbase | 1850+4600+1350mm | |
| Engine | Fuel Type | Diesel |
| Model | ISL9.5-315E51A | |
| Power | 232KW/315HP | |
| Emission Standard | Euro VI | |
| Displacement | 9.46L | |
| Number of cylinder | 6 | |

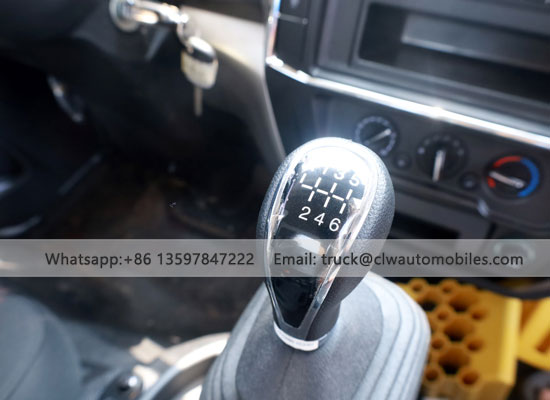

| Transmission | Model | FAST, 12JSD160TA |
| Numbers | 12 forward, one revise | |
| Tire | Size | 12.00R20 |
| Numbers | 12+1 | |
| Fuel Tank | Capacity | 400L |

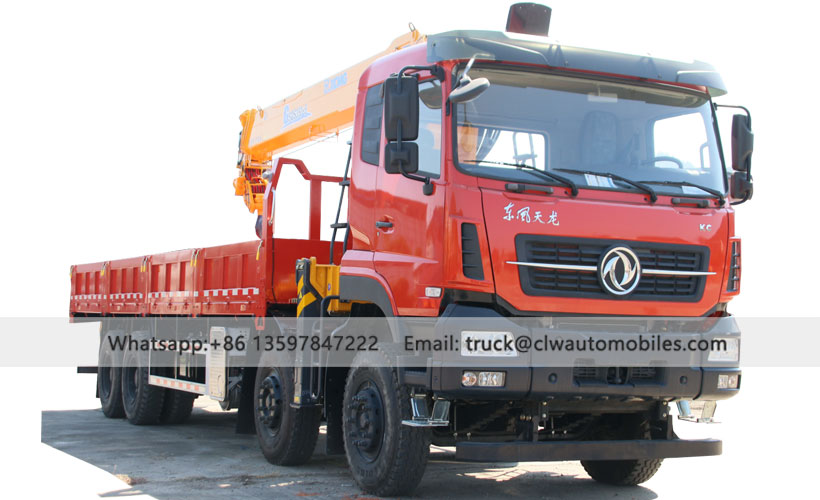

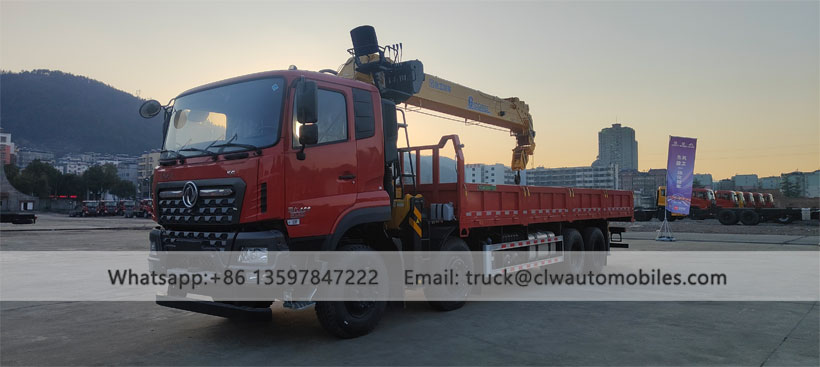

DONGFENG 16Tons Truck Mounted Crane

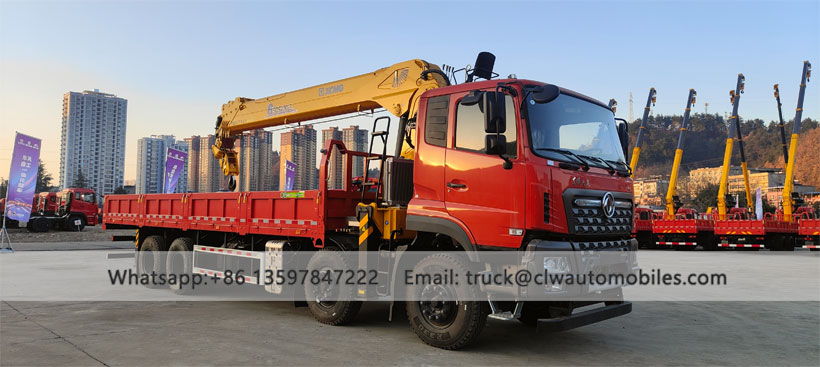

DONGFENG 16Tons Truck Mounted Crane
2

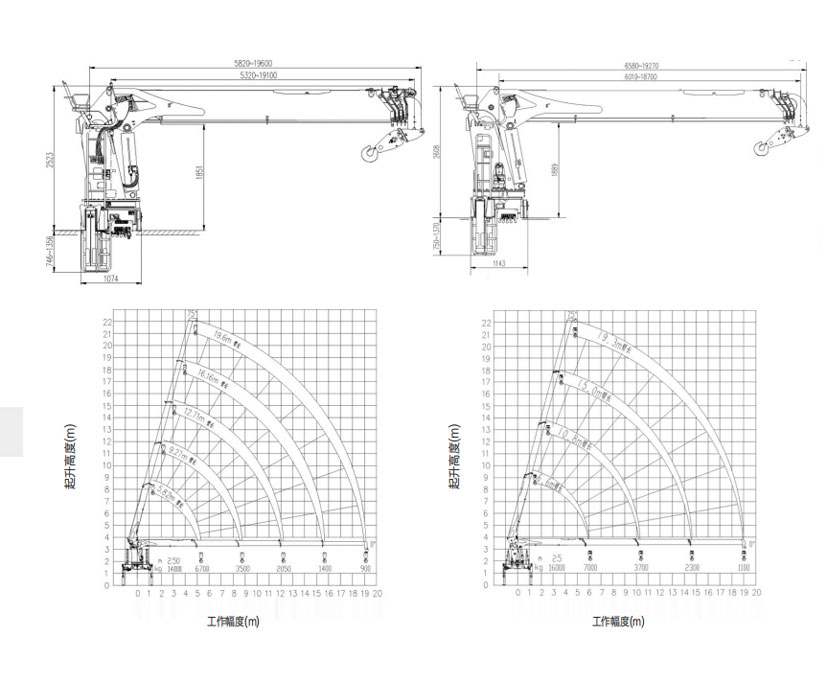

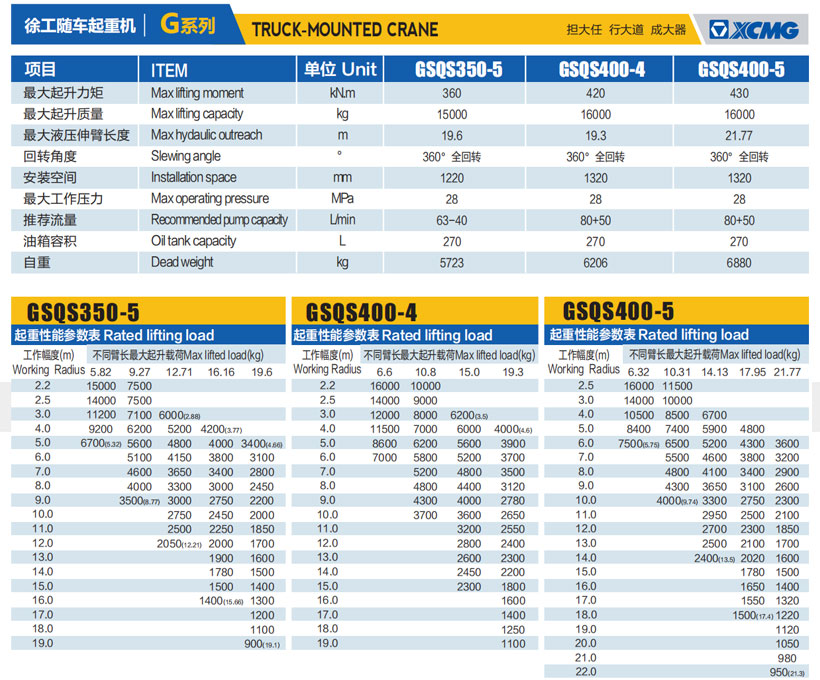

Parameter of XCMG 16Tons Manipulator
| Crane Brand | SQS400 |
| Maximum lifting Height | 20.7m |
| Maximum lifting Weight | 16000kg |
| Working Angel | Full hydraulic, 360 ° Full rotation |
Quantity of telescopic arm | 4-sectio |
Working radius | 19.3M |

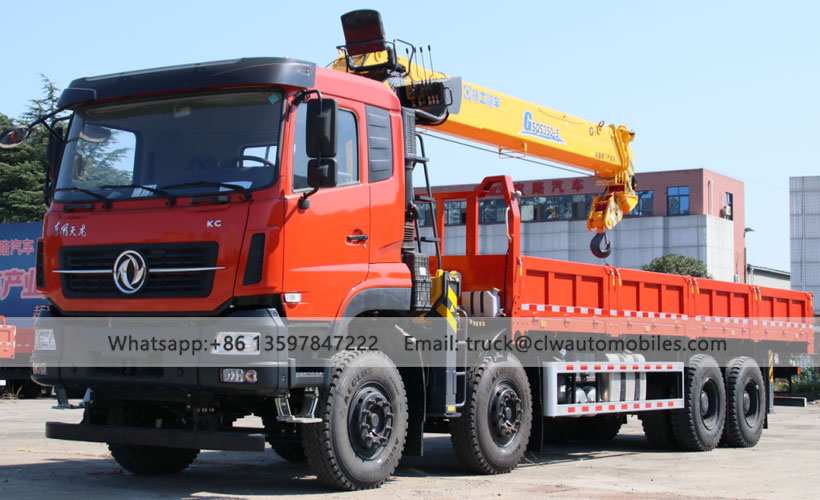

16Tons Manipulator
16Tons Manipulator
3
Van Box of DONGFENG 16Tons Truck Mounted Crane
Length | 8400mm |
Width | 2450mm |
Height | 600mm |
Material | High quality carbon steel |
Thickness | Side:4mm, Bottom:5mm |

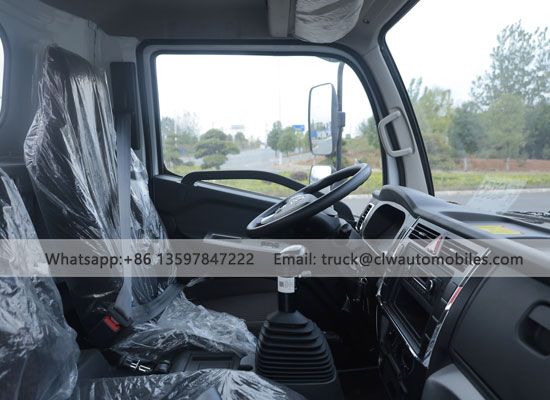

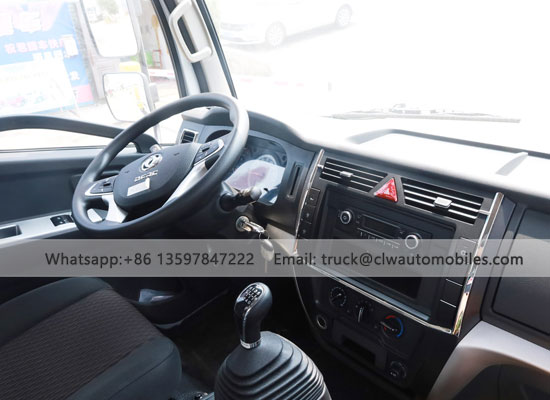

Cabin
Cabin
Cabin
4

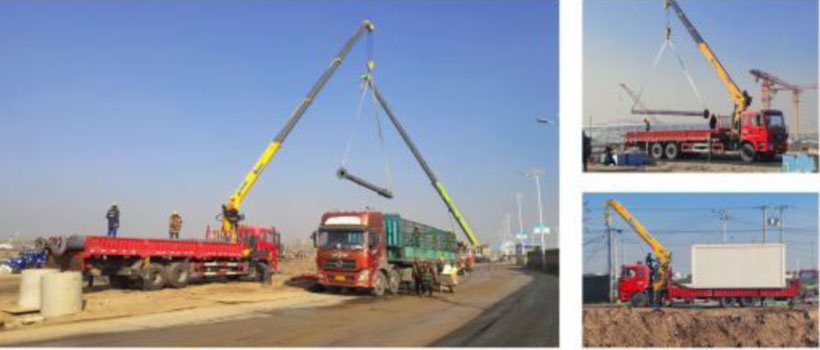

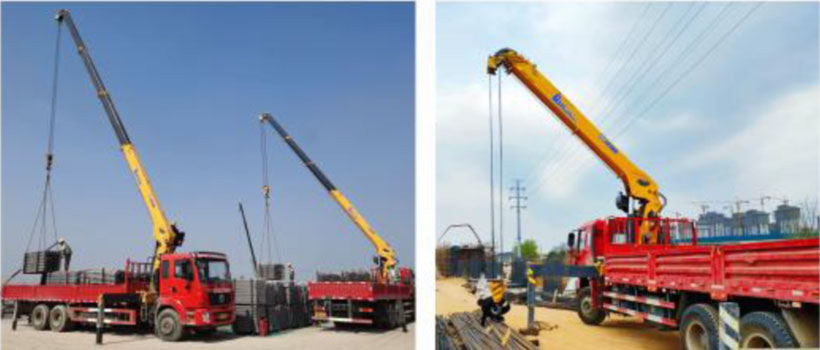

CONSTRACTION CASE
Product Title
Product Title
5
Components and Uses
Boom
The boom is extended and retracted by a hydraulic cylinder, with a hook pulley suspended from the top of the boom.
Load Indicator
The load indicator indicates the total rated load of the vehicle chassis when unloaded, at various boom lengths and boom angles.
Hoisting Mechanism
The hoisting mechanism is driven by a hydraulic motor and raises or lowers the load via a steel wire rope.
Column
The column supports the boom, hoisting mechanism, and luffing cylinder, and is driven by the slewing system.
Slewing System
The slewing system generally includes a hydraulic motor, a hydraulic reduction gearbox, and other components to rotate the column.
Frame Base
The base is mounted directly on the vehicle chassis and supports the column and outriggers.
Hydraulic Oil Tank
The hydraulic oil tank holds the hydraulic oil specifically for the truck crane and serves as a heat dissipator and sediment filter.
Outrigger Control Lever
The outrigger control lever controls the extension and retraction of the left and right outrigger cylinders. Outrigger Cylinders
During crane operation, to stabilize the vehicle, extend the outrigger cylinders to the ground, improving the crane's operational stability.
Horn
Used to alert personnel within the operating area during lifting operations.
Accelerator Lever
The accelerator lever is used to adjust the engine speed and power output to meet the required load.
Slewing Lever
The slewing lever controls the slewing mechanism, allowing the mast and boom to swing left and right.
Luffing Lever
The luffing lever controls the extension and retraction of the luffing cylinder, enabling boom height control.
Winch Lever
The winch lever controls the winch mechanism (raising and lowering loads).
Winch Lever
The telescopic lever controls the telescopic cylinder, controlling the boom's extension and retraction via the telescopic pulley.
PTO
The PTO lever (power take-off) controls the engine's power output to the crane and cuts off power.
Luffing Cylinder
The luffing cylinder is the actuator that moves the boom upward or downward. Hook pulley assembly
By increasing or decreasing the pulleys on it, the hoisting ratio is adjusted, allowing the load to be directly hooked and lifted.
Wire rope
Transmits the output torque of the drum to the hook.
Overwind alarm
When the hook pulley approaches the top of the boom, the overwind alarm automatically sounds an alarm signal, preventing the wire rope from overwinding. The most advanced overwind alarm device includes the solar-powered wireless anti-overwind device, standard on truck-mounted cranes like Hongchang Tianma.
Rear outrigger
Installed behind the vehicle's rear axle, it connects to the frame to further enhance vehicle stability.
Truck-mounted cranes have two types of booms: straight-arm and folding-arm. Generally speaking, folding-arm cranes are more expensive than straight-arm cranes of the same tonnage. The advantages of truck-mounted cranes are their maneuverability and rapid transfer. They combine lifting and transport functions, improving resource utilization, and are significantly cheaper than truck cranes. However, their disadvantages are the need for outriggers, making them unsuitable for working on steep slopes, soft surfaces, or muddy ground. Their lifting performance is inferior to that of truck cranes. Truck-mounted cranes can be equipped with various gripping tools, such as wood grabs, hanging baskets, brick clamps, and drilling tools, to enable multi-scenario operations. Truck-mounted cranes are favored by the market due to their flexibility and versatility, and they hold great potential in the future.
DONGFENG 16Tons Truck Mounted Crane
DONGFENG 16Tons Truck Mounted Crane
Truck-mounted cranes (truck with crane) are officially known as truck-mounted crane transporters. They are widely used in the lifting and transportation of infrastructure materials and other equipment in municipal construction, coal mining projects, landscaping, and other fields. Truck-mounted cranes can be operated left and right, rotate 360 degrees forward and backward, and can also rotate in all directions. They are manufactured with military-grade quality, ensuring reliable quality, long service life, and high operating speed.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
