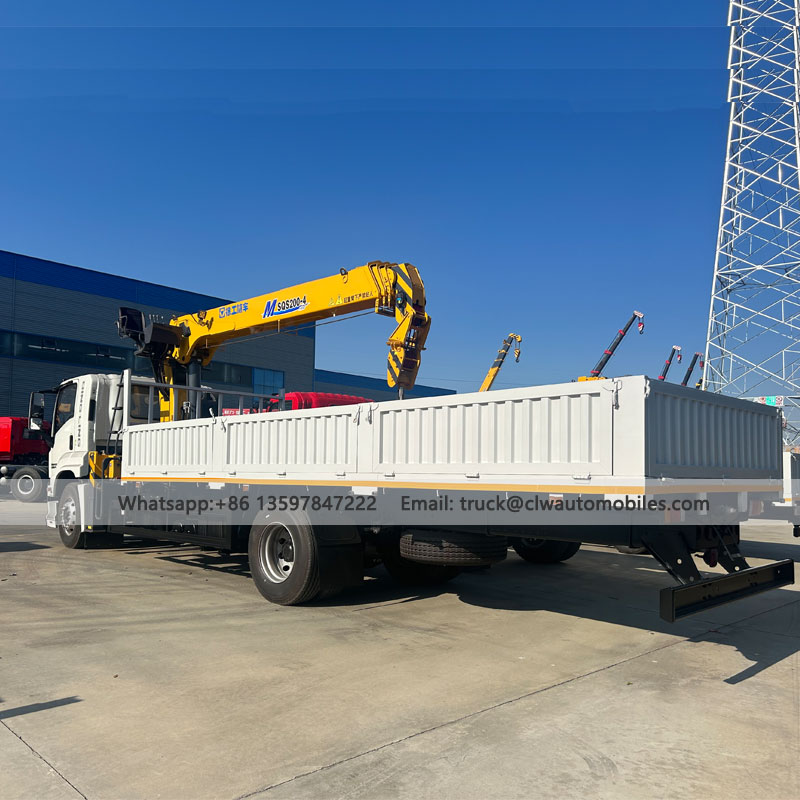

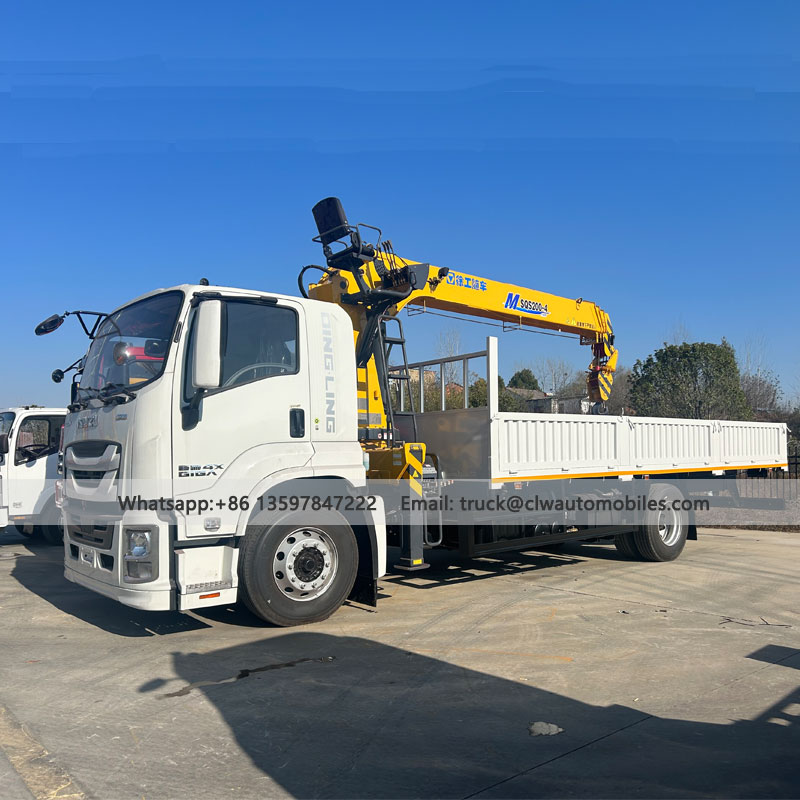

ISUZU 8Tons Truck Mounted Crane 4*2 Manipulator From Manufacturer

truck mounted crane is a special vehicle with integrated lifting and transport functions. It achieves cargo lifting, rotation and lifting through a hydraulic lifting and telescopic system. Its core components include a dedicated chassis, cargo compartment, power take-off and crane. Cranes are divided into straight-arm and folding-arm types, and the lifting capacity covers a range of 2 tons to 20 tons.
  • CLW/ISUZU
  • Suizhou city, Hubei Province
  • 90 working days after received your payment
  • 50 units per month
  • 30000USD-50000USD
  • 30% Payment In Advance, 70% Payment Before Shipping From Factory

1

Basic Parameters of ISUZU 8Tons Truck Mounted Crane

Model of Vehicle
CLW5180JSQAJ6
Brand of VehicleCLW/ISUZU (New)
Drive Type
4*2, LHD or RHD(Optional)
Overall Size
9000*2530*3700mm
Net Weight
11280kg
Wheelbase
5550mm
EngineFuel TypeDiesel
Model

6UZ1-TCG61

Power279KW/380HP
Emission StandardEuro VI
Displacement9.839L
Number of cylinder6
Transmission
ModelFAST 12-SPEED
Numbers12 forward, one revise
TireSize

295/80R22.5

Numbers6+1
Fuel TankCapacity76L

Truck Mounted Crane

ISUZU 8Tons Truck Mounted Crane

Manipulator

I

SUZU 8Tons Truck Mounted Crane

2

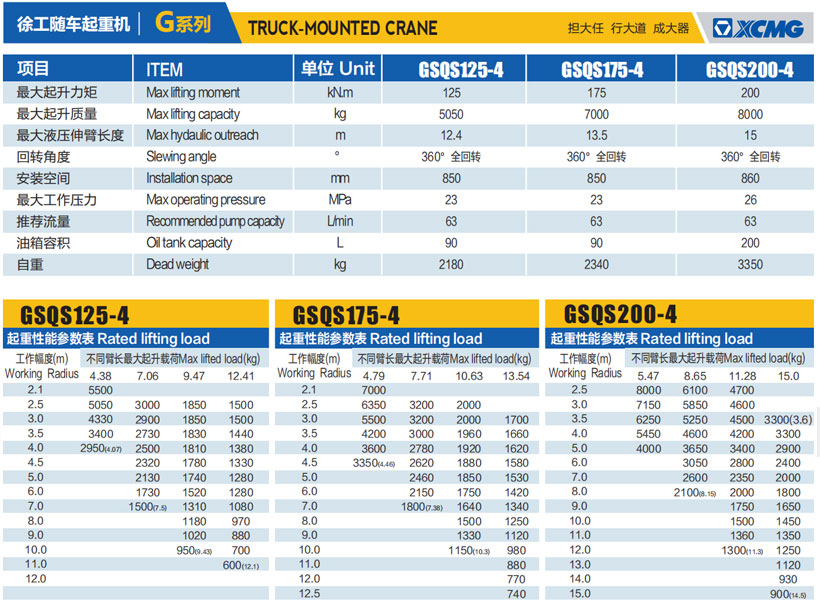

Parameter of XCMG 8T Manipulator

Crane BrandSQS200
Maximum lifting Height16.9m
Maximum lifting Weight8000kg
Working Angel

Full hydraulic, 360 ° Full rotation

Quantity of telescopic arm

4-sectio

Working radius

14.9M

8Tons Truck Mounted Crane

8Tons Manipulator

Truck Mounted Crane

8Tons Manipulator

3

Van Box of ISUZU 8Tons Truck Mounted Crane

Length

5600mm

Width

2500mm

Height

600mm

Material

High quality carbon steel

Thickness

Side:3mm, Bottom:4mm

Manipulator

Cabin

8Tons Truck Mounted Crane

Cabin

Truck Mounted Crane

Cabin

4

CONSTRACTION CASE

Manipulator

Usage of Truck Mounted Crane

8Tons Truck Mounted Crane

Usage of Truck Mounted Crane

5

Features of Isuzu 8 tons Truck Mounted Crane

In the domestic truck-mounted crane chassis market, Isuzu (including its joint venture Qingling) is one of the leading Japanese brands, recognized for its high reliability and targeted design. For example, Sany's light-duty truck-mounted cranes have used the Qingling Isuzu ELF chassis, validating its suitability for urban confinement and rural rescue missions.

The Isuzu chassis features a lightweight design, effectively reducing overall vehicle weight and thus improving mobility and load capacity. Its highly integrated chassis and engine assembly provide a solid foundation for modifying truck-mounted crane superstructures (such as cranes and cargo boxes), meeting the needs of fire trucks with varying operating weights (e.g., 2 to 16 tons).

Powerful Performance and Reliable Load Capacity

This model typically features an Isuzu high-efficiency diesel engine, such as the 6HK1-TCG60, providing over 300 horsepower to meet the demands of heavy-duty transport and complex road conditions. The rear dual-axle design, combined with a high-strength frame, offers outstanding load-bearing capacity, enabling stable transport of large equipment or cargo.

Professional Lifting and Multi-functional Adaptability

The vehicle is equipped with a four-section folding boom crane (e.g., 8-ton class) from brands like XCMG, with a lifting height of up to 13 meters, supporting full-slewing operation for easy loading and unloading of heavy equipment. The cargo box has a flexible design, accommodating drainage pumps, generators, and other emergency tools, and is equipped with a hydraulic tailgate for easy loading and unloading.

Safety and Handling

The Isuzu Giant Cab meets safety standards and offers excellent visibility. Precise steering and responsive braking ensure vehicle stability during operation. Some models also feature safety features such as anti-lock braking system (ABS).

It has a wide range of applications, especially suitable for tasks that require integrated transportation and hoisting, such as urban drainage, emergency rescue, and road maintenance. It can respond quickly and complete the operation efficiently.

6

Optional Equipments

Truck Mounted Crane

ISUZU 8Tons Truck Mounted Crane

Manipulator

ISUZU 8Tons Truck Mounted Crane


  • What is your terms of payment?

    T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balance
  • How about your delivery time?

    Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
  • Do you test all your goods before delivery?

    yes of course, we have 100% test before delivery.
  • How do you make our business long-term and good relationship?

    We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
