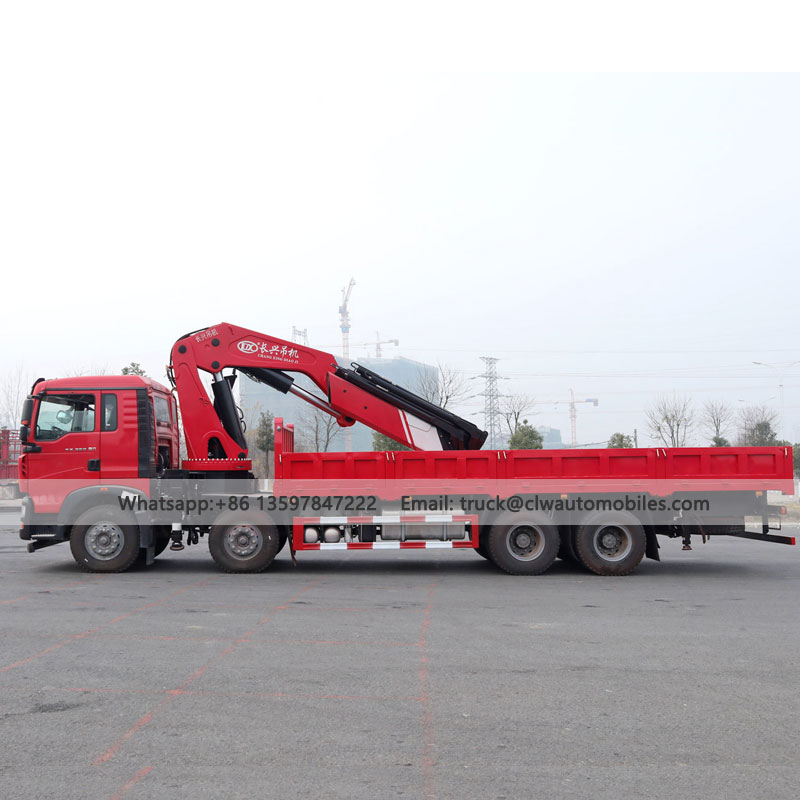

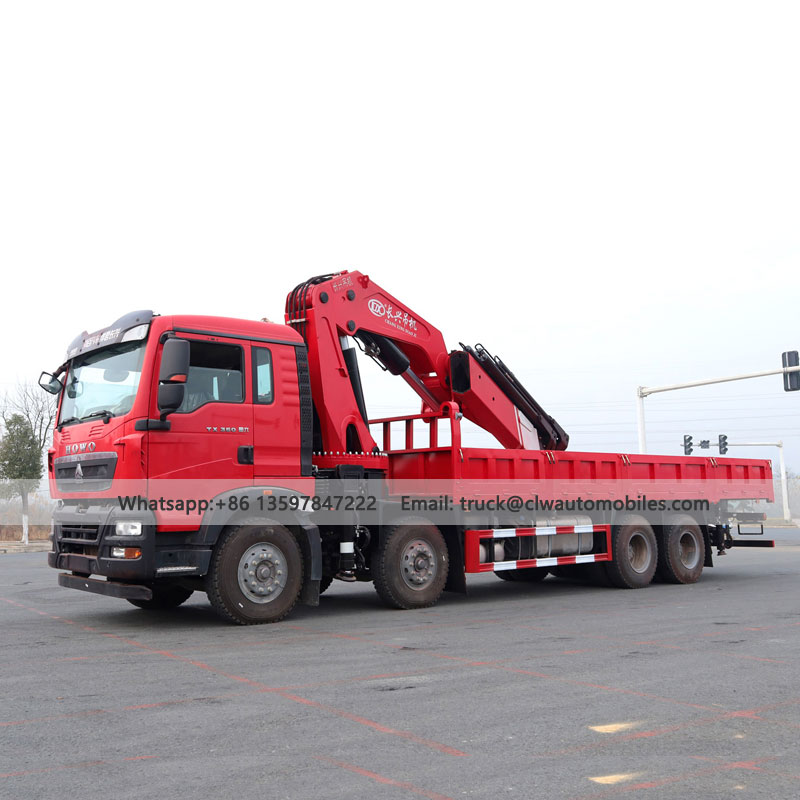

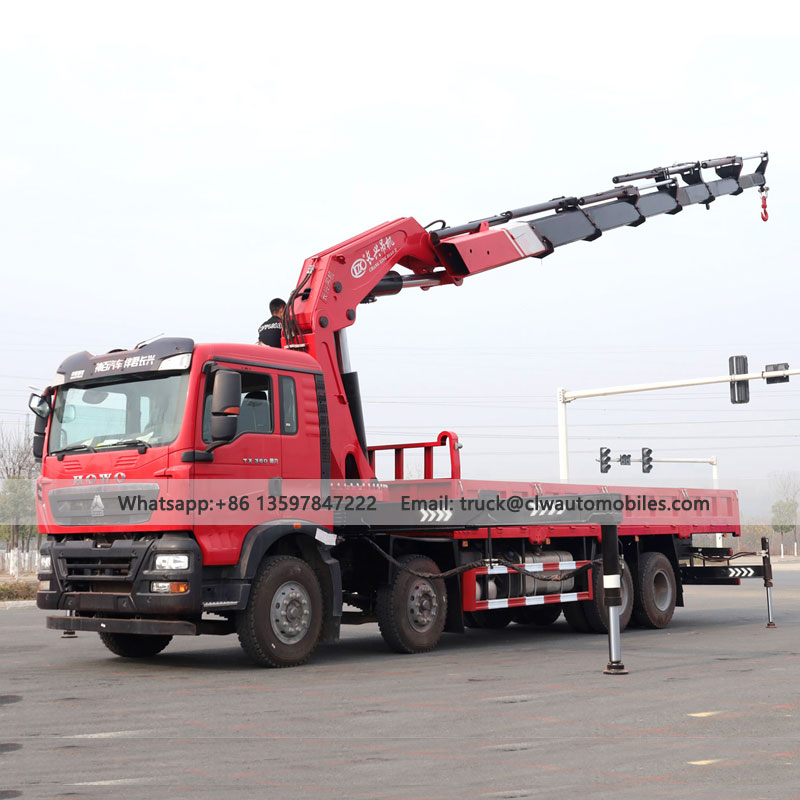

HOWO 30T Fold Arm Crane Mounted Truck 8*4 Manipulator For Sale
- CLW/HOWO
- Suizhou city, Hubei Province
- 90 working days after received your payment
- 50 units per month
- 75000USD-80000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of HOWO 30T Crane Mounted Truck
| Model of Vehicle | CLW5310JSQA7 | |
| Brand of Vehicle | CLW/HOWO (New) | |
| Drive Type | 8*4, LHD or RHD(Optional) | |
| Overall Size | 12000*2550*3950mm | |
| Net Weight | 20200kg | |
| Wheelbase | 2100+4300+1350mm | |
| Engine | Fuel Type | Diesel |
| Model | WP9H350E62 | |
| Power | 257KW/350HP | |
| Emission Standard | Euro VI | |
| Displacement | 8.8L | |
| Number of cylinder | 6 | |
| Transmission | Model | HW25712+HW70 |
| Numbers | 12 forward, one revise | |
| Tire | Size | 12.00R20 |
| Numbers | 12+1 | |
| Fuel Tank | Capacity | 400L |

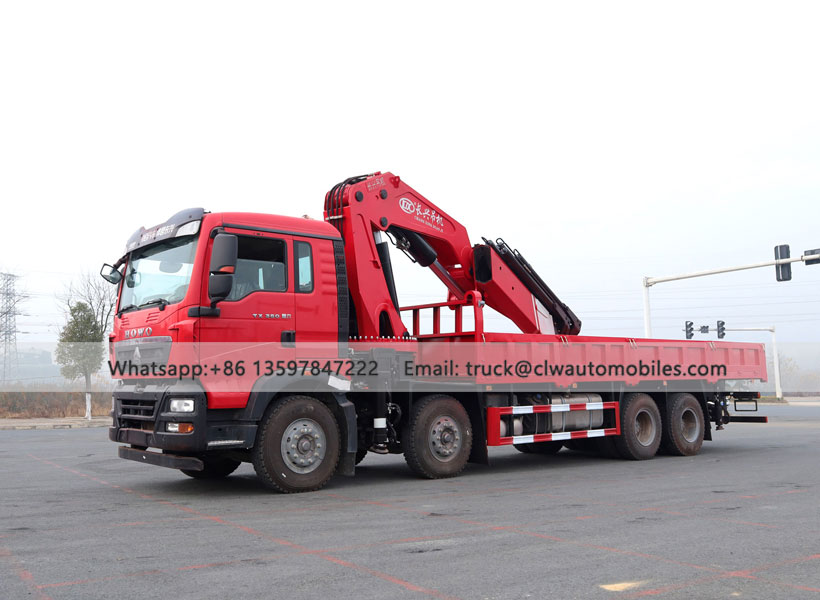

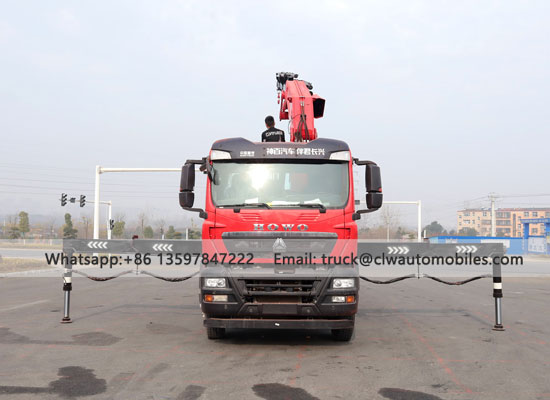

30T Crane Mounted Truck
30T Crane Mounted Truck
2
Parameter of 30T Manipulator
| Crane Brand | SQS600/30T | SQS700/35T |
| Maximum lifting Height | 17.5m | 19M |
| Maximum lifting Weight | 30000kg | 35000KG |
| Working Angel | Full hydraulic, 360 ° Full rotation | Full hydraulic, 360 ° Full rotation |
Quantity of telescopic arm | 7-section | 7-section |
Working radius | 14.9M | 17.5m |
3
Van Box of HOWO 30T Crane Mounted Truck
Length | 8500mm |
Width | 2450mm |
Height | 550mm |
Material | High quality carbon steel |
Thickness | Side:4mm, Bottom:5mm |

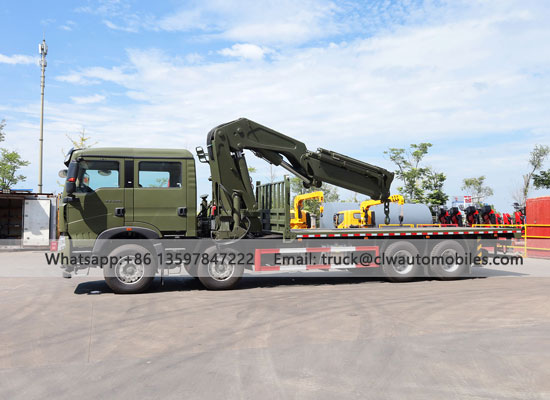

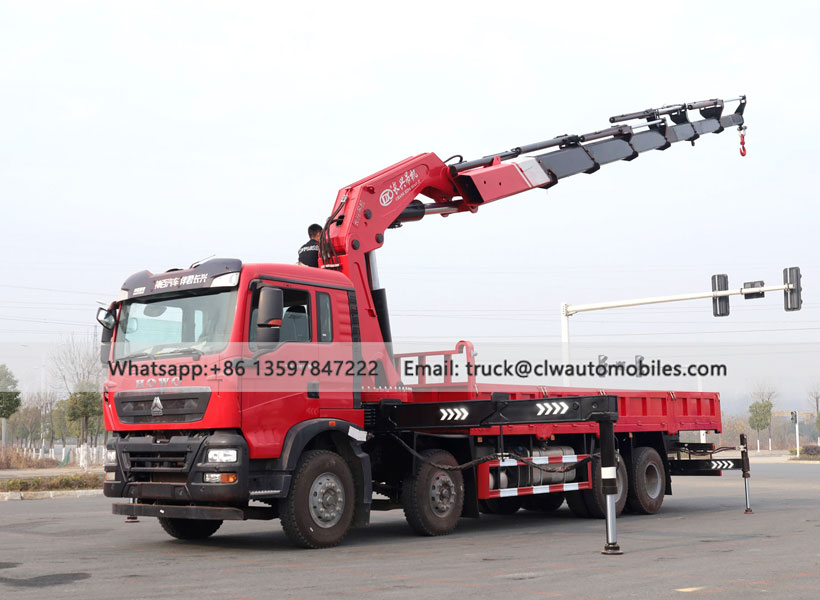

Crane Mounted Truck
Crane Mounted Truck
Crane Mounted Truck
4
CONSTRACTION CASE
Product Title
Product Title
5

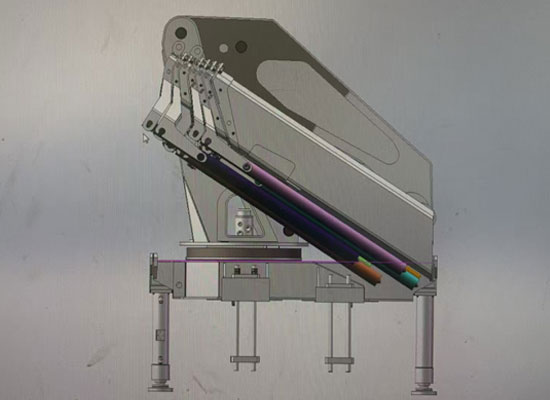

Components and Uses
The overall layout of the boom is compact, symmetrical, aesthetically pleasing, and fully functional.

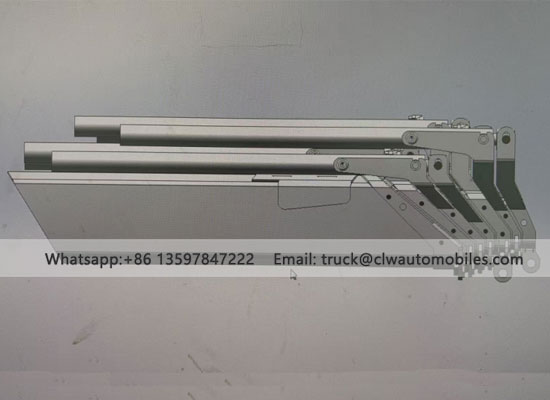

The boom assembly adopts a hexagonal cross-section, optimized bending angle and size of the cross-section, simple and compact arm head plate structure, high-strength cylinder material, which not only has a light weight but also strong load-bearing, bending resistance and lateral stability. The advanced overall bending and forming process greatly improves the performance and quality of the crane arm.
Nylon sliders and lubrication nozzles are installed on the front, back, and sides to ensure smooth and easy maintenance of the boom. Each lower part of the boom is designed with steel wire rope rollers to ensure good protection of the boom at any working position.

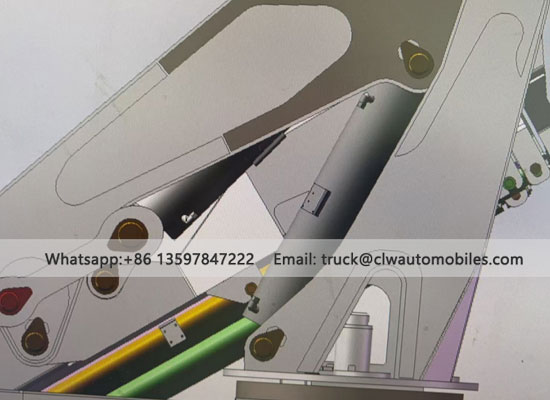

The slewing mechanism adopts a conventional three hinge point structure, where the slewing oil cylinder, turntable, and boom are hinged together. Through the extension and contraction of the slewing oil cylinder, the boom can achieve an angle change of 0 °~75 °.
Manipulator
Manipulator
Manipulator

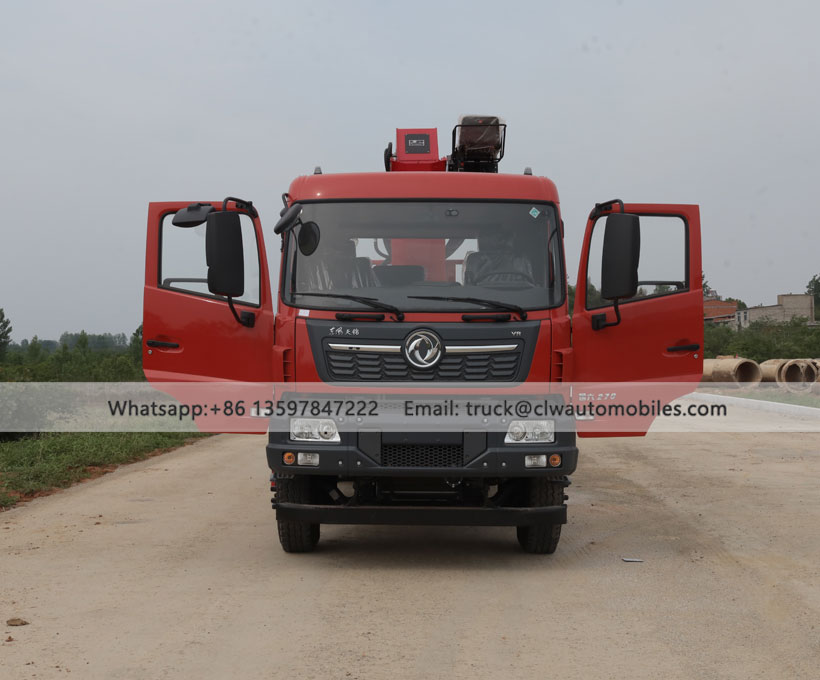

DONGFENG 12Tons Crane Mounted Truck
DONGFENG 14Tons Crane Mounted Truck
Truck mounted crane (truck with crane) are officially known as truck-mounted crane transporters. They are widely used in the lifting and transportation of infrastructure materials and other equipment in municipal construction, coal mining projects, landscaping, and other fields. Truck-mounted cranes can be operated left and right, rotate 360 degrees forward and backward, and can also rotate in all directions. They are manufactured with military-grade quality, ensuring reliable quality, long service life, and high operating speed.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
