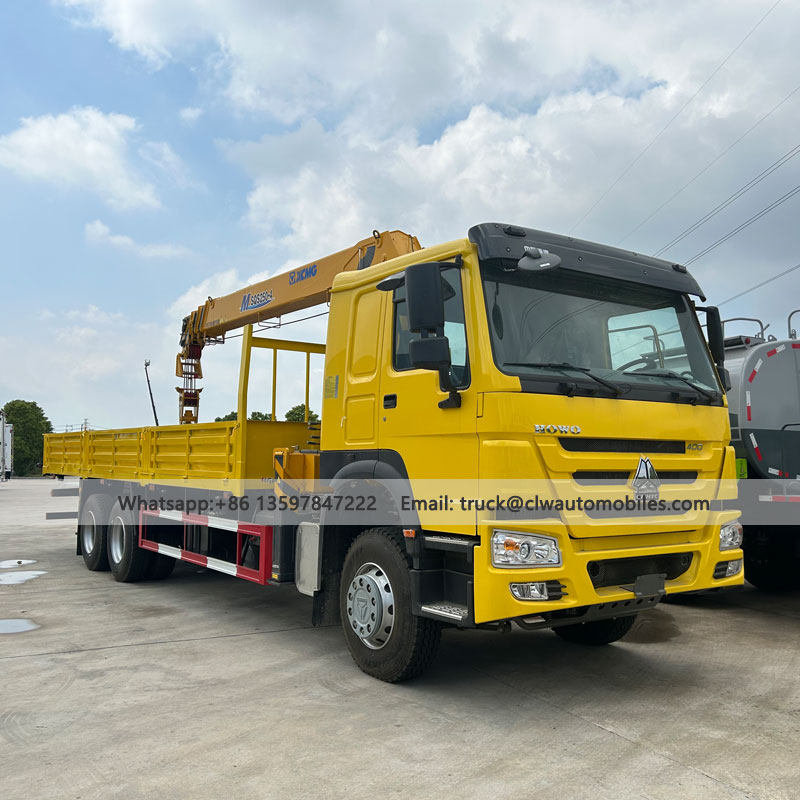

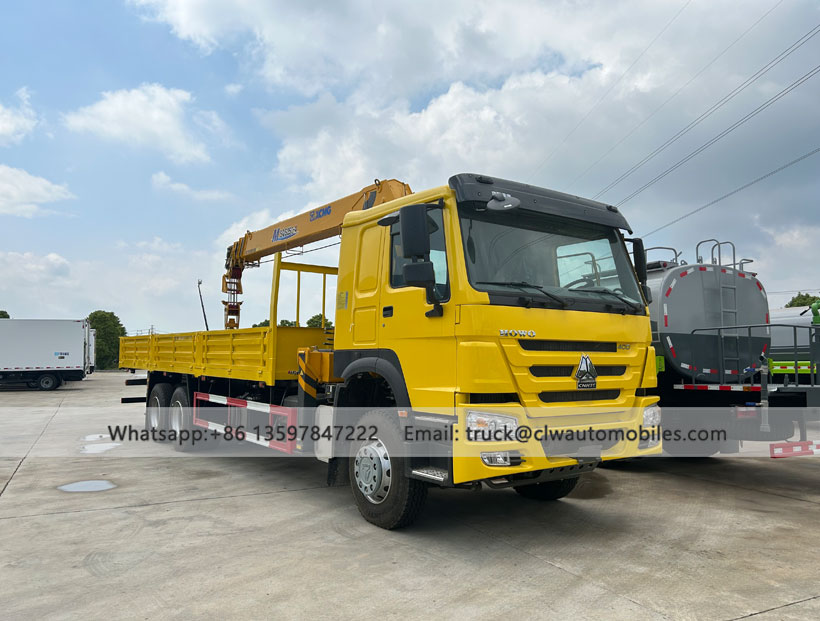

HOWO 12Tons Truck Mounted Crane Lorry Crane Manufacturer
- CLW/HOWO
- Suizhou city, Hubei Province
- 90 working days after received your payment
- 50 units per month
- 50000USD-70000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of HOWO 12Tons Truck Mounted Crane
| Model of Vehicle | CLW5251JSQA8 | |
| Brand of Vehicle | CLW/HOWO (New) | |
| Drive Type | 6*4, LHD or RHD(Optional) | |
| Overall Size | 12000*2550*3820mm | |
| Net Weight | 16200kg | |
| Wheelbase | 5700+1350mm | |
| Engine | Fuel Type | Diesel |
| Model | WP10.340E22 | |
| Power | 250KW/340HP | |
| Emission Standard | Euro II | |
| Displacement | 9.7L | |
| Number of cylinder | 6 | |

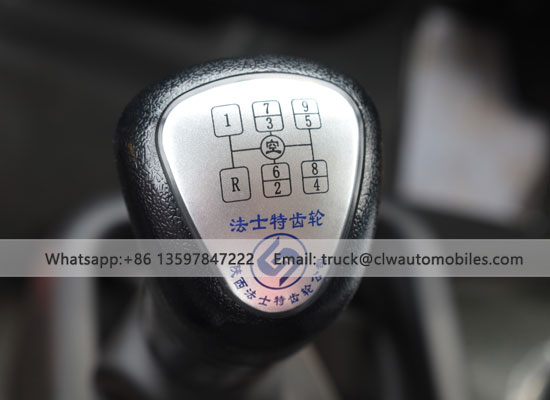

| Transmission | Model | FAST 9JS119TA |
| Numbers | 9 forward, one revise | |
| Tire | Size | 11.00R20 |
| Numbers | 10+1 | |
| Fuel Tank | Capacity | 280L |

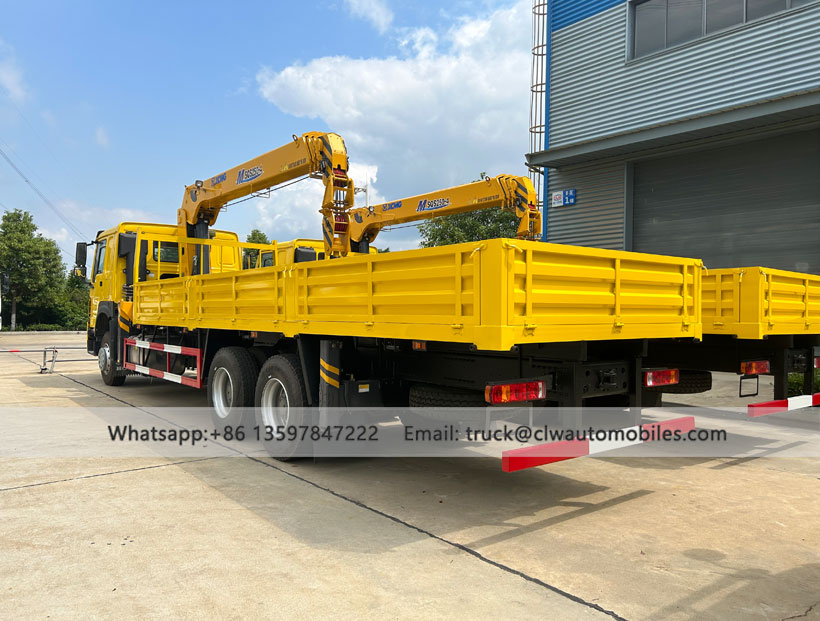

12Tons Truck Mounted Crane

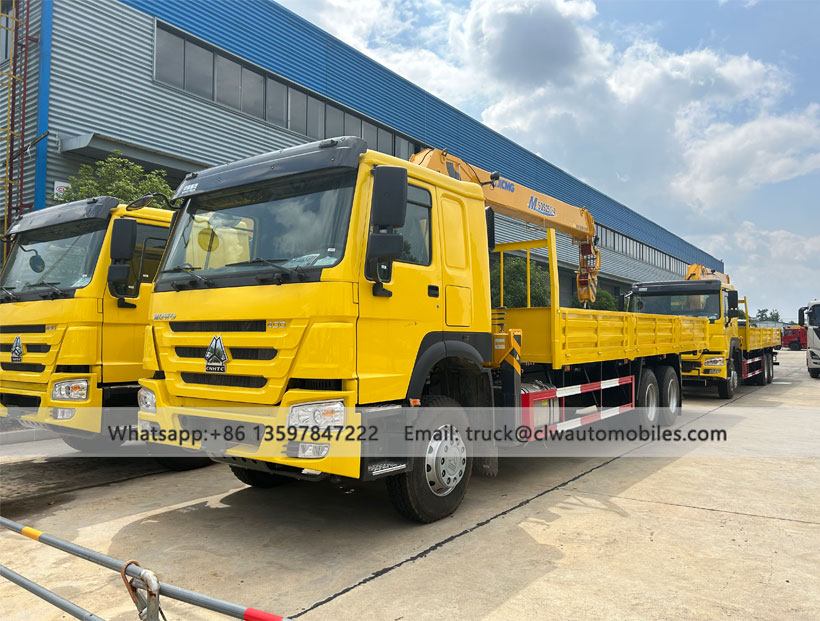

12Tons Truck Mounted Crane
2

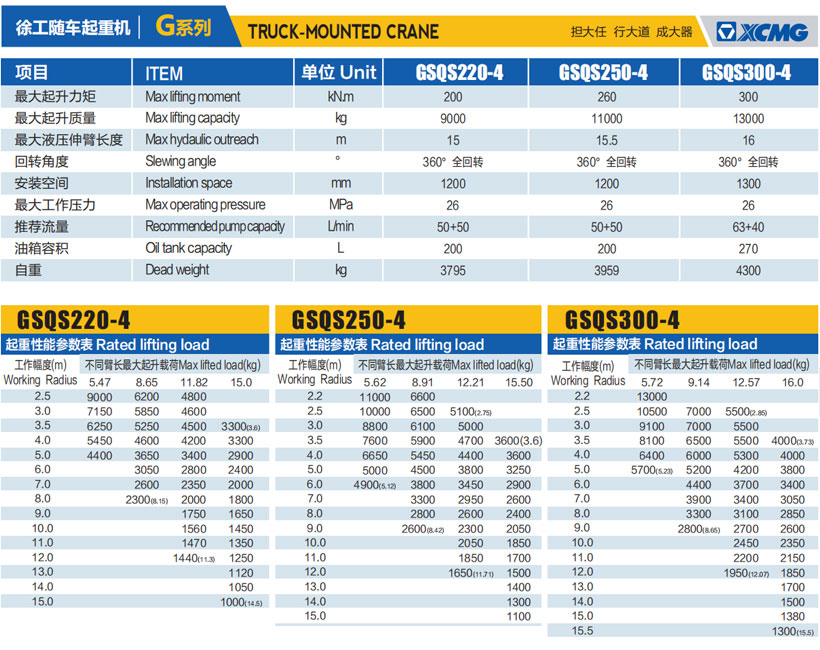

Parameter of XCMG 12T-14T Crane
| Crane Brand | SQS300/12Tons | SQS350/14Tons |
| Maximum lifting Height | 17.8m | 21.5M |
| Maximum lifting Weight | 12000kg | 14000KG |
| Working Angel | Full hydraulic, 360 ° Full rotation | Full hydraulic, 360 ° Full rotation |
Quantity of telescopic arm | 4-section | 4-section |
Working radius | 15.9M | 19.5m |
12Tons Manipulator
14Tons Manipulator
3
Van Box of DONGFENG 12Tons-14Tons Truck Mounted Crane
Length | 7000mm |
Width | 2550mm |
Height | 550mm |
Material | High quality carbon steel |
Thickness | Side:4mm, Bottom:5mm |

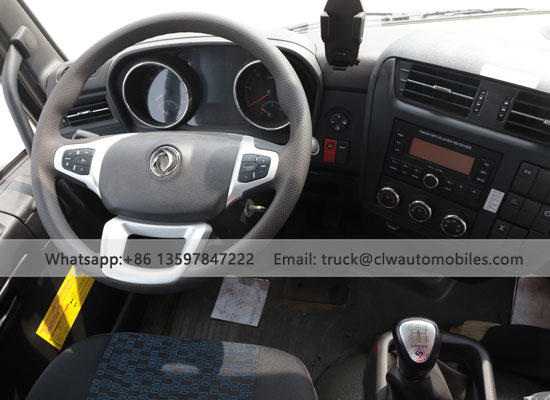

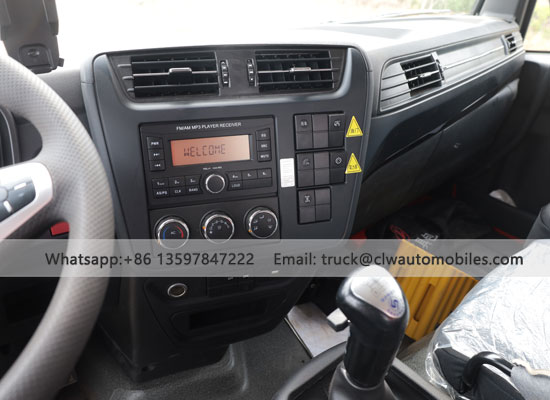

Cabin
Cabin
Cabin
4
CONSTRACTION CASE
Product Title
Product Title
5
Components and Uses
High Operating Efficiency
Advanced Hydraulic Technology: Utilizes the XCMG fixed displacement pump valve-controlled hydraulic system, featuring an integrated multi-way valve and dual-pump confluence design, resulting in fast lifting speed and high efficiency. Slewing buffer technology ensures smooth operation.
Outstanding Lifting Capacity: Maximum lifting capacity reaches 3.3 tons with the fully extended boom; some models can lift 6.8 tons at a 6.5-meter radius. The fastest main boom extension time is only 35 seconds.
Good Maneuverability and Flexibility
Compact Design: With a length of 10.24 meters and a height of 3.25 meters, the optimized wheelbase meets the height restrictions of 99.9% of urban and rural roads, making it suitable for narrow spaces such as old residential areas and culverts.
High Mobility: Minimum turning radius of 7 meters and the smallest wheelbase in the industry (3.65 meters) ensure high relocation efficiency.
Safety and Stability
H-type outriggers: Span of 5.9 x 4.7 meters, with the counterweight's turning radius within the outrigger span. When fully extended and flat, the boom can lift up to 450 kg, ensuring operational stability.
Reliable electrical system: Dustproof, waterproof, and anti-loose connection design for the wiring harness; each system operates independently, resulting in a low failure rate. Standard configuration includes an emergency boom raising device for easy troubleshooting.

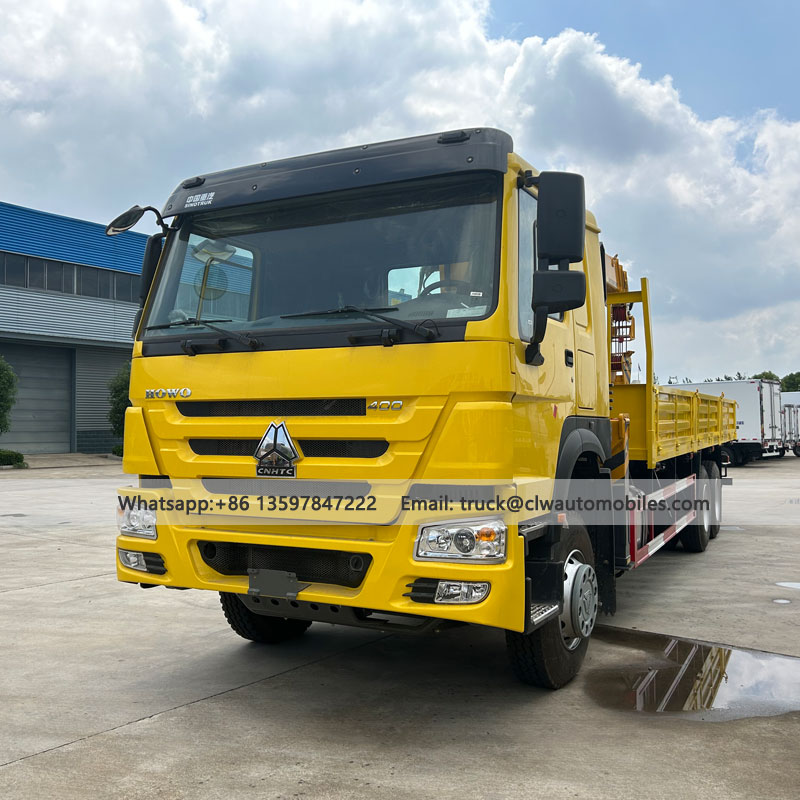

HOWO 12Tons Truck Mounted Crane

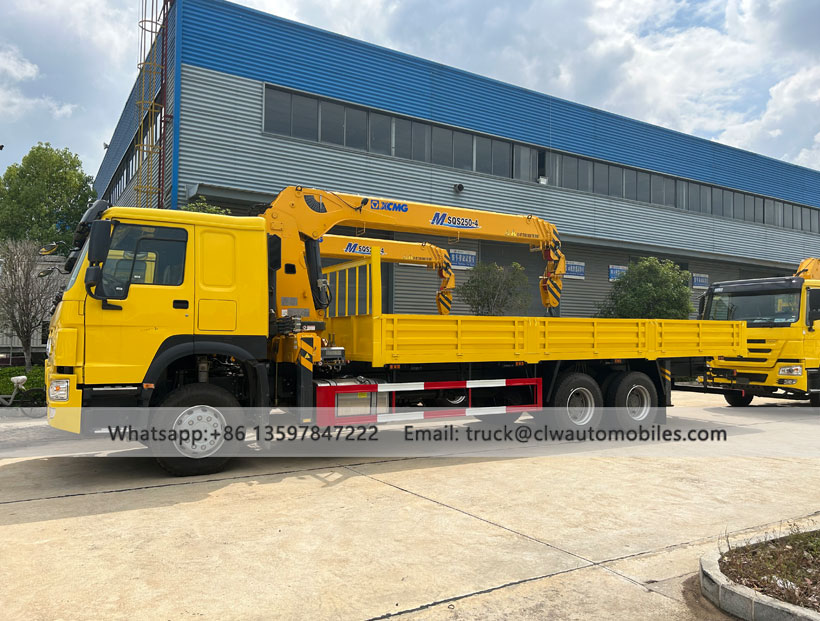

HOWO 14Tons Truck Mounted Crane
A truck-mounted crane, also known as a crane truck, is a device that uses a hydraulic lifting and telescopic system to lift, rotate, and transport goods. It is usually mounted on a truck.
The advantages of a truck-mounted crane are its high mobility, rapid relocation, and ability to integrate lifting and transportation functions, thus improving resource utilization. It is also much cheaper than a truck crane. The disadvantages are that it requires outriggers during operation and is not suitable for working on steep slopes, soft ground, or muddy terrain. Its lifting performance is also inferior to that of a truck crane. Truck-mounted cranes can be equipped with various grabs, such as log grabs [1], baskets, brick clamps, and drilling tools, to enable multi-scenario operations. Due to its flexibility and versatility, truck-mounted cranes are favored by the market and have great future market potential.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
