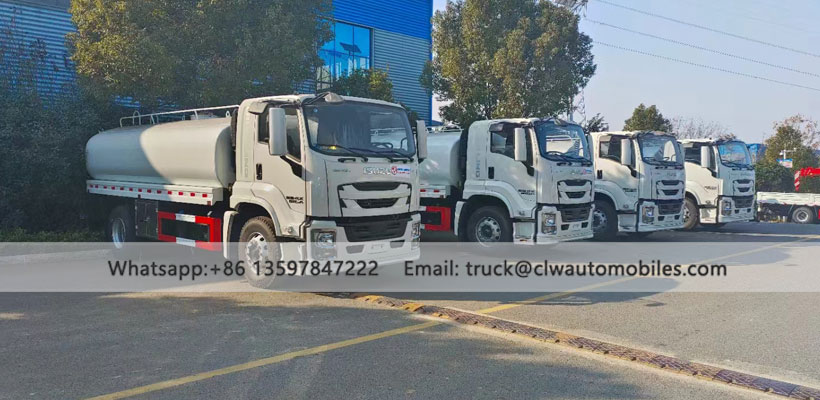

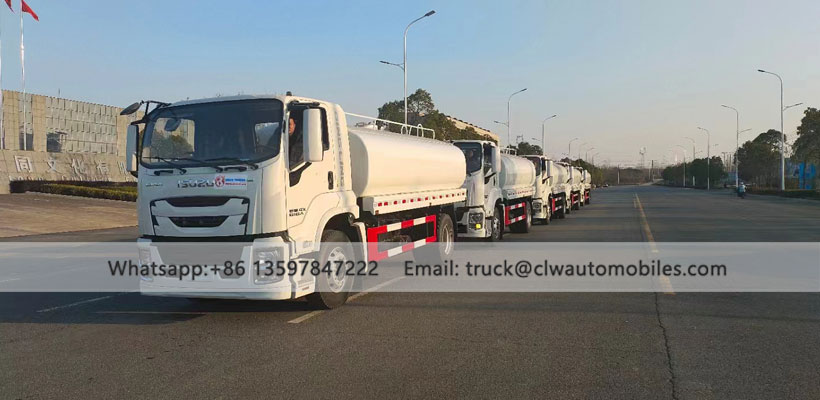

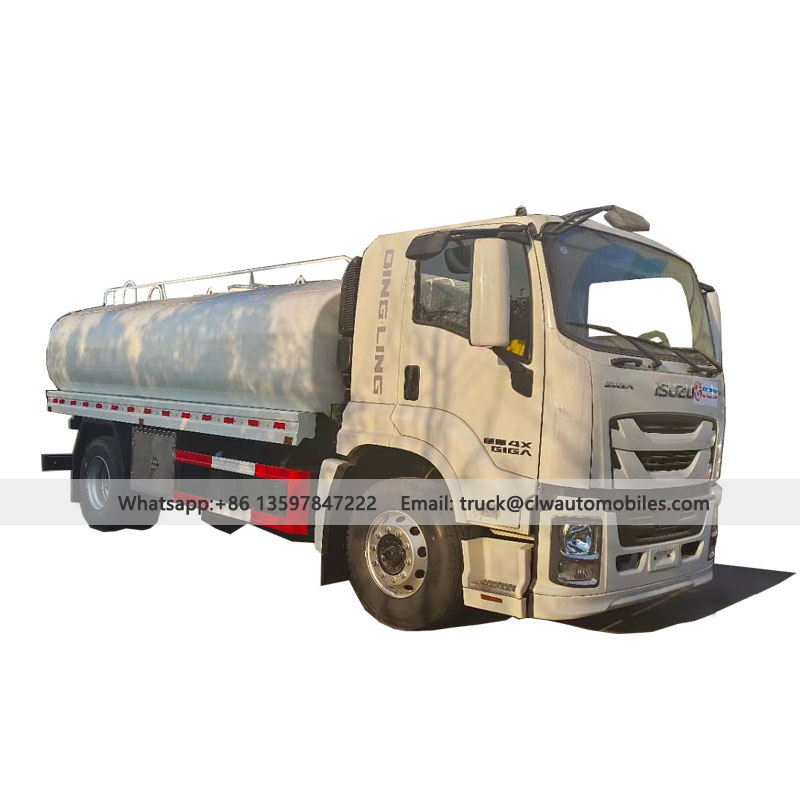

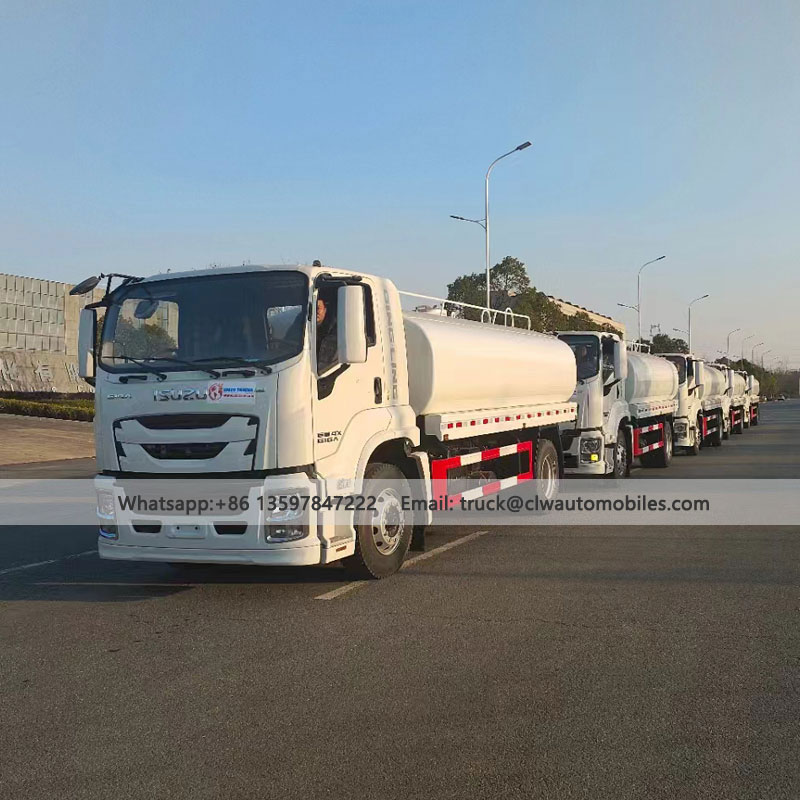

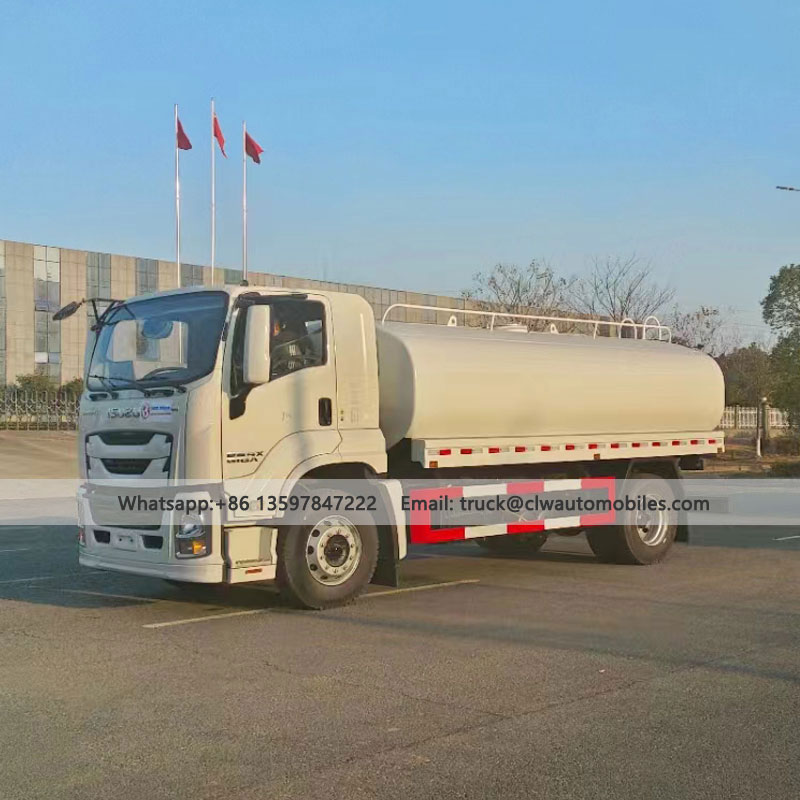

ISUZU 13000L Milk Transportation Truck
- CLW/ISUZU
- Suizhou city, Hubei Province
- 90 working days after received your payment
- 100 units per month
- 50000-55000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of ISUZU Milk Transportation Truck
| Model of Truck | CLW5180GNY6 | |
| Name of Truck | Milk Transporation Truck | |
| Model of Chassis | QL1180EQFRY | |
| Drive type | 4*2, Left Hand Drive | |
| Overall Size | 8700*2500*3100mm | |
| G.V.W | 18000kg | |
| Curb Weight | 7500kg | |
| Capacity of Tank | 13000L | |
| Engine | Model | 4HK1-TC60 |
| Power | 151kw/205HP | |
| Displacement | 5.193L | |
| Fuel Type | Diesel | |
| Environmental Standard | Euro6 | |
| Transmission | FAST 8-GEAR | |
| Tire Size | 295/80R22.5 18PR | |
| Axle | 6.3T/13T | |
| Fuel Tank Capacity | 200L | |
Milk Transportation truck
Milk Transportation Truck
2
Special Parameters of Milk Transportation Truck
Tank of Milk Transportation Truck
The milk transport vehicle is made of 3.0mm thick food-grade AISI 304-2B stainless steel plate. It is welded into shape using a CNC fully automatic argon arc welding machine, polished using a rolling and polishing machine, and then rolled into an elliptical cylinder in one go by a large plate rolling machine, making it difficult for dirt to accumulate.
Inner end cap of Milk Tank
The inner compartment heads of the milk tanks are made of 4mm thick 304 2B stainless steel butterfly heads. These heads are formed by a single hydraulic blow molding process, resulting in a uniform and aesthetically pleasing appearance. During vehicle operation, they effectively mitigate the impact of fresh milk on the tank heads, exhibiting significantly higher impact resistance than flat and conical heads.
partition/wave baffle
Two butterfly-shaped enclosed baffles and two baffles with manholes are formed from 4mm thick 304 2B stainless steel plates. All baffles/baffles are fully welded to the inside of the tanker and fitted with curved flushing edges to create a wide angle at the connection with the tanker for easy cleaning. All welded joints inside the tank undergo six rounds of grinding and polishing according to Australian production process requirements, achieving international food-grade standards.
Milk inlet/milk outlet
The rear of the tanker truck consists of a butterfly valve with a 50mm diameter milk inlet/outlet and a 50mm pipe opening, along with a tapless nut cap, ending at the rear of the tanker truck inside the rear milk tank.
Milk Transportation truck
Milk Transportation truck
Milk Transportation truck
Temperature display
The internal temperature of the tank is displayed in real time.A temperature recorder is an electronic instrument specifically designed to automatically track and record temperature changes inside refrigerated trucks, containers, and cold storage facilities.
Isuzu 6*4 milk transport trucks typically use high-quality chassis from brands like Qingling Isuzu, such as the FVZ rear dual-axle model. These chassis are known for their durability and are equipped with Qingling Isuzu 6HK1-TCSG40 or 6HK1-TCH engines, offering strong power (maximum power up to 206-221kW) and excellent fuel economy. The rear dual-axle design enhances load-bearing capacity and driving stability, making them suitable for long-distance transportation needs.
Tank Material: Made of 304 food-grade stainless steel to ensure safe transportation and meet hygiene standards.
Insulation Performance: Polyurethane foam insulation layer ensures a temperature change of only 1°C within 24 hours, protecting the quality of fresh milk.
Cleaning System: Equipped with a stainless steel onboard pump and cleaning ball for thorough tank cleaning, preventing residual contamination.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
