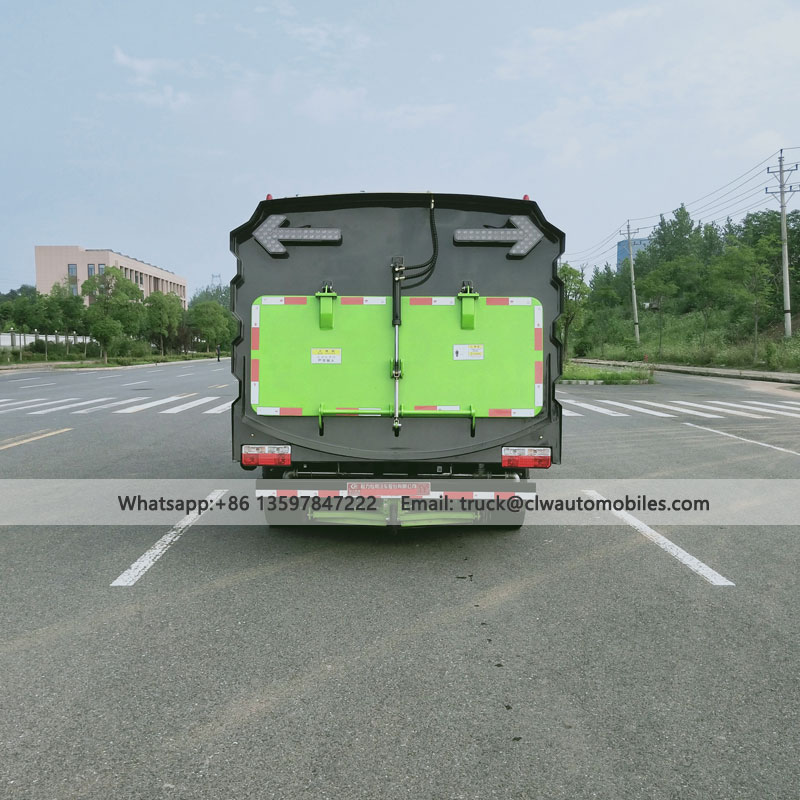

DFAC 8000L 4*2 Small Road Sweeper Truck
- CLW/DFAC
- Suizhou city, Hubei Province
- 90 working days after received your payment
- 100 units per month
- 20000-27000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of DFAC Road Sweeper Truck
| Brand of Vehicle | CLW/DONGFENG(NEW) | |
| Model | CLW5120TSL6 | |
| Drive Type | 4*2, LHD | |
| Overall Length | 6700mm | |
| Overall Width | 2200mm | |
| Overall Height | 2730mm | |
| G.V.W. | 11995kg | |
| Engine | Model | D25TCIF1/150HP |
| Emission Level | Euro VI | |
| Fuel Type | Diesel | |
| Number of Cylinder | 4 | |
| Displacement | 2.499L | |
| Auxiliary Engine | 125KW | |
| Transmission | Model | WLY |
| Number | 6-GERA | |
| Tire | Size | 7.50R16 |
| Number | 6+1 | |
| Fuel Tank | 76L | |

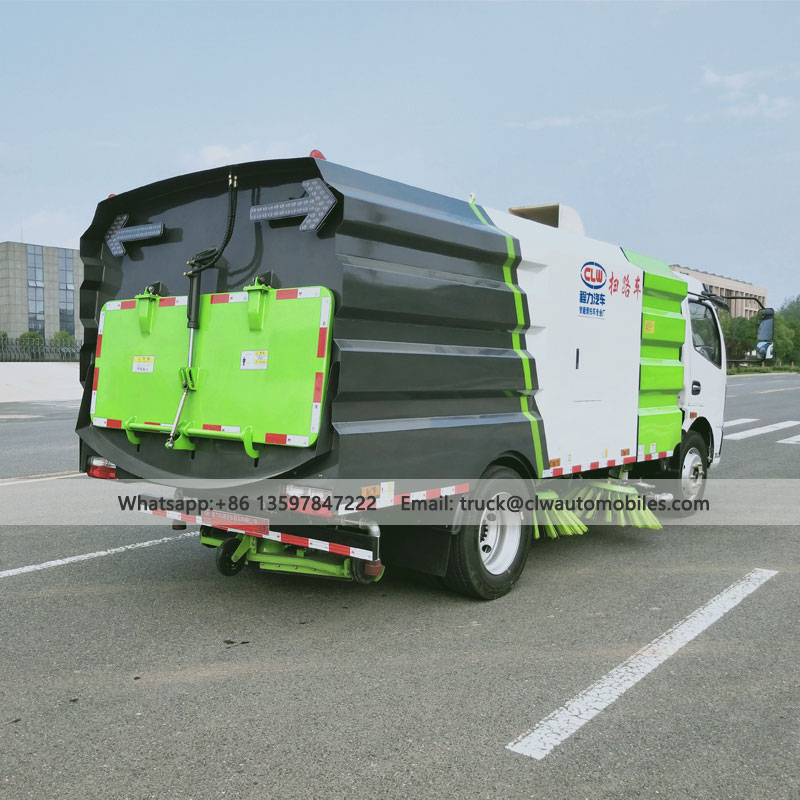

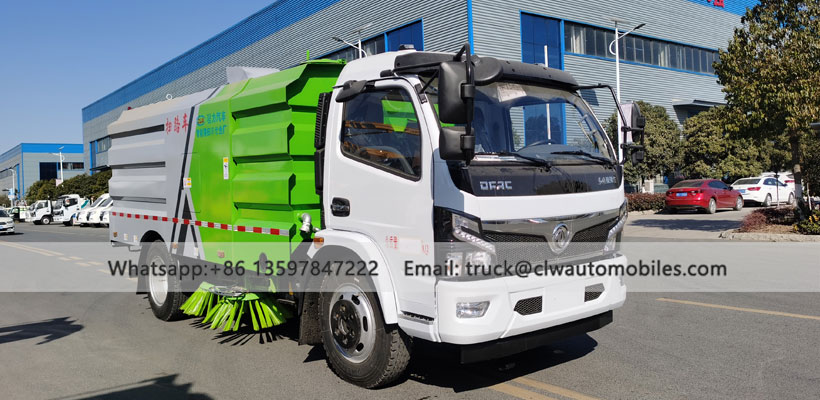

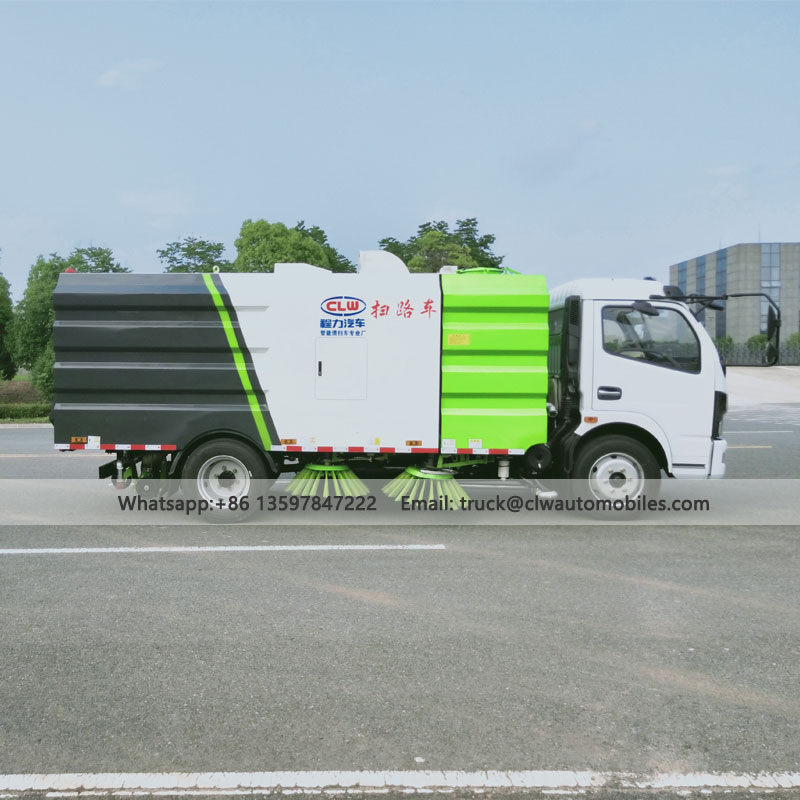

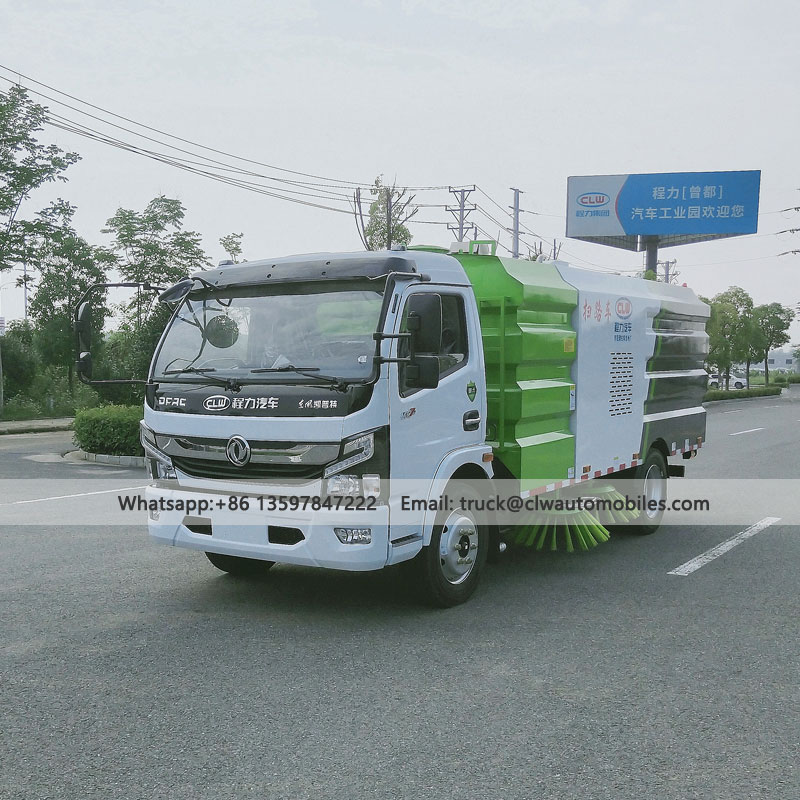

DFAC Sweeper Truck
DFAC Sweeper Truck
2
Special Function Parameters of Road Sweeper Truck
Suction and Sweep Working | Cleaning efficiency | ≥95% |
Maximum inhalation particle size | 120mm | |
Suction sweep width | 2.8-3m | |
Maximum cleaning capacity | 48000 m2/h | |
Disc brush extension dimensions | ≥400m | |
Suction and sweeping speed | 3-20km/h | |
Water Tank Capacity | 2.5m³ | |
Trash Capacity | Rated capacity of trash bin | 5 m |
Discharge door opening angle | ≥90° | |
Hydraulic System | Style | Open type, electrical control |
Main Components | Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valves | |
System Pressure | 16MPa | |
Hydraulic oil tank capacit | 60L | |
Oil temperature | 60 ˚C | |
Electrical System | Style | DC12 V |
Voltage | 12 V | |
Battery | 12V | |
High Pressure System | Style | Plunger pump |
Model | German PT36 | |
System Pressure | 10MPa | |
Speed | 1150r/min | |
Water valve type | Air-controlled high pressure ball valve | |
Water valve pressure | 12MPa | |
Nozzle Type | High pressure washing type | |
Water filter | Filter type | |

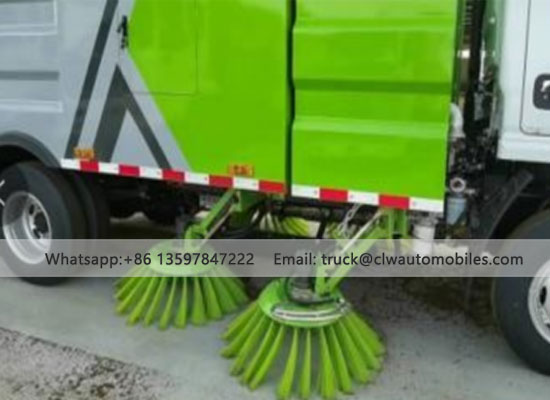

Sweeping device | Style | Two sweep discs driven by hydraulic motors are positioned in the center, featuring adjustable speed, independent control, and automatic obstacle avoidance capabilities. |
Sweep disc diameter | 500mm | |
Sweep speed | High; Medium; Low | |
Sweep angle | Forward tilt: 4-6 degrees Outward tilt: 4-7 degrees | |
Suction cup device | Style | Dual air intakes, hydraulically controlled, spring suspension |
Suction diameter | 200mm | |
Suction width | 1800mm | |
Side spray bar | V-shaped spray bar with automatic avoidance function. | |

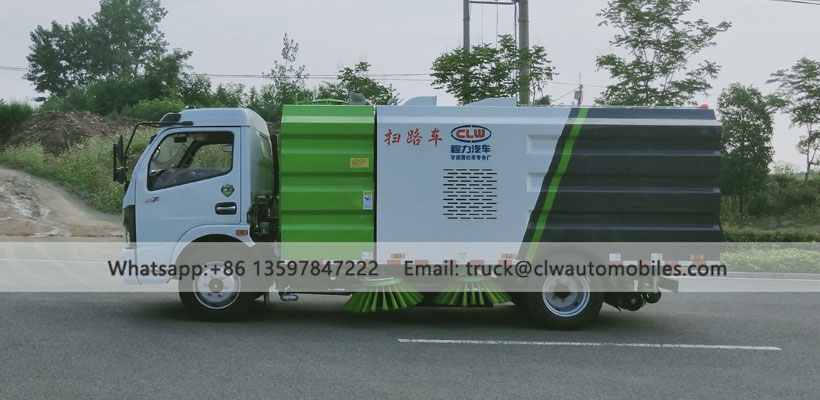

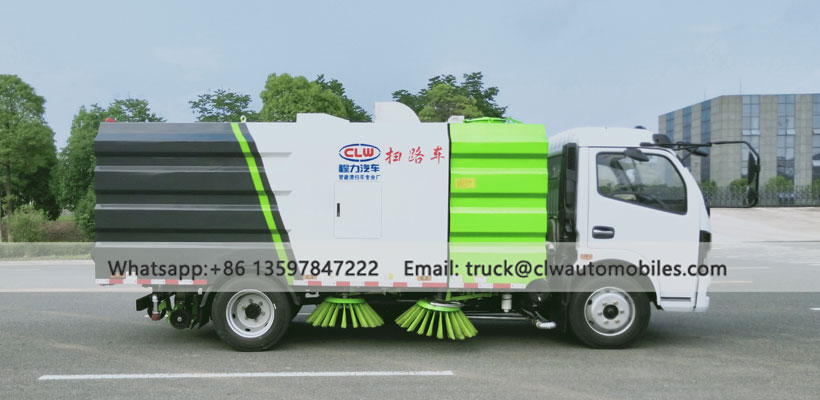

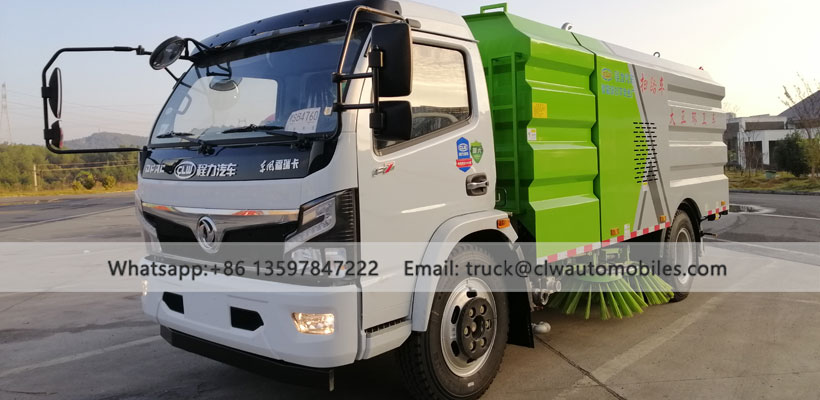

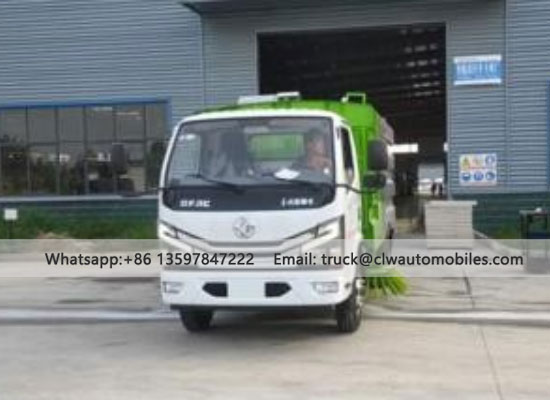

Road Sweeper Truck
Road Sweeper Truck
3
Details of Special Function
 |  |

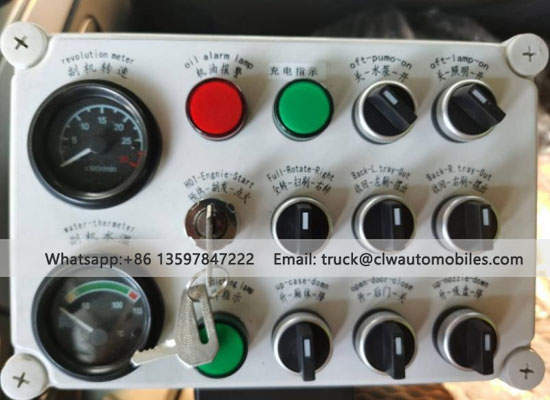

During the sweeping operation, the road sweeper truck raises and lowers the sweeping discs and suction nozzles on both sides to remove dust and debris from the sidewalk. Water pipes on the spray bar of the front sweeping disc are driven by an electronic diaphragm pump to spray water, forming a water curtain that effectively suppresses dust and completes the road sweeping task. | The road sweeper truck's dual control systems in the cab and rear section enable the driver to adjust operating modes while the vehicle is in motion or during operation, ensuring high safety standards. |
 |  |

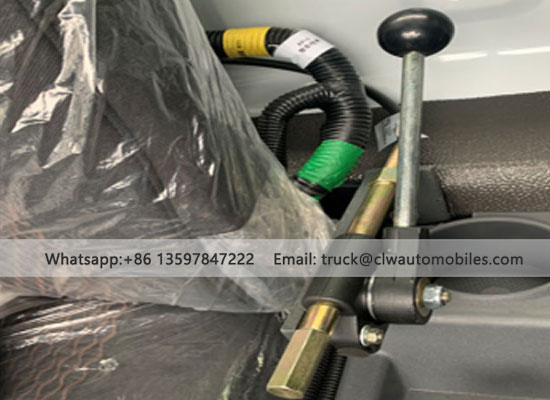

This road sweeper truck incorporates one-touch control technology and features a manual throttle control system for the auxiliary engine. It enables independent throttle adjustment based on road conditions, effectively enhancing cleaning performance while reducing fuel consumption. | For relatively clean road surfaces, the sweeper truck can activate its low-pressure flushing function. This feature utilizes the chassis power take-off to drive the water pump, enabling the truck to perform low-pressure flushing operations. (Optional configuration) |
 |  |

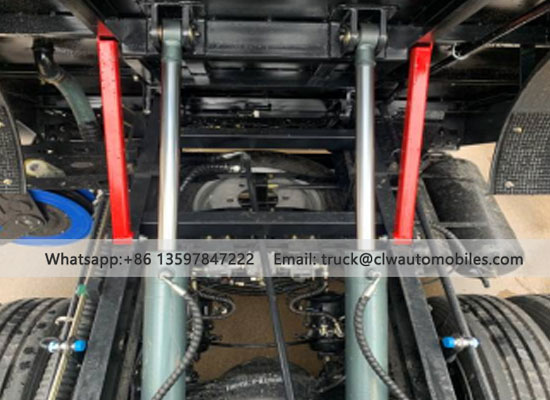

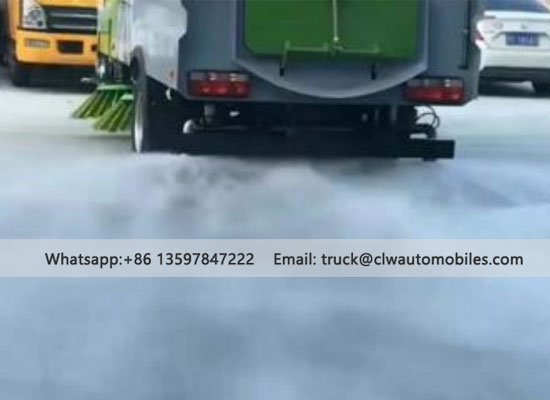

When the safety bar is not lowered, the intelligent system will prevent the bin from returning to its original position, effectively preventing accidents during maintenance. | A rear sprinkler is installed beneath the rear waste bin of the sweeper truck. To prevent secondary pollution caused by dust kicked up during operation, the rear sprinkler switch can be activated to spray water onto the ground. This effectively reduces airborne dust, achieving air purification. (Optional feature) |
 |  |

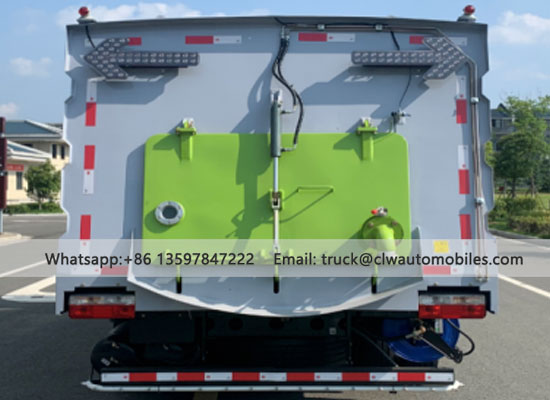

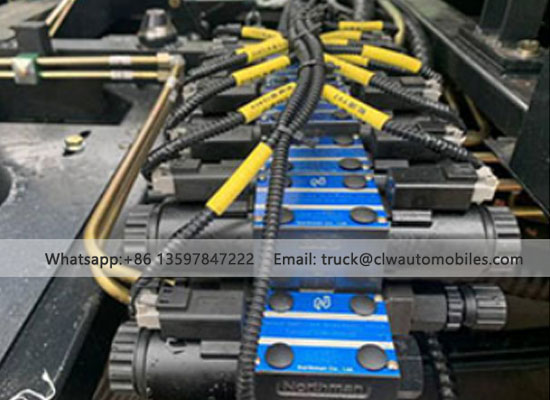

The rear door closing locking mechanism adopts a lock hook type, which has good stability and good air-tightness | Imported high-quality hydraulic valves can ensure the stability and smoothness of the vehicle's hydraulic action |
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
