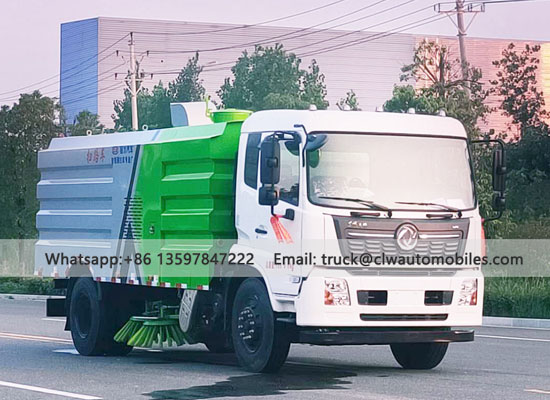

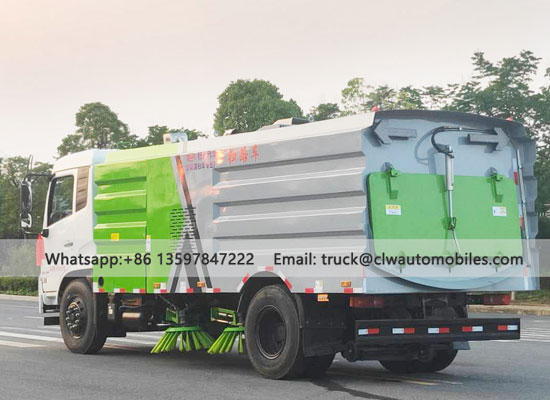

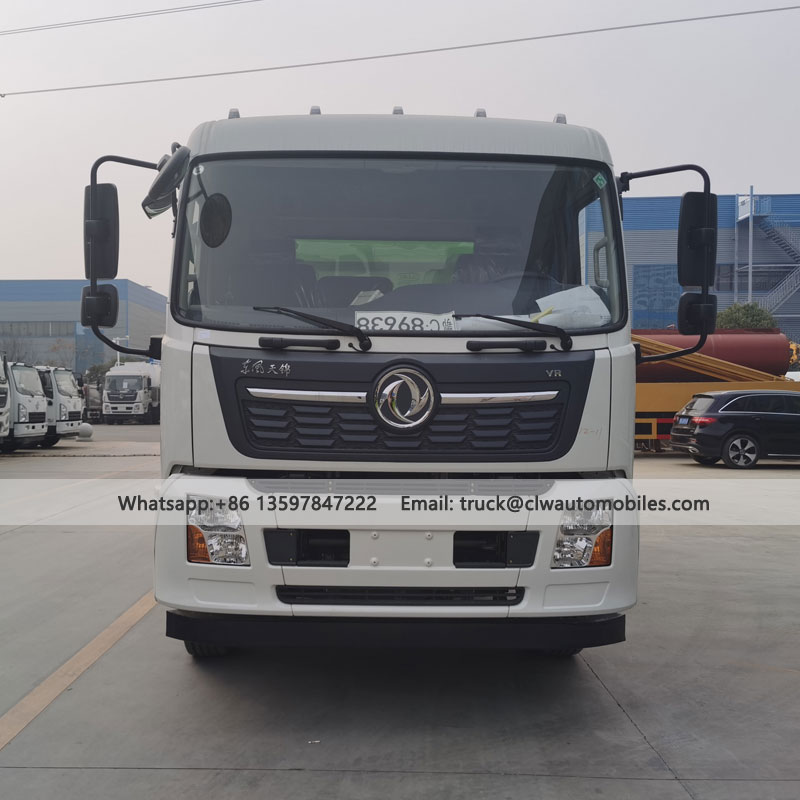

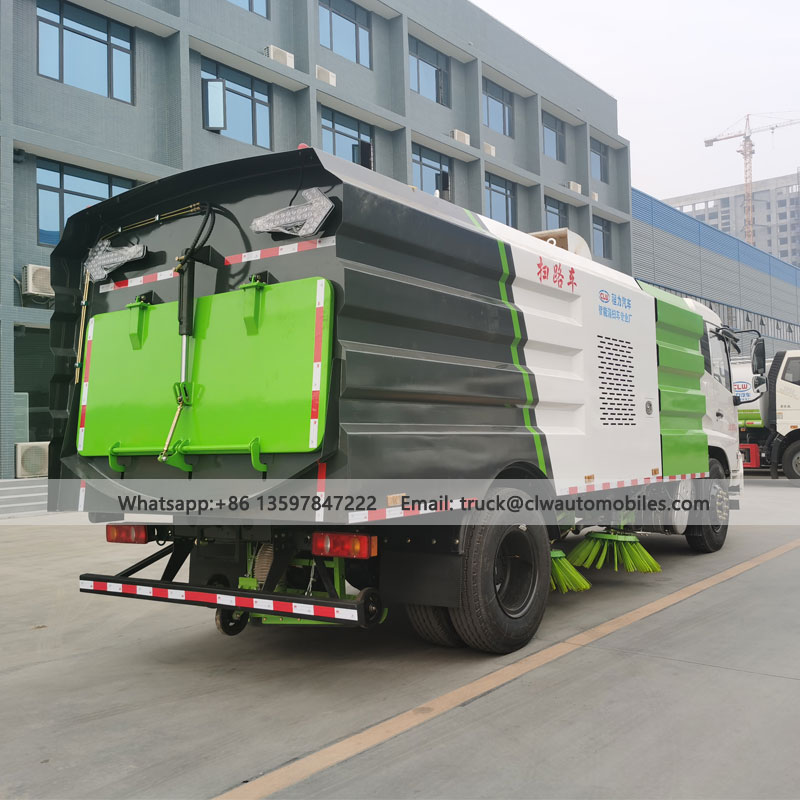

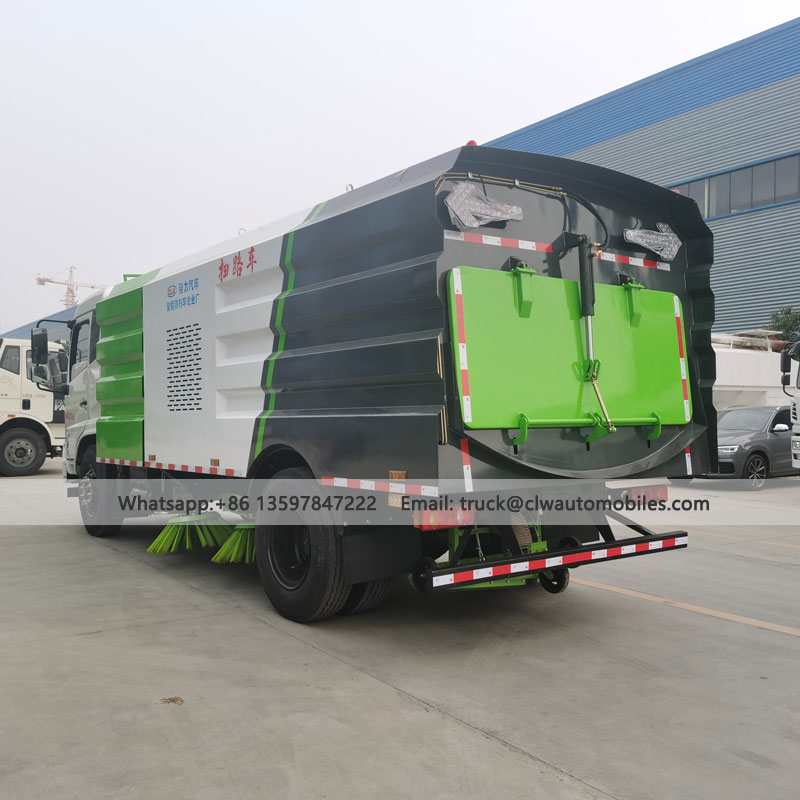

DONGFENG 12000L 4*2 Small Street Sweeper Vehicle
- CLW/DFAC
- Suizhou city, Hubei Province
- 90 working days after received your payment
- 100 units per month
- 20000-27000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of 4*2 Street Sweeper Truck
| Brand of Vehicle | CLW/DONGFENG(NEW) | |
| Model | CLW5180TSLD6 | |
| Drive Type | 4*2, LHD | |
| Overall Length | 7930mm | |
| Overall Width | 2500mm | |
| Overall Height | 3120mm | |
| G.V.W. | 18000kg | |
| Engine | Model | B6.2NS6B210/210HP |
| Emission Level | Euro VI | |
| Fuel Type | Diesel | |
| Number of Cylinder | 6 | |
| Displacement | 6.2L | |
| Auxiliary Engine | 154KW | |
| Transmission | Model | WLY |
| Number | 6-GERA | |
| Tire | Size | 10.00R20 |
| Number | 6+1 | |
| Fuel Tank | 200L | |

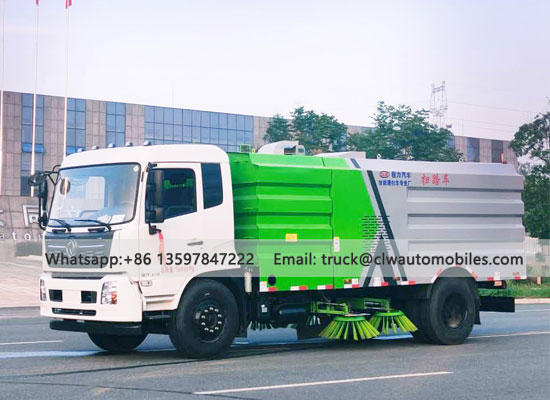

Street Sweeper Truck
Street Sweeper Truck
2
Special Function Parameters of 4*2 Street Sweeper Truck
Suction and Sweep Working | Cleaning efficiency | ≥95% |
Maximum inhalation particle size | 120 mm | |
Suction sweep width | 2.8-3 m | |
Maximum cleaning capacity | 48000 m2/h | |
Disc brush extension dimensions | ≥400 m | |
Suction and sweeping speed | 3-20 km/h | |
Water Tank Capacity | 2.5m³ | |
Trash Capacity | Rated capacity of trash bin | 5 m |
Discharge door opening angle | ≥90° | |
Hydraulic System | Style | Open type, electrical control |
Main Components | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve | |
System Pressure | 16 MPa | |
Hydraulic oil tank capacit | 60 L | |
Oil temperature | 60 ˚C | |
Electrical System | Style | DC12 V |
Voltage | 12 V | |
Battery | 12V | |
High Pressure System | Style | Plunger pump |
Model | German PT36 | |
System Pressure | 10 MPa | |
Speed | 1150 r/min | |
Water valve type | Air-controlled high pressure ball valve | |
Water valve pressure | 12 MPa | |
Nozzle Type | High pressure washing type | |
Water filter | Filter type | |
Sweeping device | Style | Two sweeping discs in the middle, driven by hydraulic motor, with adjustable speed, independent control and automatic avoidance function |
Sweep disc diameter | 500 mm | |
Sweep speed | High; Medium; Low | |
Sweep angle | Forward tilt: 4-6 degrees Outward tilt: 4-7 degrees | |
Suction cup device | Style | Double suction port, hydraulic control, spring suspension |
Suction diameter | 200 mm | |
Suction width | 1800 mm | |
Side spray bar | V-shaped spray bar with automatic avoidance function. | |

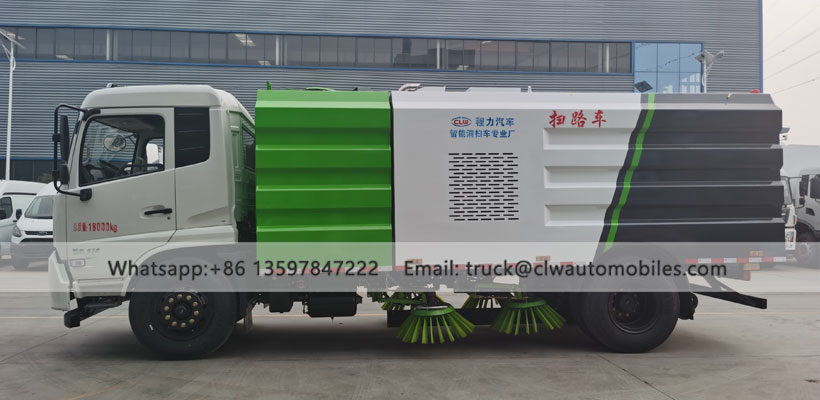

Street Sweeper Vehicle
Street Sweeper Vehicle
Street Sweeper Vehicle
3
Details of Special Function
 |  |

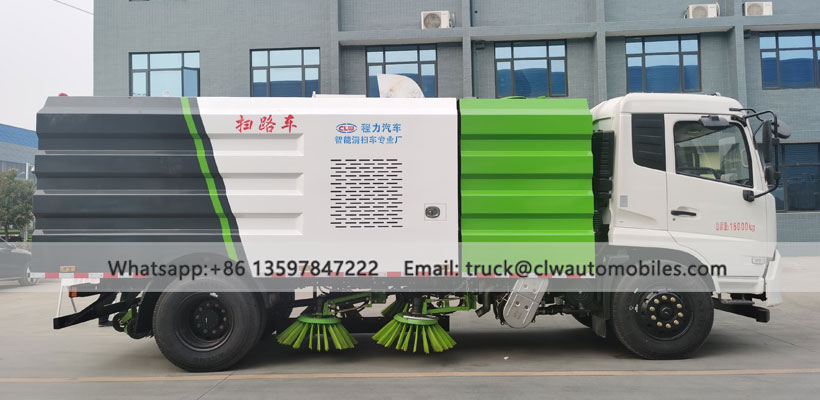

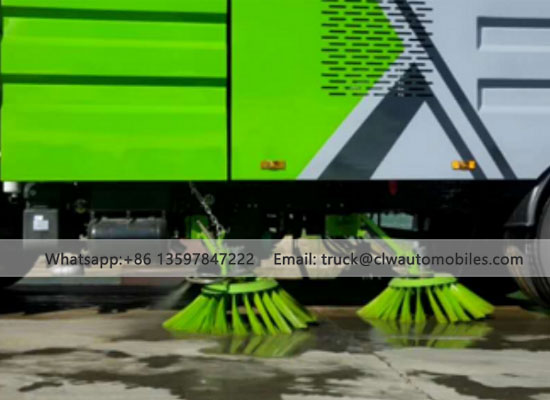

Street Sweeper Truck adopts the structure of "center-mounted two vertical sweepers + center-mounted wide suction nozzle (built-in high-pressure water spray rod) + left and right high-pressure side spray rods". | During the cleaning operation, to remove dust and dirt from the sidewalks, the left and right sweeping and suction cups are raised and lowered. High-pressure water from the front sweeping disc spray bar is sprayed through the water spray pipe, forming a water curtain that can suppress dust and complete the road cleaning. |
 |  |

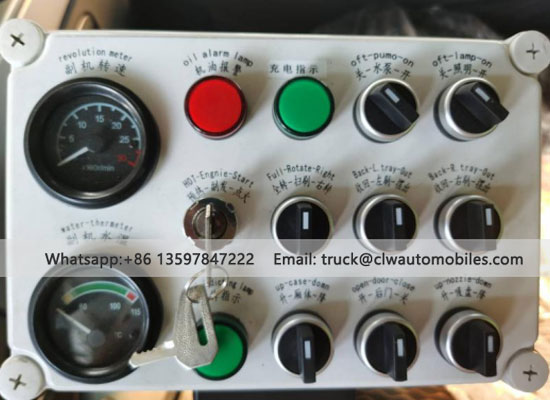

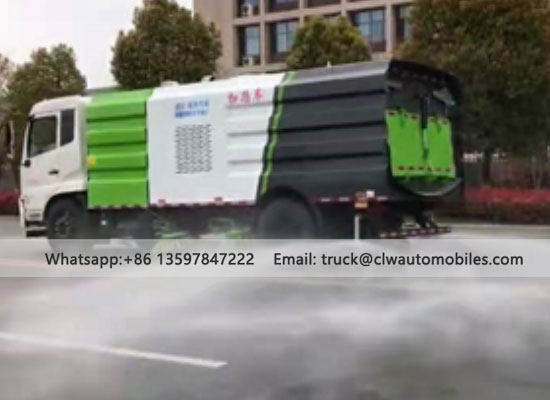

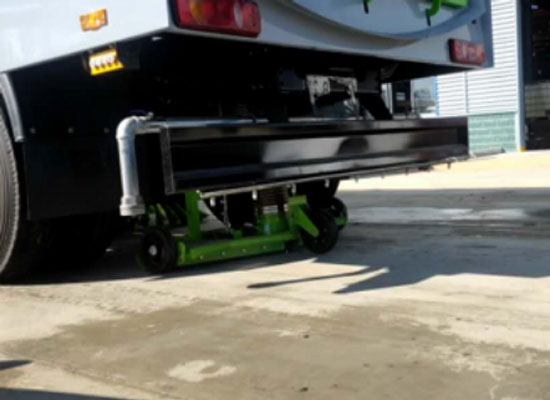

The sweeper truck is equipped with a rear sprinkler under the garbage bin at the rear. To prevent secondary pollution caused by dust kicked up during operation, the rear sprinkler switch can be turned on to spray water onto the ground, effectively reducing airborne dust and purifying the air. (Optional configuration) | Electronic control system: Two sets of controls, one in the cab and one at the rear, allow the driver to adjust the operating mode while the vehicle is in motion or during operation, ensuring high safety. |
 |  |

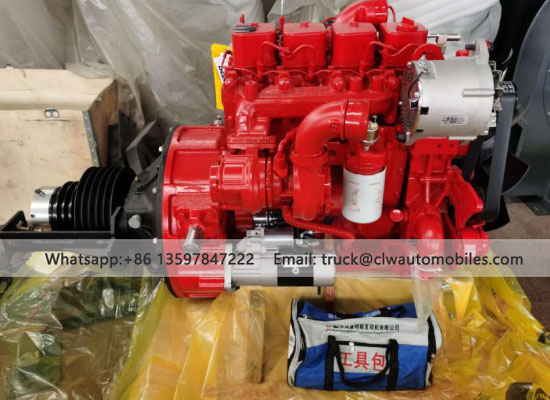

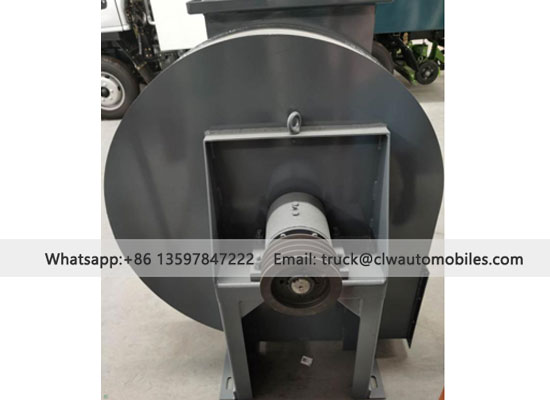

This high-efficiency, maintenance-free centrifugal fan boasts high efficiency, a long service life, and blades made of special steel with a unique blade shape that makes them extremely resistant to wear. | The auxiliary engine uses a Cummins 140hp engine (Yuchai 140hp engine is optional). The auxiliary engine directly drives the hydraulic pump through the side power take-off port (PTO port), which improves transmission efficiency, reduces support seat transition, saves fuel consumption, reduces user operating costs, and effectively reduces the failure rate. |
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
