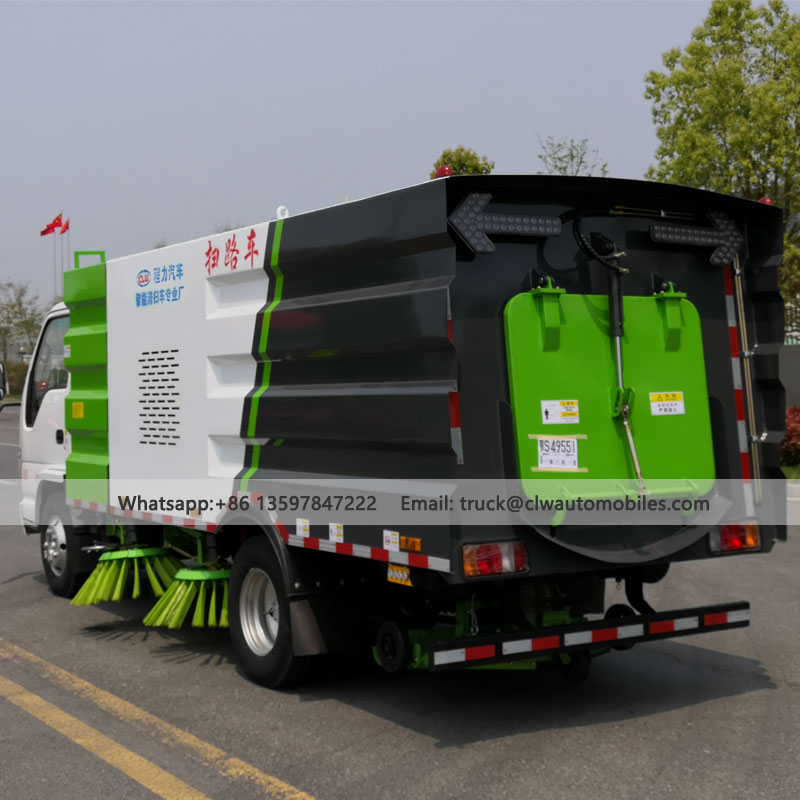

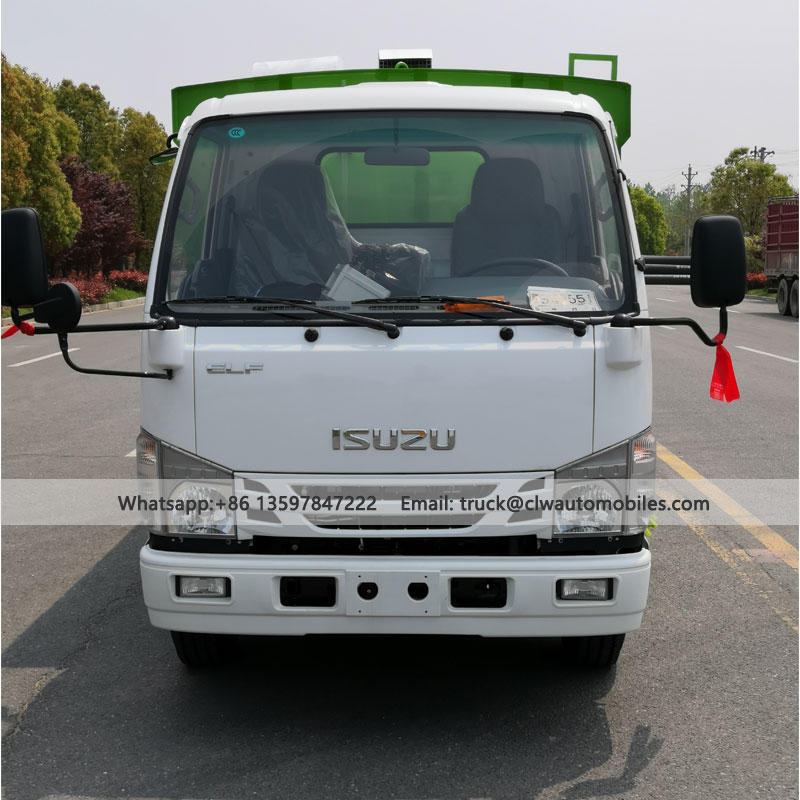

ISUZU 6000L Street Sweeper Truck
- CLW/ISUZU
- Suizhou city, Hubei Province
- 90 working days after received your payment
- 100 units per month
- 30000-40000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of 4*2 ISUZU Street Sweeper Truck
| Brand of Vehicle | CLW/ISUZU(NEW) | |
| Model | CLW5080TXSQ6 | |
| Drive Type | 4*2, LHD | |
| Overall Length | 7050mm | |
| Overall Width | 2200mm | |
| Overall Height | 2700mm | |
| G.V.W. | 8200kg | |
| Engine | Model | 4KH1CN6LB/120HP |
| Emission Level | Euro VI | |
| Fuel Type | Diesel | |
| Number of Cylinder | 4 | |
| Displacement | 3L | |
| Auxiliary Engine | 88KW | |
| Transmission | Model | MSB |
| Number | 5-GERA | |
| Tire | Size | 7.00R16 |
| Number | 6+1 | |
| Fuel Tank | 75L | |

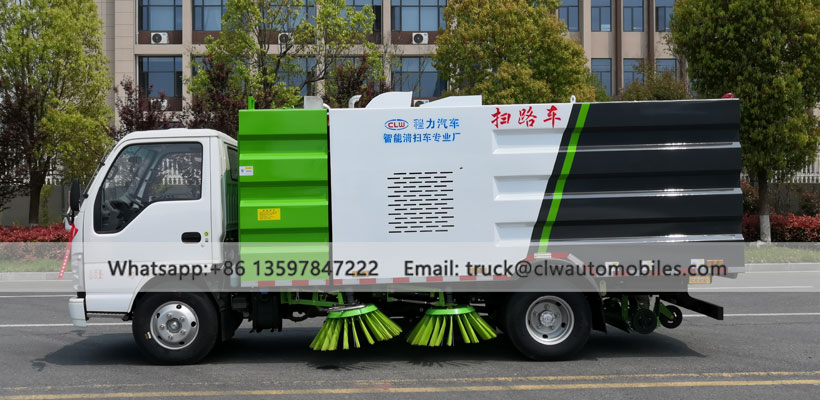

ISUZU Street Sweeper Truck

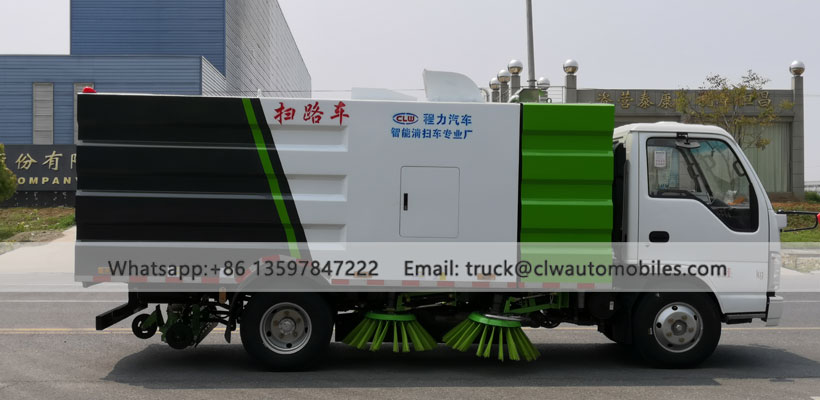

ISUZU Street Sweeper Truck
2
Special Function Parameters of 4*2 Street Sweeper Truck
Suction and Sweep Working | Cleaning efficiency | ≥95% |
Maximum inhalation particle size | 120mm | |
Suction sweep width | 2.8-3m | |
Maximum cleaning capacity | 48000 m2/h | |
Disc brush extension dimensions | ≥400m | |
Suction and sweeping speed | 3-20km/h | |
Water Tank Capacity | 2.5m³ | |
Trash Capacity | Rated capacity of trash bin | 5 m |
Discharge door opening angle | ≥90° | |
Hydraulic System | Style | Open type, electrical control |
Main Components | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve | |
System Pressure | 16MPa | |
Hydraulic oil tank capacit | 60L | |
Oil temperature | 60 ˚C | |
Electrical System | Style | DC12 V |
Voltage | 12 V | |
Battery | 12V | |
High Pressure System | Style | Plunger pump |
Model | German PT36 | |
System Pressure | 10MPa | |
Speed | 1150r/min | |
Water valve type | Air-controlled high pressure ball valve | |
Water valve pressure | 12MPa | |
Nozzle Type | High pressure washing type | |
Water filter | Filter type | |
Sweeping device | Style | Two sweeping discs in the middle, driven by hydraulic motor, with adjustable speed, independent control and automatic avoidance function |
Sweep disc diameter | 500mm | |
Sweep speed | High; Medium; Low | |
Sweep angle | Forward tilt: 4-6 degrees Outward tilt: 4-7 degrees | |
Suction cup device | Style | Double suction port, hydraulic control, spring suspension |
Suction diameter | 200mm | |
Suction width | 1800mm | |
Side spray bar | V-shaped spray bar with automatic avoidance function. | |
Street Sweeper Vehicle
Street Sweeper Vehicle
Street Sweeper Vehicle
3
Details of Special Function
 |  |
Street Sweeper Truck adopts the structure of "center-mounted two vertical sweepers + center-mounted wide suction nozzle (built-in high-pressure water spray rod) + left and right high-pressure side spray rods". | During the cleaning operation, to remove dust and dirt from the sidewalks, the left and right sweeping and suction cups are raised and lowered. High-pressure water from the front sweeping disc spray bar is sprayed through the water spray pipe, forming a water curtain that can suppress dust and complete the road cleaning. |
 |  |

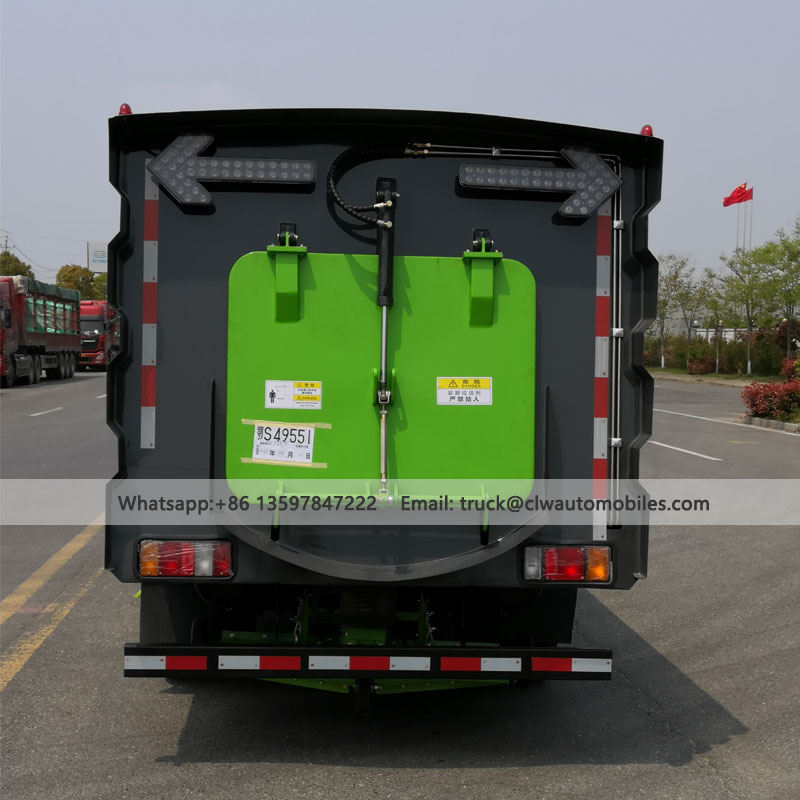

The sweeper truck is equipped with a rear sprinkler under the garbage bin at the rear. To prevent secondary pollution caused by dust kicked up during operation, the rear sprinkler switch can be turned on to spray water onto the ground, effectively reducing airborne dust and purifying the air. (Optional configuration) | Electronic control system: Two sets of controls, one in the cab and one at the rear, allow the driver to adjust the operating mode while the vehicle is in motion or during operation, ensuring high safety. |
 |  |
Street Sweeper Truck features a high-efficiency, maintenance-free centrifugal fan with exceptional performance and extended service life. The blades are crafted from special steel, and their unique shape ensures exceptional wear resistance. | The auxiliary engine of Street Sweeper Truck utilizes a JMC 88-horsepower unit (optional Yuchai 102-horsepower engine). This auxiliary engine directly drives the hydraulic pump via a side power take-off (PTO) port, enhancing transmission efficiency, minimizing support bracket transitions, reducing fuel consumption, lowering user operating costs, and effectively decreasing failure rates. |
4
Advantage of ISUZU
The Isuzu 100P Street Sweeper Truck excels in efficient cleaning, reliable power, and flexible adaptability, making it the preferred choice for urban sanitation operations.
Street Sweeper Truck Offered single-row or double-row cab configurations, with a wheelbase of 3815mm and a body width of 1695mm, it is well-suited for operations on narrow urban roads. Incorporating Isuzu's latest generation chassis technology, it enhances load-carrying capacity while optimizing lightweight performance, making it ideal for heavy-duty transport requirements. The rear axle features an over-axle spring design, standard with 5 leaf springs and optional 6 leaf springs, ensuring body stability even under full load.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
