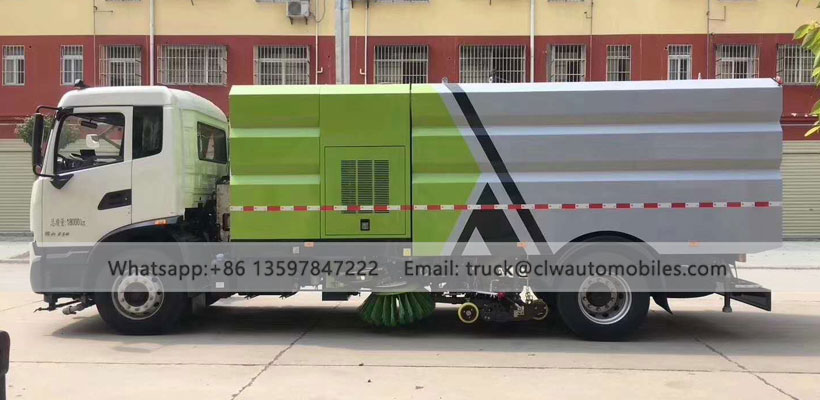

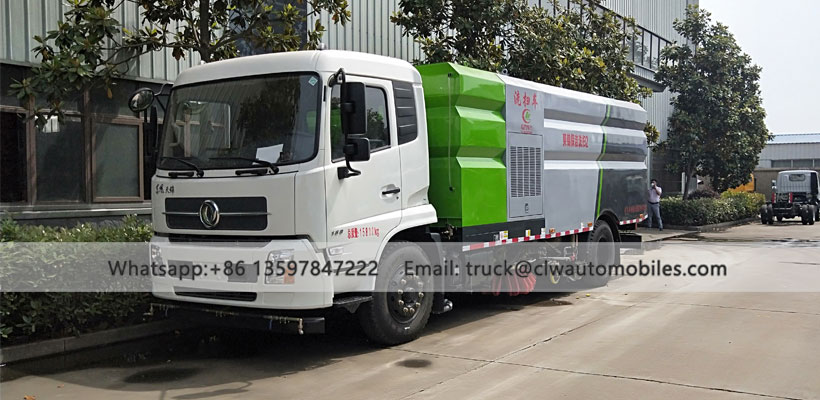

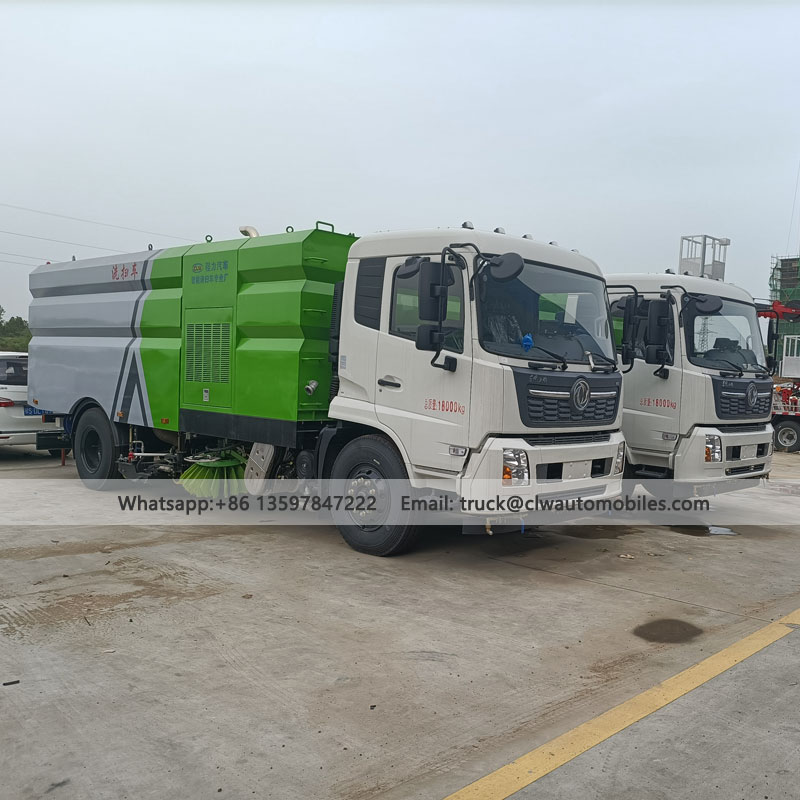

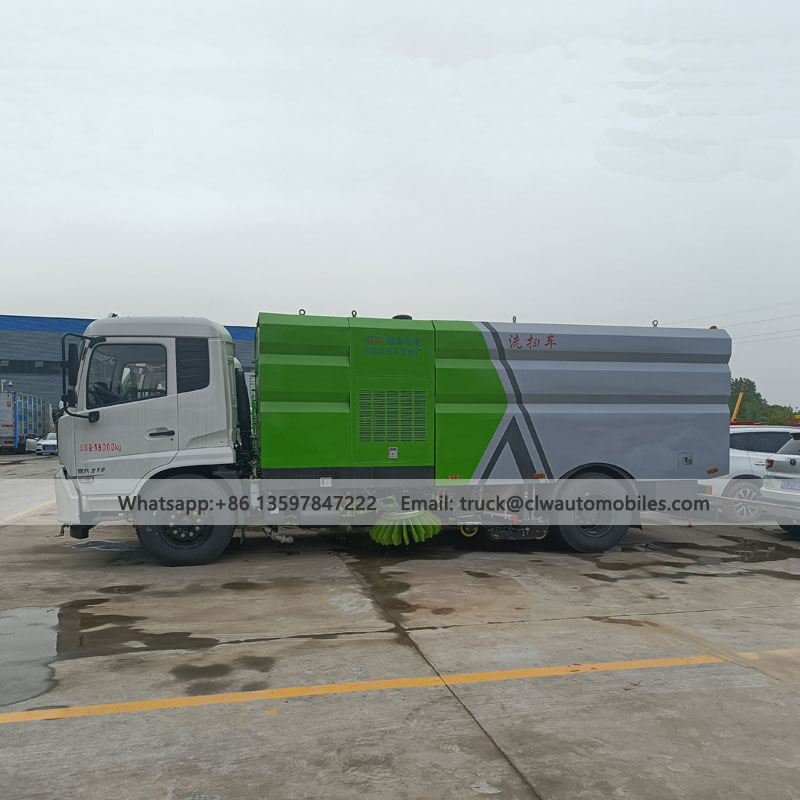

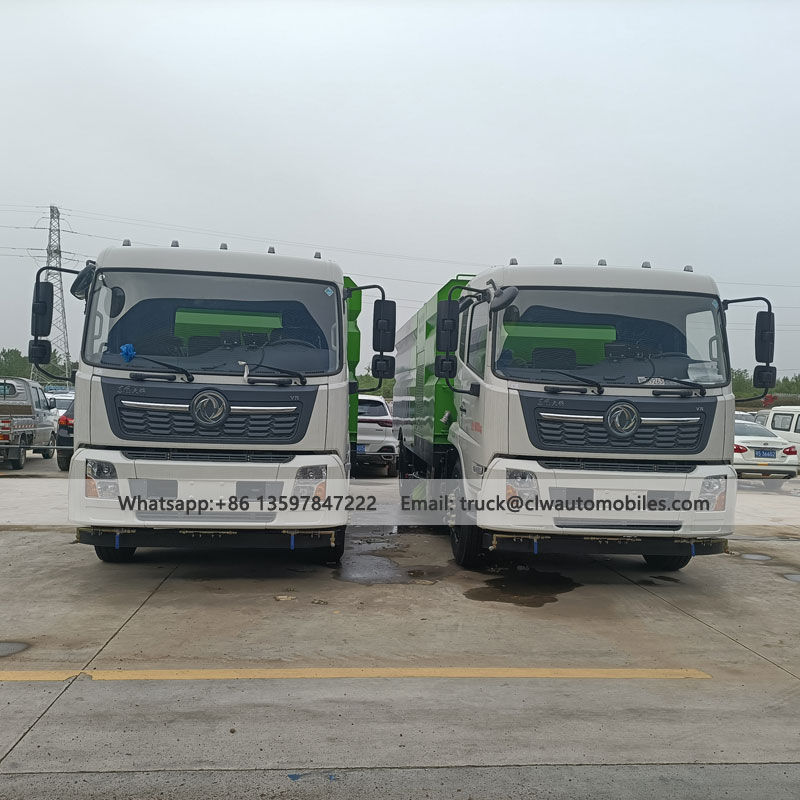

DONGFENG 12000L Road Sweeping and High Pressure Cleaning Truck

B6.2NS6B210/210HP

Cleaning Width

3 m

Cleaning Pressure

10 MP

Pump Flow

115 L/min

Suction and Sweep Working

Cleaning efficiency

≥95%

Maximum inhalation particle size

110 mm

Suction sweep width

3 m

Maximum cleaning capacity

60000 m²/h

Disc brush extension dimensions

≥400 m

Suction and sweeping speed

3-20 km/h

Water Tank Capacity

Trash Capacity

Rated capacity of trash bin

5 m

Discharge door opening angle

≥90°

Hydraulic System

Style

Open type, electrical control

Main Components

Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve

System Pressure

16 MPa

Hydraulic oil tank capacit

60 L

Oil temperature

60 ˚C

Electrical System

Style

DC12 V

Voltage

12 V

Battery

12V

High Pressure System

Style

Plunger pump

Model

German PT36

System Pressure

10 MPa

Speed

1150 r/min

Water valve type

Air-controlled high pressure ball valve

Water valve pressure

7 MPa

Nozzle Type

High pressure washing type

Water filter

Filter type

Sweeping device

Style

Two sweeping discs in the middle, driven by hydraulic motor, with adjustable speed, independent control and automatic avoidance function

Sweep disc diameter

800 mm

Sweep speed

High; Medium; Low

Sweep angle

Forward tilt: 4-6 degrees Outward tilt: 4-7 degrees

Suction cup device

Style

Double suction port, hydraulic control, spring suspension

Suction diameter

180 mm

Suction width

1800 mm

Side spray bar

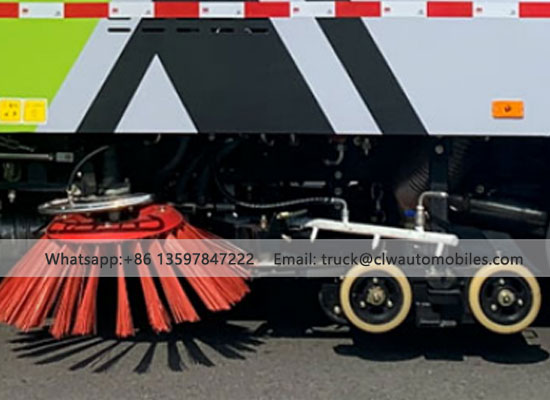

Road Sweeping and Cleaning Truck adopts the structure of "center-mounted two vertical sweepers + center-mounted wide suction nozzle (built-in high-pressure water spray rod) + left and right high-pressure side spray rods".

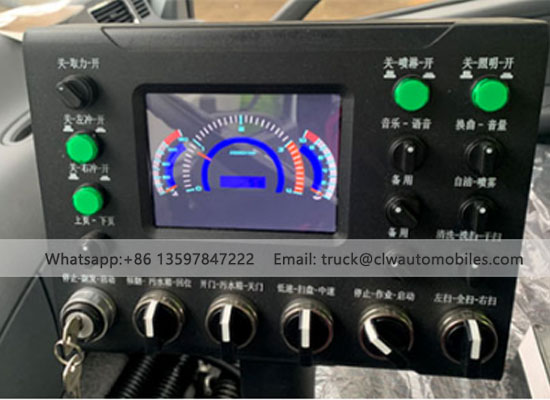

Road Sweeper Truck adopting advanced CAN bus and intelligent one-button control technology, all operations are completed in the cab

Road Sweeping and Cleaning Truck based on the one-button control technology, a manual throttle control system for the auxiliary engine is added, which can independently adjust the throttle size according to road conditions, effectively enhancing the cleaning and sweeping effect and reducing fuel consumption.

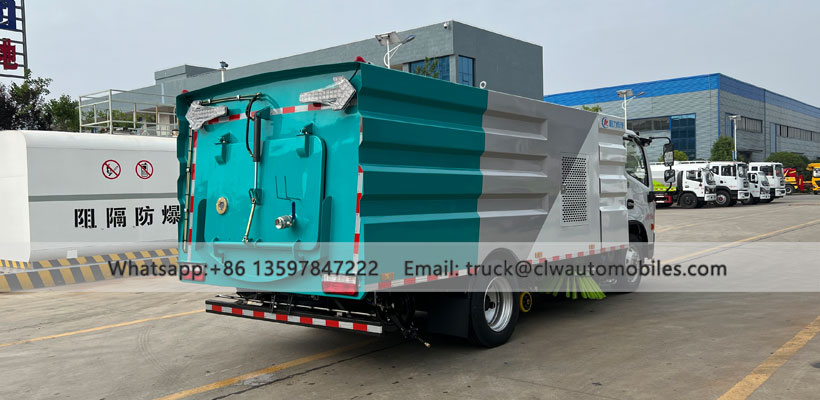

Road Sweeping and Cleaning Truck equipped with a garbage bin lifting safety protection device to ensure that the garbage bin cannot be lifted when the rear door is not opened

When the safety bar is not lowered, the intelligent system will prohibit the trash bin from returning to its original position, which can effectively prevent accidents during maintenance.

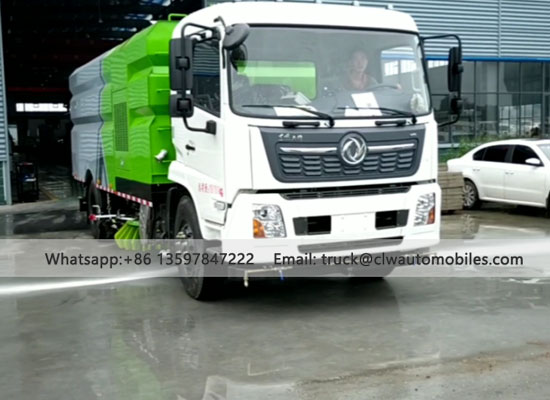

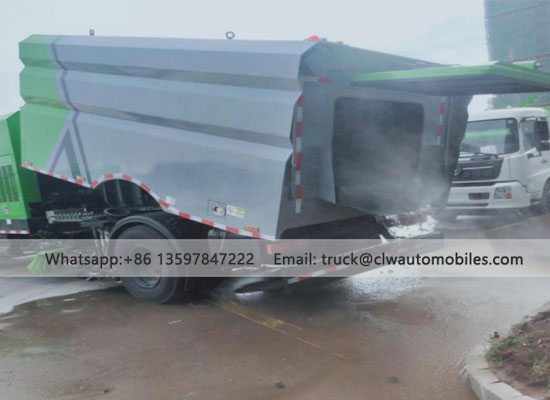

The cleaning and sweeping truck can activate the low-pressure flushing function on roads with relatively clean environments. The chassis power take-off drives the sprinkler pump to achieve the low-pressure flushing function of the sprinkler vehicle.

To avoid the solid waste residue in the garbage bin from being adsorbed inside the bin during the dumping process, which can cause corrosion of the bin and affect the service life of the product over time, a self-cleaning nozzle is installed inside the bin. The high-pressure water flow generated can flush all the garbage residue out of the bin.

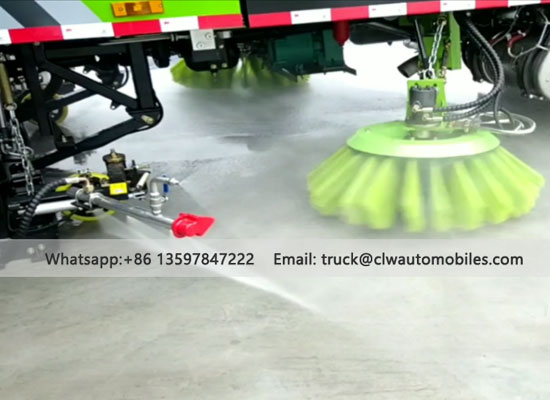

During the cleaning process of the sweeping vehicle, the ball valves on the left and right spray rods of the roadside cleaning bends can be opened for sidewalks and facade walls that are higher than the road surface. High pressure water is sprayed through the spray pipe, forming a high-pressure water curtain that can complete the cleaning of the roadside and roadside stone facades.

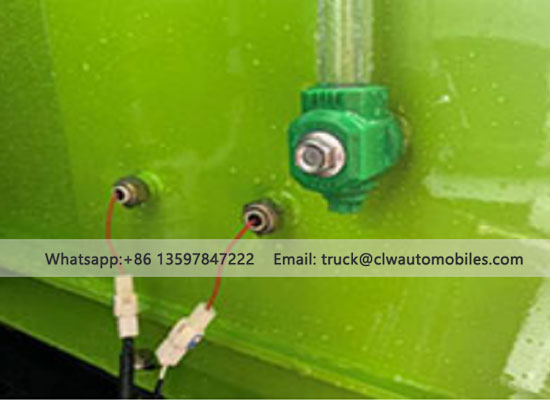

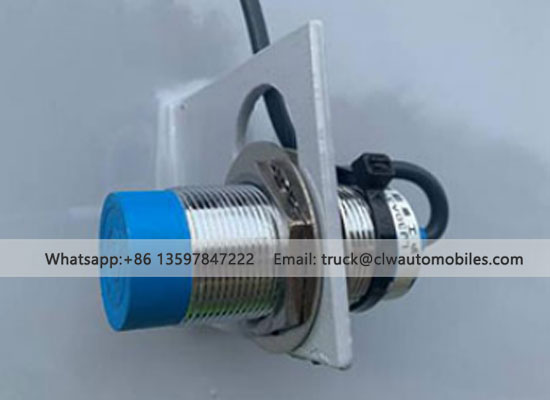

The clean water tank is equipped with a low water level sensor alarm system, which automatically alarms when there is no water to prevent the water pump from being damaged due to lack of water.

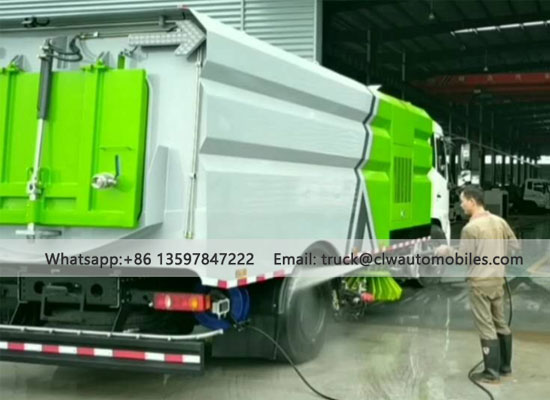

The Road Sweeping and Cleaning Truck is equipped with a 20 meter automatic winding reel and a high-pressure long gun, making it easy for users to park and clean the vehicle, keep it clean, and avoid dust accumulation causing blockages in the oil and gas circuits, which can affect the service life of the vehicle.
