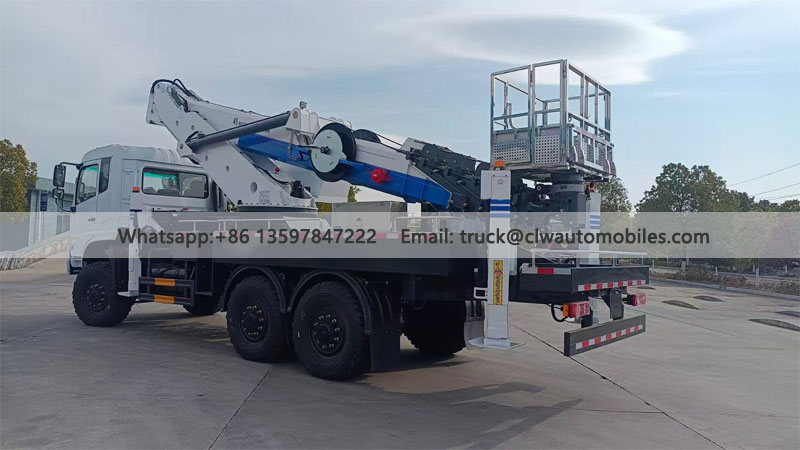

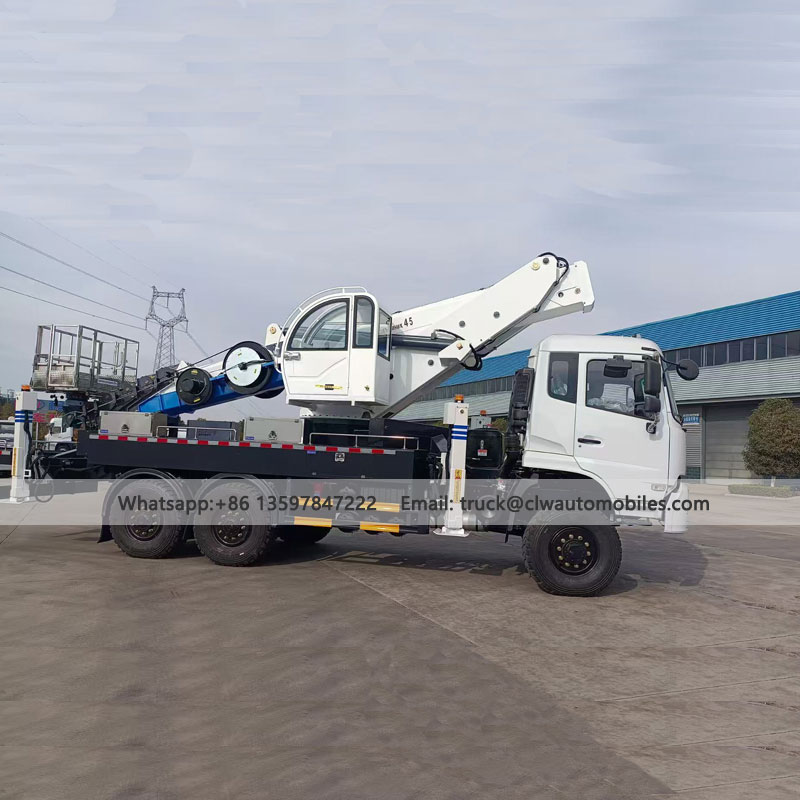

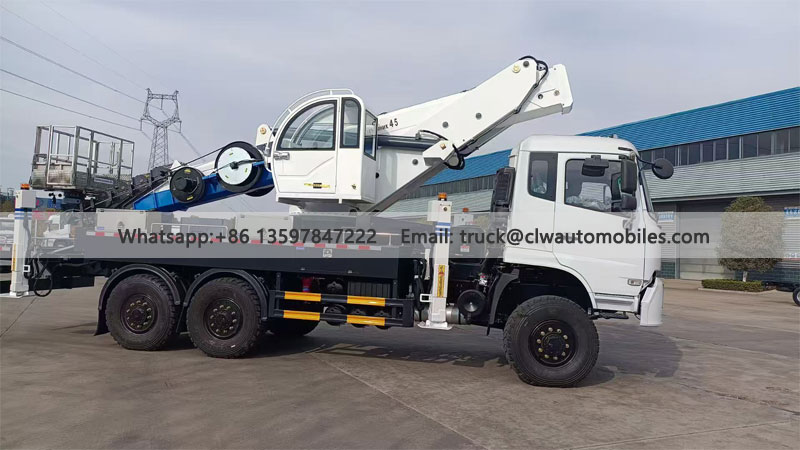

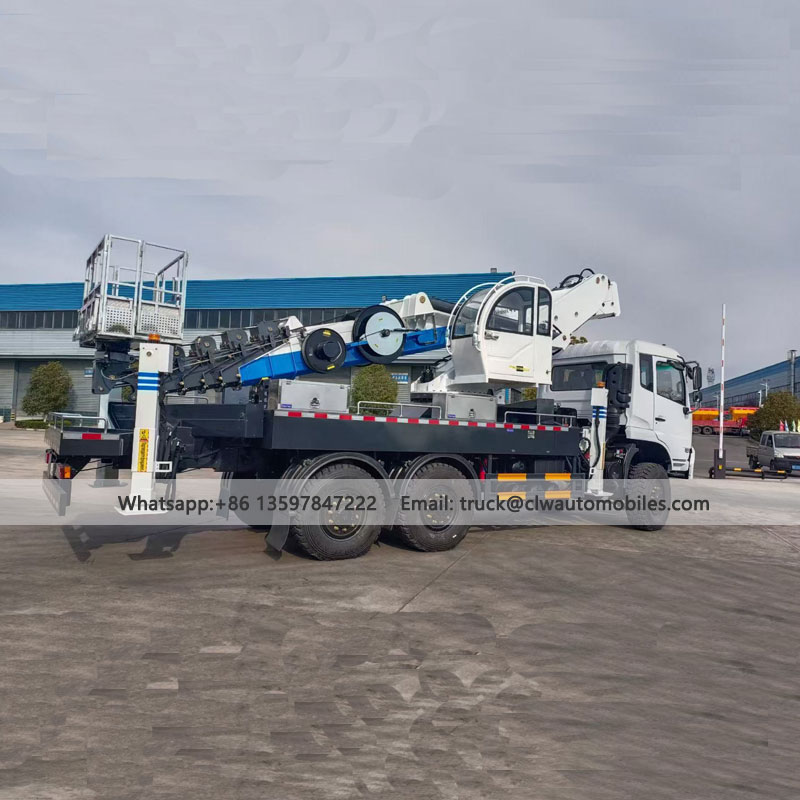

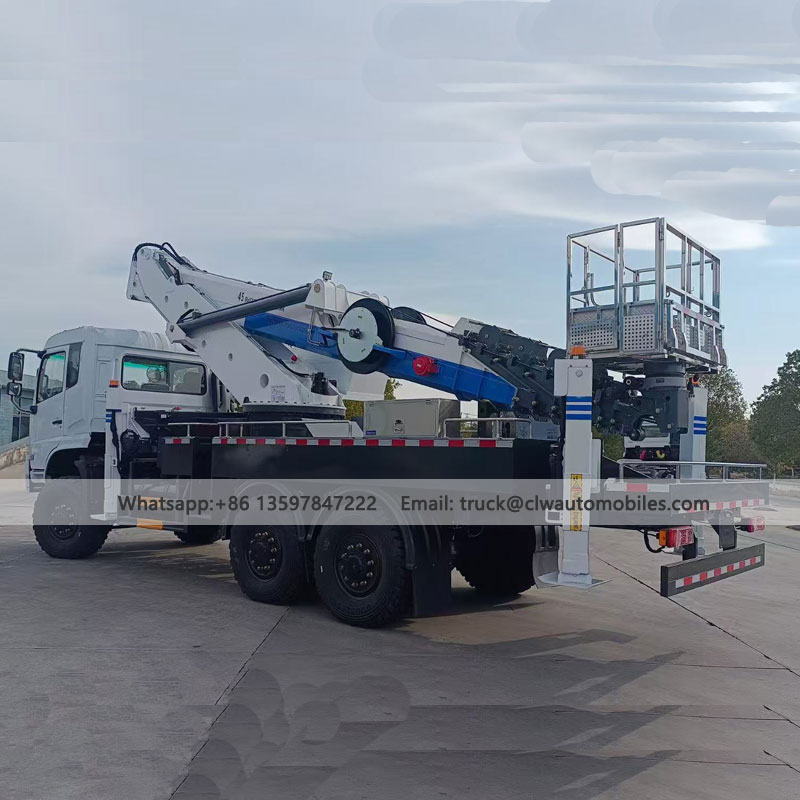

CLW 45M Sky Lift Truck with Off Road 6x6
- CLW
- Suizhou
- 30 days
- 100 units per month
CLW 45 meter Sky Lift Truck adopts a 6*6 drive mode and a Cummins 190-horsepower diesel engine to improve its passability in extreme terrains such as sand and mountains.
Basic Parameters of CLW 45M Sky Lift Truck with
| Brand of Vehicle | CLW(New) | |
| Name of Vehicle | CLW 45M Sky Lift Truck | |
Mode | CLW5170JGKD3 | |
Drive type | 6×6, LHD | |
Overall Lengt | 8780mm | |
Overall widt | 2500mm | |
Overall heigh | 3900mm | |
Curb weight | 16750KG | |
Wheelbase | 4500mm | |
Engine | Type | B190 33 / 190HP |
Emission level | EuroIII | |
| Maximum power | 140kw | |
| Displacement (lit) | 5.9 | |
Fuel type | Diesel | |
Tire specification | 10.00R20 Steel wire tyre | |
| Transmission | FAST 8-Gear | |
The six-wheel drive system of CLW 45M Sky Lift Truck (6×6) significantly enhances traction and passability in complex terrain by independently driving each wheel. For example, it can maintain stable driving in sand, mud or rugged mountain roads, reducing the risk of getting stuck.
Upper Parameters of CLW 45M Sky Lift Truck
Maximum Working heigh | 28m-31m | |
Working height at maximum working rang | 17m | |
Maximum operating rang | 14m | |
Rotary device | The 360° continuous rotation. | |
Work bucket | size | 1000x650x1200mm |
rated load | 200kg | |
material | Stainless steel / insulatio | |
| Rotary | 360° rotation | |
| Outriggers | Quantity | 4 |
mode | Front V rear V type, adjustable separately | |
Horizonta | 5400m | |
Vertical | 5980mm | |
CLW 45M Sky Lift Truck Standard Equipment
Platform Operation
CLW 45m Sky lift truck has one 5-inch LCD screen, real-time display of detection arm length, elevation angle, platform height, working height, etc.
Remote Control Operation
45m Sky lift truck with Standard wireless remote control operation, real-time data display, simple and easy to set, quick and sensitive operation, automatic working range limit, when the working range reaches the specified value, automatically limit the dangerous direction of work. The controller can ignite the engine,
Outriggers
Sky lift truck with Front V and rear V-shaped double-section hydraulic outriggers, rear outriggers sinking, low center of gravity, greater stability
Upper arm
18-sided new structure of sky lift truck, synchronous telescopic, polygonal boom structure, enhanced boom strength, external telescopic cylinder with additional protective cover
Optional Equipment
Winch hook
Sky lift truck can install 1 ton winch hook to assist in simple lifting operations.
Mains power interface
It is a tool for sky lift truck. Provide 220V power supply.
Soft leg protection
When the outriggers are not properly supported on the ground, the lifting arm of sky lift truck will limit work in the dangerous direction.
Operation Room
Manual operation with a cab installed to protect workers from wind and rain.
Success Case of Sky Lift Truck
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
