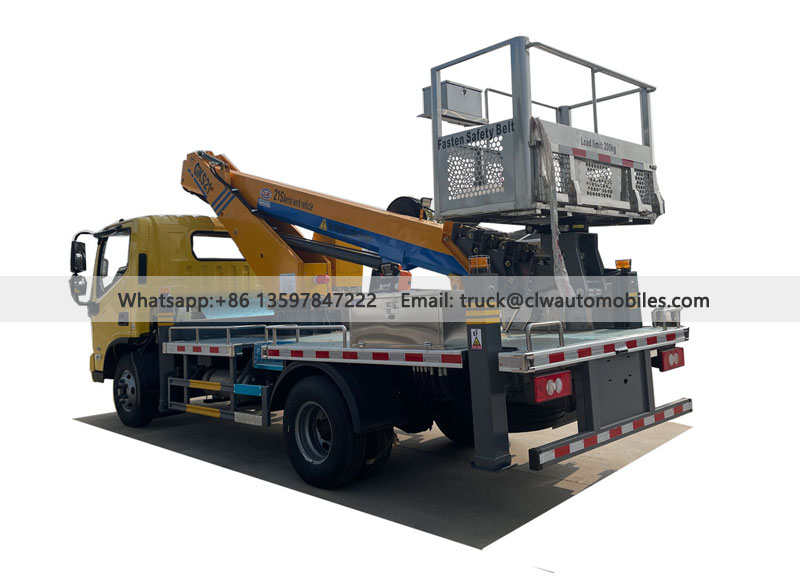

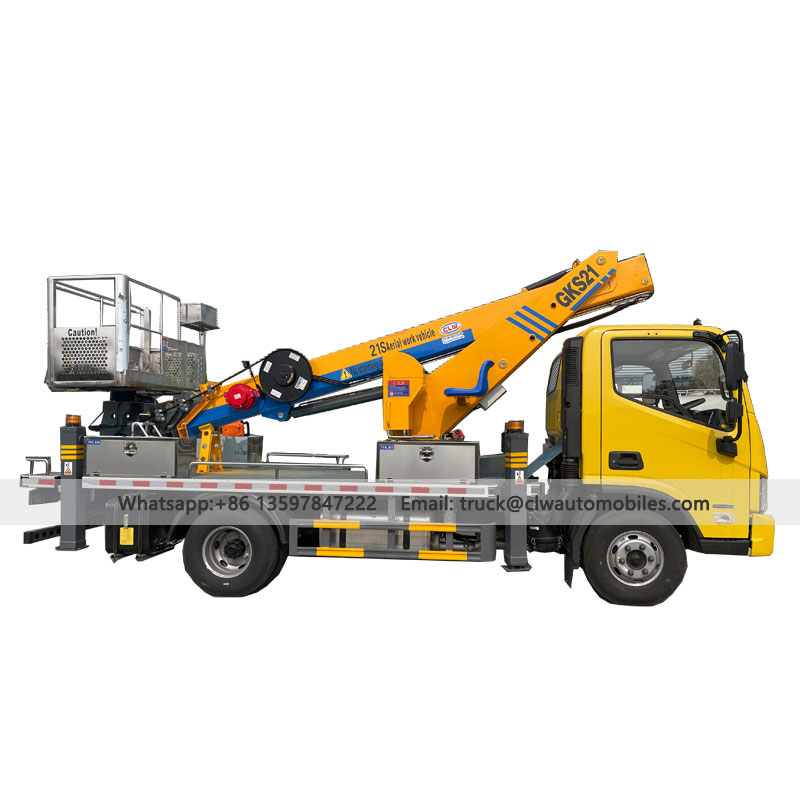

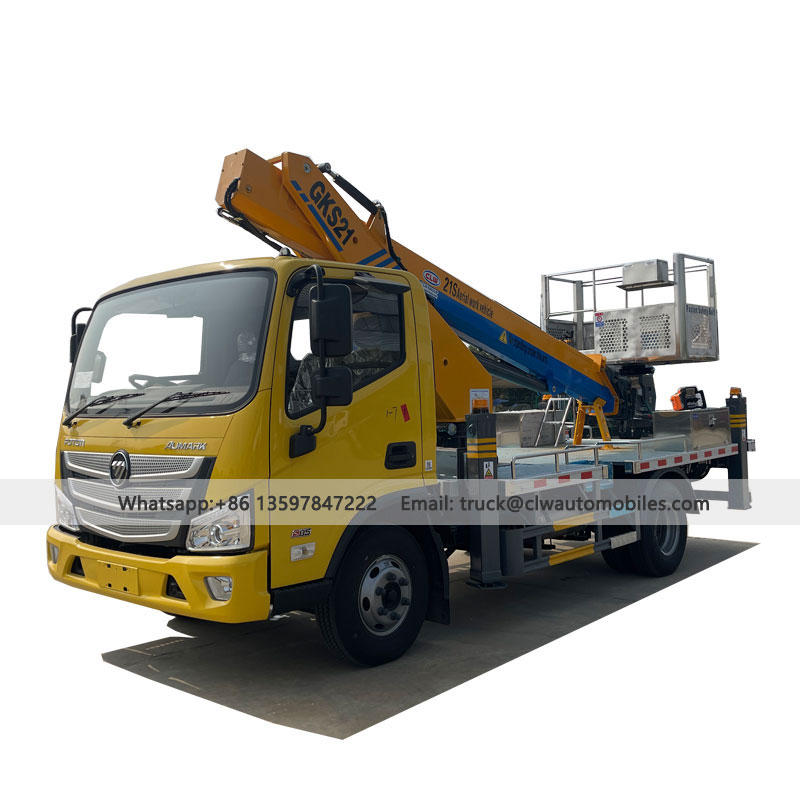

FOTON 21M RHD aerial platform truck mounted aerial boom man lift
- CLW/FOTON
- Suizhou
- 30 days
- 100 units per month
The FOTON 21M aerial platform truck mounted aerial man lift uses Foton Cummins engine ISF3.8s5154, 154 horsepower, maximum operating height of 21 meters, and can be customized with maximum operating height from 24 meters to 33 meters. It has right-hand drive and is suitable for markets such as South America and South Africa.
Basic Parameters of FOTON 21M RHD Aerial Platform Truck
| Brand | CLW/Foton(New) | |
| Name | Foton 21m RHD Aerial Platform Truck | |
Mode | CLW5086JGKJ3 | |
Drive type | 4×2, RHD | |
Overall Lengt | 5960mm | |
Overall widt | 2200mm | |
Overall heigh | 3190mm | |
Curb weight | 7800KG | |
Wheelbase | 3360mm | |
Engine | Type | ISF3.8s5154/ 154HP |
Emission level | EuroIII | |
| Maximum power | 115kw | |
| Displacement (lit) | 3.76 | |
Fuel type | Diesel | |
Tire specification | 215/75 R17.5 | |
| Transmission | 6-Gear Gearbox | |
Special Parameters of FOTON 21M Aerial Platform Truck
Maximum Working height | 21m | |
Working height at maximum working rang | 20m | |
Maximum operating rang | 12m | |
Rotary device | The 360° continuous rotation. | |
Work bucket | size | 1000x650x1200mm |
rated load | 200kg | |
material | Stainless steel | |
| Rotary | 360° rotation | |
| Outriggers | Quantity | 4 |
mode | Front V rear V type, adjustable separately | |
Horizonta | 4190m | |
Vertical | 4230mm | |
FOTON 21M Aerial Platform Truck Standard Equipment
Platform Operation
truck mounted man lift has one 5-inch LCD screen, real-time display of detection arm length, elevation angle, platform height, working height, etc.
Remote Control Operation
Sky lift truck, standard with wireless remote control operation, real-time data display, simple setup and user-friendly operation, fast and responsive handling, automatic working range limitation. When the working range reaches the preset value, it automatically restricts dangerous working directions. The controller can start the engine.
Outriggers

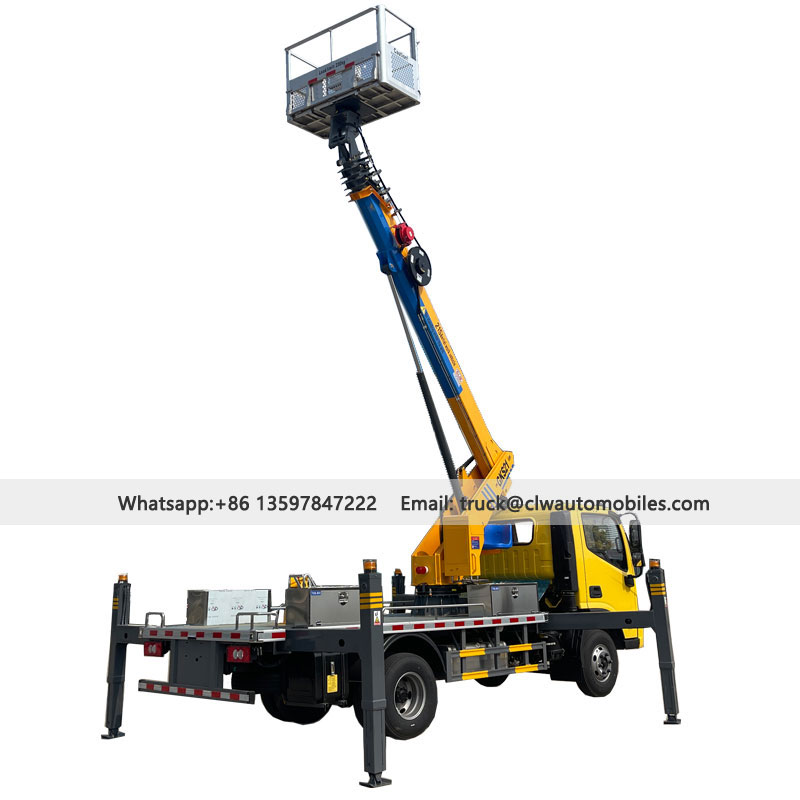

truck mounted man lift with Front V and rear V-shaped double-section hydraulic outriggers, rear outriggers sinking, low center of gravity, greater stability
Upper arm
18-sided new structure of truck mounted aerial platform, synchronous telescopic, polygonal boom structure, enhanced boom strength, external telescopic cylinder with additional protective cover.
FOTON 21M Aerial Platform Truck Optional Equipment
Winch hook
truck boom lift can install 1 ton winch hook to assist in simple lifting operations.
Mains power interface
It is a tool for truck boom lift. Provide 220V power supply.
Soft leg protection
When the outriggers are not properly supported on the ground, the lifting arm of truck boom lift will limit work in the dangerous direction.
Lock the hydraulic circuit of the outrigger cylinders using hydraulic locks or hydraulically controlled check valves to prevent automatic retraction caused by hydraulic system leaks or external vibrations.
Operation Room
Manual operation; the cab of the truck crane boom lift is equipped with protective devices to shield workers from wind and rain.

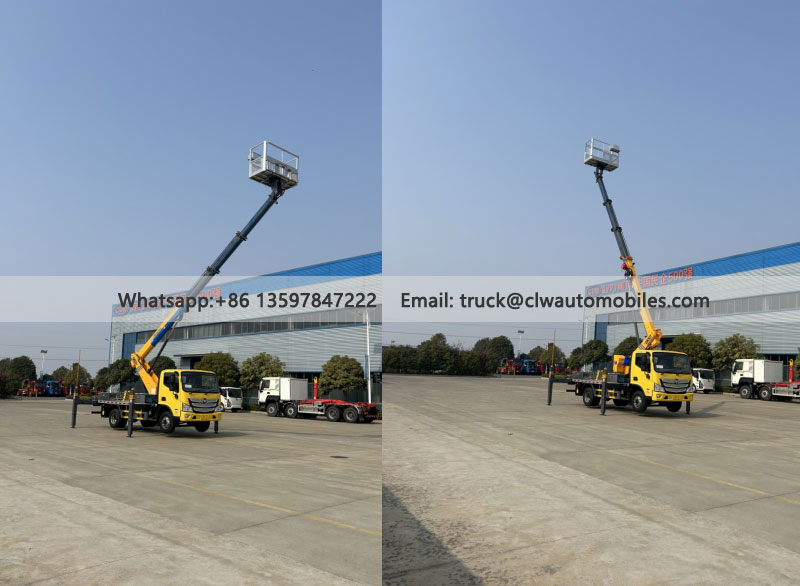

Success Case Of Aerial Platform Truck
