ISUZU 28-33M Skylift Truck LHD 4*2 Bucket Platform Lift Price From Manufacturer & Supplier
- CLW/ISUZU
- Suizhou
- 30 days
- 100 units per month
- 30000-40000USD

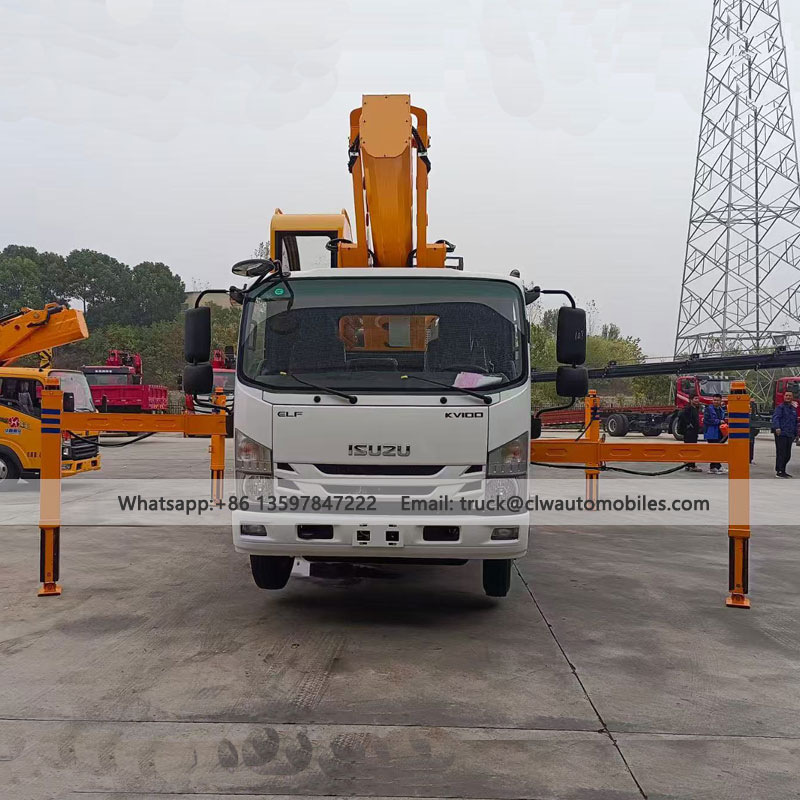

The Isuzu KV100 is a light truck chassis specifically designed for urban distribution transportation, with its core strengths lying in exceptional load-carrying capacity and high reliability.

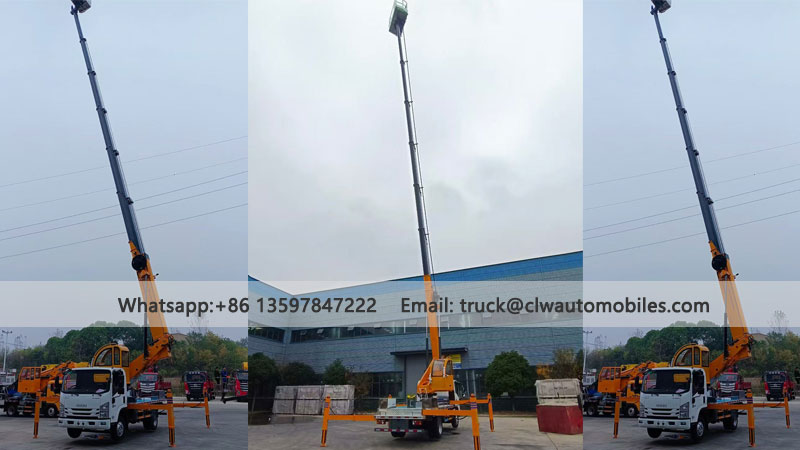

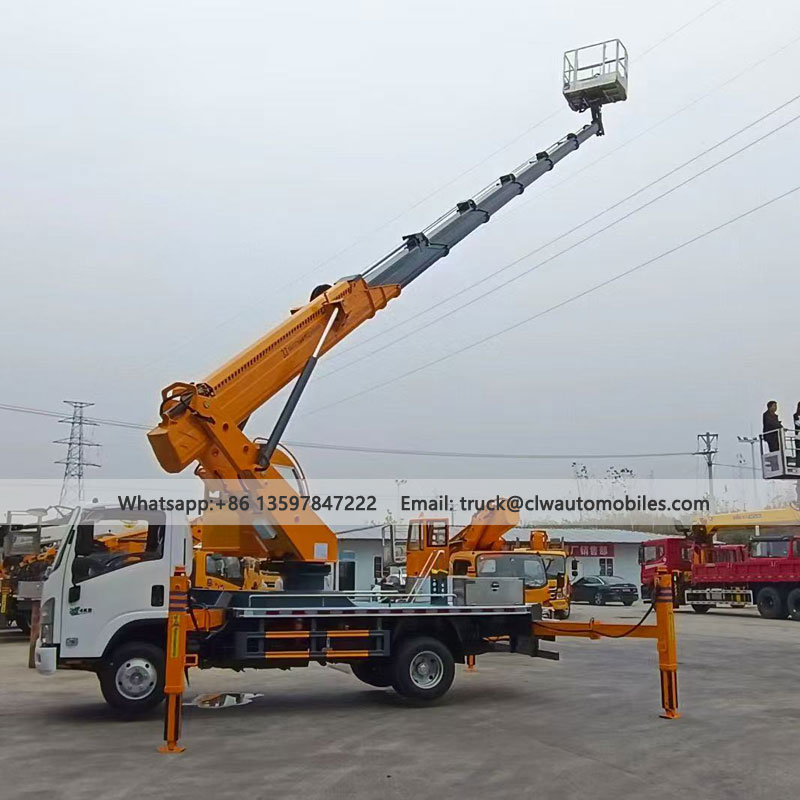

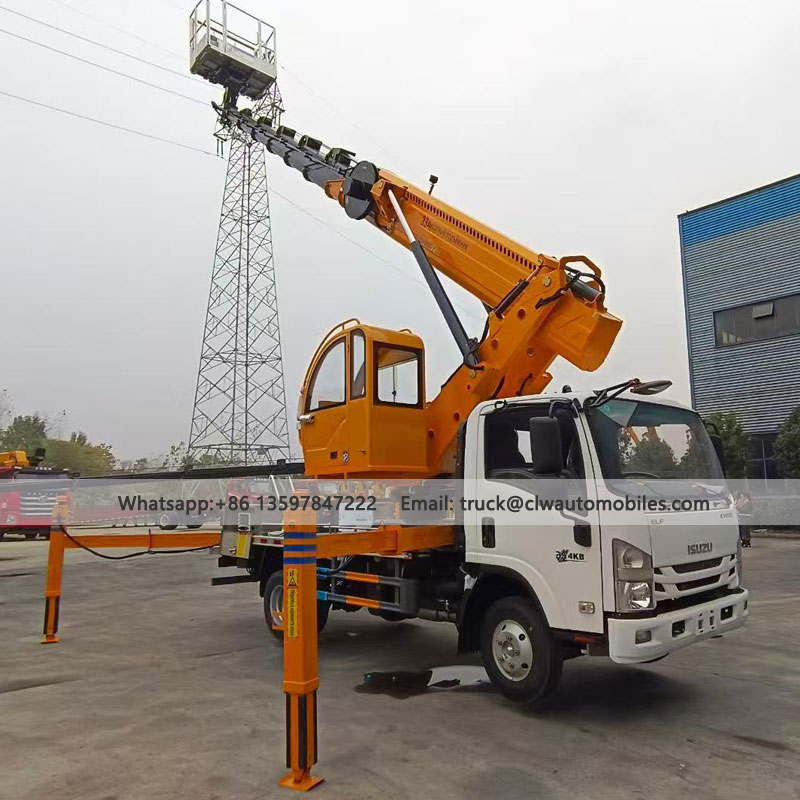

The ISUZU 33M Skylift Truck is modified from ISUZU chassis, with 120 horsepower engine, 3360 wheelbase, and 5-speed gearbox. The working height can reach 20 meters to 33 meters.
Basic Parameters of ISUZU 33m Sky Lift Truck
| Brand of Truck | CLW/ISUZU(New) | |
| Name of Truck | ISUZU 28m-33m sky lift truck | |
Mode | CLW5040XJX6AJB | |
Drive type | 4×2,LHD | |
Overall Length | 5998mm | |
Overall width | 2100mm | |
Overall height | 3000mm | |
Curb weight | 4365k | |
Wheelbase | 3360mm | |
Engine | Type | 4KH1CN6LB / 120HP |
Environmental standards | EuroIV or Euro V or Euro VI | |
| Maximum power | 88kw | |
| Displacement (lit) | 2.999 | |
Fuel type | Diesel | |
Tire size | 7.00R16 Steel wire tyre | |
| Transmission | MSB 6-Gear | |
Upper Parameters of ISUZU 33m Sky Lift Truck
Maximum Working height | 28m-33m | |
Working height at maximum working rang | 17m | |
Maximum operating rang | 14m | |
Rotary device | The 360° continuous rotation. | |
Work bucket | size | 1000x700x1000mm |
rated load | 200kg | |
material | Stainless steel / insulation | |
| Rotary | 360° rotation | |
| Outriggers | Quantity | 4 |
mode | Front V rear V type, adjustable separately | |
Horizonta | 5600mm | |
Vertical | 5400mm | |
The ISUZU 33m sky lift truck has two operations: computer operation and wireless remote control operation.
Standard Equipment of ISUZU 33m Sky Lift Truck
Platform Operation
ISUZU 33m Sky lift truck has one 5-inch LCD screen, real-time display of detection arm length, elevation angle, platform height, working height, etc.
Remote Control Operation
Isuzu 33-meter sky lift truck, standard with wireless remote control operation, real-time data display, simple setup and user-friendly operation, fast and responsive handling, automatic working range limitation. When the working range reaches the preset value, it automatically restricts dangerous working directions. The controller can start the engine.
Outriggers
33m Skylift truck with Front V and rear V-shaped double-section hydraulic outriggers, rear outriggers sinking, low center of gravity, greater stability.
Upper arm
18-sided new structure of 33M skylift truck, synchronous telescopic, polygonal boom structure, enhanced boom strength, external telescopic cylinder with additional protective cover.
ISUZU 33M Skylift Truck Optional Equipment
Winch hook(Optional)
33M Sky lift truck can install 1 ton winch hook to assist in simple lifting operations.
Mains power interface
It is a tool for sky lift truck. Provide 220V power supply.
Soft leg protection
When the outriggers are not properly supported on the ground, the lifting arm of 33M sky lift truck will limit work in the dangerous direction.
Operation Room
Manual operation with a cab installed to protect workers from wind and rain.
The ISUZU 33m Skylift truck electrical appliances use a CAN bus control system with neat and simple wiring.

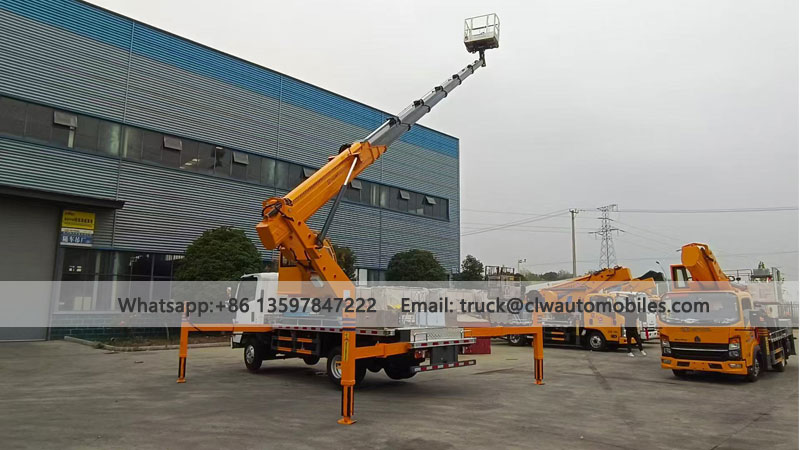

Successful Case of 33m Sky Lift Truck
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
