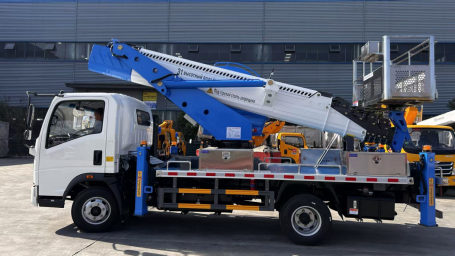

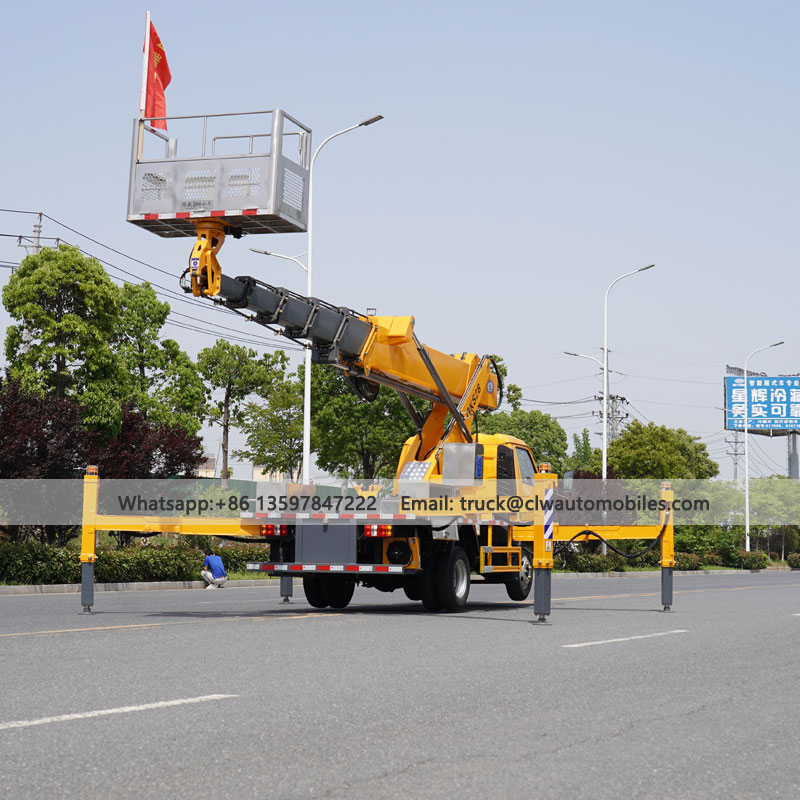

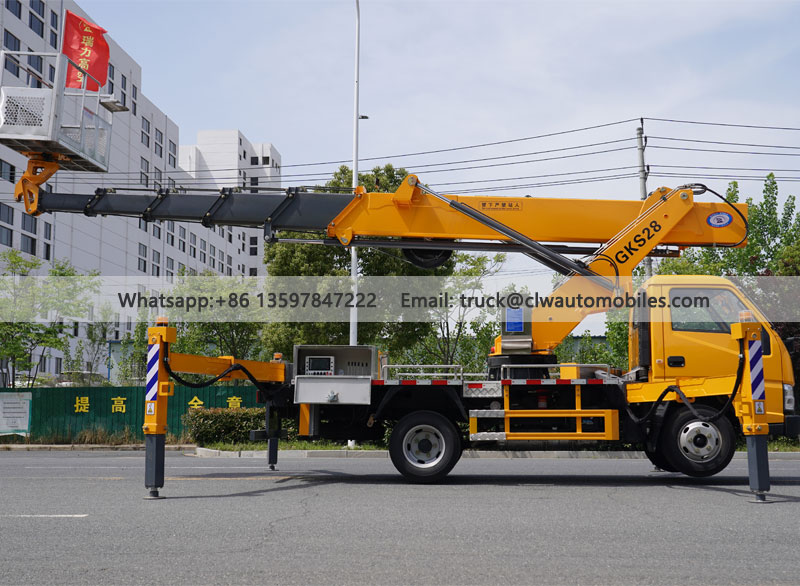

JMC 28M Aerial Work Platform Truck Mounted Sky Lift Work Platform
- CLW/JMC
- Suizhou
- 30 days
- 100 units per month
Basic functional safety configuration of the JMC 28M aerial work truck: Jiangling engine with a maximum power of 90KW, Euro VI emission standard, single row of seats, can accommodate 2 people, the JMC 28M aerial work truck can achieve a platform load of 250KG, a maximum operating height of 28 meters, and a maximum operating range of 15 meters to the left and right.
Basic Parameters of JMC 28m Aerial Work Truck
| Brand of Vehicle | CLW/JMC(New) | |
| Name of Vehicle | JMC 28M aerial work truck | |
Mode | CLW5041JGKJ6S | |
Drive type | 4×2, LHD | |
Overall Lengt | 5998mm | |
Overall widt | 2050mm | |
Overall heigh | 3100mm | |
Curb weight | 4495 | |
Wheelbase | 2800mm | |
Engine | Type | JX493ZLQ6A / 122HP |
Emission level | Euro VI | |
| Maximum power | 90kw | |
| Displacement (lit) | 2.499 | |
Fuel type | Diesel | |
Tire specification | 6.50R15LT 10PR Steel wire tyre | |
| Transmission | 5-Gear | |
Upper Parameters of JMC 28m Aerial Work Truck

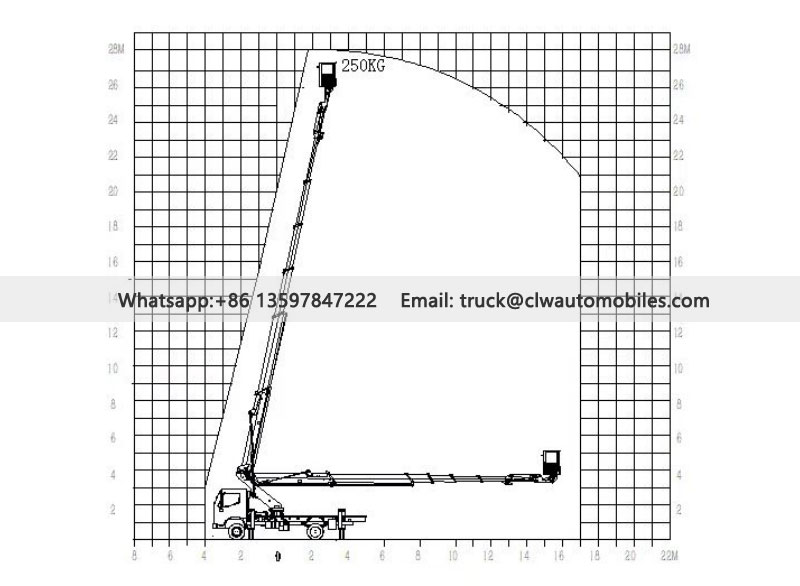

Maximum Working heigh | 28m | |
Working height at maximum working rang | 5m | |

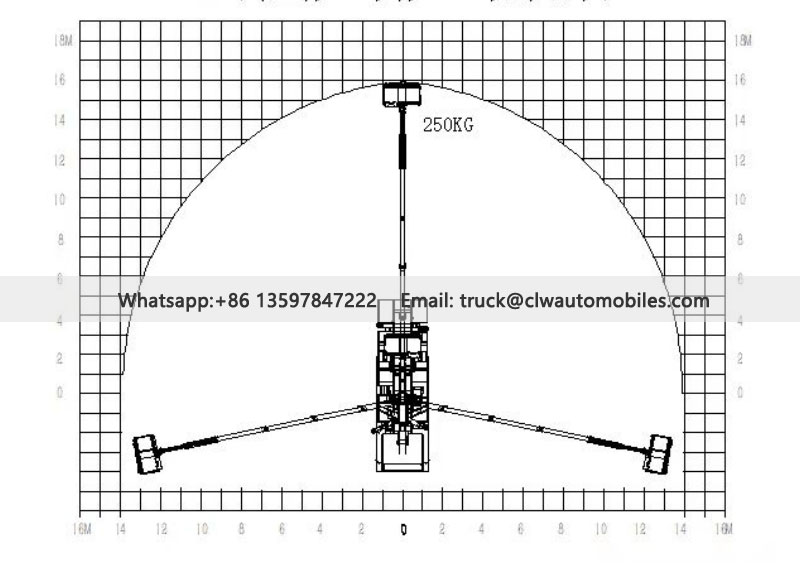

Maximum operating rang | 15m | |
Rotary device | The 360° continuous rotation. | |
Work bucket | size | 1600x700x1150mm |
rated load | 250kg | |
material | Stainless steel | |
| Rotary | 360° rotation | |
| Outriggers | Quantity | 4 |
mode | Front V rear V type, adjustable separately | |
Horizonta | 5600m | |
Vertical | 4400mm | |
| Boom Style | Six-section hexagonal working arm, synchronous extension and retraction | |
| Operation system | Electrical operation via remote control on working platform and ground | |
| Control System | Electro-hydraulic proportional control system to achieve stepless speed regulation | |
| Leveling system | Hydraulic automatic leveling | |
JMC 28m Aerial Work Truck Standard Equipment
Platform Operation
JMC 28M aerial work truck has one 5-inch LCD screen, real-time display of detection arm length, elevation angle, platform height, working height, etc.
Remote Control Operation
JMC 28M aerial work truck with Standard wireless remote control operation, real-time data display, simple and easy to set, quick and sensitive operation, automatic working range limit, when the working range reaches the specified value, automatically limit the dangerous direction of work. The controller can ignite the engine,

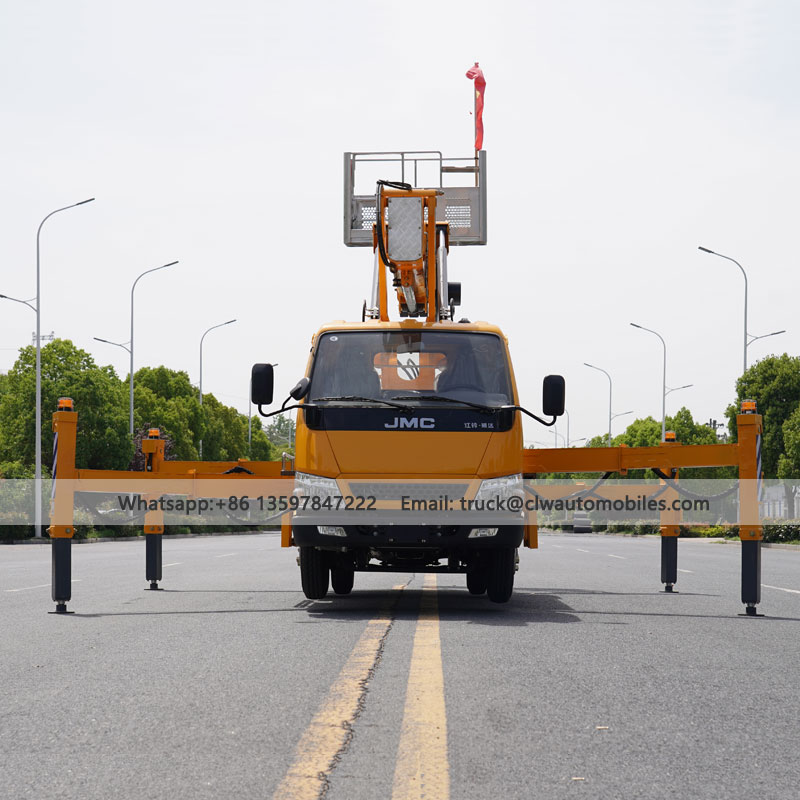

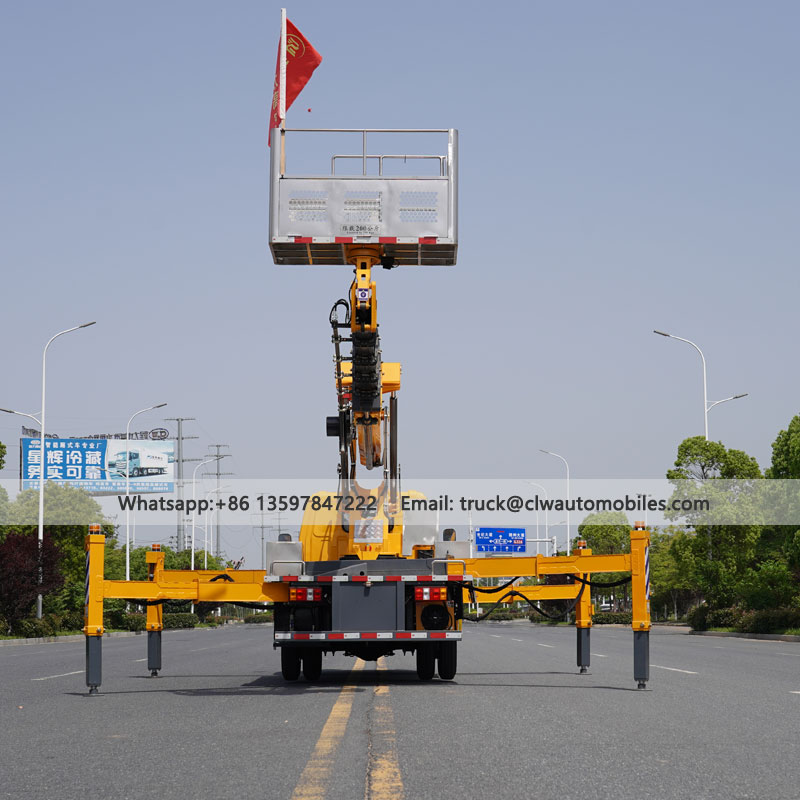

Outriggers
Aerial Work Platform Truck with Front V and rear V-shaped double-section hydraulic outriggers, rear outriggers sinking, low center of gravity, greater stability
Upper arm
18-sided new structure of Aerial Work Platform Truck, synchronous telescopic, polygonal boom structure, enhanced boom strength, external telescopic cylinder with additional protective cover
Optional Equipment Of JMC 28m Aerial Work Truck

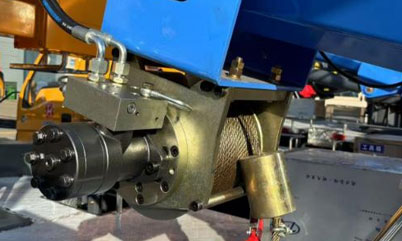

Winch hook
Aerial Work Platform Truck can install 1 ton winch hook to assist in simple lifting operations.

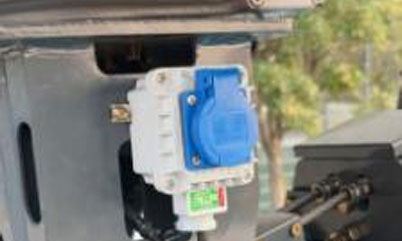

Mains power interface
It is a tool for Aerial Work Platform Truck. Provide 220V power supply.

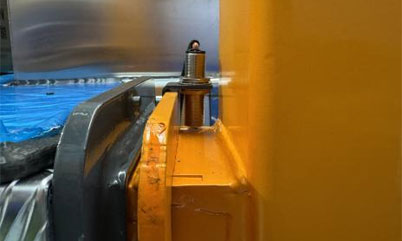

Soft leg protection
When the outriggers are not properly supported on the ground, the lifting arm of Aerial Work Platform Truck will limit work in the dangerous direction.

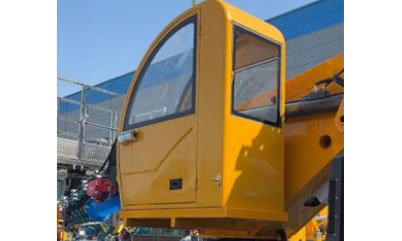

Operation Room
Manual operation with a cab installed to protect workers from wind and rain.

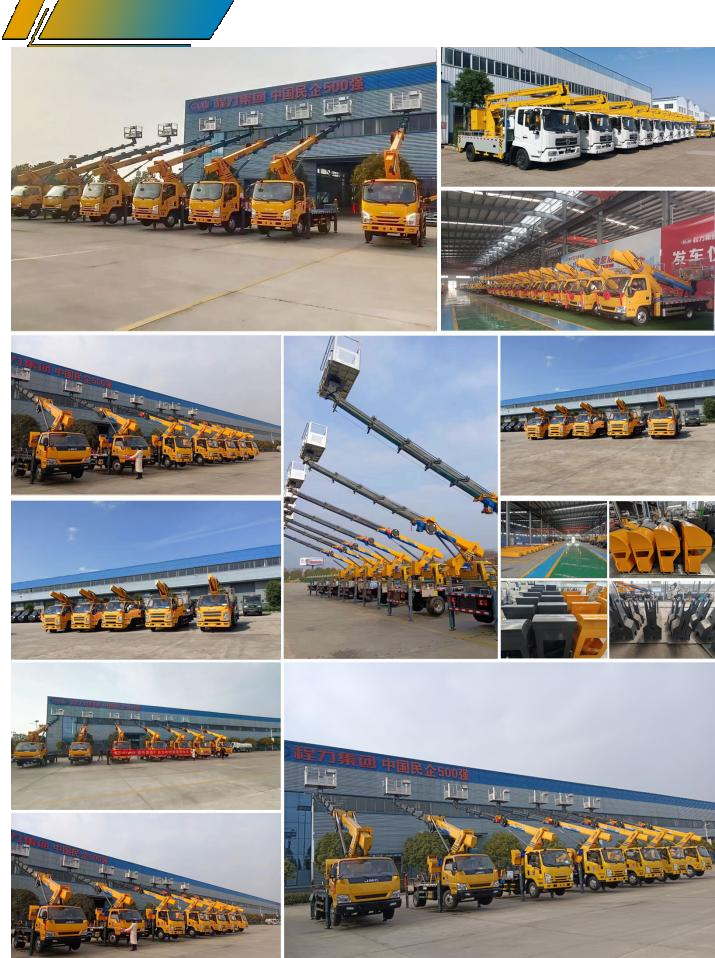

Success Case of Aerial Work Platform Truck
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
