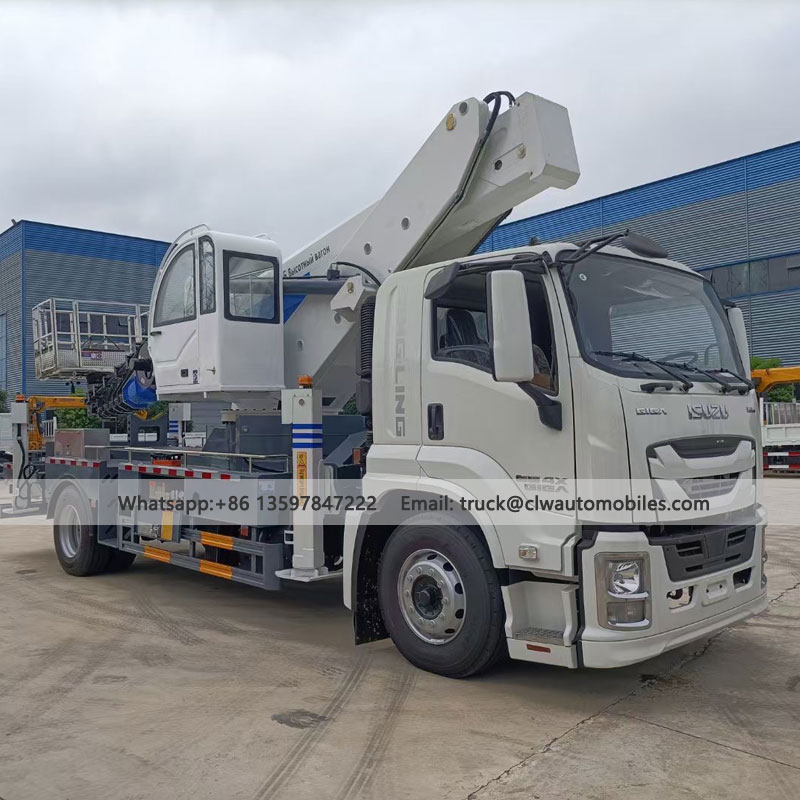

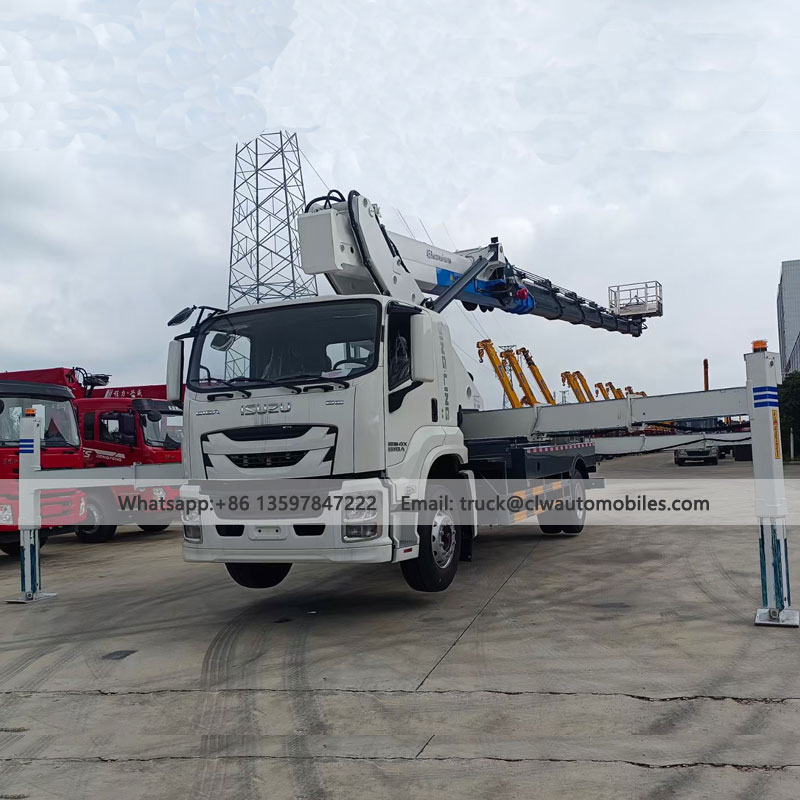

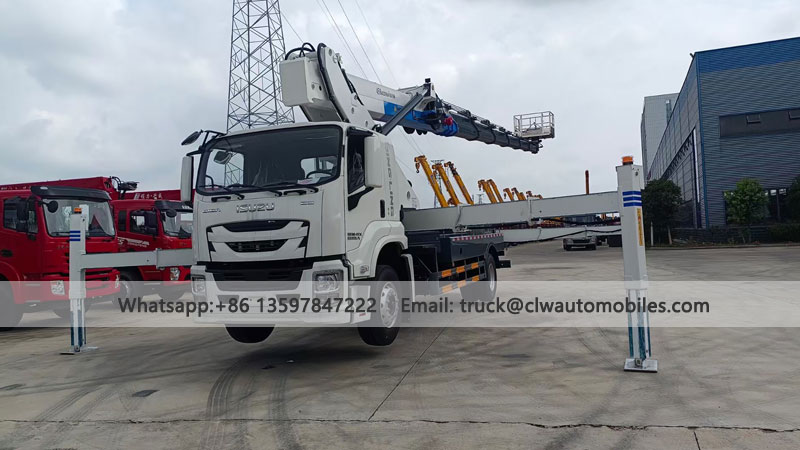

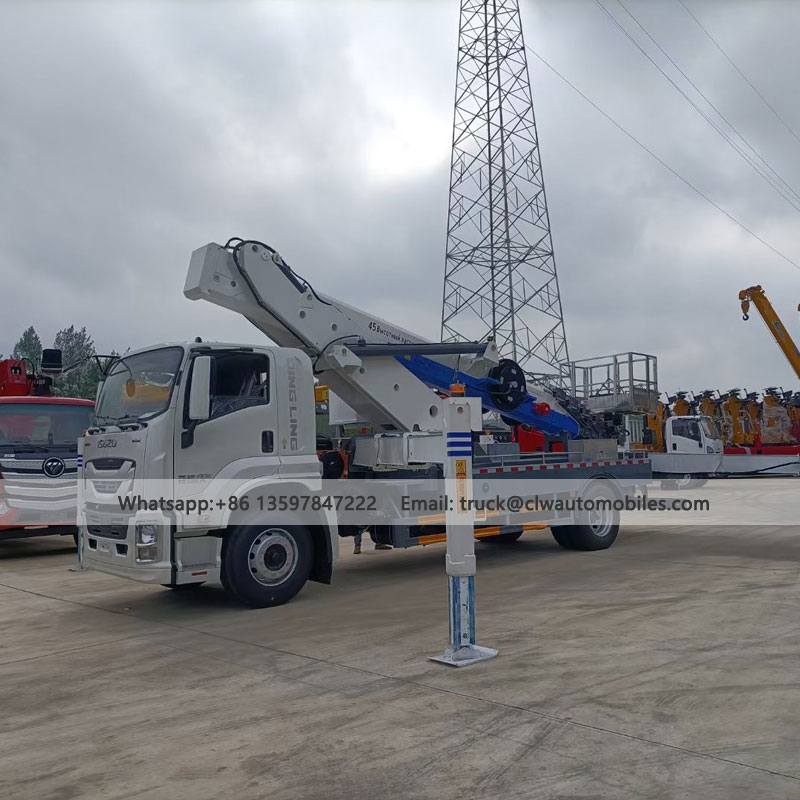

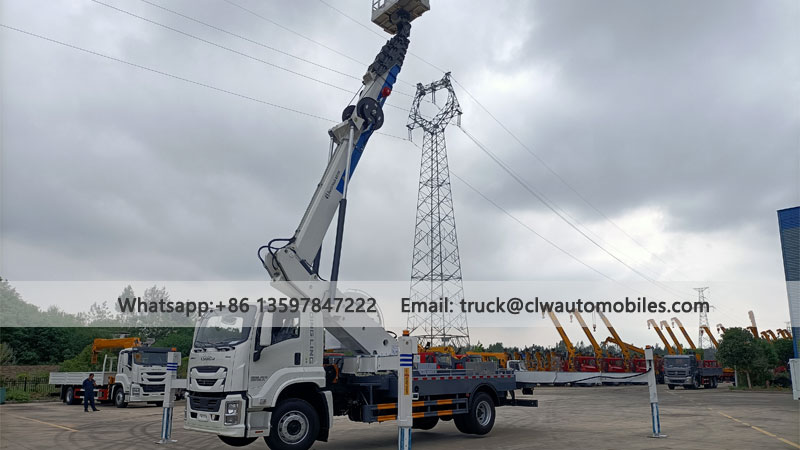

ISUZU 45M Sky Lift Truck Aerial Bucket Platform Lift For Sale From Factory
- CLW/ISUZU
- Suizhou
- 30 days
- 100 units per month
Chengli Special Automobile company is a company specializing in the research and development, production and sales of sky lift truck. ISUZU 45m Sky lift truck is same as aerial platform truck. Its main products include sky lift trucks of different heights, such as 5-10 meters, 11-20 meters, 21-30 meters, 31-40 meters and above 40 meters. Chengli sky lift trucks are widely used in street lights, gardens, electricity, petrochemicals, communications and other industries, and are suitable for various scenes that require aerial work.
Basic Parameters of ISUZU 45m Sky Lift Truck
| Brand of Vehicle | CLW/ISUZU(New) | |
| Name of Vehicle | ISUZU 45m sky lift truck | |
Mode | CLW5160JGKQL | |
Drive type | 4×2,LHD | |
Overall Lengt | 9460mm | |
Overall widt | 2570mm | |
Overall heigh | 3960mm | |
Curb weight | 17060KG | |
Wheelbase | 5550mm | |
Engine | Type | 4HK1-TCG60/ 205HP |
Emission level | Euro V or Euro VI | |
| Maximum power | 151kw | |
| Displacement (lit) | 5.193 | |
Fuel type | Diesel | |
Tire specification | 295/80R22.5 18PR / 6+1 PCS | |
| Transmission | MLD 6 forward gears, 1 reverse gear | |
Upper Parameters of ISUZU 45m Sky Lift Truck
Maximum Working heigh | 45m | |
Working height at maximum working rang | 24m | |
Maximum operating rang | 25m | |
Rotary device | The 360° continuous rotation. | |
Work bucket | size | 1100x650x1100mm |
rated load | 200kg | |
material | Stainless steel / insulatio | |
| Rotary | 360° rotation | |
| Outriggers | Quantity | 4 |
mode | Front V rear V type, adjustable separately | |
Horizonta | 4500m | |
Vertical | 6800mm | |
ISUZU 45m Sky Lift Truck Standard Equipment
Platform Operation
ISUZU 45M Sky lift truck has one 5-inch LCD screen, real-time display of detection arm length, elevation angle, platform height, working height, etc.
Remote Control Operation
ISUZU 45M Sky lift truck with Standard wireless remote control operation, real-time data display, simple and easy to set, quick and sensitive operation, automatic working range limit, when the working range reaches the specified value, automatically limit the dangerous direction of work. The controller can ignite the engine,
Outriggers
Sky lift truck with Front V and rear V-shaped double-section hydraulic outriggers, rear outriggers sinking, low center of gravity, greater stability
Upper arm
18-sided new structure of sky lift truck, synchronous telescopic, polygonal boom structure, enhanced boom strength, external telescopic cylinder with additional protective cover
ISUZU 45m For Optional Equipment
Winch hook
Aerial Platform truck can install 1 ton winch hook to assist in simple lifting operations.
Mains power interface
It is a tool for Aerial Platform truck. Provide 220V power supply.
Soft leg protection
When the outriggers are not properly supported on the ground, the lifting arm of Aerial Platform truck will limit work in the dangerous direction.
Operation Room
Manual operation with a cab installed to protect workers from wind and rain.
Advantage of Sky Lift Truck
Advantage of Sky Lift Truck
1. Newly upgraded appearance and boom: high-strength 960 material, perfect details, durable.
2. Aerial Platform truck height control: All 31-meter aerial work vehicles have a vehicle height of no more than 3.3 meters, suitable for elevated and height-restricted environments.
3. Tailless design: When working on the side of a narrow alley, leave enough safety distance for the lane next to it.
4. Working platform: Optional 220V AC power interface, daily power tools can be used, not affected by the power consumption of the working environment.
5. Wireless remote control operation.
6. Computer control, automatic limit, dangerous work alarm, excellent safety performance. There is a display when getting off the vehicle, which displays the working conditions of the vehicle in real time.
7. The 18-sided working arm is synchronously telescopic, compact in structure, high in working efficiency, and large in working range. The telescopic cylinder is internal and external, and the wire rope telescopic mechanism makes it easier to observe the fault point and facilitate maintenance.
8. The Aerial Platform truck electrical appliances adopt the CAN bus control system, with neat and simple lines. The whole vehicle has three operating positions: platform operation, and it can also be operated on the ground with wires or wirelessly, which makes it easier to observe the working space, safe and reliable, and highly efficient.
Success Case of Aerial Platform truck
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
