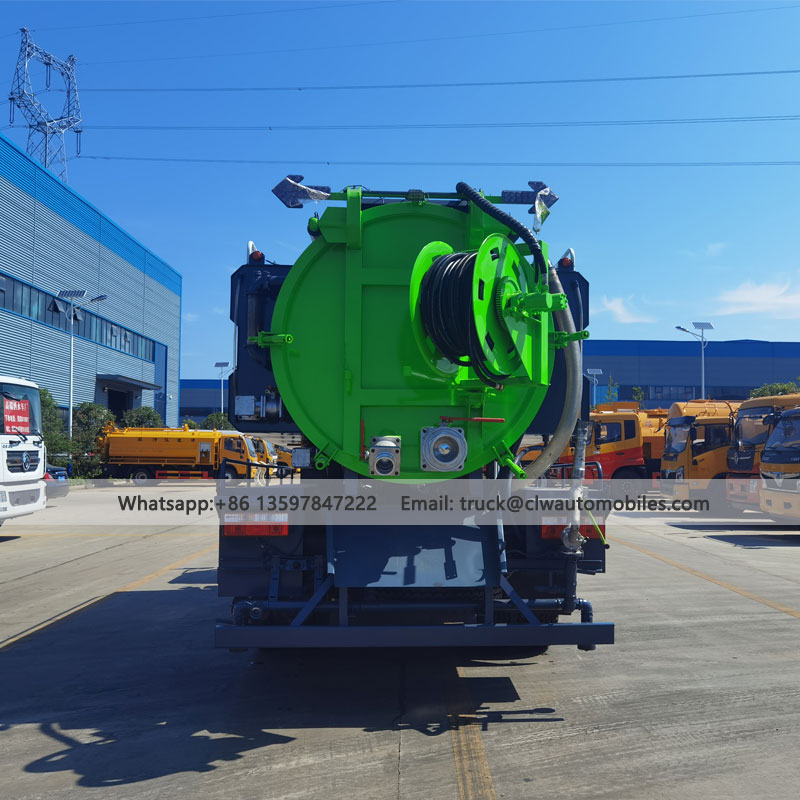

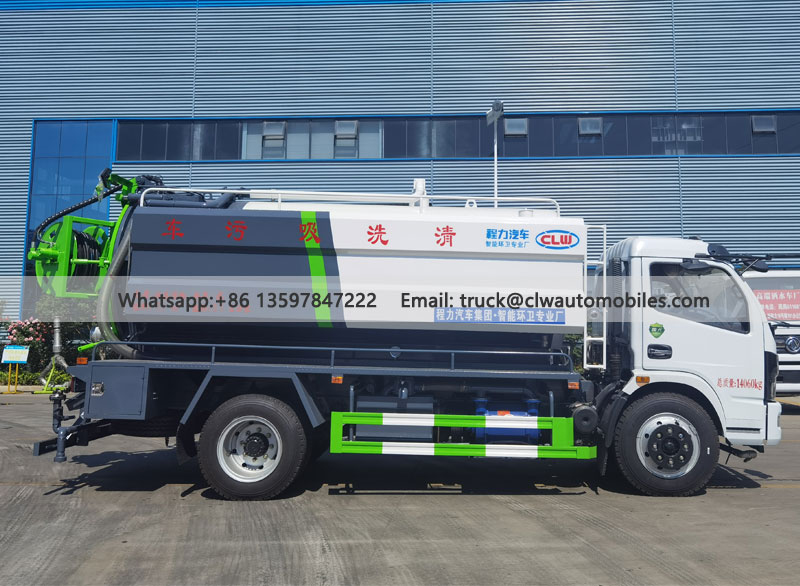

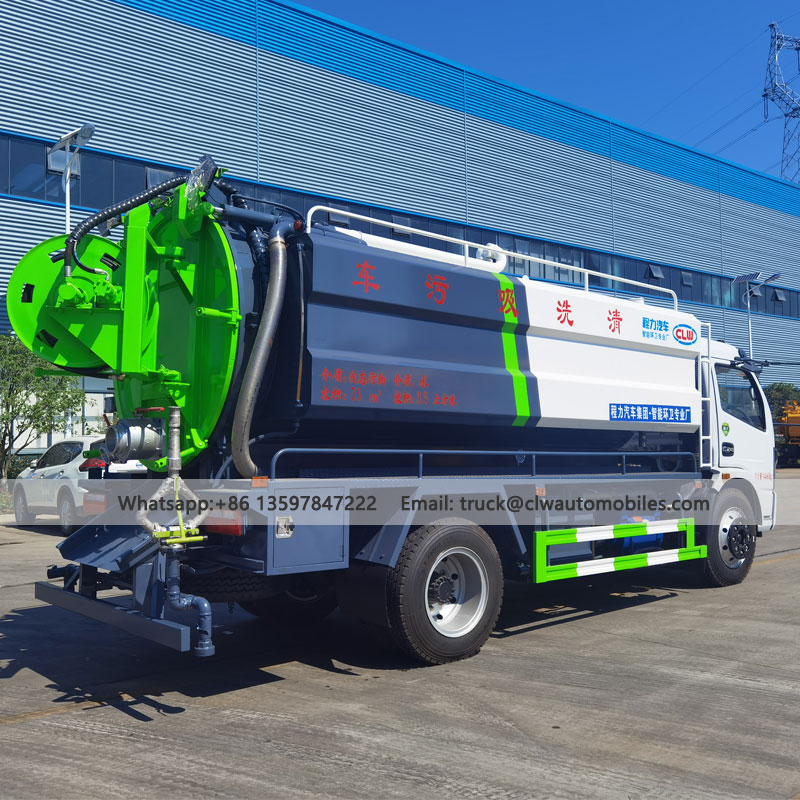

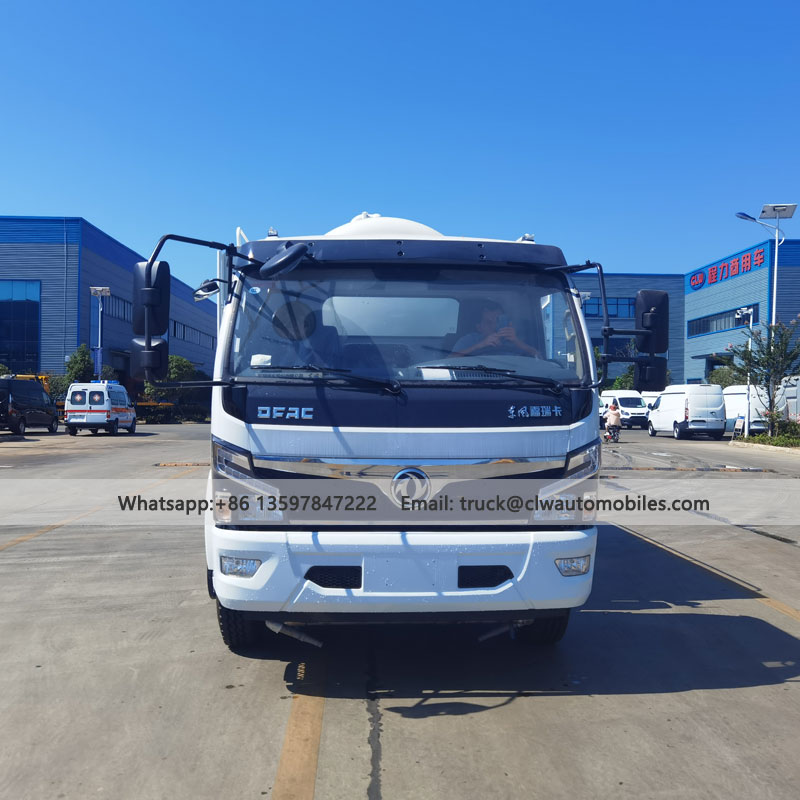

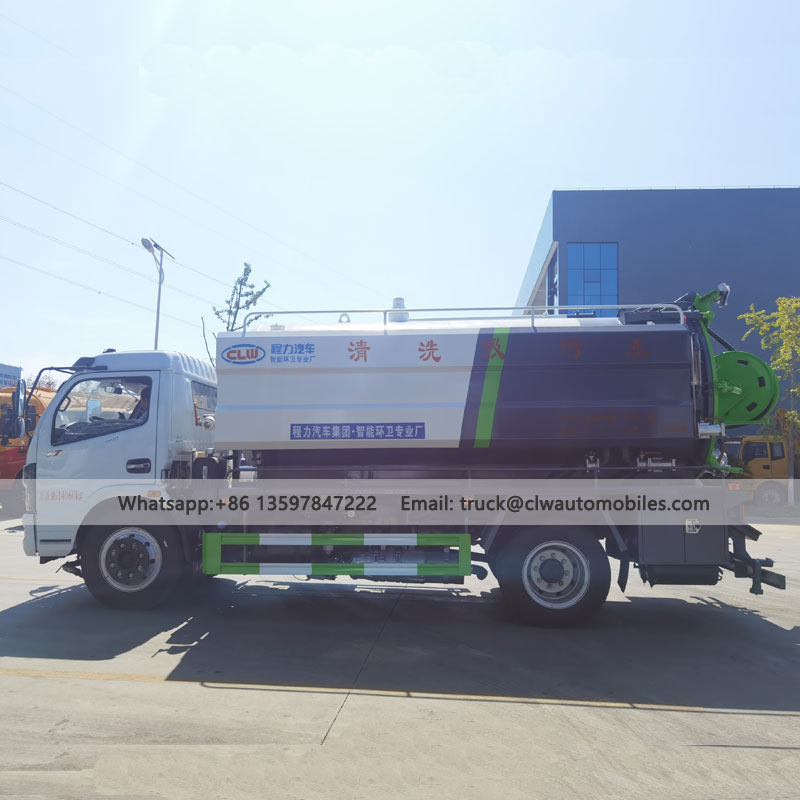

DFAC 10000L 4*2 Sewer Cleaning & Sewage Suction Truck

Euro VI high-efficiency power of DFAC 10000L 4*2 Sewer Cleaning & Sewage Suction Truck: equipped with Yuchai 165 horsepower National VI engine, matched with Wanliyang 6-speed gearbox, stable power output and excellent fuel economy, adapting to complex working conditions.

‌High-load chassis of DFAC 10000L 4*2 Sewer Cleaning & Sewage Suction Truck: wheelbase 3800mm, using 2.7-ton front axle + 5.5-ton rear axle combination, with double-layer beam and 7.50R16 steel tire, to ensure heavy-load operation stability.

High-pressure cleaning system of DFAC 10000L 4*2 Sewer Cleaning & Sewage Suction Truck: equipped with German Pinfu 215L high-pressure pump (pressure 22 MPa), flow rate of 170L/min, support 60-meter high-pressure pipe and combined nozzle, can quickly flush stubborn dirt in the pipeline.

‌Vacuum suction system of DFAC 10000L 4*2 Sewer Cleaning & Sewage Suction Truck: using Yifeng SK-12 water circulation vacuum pump, suction range 7-8 meters, Sewage tank volume 7m³, water tank valume 3m³, can handle large particles such as silt and stones.

German pinfu high pressure pump

• Max. Pressure: 22Mpa

• Flow: 170L/min

• Extremely durable

• Quiet running

• Power: 103KW

Vacuum Pump-Oil Pump

Advantages:

It features high-efficiency exhaust capability and short exhaust time, enabling rapid vacuum formation, with a long service life and stable performance.

Disadvantages: Short working time and easy to heat up.

Pumping rate: 300m³/h, 83L/S

Max. Pressure: -90000Pa

Vacuum Pump-Water pump

Advantages:

Long operating hours, utilizing water as the working medium to cool the pump chamber, making it suitable for high-temperature environments.

Disadvantages: Cannot be used in low temperature environment.

Pumping rate: 12m³/m, -710mmhg

Max. Pressure: -0.093MPa,0-0.1kg/cm3

I. Functional Integration: Multi-Purpose Vehicle

Integrated Design: Combines high-pressure cleaning (350-horsepower pump) and vacuum suction (10-meter suction hose) systems. Single operation completes the full “drainage-cleaning-transport” process, eliminating equipment repositioning delays.

Flexible Allocation: Interconnects freshwater tank (5 m³) and wastewater tank (22 m³) via DN100 ball valve, enabling dynamic liquid redistribution to adapt to diverse operational demands.

Multi-Scenario Application: Municipal to Emergency Response

Municipal Sanitation: Clears sewer blockages, empties septic tanks, doubles as a water sprinkler or firefighting equipment.

Industrial Applications:

Removing chemical pipeline deposits and emergency suction of contaminated wastewater.

Specialized Scenarios:

Flood control and drainage, mobile power supply, and other extended functionalities.
