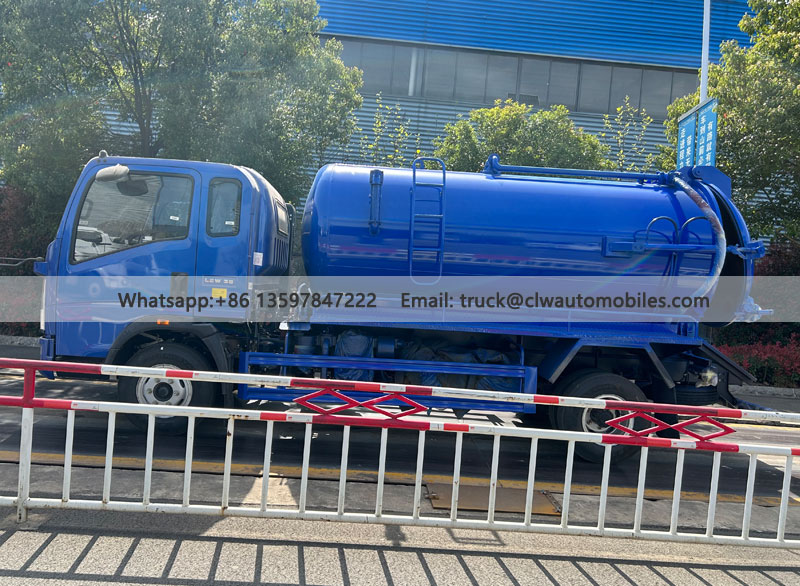

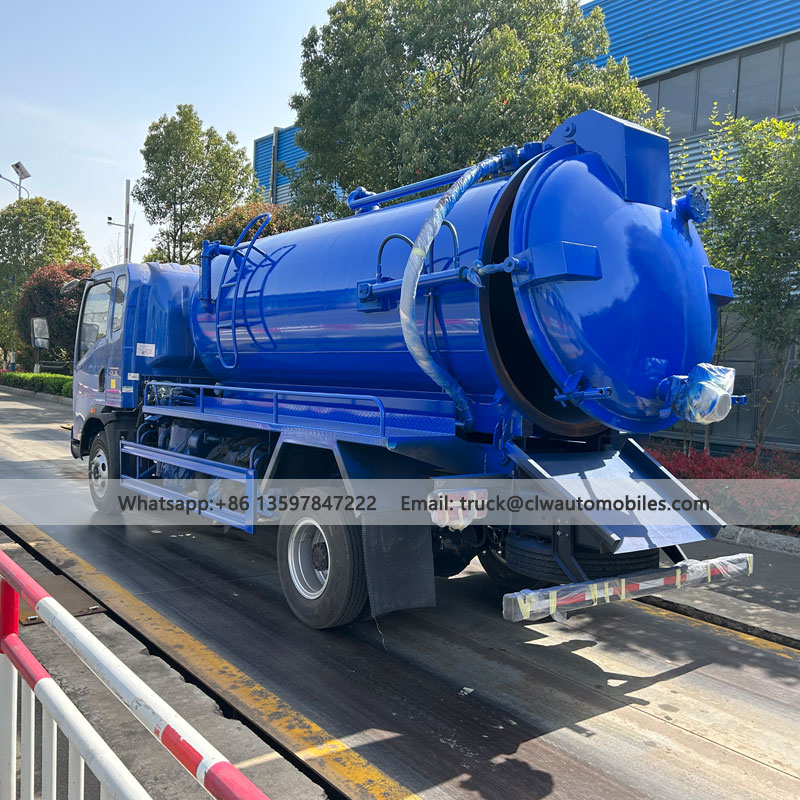

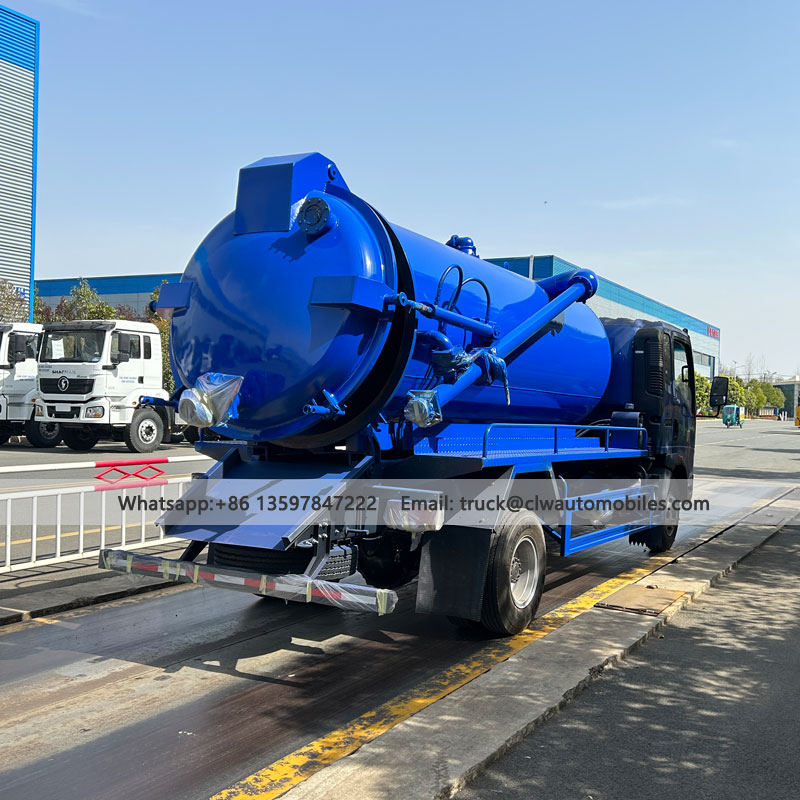

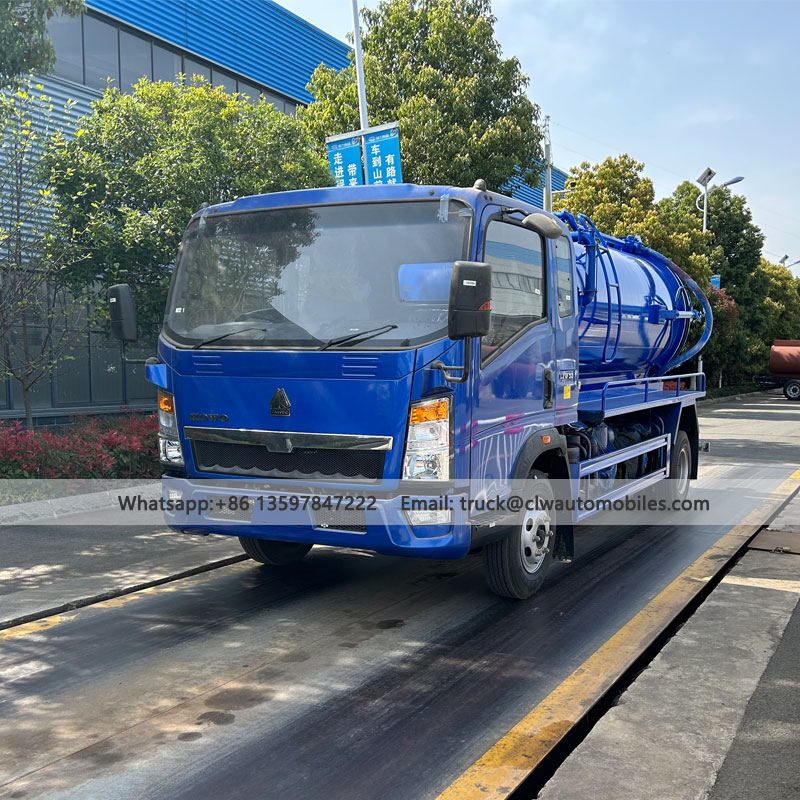

HOWO 5000L Sewage Vacuum Pump Truck
- CLW/HOWO
- Suizhou
- 30 days
- 100 units per month
The cab of the HOWO 5000L Sewage Vacuum Pump Truck adopts European technology design to reduce blind spots.
The HOWO 5000L Sewage Vacuum Pump Truck adopts howo chassis, Yunnei 116 horsepower diesel engine, wheelbase 3360mm, tires adopt 750 steel wire tires, and the chassis structure is strengthened. It is suitable for long-distance transportation and non-paved road operations. It is mainly aimed at overseas markets and is suitable for construction sites, river dredging, oil field drilling and other scenes. It supports mobile sludge treatment and realizes on-site operations.
HOWO 5000L Sewage Vacuum Pump Truck has a large number of after-sales services around the world.
Basic Parameters Of HOWO 5000L Sewage Vacuum Pump Truck
| Brand of Vehicle | CLW/HOWO(Brand New) | |
| Modle of Vehicle | CLW5120GQWZ3 | |
| Size of Vehicle | 5995×2000×2550 | |
| Curb Weight | 3780KG | |
| Drive Type | 4×2, LHD | |
| Wheelbase | 3360mm | |
| Engine | Model | YN4102QBZL |
| Power | 85KW/116HP | |
| Displacement | 3.76L | |
| Fuel Type | Diesel | |
| Emission Standard | Euro II | |
| Tires Size | 7.00R16 | |
| Transmission | WLY6TS55C, 6-Gear | |
| Axle | 2.4T/4.2T | |
Upper Configuration Of HOWO 5000L Sewage Vacuum Pump Truck
| Volume Of Sewage Suction Truck | 12000L-15000L |
| Material of tank and thickness | High quality carbon steel(6mm) |
Vacuum Pump | SK-12 OR 12T |
| Other | Hydraulic lifting of tank body with self-unloading function. hydraulic opening of back cover. one 6-meter suction pipe. 1 self-flow port. oil-water separator and relief valve. |
Features Of HOWO 5000L Sewage Vacuum Pump Truck
The HOWO 5000L Sewage Vacuum Pump Truck has the characteristics of high suction efficiency, self-priming, self-draining and direct irrigation. The time to fill the manure tank is ≤5min, and the suction distance is ≥8m. It has the characteristics of long service life, fast working speed, simple operation and convenient transportation.
Gravity outfall
Made of aluminum alloy, it is corrosion-resistant, has excellent sealing performance, simple structure, easy to disassemble and install, and reduces the difficulty and cost of maintenance.
Viewing window
The material is usually transparent polymethacrylate resin, which has the advantages of high transparency, good toughness and strong pressure resistance.
Multi-way valve
The material of the multi-way valve is generally cast steel, which has the characteristics of high temperature resistance, small resistance and simple structure.
Vacuum Pump-Oil Pump
Advantages: It has efficient exhaust capacity and short exhaust time, can quickly form a vacuum environment, has a long service life and stable performance.
Disadvantages: Short working time and easy to heat up.
Pumping rate: 300m³/h, 83L/S
Max. Pressure: -90000Pa
Vacuum Pump-Water circulation pump
Advantages: Long working time, water as the working medium can cool the pump cavity, suitable for working in high temperature environment.
Disadvantages: Cannot be used in low temperature environment.
Pumping rate: 12m³/m, -710mmhg
Max. Pressure: -0.093MPa,0-0.1kg/cm3
Usage scenarios
Precautions
(1) Maintain the appropriate speed of the vacuum pump. If the speed of the vacuum pump is too high, the rotor will heat up; if the speed is too low, it will cause additional impact on the engine and components, affecting the service life. To achieve the appropriate working speed, please adjust the best position of the hand throttle according to the pump type in advance.
⑵ Self-unloading and turning over the tank on a flat ground; Self-unloading and turning over the tank on an inclined road will cause distortion and deformation of each component, leading to failure, and may cause a rollover accident.
⑶ Open the rear tank door of the tank body first when self-unloading and turning over the tank: Before self-unloading and turning over the tank, the locking bolts should be loosened first, and the rear tank door should be lifted to the required angle. When the tank body is fully loaded, it is forbidden to lift the tank body with the rear tank door closed, otherwise there is a risk of rollover.
⑷ When the oil pump and vacuum pump are taking power, the engine is idle, and the clutch pedal is fully stepped on. After turning on the power take-off switch, slowly release the clutch pedal.
⑸ When the car is driving, the vacuum pump and oil pump are in a stopped state.
⑹ The vehicle is not allowed to suck in materials larger than the diameter of the hose, or transport waste oil and dangerous goods.
⑺ When entering the bottom of the tank or inspecting it in the self-unloading tank lifting state, support rods and safety blocks must be used.
⑻ When transporting waste, the vehicle must drive at medium and slow speeds, and no sharp turns or sudden brakes are allowed, because there is no wave-breaking board in the tank and the center of gravity is higher
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
