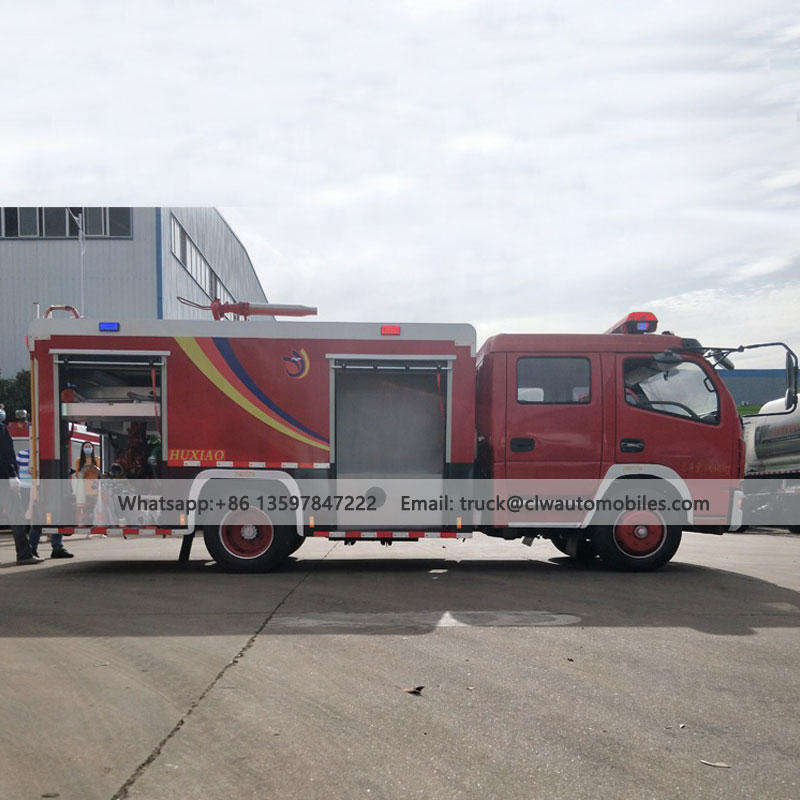

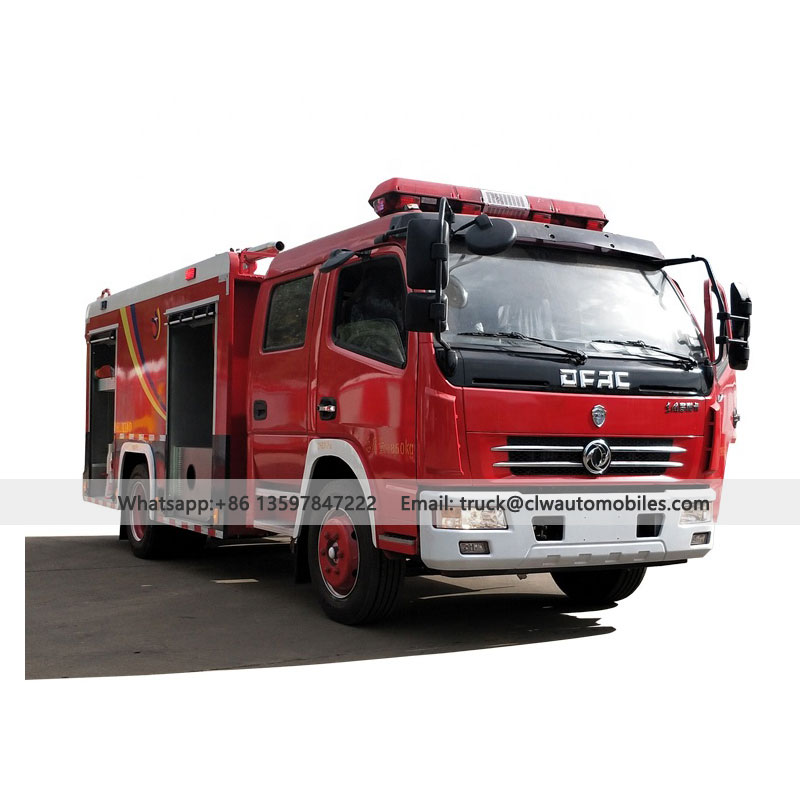

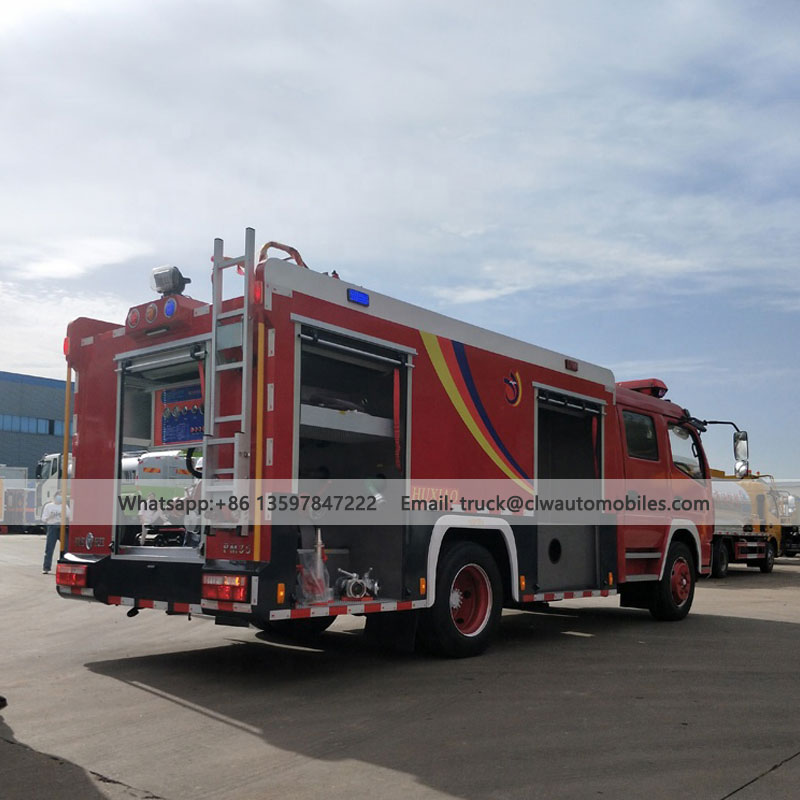

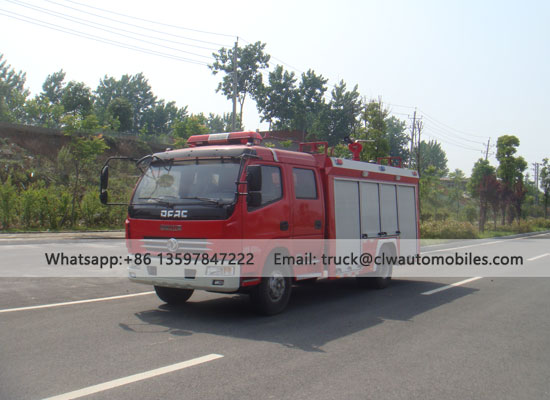

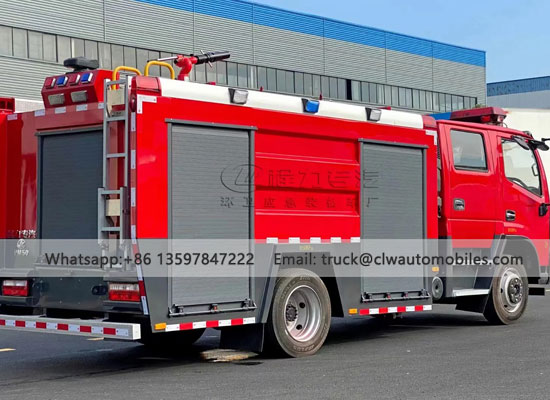

DFAC 4Tons/4000L Water and Foam Fire Truck

DFAC 4Tons/4000L Water and Foam Fire Truck

DFAC 4Tons/4000L Water and Foam Fire Truck

Fire Pump

Foam Proportion

Fire Gun

Cabin

2+4 Cabin

2+4 Cabin

Product Title

Product Title

Product Title

※There is a long row of warning lights at the front of the cab.

※ There is a 12V, 60W fire scene lighting lamp behind the roof.

※ There are two flashing lights on each side of the vehicle, and a safety sign light is installed below, equipped with front and rear clearance lights, a turn signal on each side, and lighting in the passenger room, equipment box, and pump room, which complies with GB4785 regulations.

※ The power of the alarm is 100W; the alarm, warning light, and flashing light circuits are independent additional circuits, and the control device is installed in the cab.

※ Additional instruments and switches are centrally arranged on the control panel for easy operation. The dashboard is equipped with: 1 vacuum gauge, 1 pressure gauge; 1 fire pump tachometer; 2 liquid level indicators; pump room and equipment box light switches, etc. (the dashboard is located in the pump room).

1. Multifunctional integration and flexible adaptation

‌Fire sprinkler integration‌: DFAC 4Tons/4000L Fire Truck has both fire extinguishing and sprinkler functions, with a water tank capacity of 1.0-5.0 tons and a high-pressure water pump range of 45-65 meters, covering conventional firefighting needs, while supporting operations such as road washing and landscaping, and fire truck is suitable for narrow areas such as towns and forests.

‌Modular expansion capability‌: Optional lifting and spraying platform (lifting height 6 meters), drainage pump group (discharge volume 500-3000m³/h) and rescue tool module, adapted to complex scenes such as high-rise fires and flood drainage.

2. Efficient power and passability

‌Power configuration‌: DFAC 4Tons/4000L Fire Truck equipped with Yuchai 120-180 horsepower engine (such as YC6J180-52 Euro VI diesel engine), with Fast 8-speed gearbox, low-speed torque increased by 30%, strong stability under heavy load conditions, meeting the rescue needs of cities and mountainous areas.

3. Intelligent control and economy

‌Intelligent operating system‌: The hydraulic quick-change interface enables pump group switching within 3 minutes, and the main control system supports real-time monitoring of flow and pressure to improve rescue efficiency.

4. Safety and reliability design

‌Structural protection‌: The body of DFAC 4000L Fire Truck is made of high-strength steel and cold-rolled steel plate stamping process, with anti-collision partition water tank, which is corrosion-resistant and durable.

‌Safety configuration‌: Standard air brake system and panoramic warning light group, the cab integrates professional instruments such as power take-off control and liquid level monitoring.

5. Scene adaptation and rapid response

‌Compact and lightweight‌: The length of DFAC 4Tons/4000L Fire Truck is ≤7 meters, and the wheelbase is optimized to 3800mm, which is suitable for fast passage in urban streets and factory areas.

‌All-weather operation‌: DFAC 4Tons/4000L Fire Truck equipped with self-priming water pump (30 seconds to start drainage), multi-mode water spraying system and lighting equipment to ensure nighttime and harsh environment combat capabilities.

Through the advantages of functional integration, terrain adaptation and intelligent control, DFAC 4Tons/4000L Water and Foam Fire Truck has become a cost-effective solution in the fields of firefighting, municipal administration, emergency response, etc.
