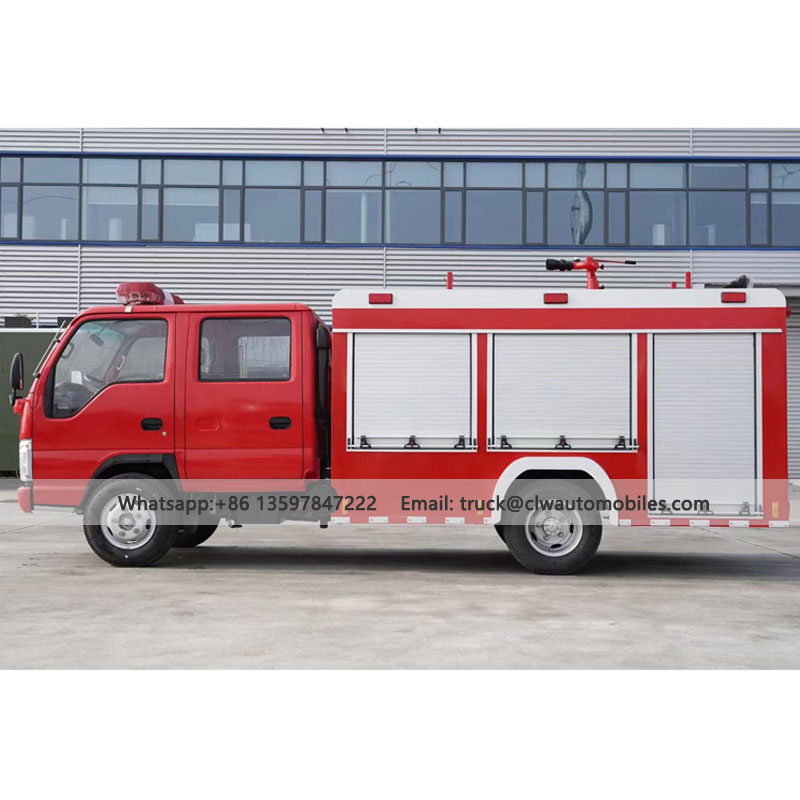

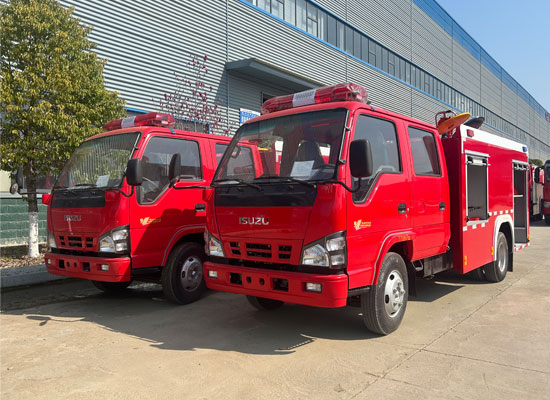

ISUZU 2Tons/2000L Rescue Fire Fighting Truck

ISUZU 2000L Rescue Fire Truck

ISUZU 2000L Rescue Fire Truck

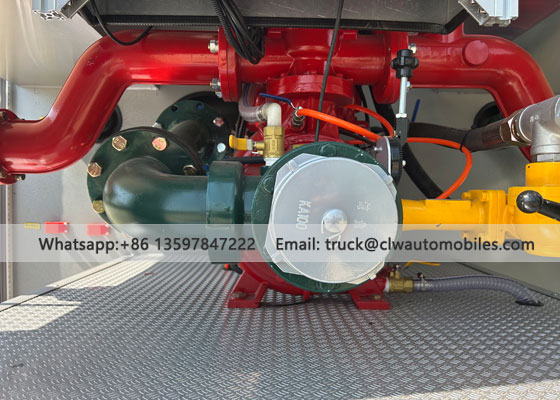

Fire Pump

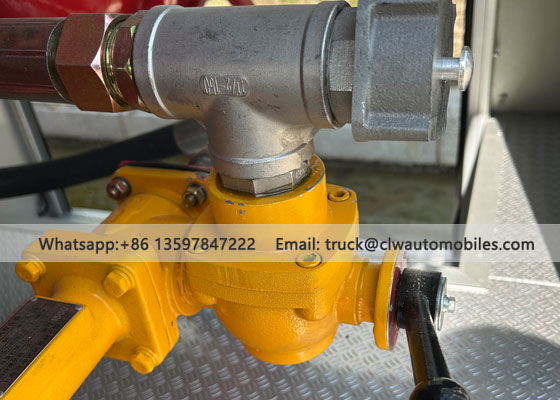

Foam Proportion

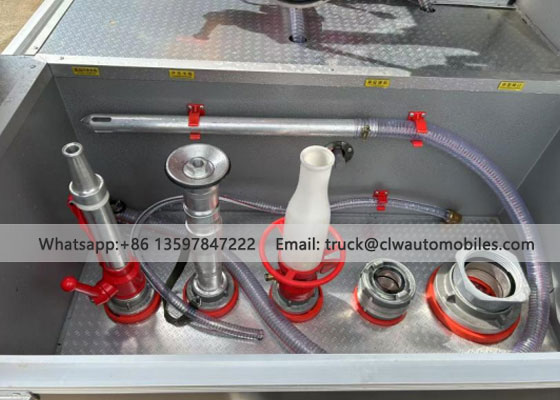

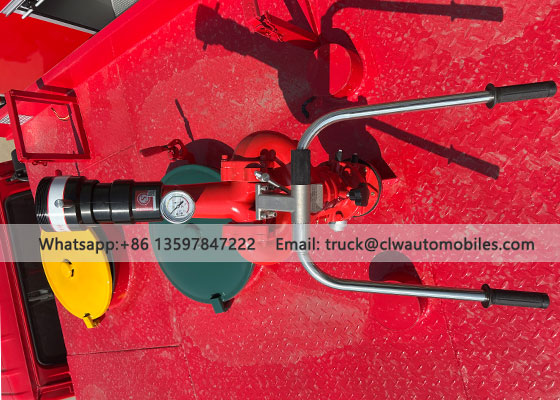

Fire Gun

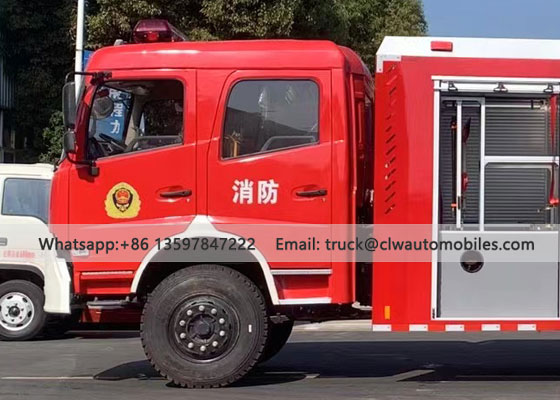

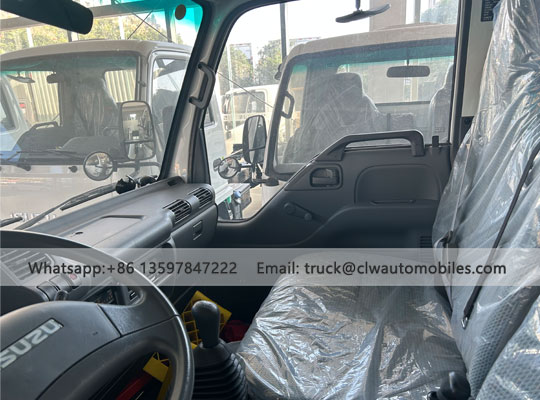

Cabin

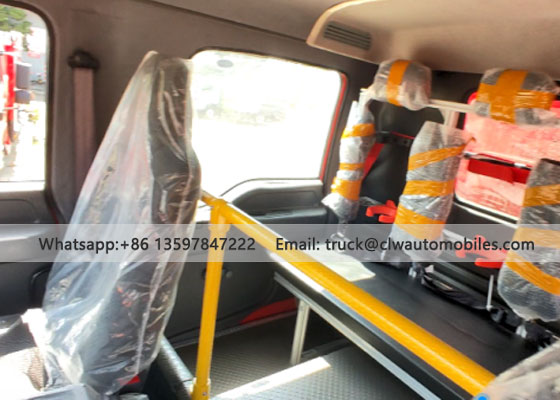

2+4 Cabin

2+3 Cabin

Product Title

Product Title

Product Title

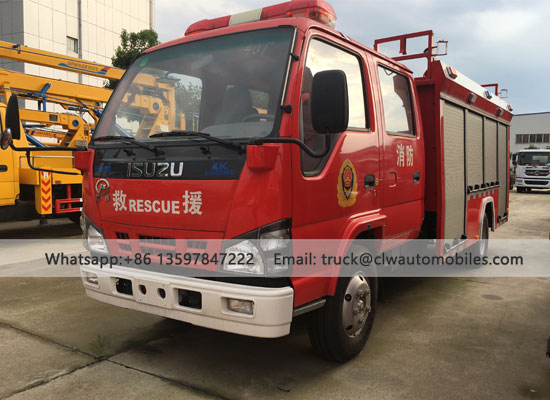

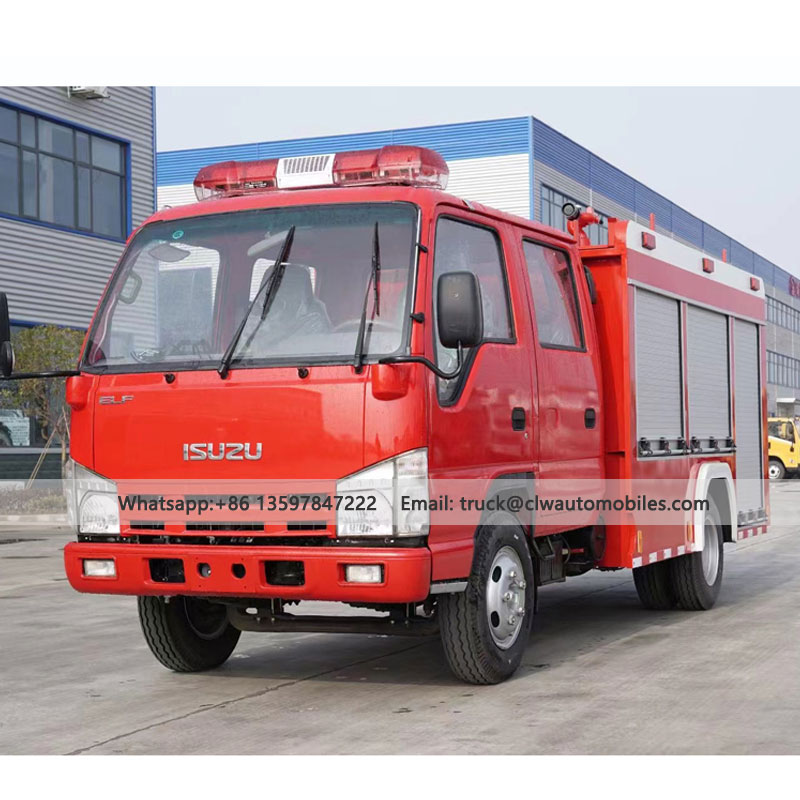

※There is a long row of warning lights at the front of the cab.

※ There is a 12V, 60W fire scene lighting lamp behind the roof.

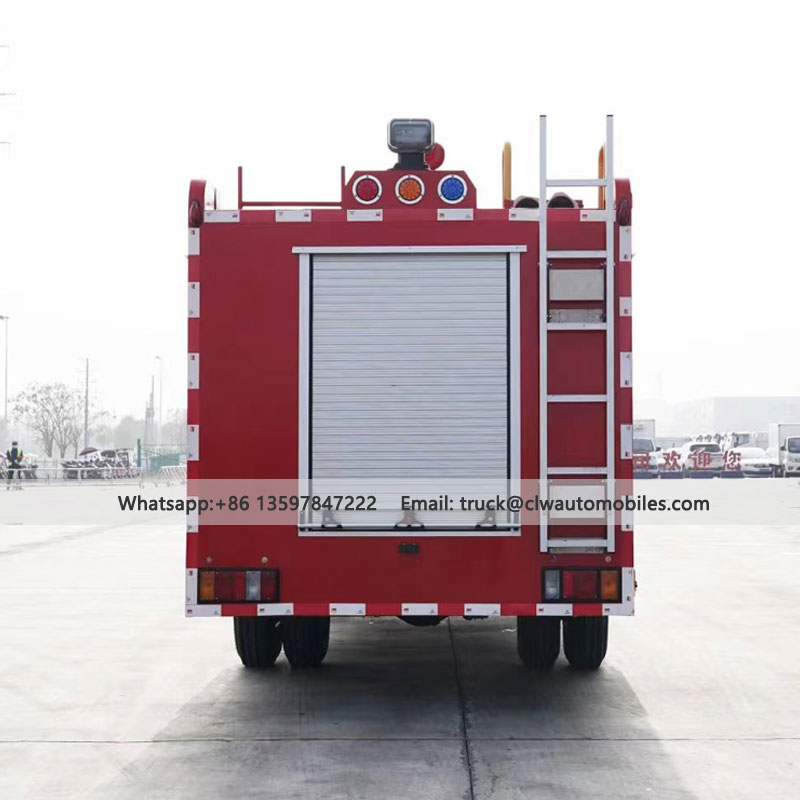

※ There are two flashing lights on each side of the vehicle, and a safety sign light is installed below, equipped with front and rear clearance lights, a turn signal on each side, and lighting in the passenger room, equipment box, and pump room, which complies with GB4785 regulations.

※ The power of the alarm is 100W; the alarm, warning light, and flashing light circuits are independent additional circuits, and the control device is installed in the cab.

※ Additional instruments and switches are centrally arranged on the control panel for easy operation. The dashboard is equipped with: 1 vacuum gauge, 1 pressure gauge; 1 fire pump tachometer; 2 liquid level indicators; pump room and equipment box light switches, etc. (the dashboard is located in the pump room).

1. Power performance and reliability

‌High-efficiency power system‌: ISUZU Fire Truck equipped with a 4KB1 diesel engine, peak power of 131 horsepower, torque of 360N·m, and output of 250N·m torque at 1000 rpm, meeting the needs of complex scenarios such as mountain climbing and high-speed rescue; the golden power chain (MSB/MYY gearbox + Isuzu axle) has a transmission efficiency of 98% and a low failure rate.

‌Quick response capability‌: The maximum speed of isuzu fire truck is above 100km/h, and the continuous output of more than 300N·m torque at 1300-3000 rpm ensures rapid arrival at the fire scene.

2. Safety and professional configuration

‌Explosion-proof and precise control‌: ISUZU 2Tons/2000L Rescue Fire Fighting Truck equipped with explosion-proof devices to resist explosion impact, the fire water cannon control system supports flexible adjustment of the spray angle and strength, with a range of ≥45-65 meters and a wide coverage.

‌Large-capacity water storage and stable water supply‌: The tank volume is 1.0-2.5 tons, made of carbon steel/stainless steel and anti-corrosion treatment, and combined with a high-pressure water pump to achieve continuous high-intensity fire extinguishing.

3. Mobility and adaptability

‌Flexible passability‌: The body width of fire truck is only 1695-1990mm, the wheelbase can be selected from 2765-3360mm, and the approach angle is 24°, which can adapt to narrow streets and complex terrain.

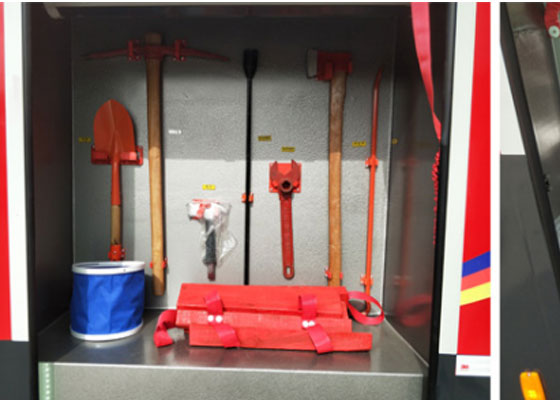

‌Multi-function module design‌: Support emergency rescue modules (such as lifting, power generation, lighting), adjustable equipment box structure, to meet diversified tasks such as fire fighting, rescue, and obstacle removal.

4. Economy and maintenance convenience

‌Low operating cost‌: The Euro VI version uses emission + thermal management technology, and the fuel consumption per 100 kilometers is 2L lower than similar products, saving more than 10,000 yuan in fuel costs per year; the urea consumption is low, and the risk of post-processing failure is low.

‌Easy maintenance design‌: Split headlights, modular equipment boxes and other structures reduce maintenance costs, and the original factory service system ensures rapid maintenance response.

5. Scenario expansion capability

‌Customized modification‌: Supports double-row cabs (carrying 5 people), foam fire trucks and other modifications, suitable for industrial and mining, community, high-speed rescue and other scenarios.

‌Compliance load-bearing capacity‌: The lightweight chassis reduces weight by 225kg, and is equipped with 7.00R16LT tires and reinforced leaf spring suspension, which ensures stable load-bearing capacity and complies with regulatory requirements.
