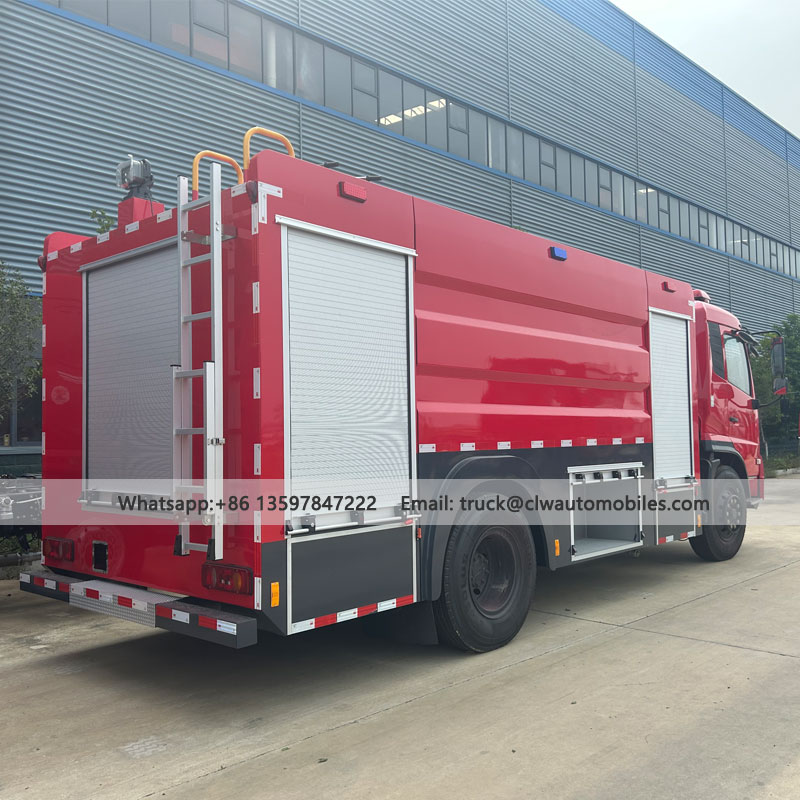

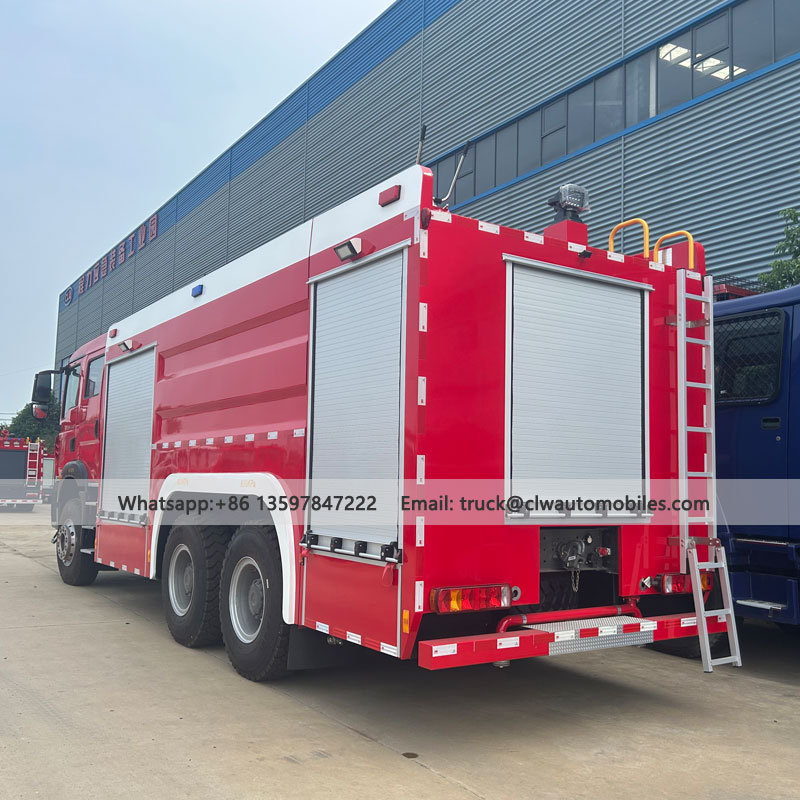

HOWO 6000L Water + 2000L Foam + 1kg Dry Powder Fire Truck For Sale

 Water and Foam And Powder Fire Truck

 Water and Foam And Powder Fire Truck

Fire Pump

Foam Proportion

Fire Gun

Cabin

2+4 Cabin

2+4 Cabin

Product Title

Product Title

Product Title

Product Title

Product Title

Product Title

Optional 2kg Powder Tank

Optional 2kg Powder Tank

※There is a long row of warning lights at the front of the cab.

※ There is a 12V, 60W fire scene lighting lamp behind the roof.

※ There are two flashing lights on each side of the vehicle, and a safety sign light is installed below, equipped with front and rear clearance lights, a turn signal on each side, and lighting in the passenger room, equipment box, and pump room, which complies with GB4785 regulations.

※ The power of the alarm is 100W; the alarm, warning light, and flashing light circuits are independent additional circuits, and the control device is installed in the cab.

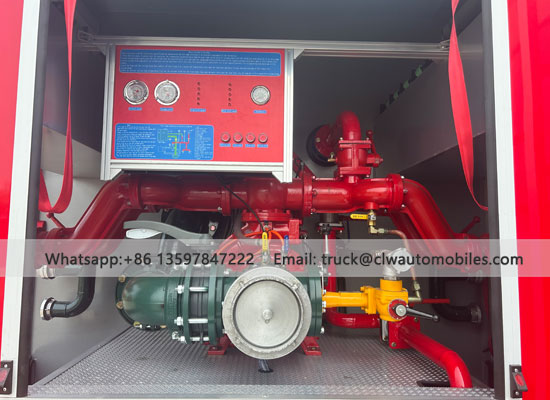

※ Additional instruments and switches are centrally arranged on the control panel for easy operation. The dashboard is equipped with: 1 vacuum gauge, 1 pressure gauge; 1 fire pump tachometer; 2 liquid level indicators; pump room and equipment box light switches, etc. (the dashboard is located in the pump room).

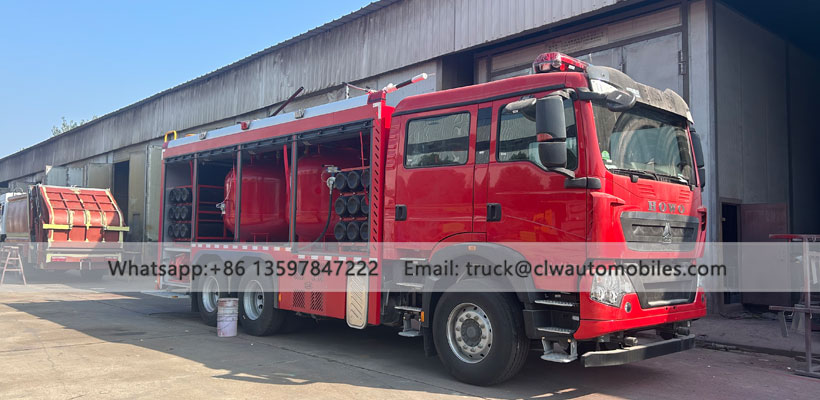

The HOWO 6*4 dry powder and foam combined fire truck is a multi-functional firefighting vehicle that combines the functions of a foam fire truck and a dry powder fire truck. It is particularly suitable for extinguishing high-risk fires in petrochemical and other similar environments. Its main features are as follows: **Multi-functional Firefighting Capability:** Based on a foam fire truck, this vehicle adds an independent dry powder firefighting system. Utilizing the nitrogen propulsion principle, it primarily uses ABC dry powder extinguishing agents to extinguish fires involving flammable and combustible liquids, combustible gases, and electrical equipment. It can also extinguish fires involving general materials. The dry powder spray range can reach 45 meters, providing strong firefighting power, especially effective in extinguishing large chemical plant pipeline fires.

**Structural Design:**

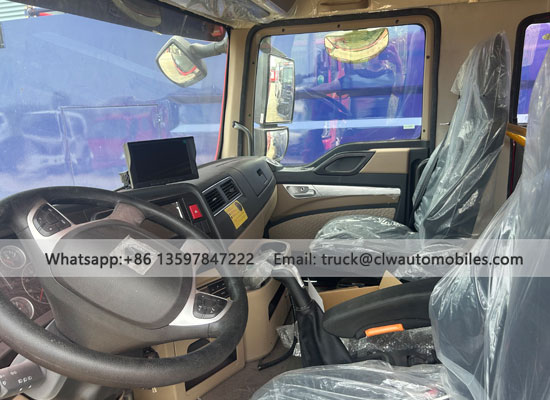

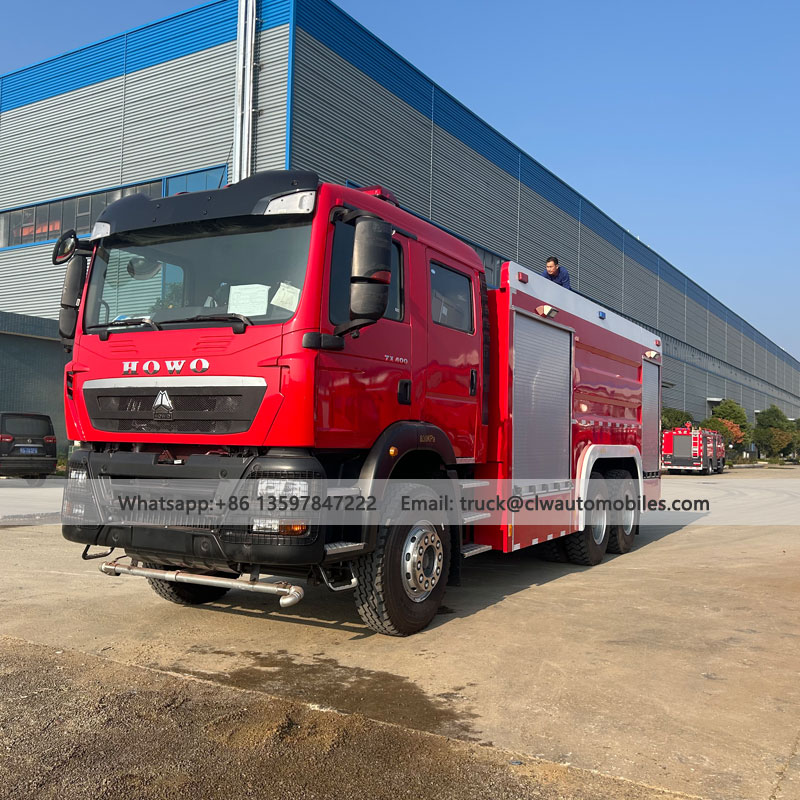

Chassis and Cab: Utilizes a Sinotruk HOWO rear dual-axle chassis with an original double-row cab that can seat 6-8 people. It offers a wide field of vision and flexible operation.

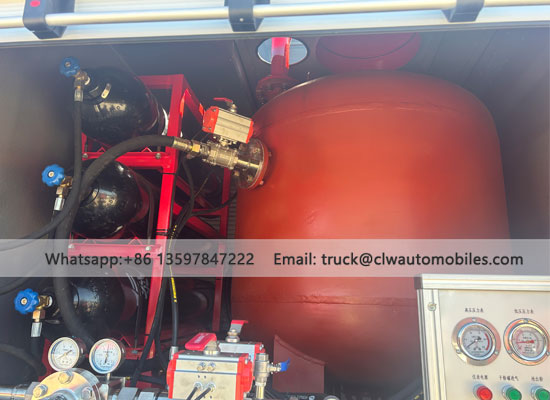

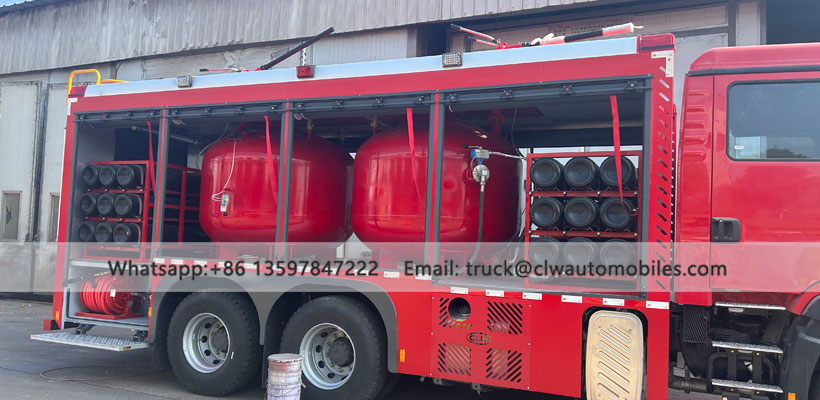

**Tank and Equipment Boxes:** The front of the vehicle houses the equipment box, the middle section the tank, and the rear the pump room. The equipment box contains dry powder tanks (2-3 cubic meters in volume), six nitrogen cylinders, and dry powder reels. The tank body is made of high-quality carbon steel, with an internal epoxy primer and epoxy asphalt paint coating; stainless steel can also be used upon request.

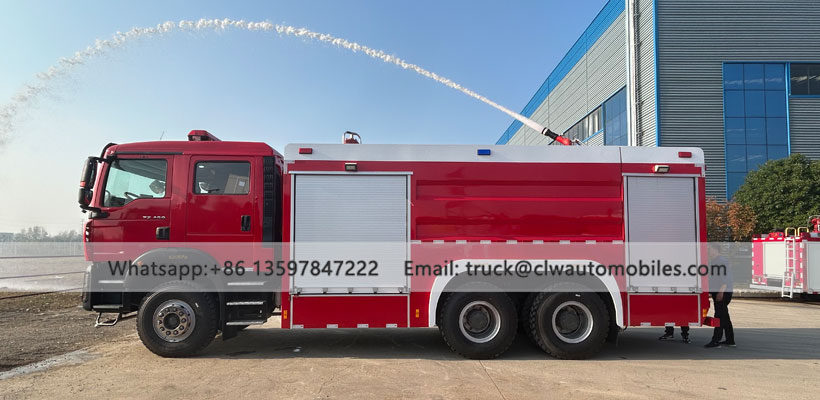

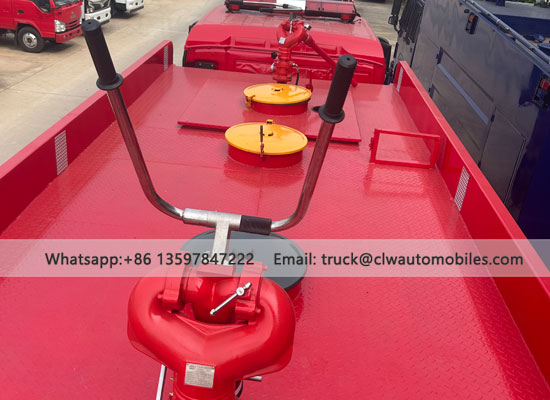

**Firefighting Equipment: **A Shanghai Rongsheng 60-type vehicle-mounted fire monitor is installed on the roof, with a foam range of ≥65 meters and a flow rate of 48 liters/second; the dry powder monitor has a spray intensity of 30 kg/second and a working pressure of 14 MPa.

Performance and Configuration

**Liquid Capacity:** The water tank capacity is approximately 6 tons, and the foam liquid tank capacity is approximately 1.96 tons. Some models (such as the 16-ton model) have a water tank capacity of up to 15 tons and a foam tank capacity of 3 tons.

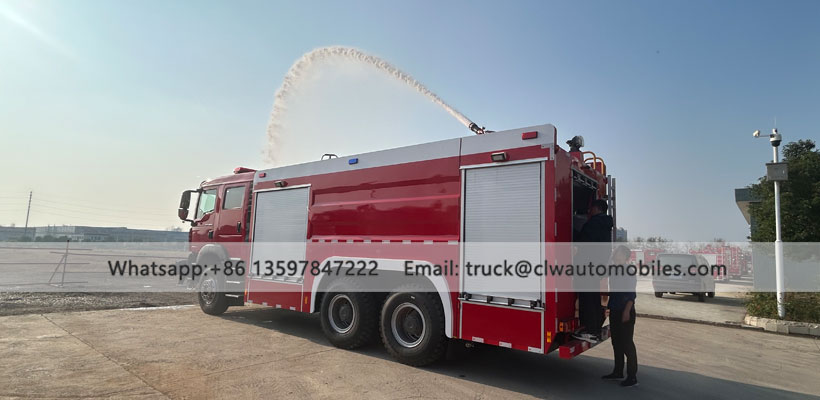

**Fire Pump and Monitor: **Equipped with a CB10/60 type fire pump and a PL8/48 type water-foam dual-purpose fire monitor, with a water range greater than 65 meters and a foam range greater than 60 meters.

**Corrosion resistance and durability: **The tank body is made of high-quality carbon steel or stainless steel with internal anti-corrosion treatment to ensure long-term corrosion resistance.
