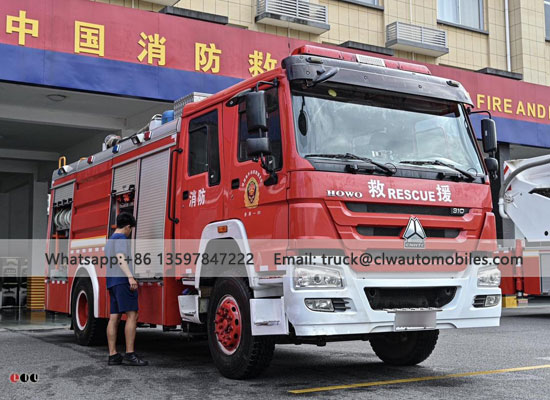

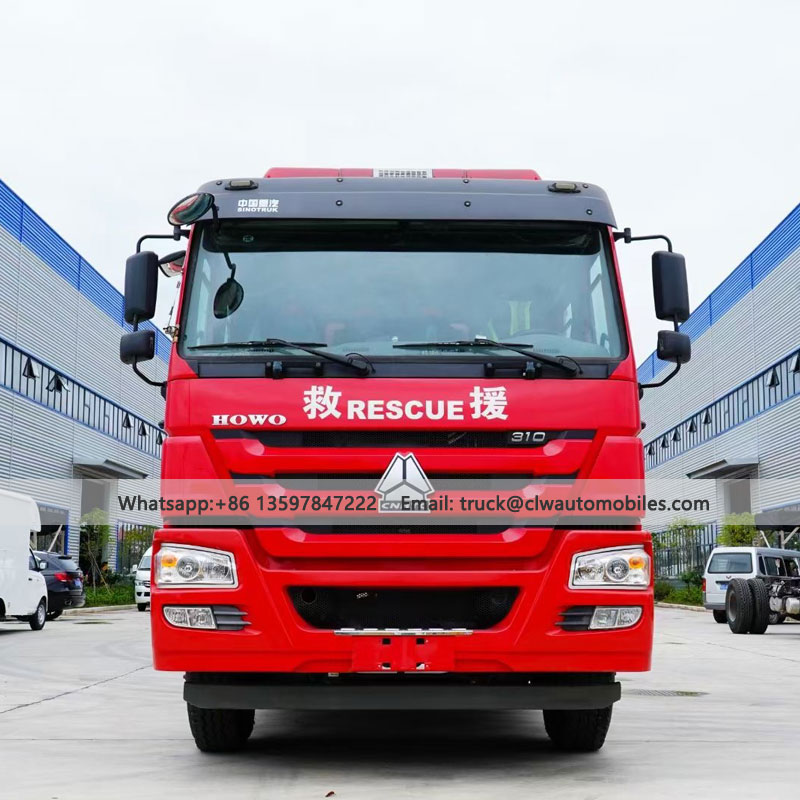

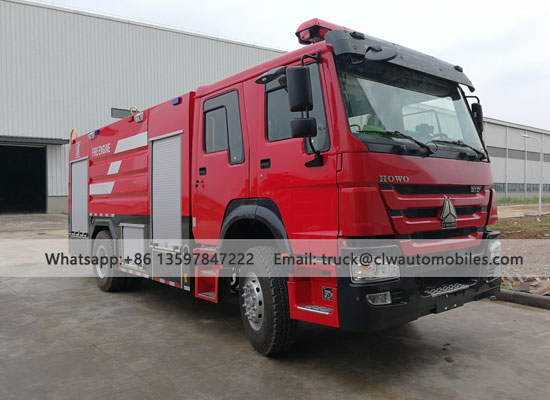

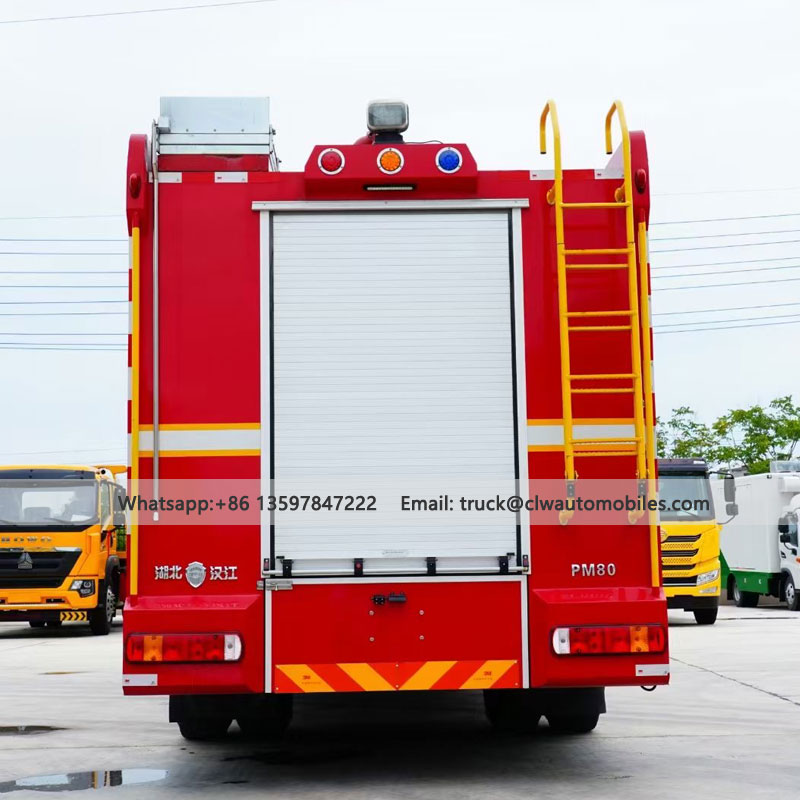

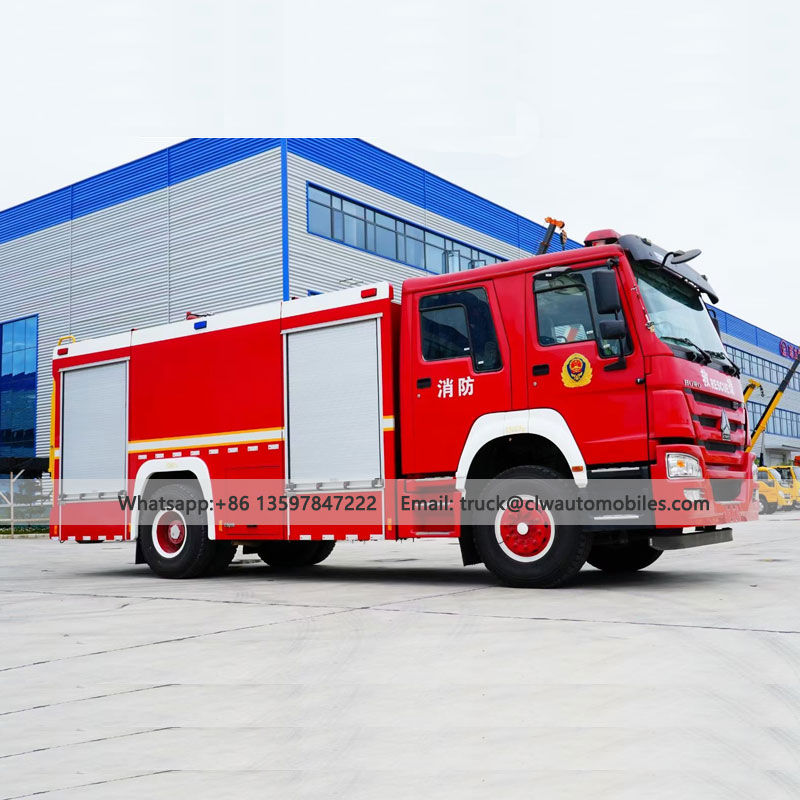

HOWO 8Tons/8000L Water and Foam Fire Truck

HOWO Fire Truck

HOWO Fire Truck

Fire Pump

Foam Proportion

Fire Gun

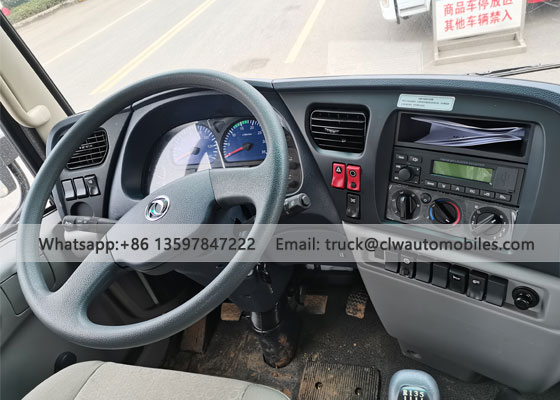

Cabin

2+4 Cabin

2+4 Cabin

Equipment of fire truck

Equipment of fire truck

Equipment of fire truck

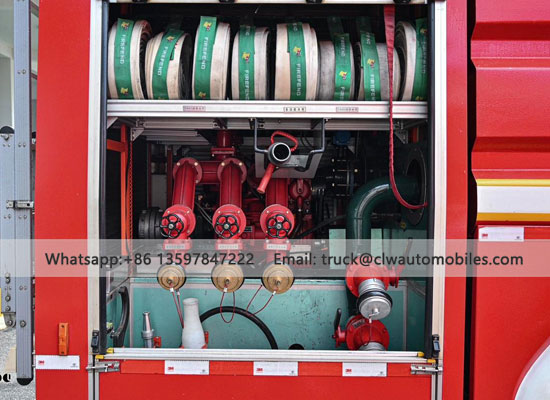

Pump Room of fire truck

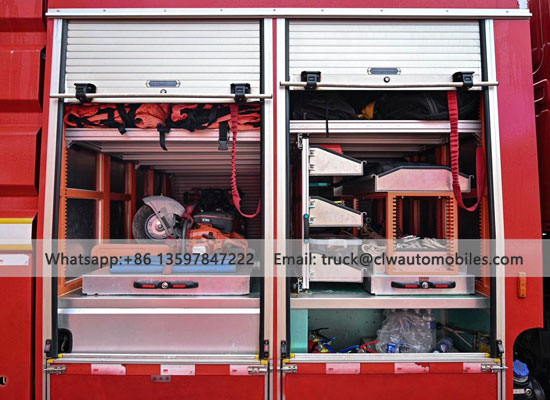

Equpment Room of fire truck

※There is a long row of warning lights at the front of the cab.

※ There is a 12V, 60W fire scene lighting lamp behind the roof.

※ There are two flashing lights on each side of the vehicle, and a safety sign light is installed below, equipped with front and rear clearance lights, a turn signal on each side, and lighting in the passenger room, equipment box, and pump room, which complies with GB4785 regulations.

※ The power of the alarm is 100W; the alarm, warning light, and flashing light circuits are independent additional circuits, and the control device is installed in the cab.

※ Additional instruments and switches are centrally arranged on the control panel for easy operation. The dashboard is equipped with: 1 vacuum gauge, 1 pressure gauge; 1 fire pump tachometer; 2 liquid level indicators; pump room and equipment box light switches, etc. (the dashboard is located in the pump room).

1. High-strength protective structure: The HOWO fire truck body utilizes lightweight alloy materials combined with specialized anti-corrosion technology, balancing impact resistance and corrosion resistance to ensure stability in extreme environments.

2. Large-Capacity Water/Fire Suppressant Storage: The HOWO fire truck carries up to 10 tons of water (single-axle model). Combined with a booster pump station and rapid water replenishment system, it extends continuous operational duration.

3. Equipped with a high-displacement, low-fuel-consumption diesel engine and enhanced transmission system, it delivers robust power output for complex terrain and heavy-load conditions.

4. The Howo fire truck chassis utilizes 610L high-strength steel, with the cab composed of 30% high-strength steel, meeting European EC5 standards for truck strength. Lightweight alloy materials are employed for impact resistance and corrosion protection.

6. Validated across extreme environments including plateaus, frigid regions, and high temperatures, it features a self-priming pump (8-meter suction depth) and all-weather lighting equipment, ensuring reliable operation in complex climatic conditions.

Powerful Performance

Equipped with a MAN-engineered engine, this vehicle delivers stable power output ranging from 280 to 350 horsepower. With a maximum gradeability of ≥44%, it effortlessly handles complex terrain. Select models feature a chassis co-developed by Sinotruk and MAN, featuring a high-performance power take-off (PTO) for efficient power transmission.

Maneuverability and Passability

High Speed: Maximum speed reaches 95-101 km/h, enabling rapid response to emergency tasks.

Flexible Structure: Most models feature a 4700mm wheelbase and compact dimensions (e.g., 8360×2510×3550mm), ideal for urban and confined-space operations.

Reliable Braking: Front disc brake system enhances braking sensitivity with a stopping distance ≤9m, ensuring driving safety.

Professional Firefighting Configuration

Liquid Capacity: Water tank volume 6-8 tons, foam tank 2 tons, dry powder tank 1.5-2 tons, meeting diverse firefighting demands.

Firefighting Equipment: Standard CB10/60 fire pump (60L/s flow rate) and PL48 fire monitor (water range ≥60m, foam range ≥50m) deliver high extinguishing efficiency.

User-Friendly Design: Dual-row cab accommodates 6 personnel, featuring guardrails, liquid level indicators, and warning lights for enhanced operational convenience.
