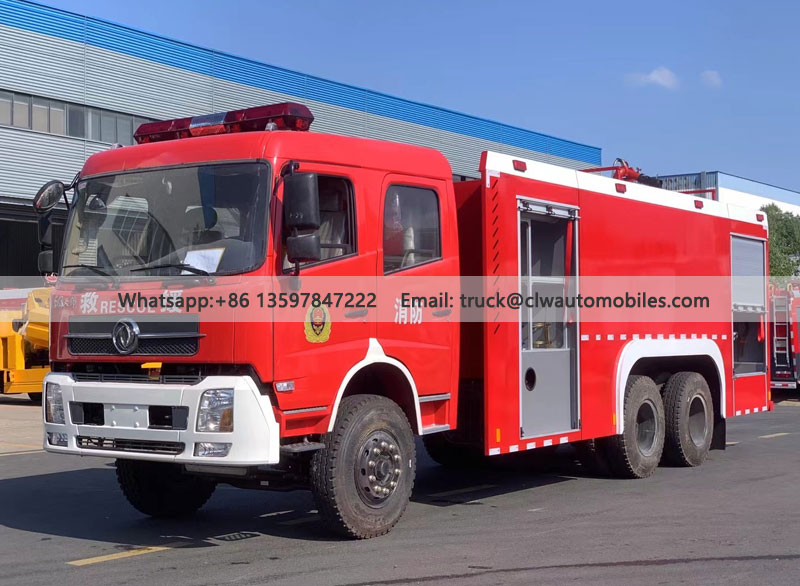

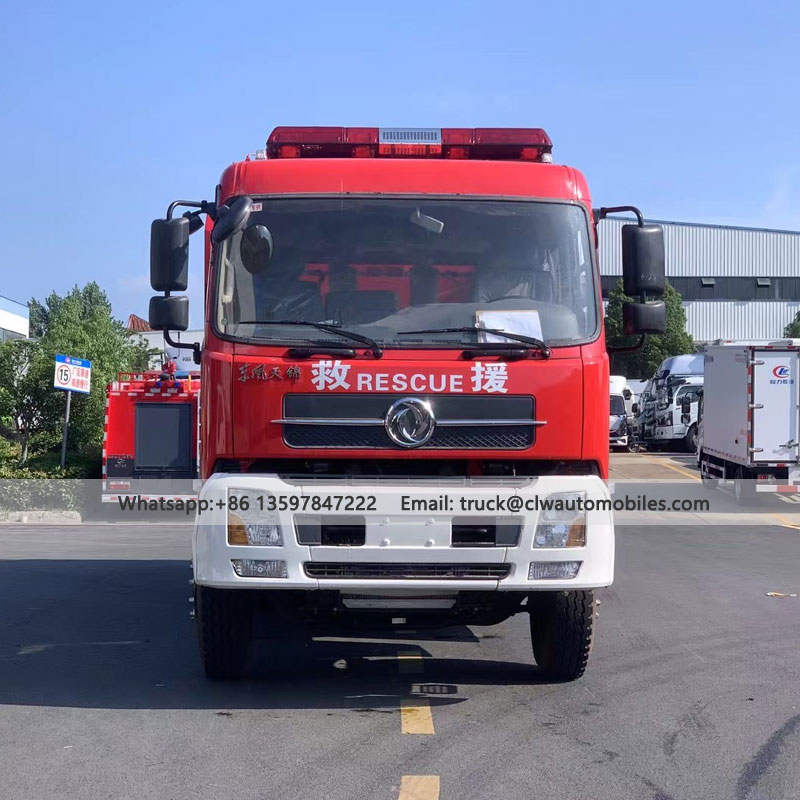

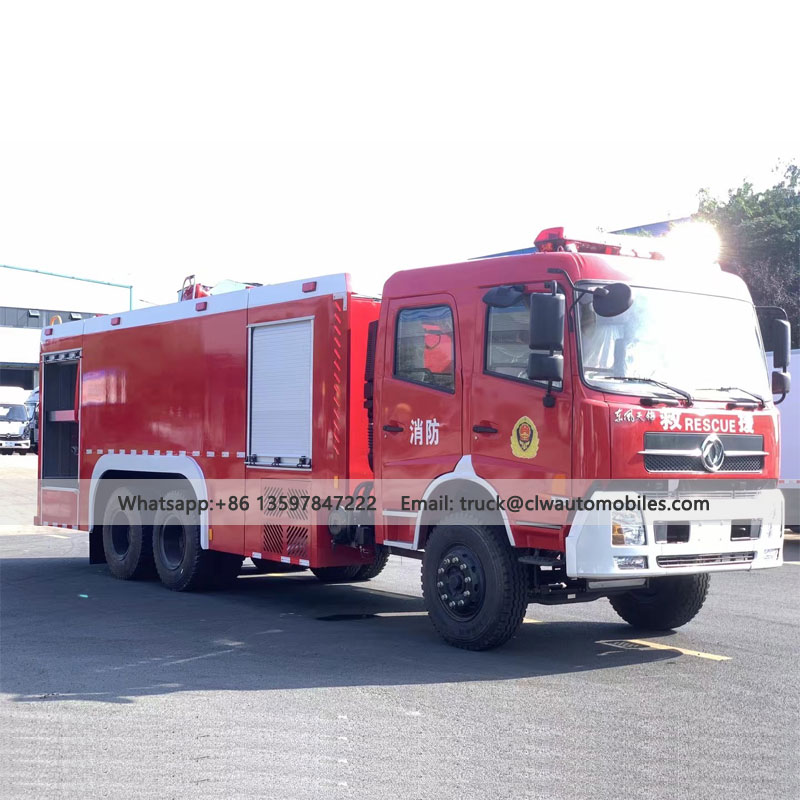

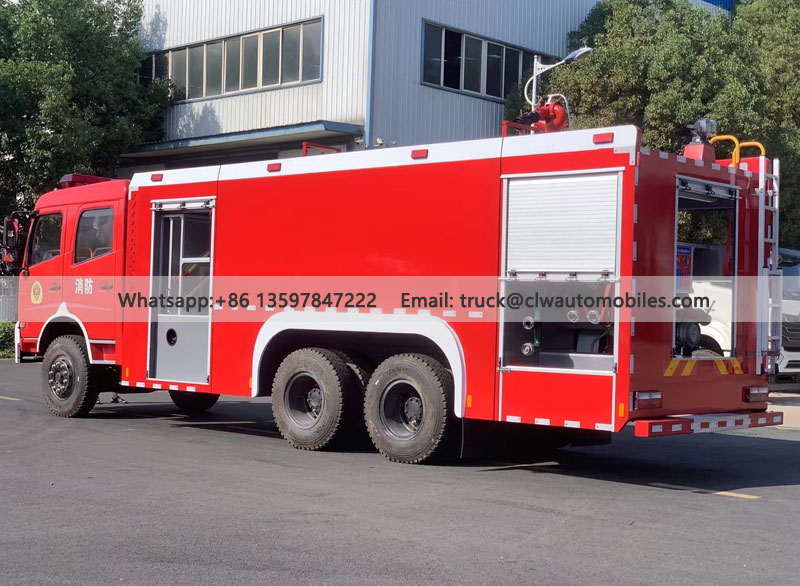

DONGFENG 16000L Water and Foam Rescue Fire Fighting Truck
- CLW/DONGFENG
- Suizhou city, Hubei Province
- 35 working days after received your payment
- 50 units per month
- 45000-60000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Basic Parameters of DONGFENG 16000L Rescue Fire Truck
DONGFENG 16000L Fire Truck
DONFENG 16000L Fire Truck
| General | Truck Brand | CLW/DONGFENG(New) |
| Model | CLW5280GXFSG120/HW | |
| Overall Size | 9680*2550*3620mm | |
| Volume | Water Tank: 12000L, Foam Tank:4000L | |
| G.V.W. | 27600kg | |
| Curb Weight | 14950kg | |
| Engine | Model | C260 33 |
| Power | 260HP/191KW | |
| Displacement | 8.3L | |
| Emission Standard | Euro III | |
| Cylinder | 6 | |
| Fuel Type | Diesel | |
| WheelBase | 4350+1350mm | |
| Transmission | Model | Manual, 9JS119T |
| Numbers | 9 forward, 1 Revise | |
| Tires | Size | 10.00R20 |
| Number | 10+1 | |
2
Special Function of DONGFENG 16000L Rescue Fire Truck
Fire Pump
Foam Proportion
Fire Gun
Volume | Water Tank: 12000L, Foam Tank:4000L | |
| Material of Tank | Water Tank:high quality carbon steel plate Foam Tank: Stainless Steel | |
| Thickness of Tank | Bottom Plate | 4mm |
| Front Cover Plate | 4mm | |
| Rear Cover Plate | 4mm | |
| Side Plate | 3mm | |
| Fire Pump | Model | CB10/60 |
| Flow | 60L/s | |
| Pressure | 1.0Mpa | |
| Water Diversion Time | ≤35s(at suction depth of 7m) | |
| Install Style | Rear Mounted | |
| Foam Proportion | Model | PH64 |
| Pressure | 0.6-1.4Mpa | |
| Flow | 16-64L/S | |
| Ratio Rate | 3%-6%(adjustable) | |
| Type | Manual | |
| Fire Gun | Model | PL32 |
| Pressure | 1.0Mpa | |
| Flow | 32L/s | |
| Range | water:≥60m, Foam:≥55m | |
| Rotation angle | Horizontal 360°, pitch -30°～80 | |
| Operation Style | Manual | |
3
Cabin of DONGFENG 16000L Rescue Fire Truck
Cabin
2+4 Cabin
2+4 Cabin
| Structure | Flat head four-door double-row cab, all-steel frame welded structure |
Seats | Front:2 persons, Rear: 4 Person |
| Equipment | 100W siren, rotary warning light switch, power take-off Control switch and indicator light |
4

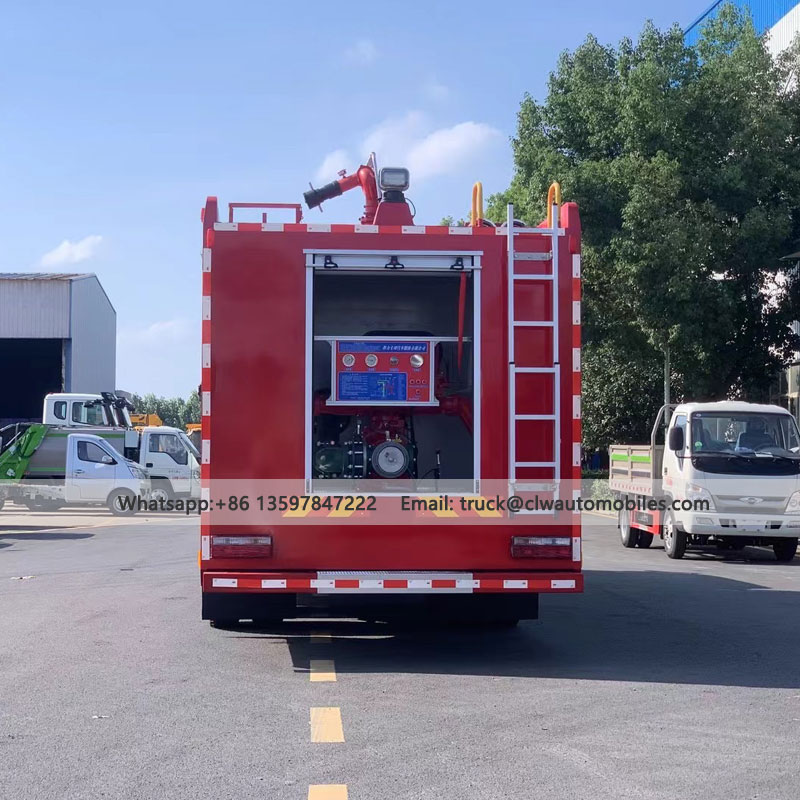

Pump Room,Equipment Box of fire truck
Equipment of Fire Truck
Equipment of Fire Truck
Equipment of Fire Truck
Material | The frame and skin are made of high-quality steel, with the base plate covered in δ1.2 checkered plate. |
Structure | Fully welded steel frame structure with aluminum alloy roller doors on the left, right, and rear sides, featuring anti-slip flip-up steps below. Control handles, water discharge ports, vacuum gauge, pressure gauge, and tachometer are all conveniently located on the surface of the insulated rear door of the pump room for easy operation. |
5
Electrical System
※A row of warning lights is installed at the front of the cab.
※A 24V, 60W fire scene lighting fixture is mounted on the rear roof section.
※Each side of the vehicle features two flashing lights with safety indicator lights below. The vehicle is equipped with front and rear marker lights, one turn signal on each side, and lighting for the passenger compartment, equipment box, and pump room—all compliant with GB4785 standards.
※The siren has a power rating of 100W. The siren, warning lights, and strobe lights operate on independent auxiliary circuits, with the control unit located inside the cab.
※For operational convenience, various gauges and switches are centrally arranged on the control panel. The instrument panel includes: 1 vacuum gauge, 1 pressure gauge, 1 fire pump RPM gauge, 2 liquid level indicators, and switches for the pump room and equipment compartment lighting. (The instrument panel is located within the pump room.)
6
Advantage of DONGFENG 16000L Rescue Fire Truck
1. This fire truck utilizes an original Dongfeng Commercial Vehicle chassis. The chassis technology has been extensively validated in the market, offering high stability and adaptability to complex road conditions including urban streets, rugged rural roads, and forest firefighting trails.
2. The fire truck is equipped with a Cummins 260-horsepower Euro III diesel engine and a dual-row firefighting cab.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
