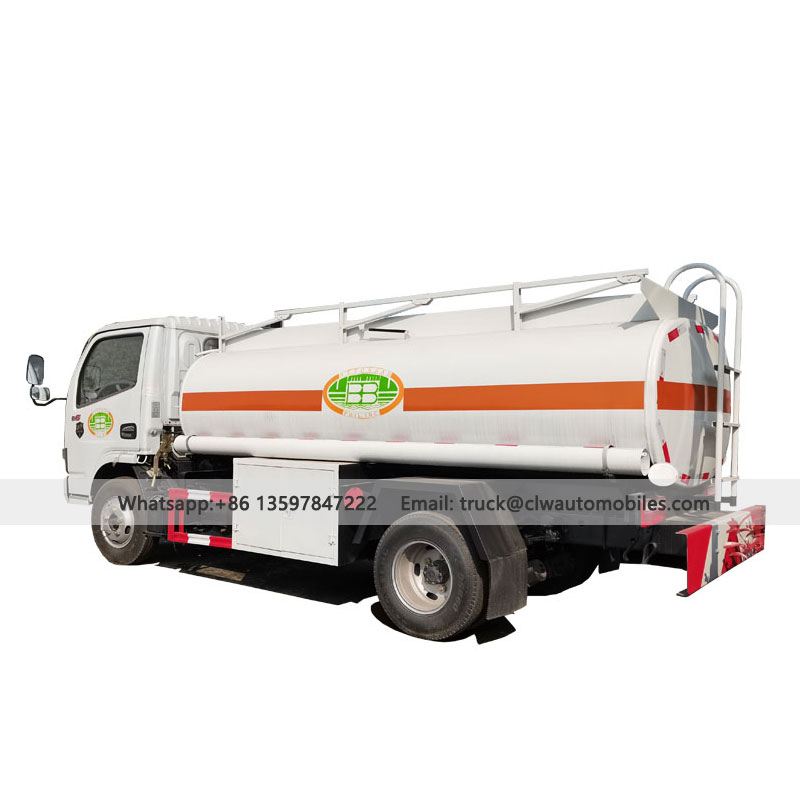

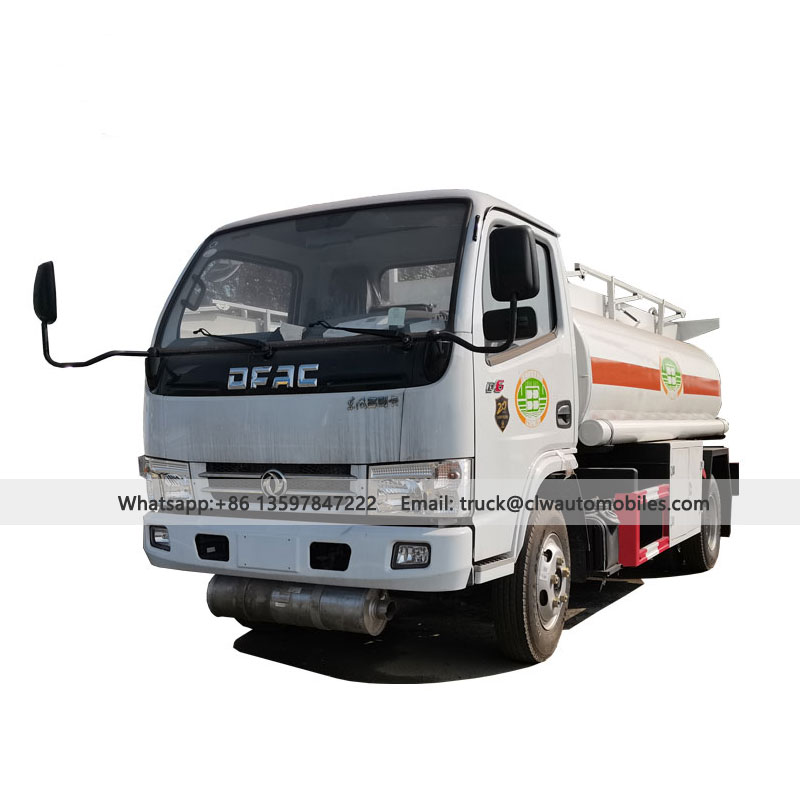

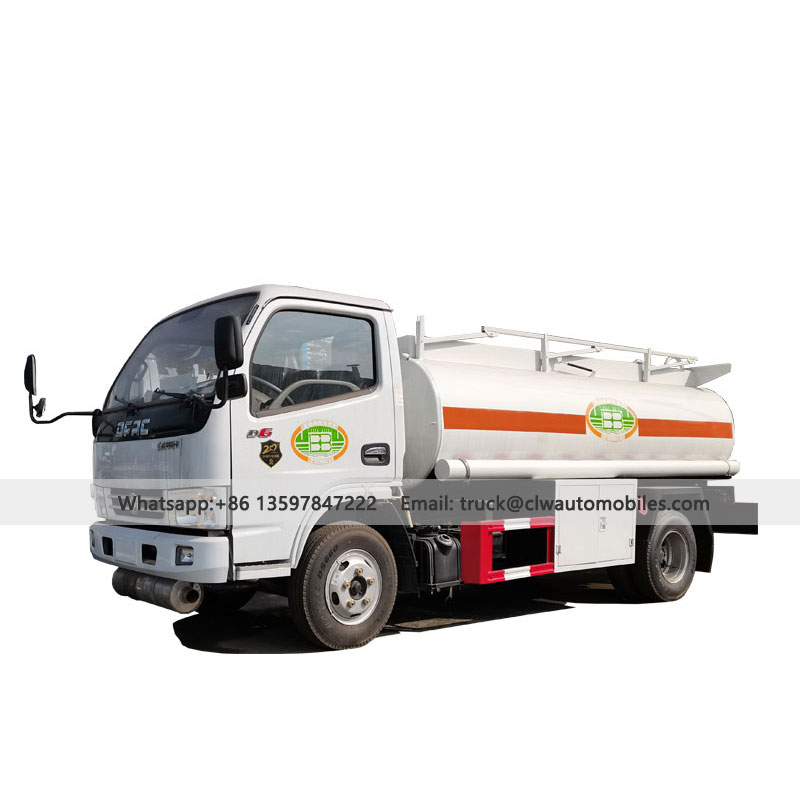

DFAC 5000L Fuel/Refueling Tanker Truck
- CLW/DFAC
- Suizhou
- 30 days
- 100 units per month
1
Basic Parameters of DFAC 5000L Fuel Tanker Truck
Model positioning: DFAC 5000L Fuel/Refueling Tanker Truck is a light tanker truck, mainly used for the transportation of flammable liquids such as diesel, gasoline, methanol, etc., suitable for short-distance urban distribution and small and medium-sized oil product transshipment.
Tank capacity: The total capacity of the DFAC 5000L Fuel/Refueling Tanker Truck is 5 cubic meters, the effective volume is 4.8 cubic meters, and the rated load is 3.615 tons.
Power configuration: DFAC 5000L Fuel/Refueling Tanker Truck equipped with Chaochai CY4100Q engine (92 horsepower, Euro3 emission) or Euro VI engine, matched with 5-speed or 8-speed gearbox, taking into account power and fuel economy.
Wheelbase and size: The wheelbase is 3308mm, and the vehicle size is about 6×2.5×2.5 meters, which is flexible to adapt to urban road traffic.
| Name of Vehicle | DFAC 5000L Fuel/refueling Tank Truck | |
| Model of Vehicle | CLW5070GXEZZ | |
| Model of Chassis | EQ1040TG20D3 | |
| Drive Type | 4*2, LHD | |
| Oversize of Vehicle | 5995*2050*2500mm | |
| Wheelbase | 3300mm | |
| Curb Weight | 3765kg | |
| Engine | Model | CY4100Q |
| Power | 68kw/92HP | |
| Displacement | 3.7L | |
| Emission Standard | Euro II | |
| Transmission | Type | WLY, Manual |
| Number of gears | 5-Gear | |
| Tire | Number | 6+1 |
| Size | 7.00R16 Steel wire tyre | |
| Axle | Front | 1.8T |
| Rear | 3.5T | |
| Fuel Tank | 76L | |
2
Standard Equipment of DFAC 5000L Refueling Tanker Truck
| Volume of Tank | 5000L |
| Material of Tank | High quality carbon steel Q235B |
| Thickness of Tank | Body: 4.5mm, Head:5mm |
| Manhole | Aluminum alloy Europe standard Manhole. |
Oil Pump | Model: 60YHCB-30, The flow is 28m³/h, working height is 6m |
Breath Valve | One |
| Subsea valve | 3 inches Aluminum alloy emergency shut-off valve with automatic closing device. |
Unloading Valve | Right of middle parts of tank |
Guardrail of top tank | Manual guardrail |
Horse bo | PVC soft pipe box with both side |
Unloading Pip | L=3500,2.5 inches steel wire pipe |
Ladde | Rear ladder |
Kitbox | One |
Fire extinguishe | 2kg fire extinguisher with two |
Anti static device | One electrostatic conductive drag belt and one electrostatic conductive terminal block |
3
Optional Equipment of DFAC 5000L Refueling Tanker Truck
Filling Machine | Optional install Zhengxing big flow refueller with 15 meters reel and gun. |
Flow mete | Optional install |
Lower loading and unloadin | optional |
Oil and gas recover | optional |
Anti overflo | optional |
Liquid Level Gauge | optional |
4
Pictures of Standard Equipment
Manhole
Emergency Cut-off
Fuel in and out
5
Optional Equipment of ISUZU 5000L Fuel Tank Truck
Depth Gauge
Fuel Dispenser
Flow Meter
7
Construction
1. Function expansion and optional configuration Loading and unloading system: Supports pump in and out function, optional large flow refueling machine, 15-meter automatic return reel and refueling gun to meet mobile refueling needs.
2. Intelligent configuration: DFAC 5000L fuel tanker trucks are equipped with LCD instrument panel, central lock, original air conditioning and voice alarm system to improve driving comfort and operation convenience.
Customized service: Tank volume (such as 5.34 cubic meters, 8.5 cubic meters), material (stainless steel/lined rotomolding) and special tools (such as folding guardrail, tool box) can be selected according to needs.
3. Application scenarios and advantages
Applicable scenarios: small and medium-sized operations such as urban gas station oil distribution, construction site/mine area fuel supply, airport logistics fuel transportation, etc.
Road rights advantage: DFAC 5000L fuel tanker truck can freely enter and exit restricted sections of urban areas, reducing operating costs.
4. Economical efficiency: DFAC 5000L fuel tanker truck has a low price (basic model), combined with low fuel consumption (fuel consumption of National VI models is reduced by 8%) and ultra-long warranty service (48 months unlimited mileage for some assemblies), and the comprehensive use cost is controllable.
5. Tank technology: DFAC 5000L Refueling Tank Truck is made of carbon steel or aluminum alloy, optional compartment design, supports different oil products; standard European standard tank mouth, oil and gas recovery system and anti-overflow probe rod to ensure transportation safety.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
