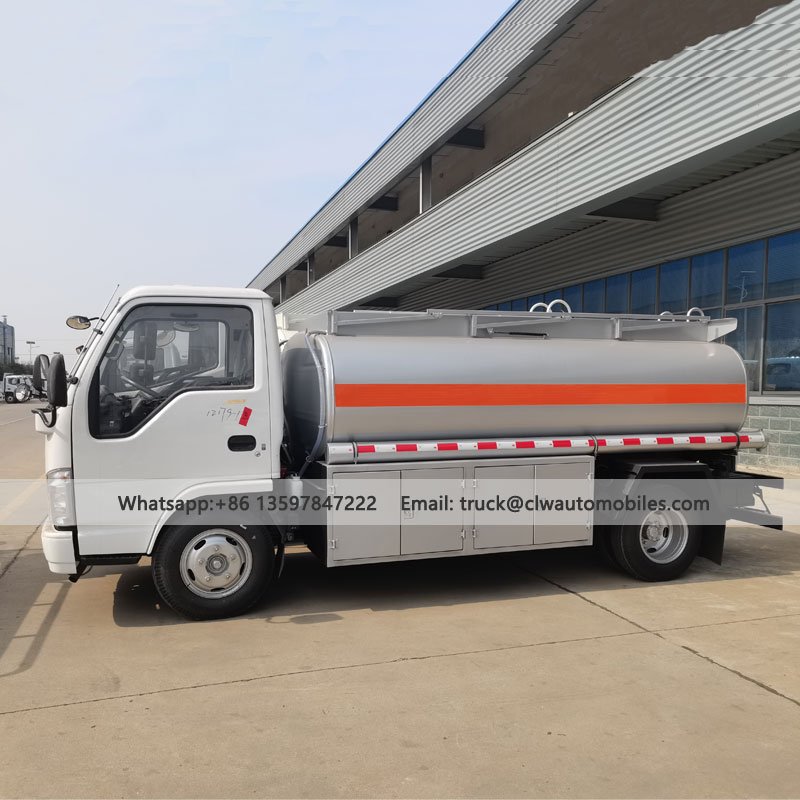

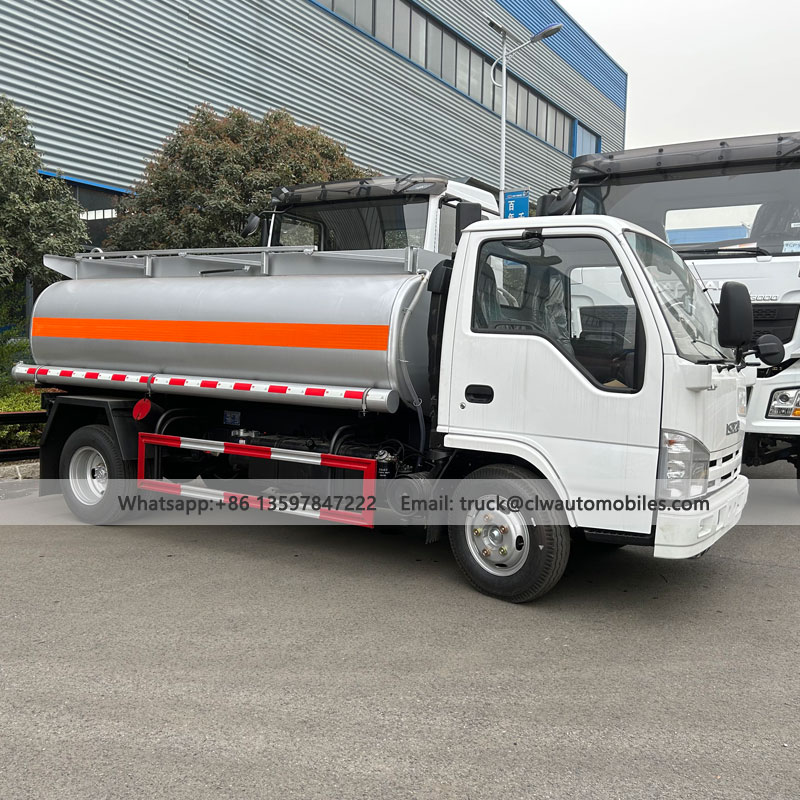

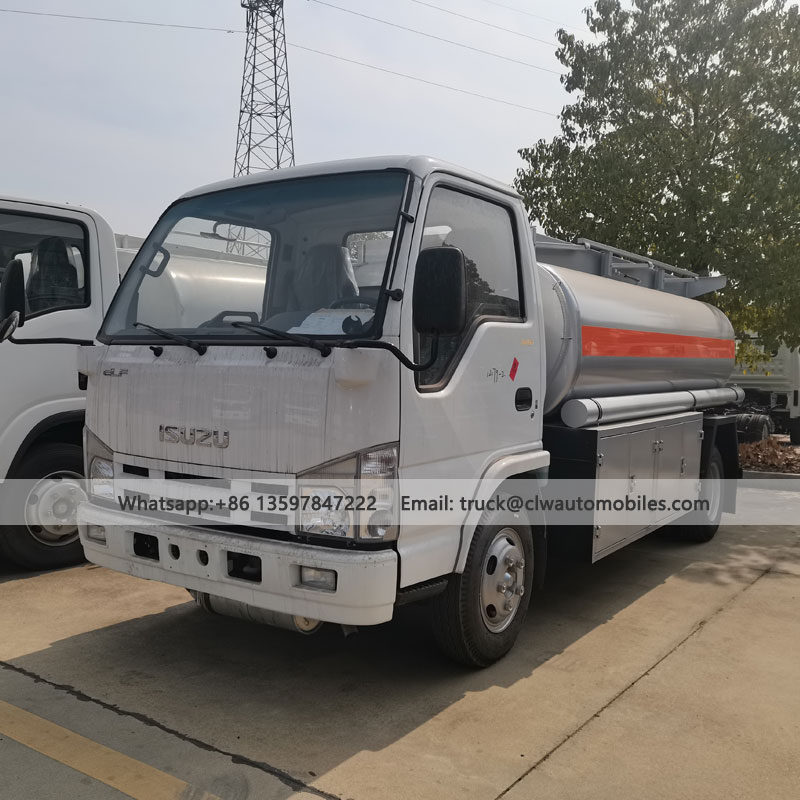

ISUZU 100P 5000L Fuel Tank Truck For Sale From Supplier & Manufacturer

Isuzu 100P Euro IV chassis are equipped with 98 horsepower 4JB1CN Isuzu engine, Isuzu MSB five-speed transmission/air conditioning/power steering/front axle 2.5 tons, rear axle 4.8 tons/small tonnage standard 700R15 tire, frame section: 172*65*4mm/oil brake with vacuum booster pump/audio: radio with USB interface.

Manhole

Emergency Cut-off

Fuel in and out

Depth Gauge

Fuel Dispenser

Flow Meter

1. The driving part that carries the oil tank is generally called the chassis of the car. Generally, drivers are more knowledgeable about this. The problem is that after the oil tanker is equipped with an oil pump, we install the drive shaft and power take-off from the engine. With these two devices, we need to pay special attention during operation. If the operation is improper, the power take-off will be scrapped.

2. For the use and maintenance of the oil pump, please strictly follow its use and maintenance instructions, which are provided with the vehicle.

3. For the use and maintenance of the refueling machine, please strictly follow its use instructions, which are provided with the vehicle.

4. If the oil is discharged slowly and no oil can be pumped out, please check the safety valve and filter net. These should be checked and cleaned frequently.

5. The oil tank and pipeline system should be cleaned regularly. Regularly check whether the joints of the pipeline system are well connected and the seal is reliable.

6. To ensure the cleanliness of the oil tank, the oil tank and the oil delivery system should be cleaned regularly, and the internal and external joints at both ends of the oil delivery hose should be lubricated frequently, so that it is easy and convenient to disassemble and assemble. After each work of the oil pipe is completed, the inlet and outlet outer end covers (plugging covers) and both ends of the oil delivery hose (plugging covers) should be covered in time to ensure the cleanliness of the pipe.

7. The oil loading should not exceed the rated loading mass. (Calculated according to the oil density).

8. The medium passing through the ball valve should not be too dirty to protect the sealing ring and increase the service life of the ball valve. Each ball valve should not work in a half-closed and half-open state for a long time, otherwise it is easy to cause the sealing ring to deteriorate. The handles of each ball valve should be in a closed state during driving.

9. The pump inlet net should be disassembled and cleaned frequently to prevent oil residue from clogging the filter and affecting the flow.

10. The breather valve should be kept clean and in working condition. The spring in the valve should not be replaced at will to avoid affecting the suction and deflation effect. When the breather valve is blocked, there is a risk of causing the tank body to deform.

11. In order to prevent fire accidents in oil trucks, metal objects are not allowed to hit the parts of the oil truck when the exhaust pipe, muffler is damaged, the pipeline is leaking oil, and the conductor is damaged or broken, so as to avoid sparks. Firefighting equipment should be prepared on the oil truck at any time.

12. If the sedimentation tank under the oil tank is frozen, it must not be baked with fire. It can be melted with hot steam or the car can be driven into a warm room to thaw.

13. Before the operation of the refueling truck, the anti-electric pole must be inserted into the wet land, the grounding tape should be grounded, and the static electricity should always be well conducted during the operation.

14. Check the fire extinguisher device before leaving the vehicle. The user of the refueling truck should be familiar with the use of the fire extinguisher and check and maintain it according to its instructions.

15. Before the operation of the oil tanker, check whether the pipeline system is leaking oil, whether the grounding wire is disconnected, and whether the exhaust pipe is damaged. If any problems are found, they should be solved before the operation.

16. When measuring oil, it should be carried out in accordance with relevant regulations. In winter, if there is water in the self-priming pump, the water must be drained to prevent the pump body from freezing.

17. When entering the oil tank for work, good ventilation should be ensured and there should be someone outside the tank for protection. If necessary, clean the tank with soapy water before operation.
