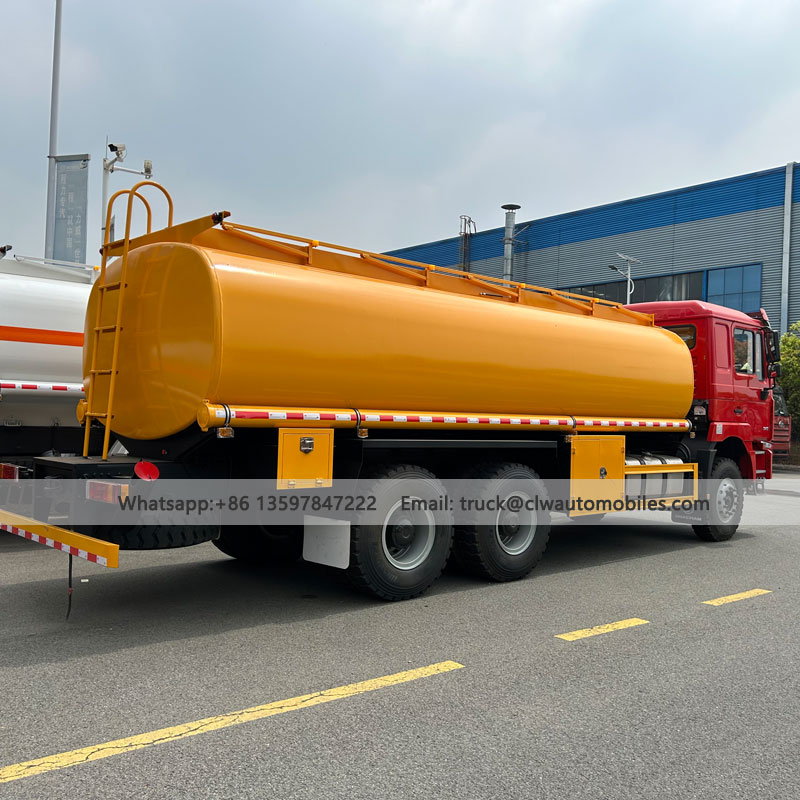

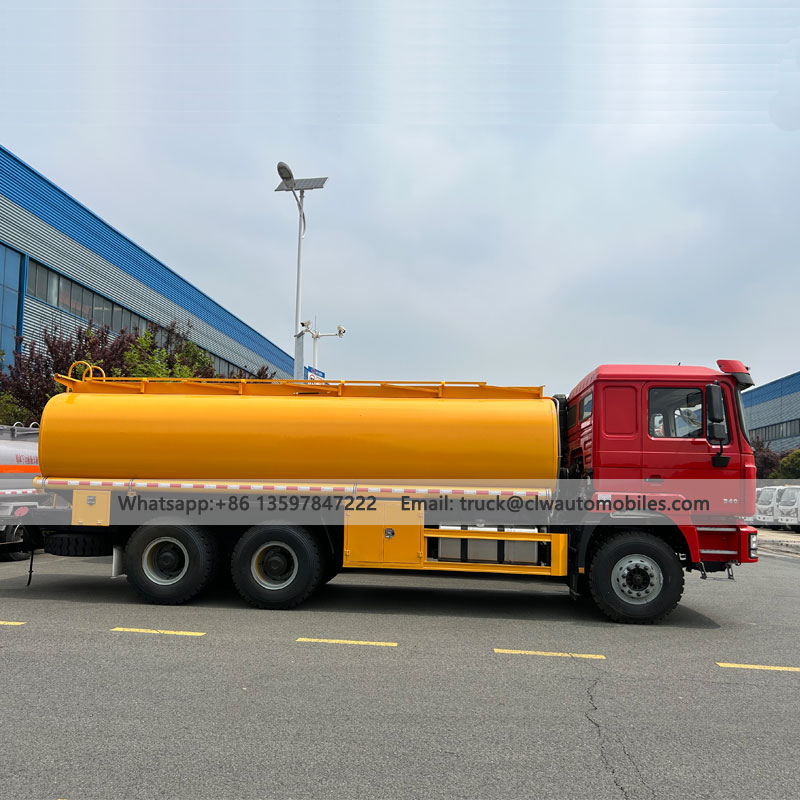

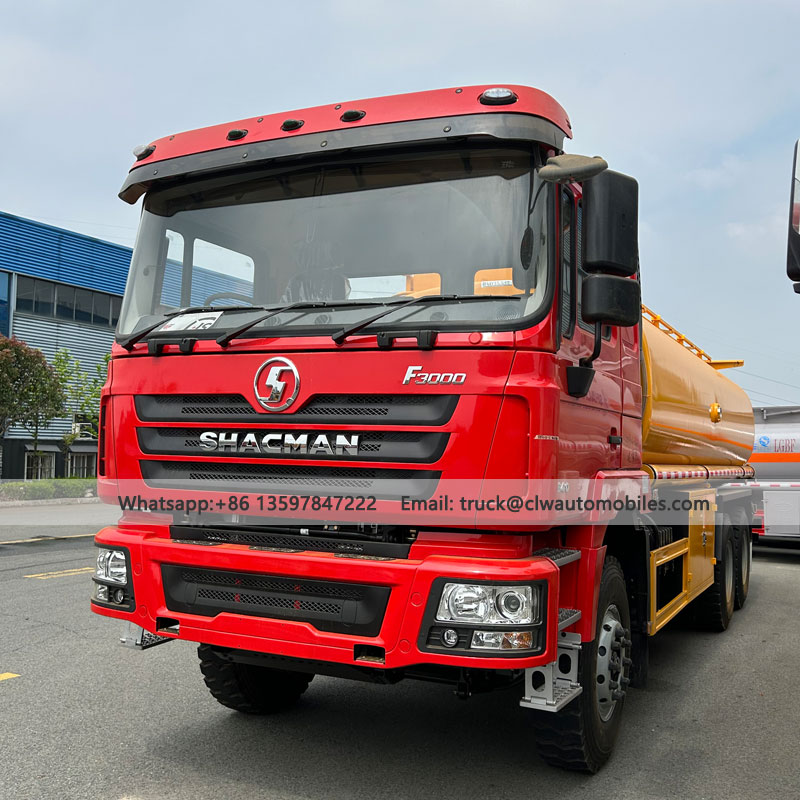

SHACMAN 24000L 6*4 Fuel Tank Truck
- CLW/SHACMAN
- Suizhou
- 60 days
- 50 units per month
1
Basic Parameters of SHACMAN 24000L 6*4 Fuel Tank Truck
| Name | SHACMAN 24000L 6*4 Fuel Tank Truck | |
| Model | CLW5265GYYSX3 | |
| Model of Chassis | SX1255DN434 | |
| Drive Type | 6*4, LHD | |
| Oversize of Vehicle | 9980*2550*3480mm | |
| Wheelbase | 4375+1400mm | |
| Curb Weight | 11240kg | |
| Engine | Model | WP10.300E22 |
| Power | 220kw/300HP | |
| Displacement | 9.726L | |
| Emission Standard | Euro III | |
| Transmission | Type | RTD-11509C-QH50, Manual |
| Number of gears | 10-Gear | |
| Tire | Number | 10+1 |
| Size | 12.00R20 Steel wire tyre | |
| Axle | Front | 7.5T |
| Rear | 13T+13T | |
| Fuel Tank Capacity | 300L | |
2
Standard Equipment of SHACMAN Fuel Tank Truck
| Volume of Tank | 24000L |
| Material of Tank | High quality carbon steel Q235B |
| Thickness of Tank | Body: 6mm, Head:6mm |
| Manhole | Aluminum alloy Europe standard Manhole. |
Oil Pump | Model: 60YHCB-30, The flow is 28m³/h, working height is 6m |
Breath Valve | One |
| Subsea valve | 3 inches Aluminum alloy emergency shut-off valve with automatic closing device. |
Unloading Valve | Right of middle parts of tank |
Guardrail of top tank | Manual guardrail |
Horse bo | PVC soft pipe box with both side |
Unloading Pip | L=3500,2.5 inches steel wire pipe |
Ladde | Rear ladder |
Kitbox | One |
Fire extinguishe | 2kg fire extinguisher with two |
Anti static device | One electrostatic conductive drag belt and one electrostatic conductive terminal block |
3
Optional Equipment of SHACMAN Fuel Tank Truck
Filling Machine | Optional install Zhengxing big flow refueller with 15 meters reel and gun. |
Flow mete | Optional install |
Lower loading and unloadin | optional install |
Oil and gas recover | optional install |
Anti overflo | optional install |
Liquid Level Gauge | optional install |
4
Pictures of Standard Equipment
Manhole
Emergency Cut-off
Fuel in and out
5
Optional Equipment of ISUZU 5000L Fuel Tank Truck
Depth Gauge
Fuel Dispenser
Flow Meter
8
Advantage of SHACMAN Fuel Tank Truck
High Load Capacity: Featuring 6*4 design with optimized wheelbase, it reliably transports 17.6 tons of gasoline or 20.8 tons of diesel, meeting long-distance heavy-load requirements.
Safety Protection: Equipped with Euro-standard tank openings, bottom valves, anti-slosh baffles, and emergency shut-off valves. The tank body undergoes liquid permeation and pressure testing to ensure transport safety.
Durable Construction: Tank body constructed with 6mm Wuhan steel plates, featuring a turtle-back head design. Internal baffles reduce impact forces, while fully automated welding ensures long-term reliability.
Engine: Weichai engines, as a leading brand in the field of commercial vehicle power in China, have outstanding performance in reliability, maintenance costs, and power performance, and are suitable for heavy-duty transportation and complex working conditions.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
