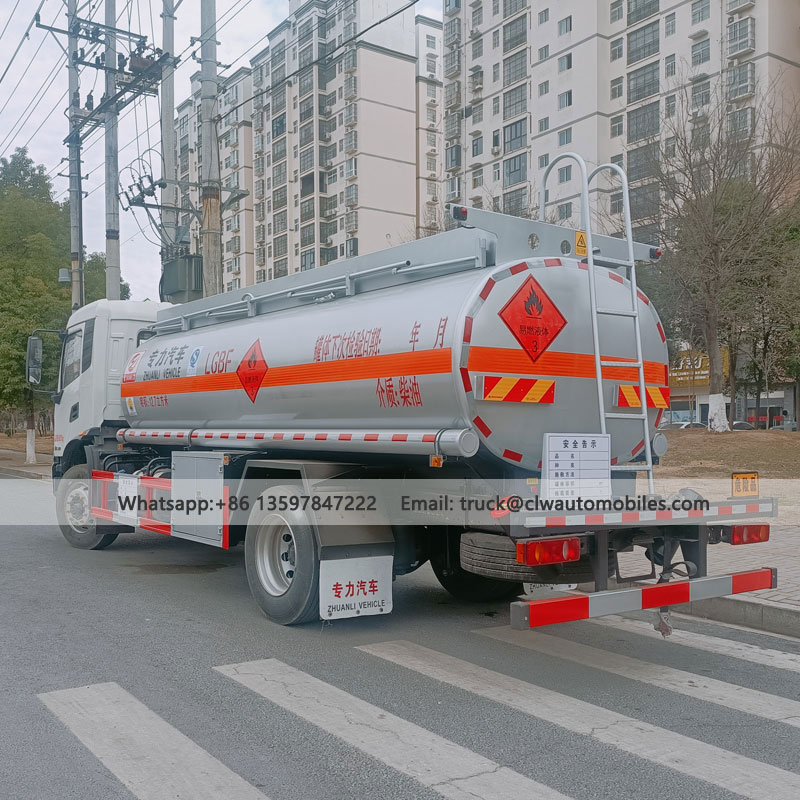

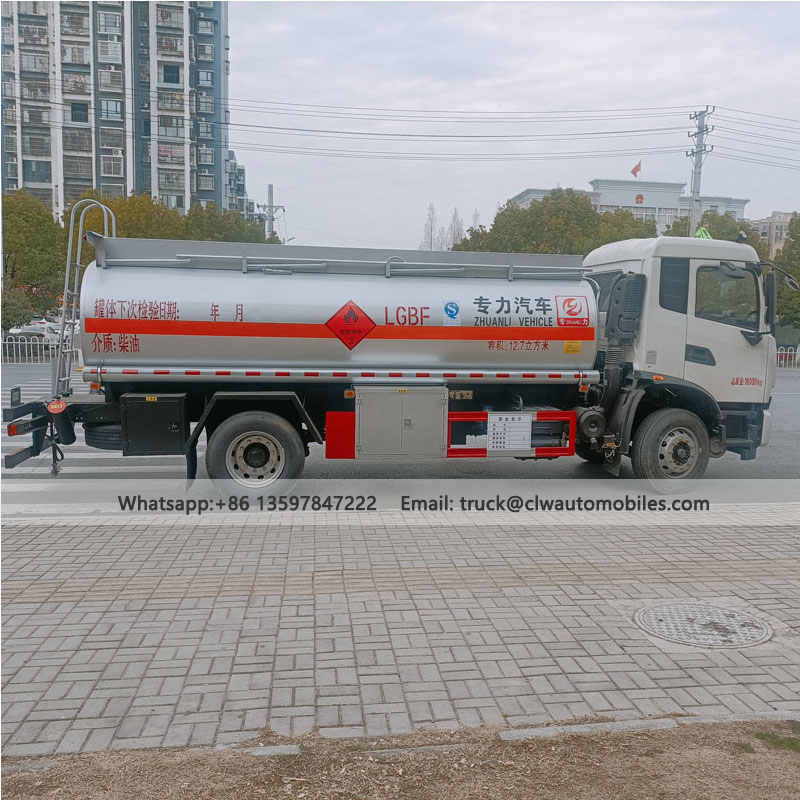

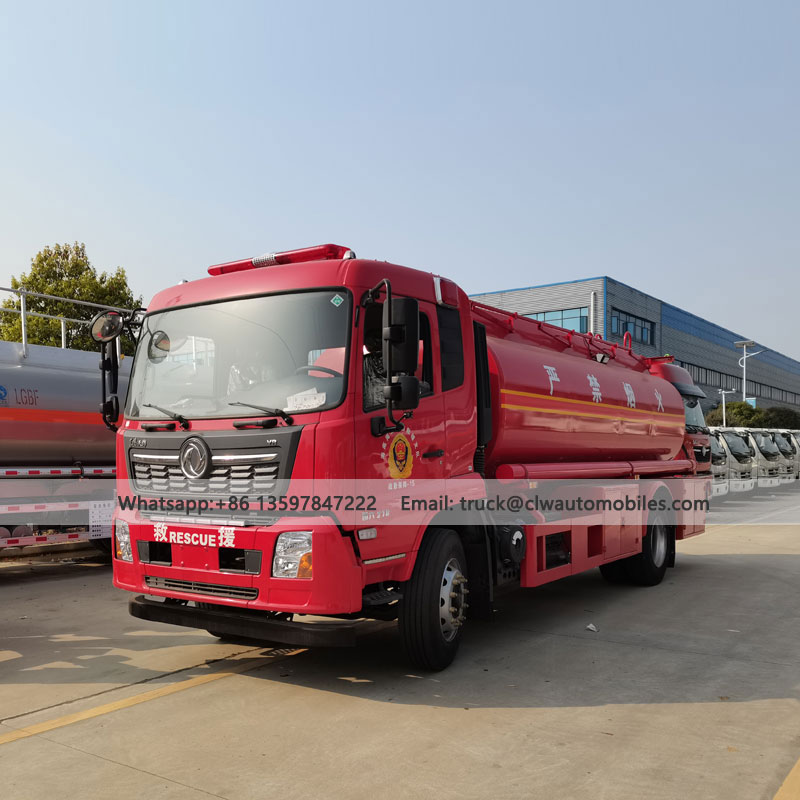

DONGFENG KR 15000L Fuel Tanker Truck
- CLW/DONGFENG
- Suizhou
- 30 days
- 100 units per month
1
Basic Parameters of DONGFENG 15000L Fuel Tanker Truck
The DONGFENG KR 15000L Fuel Tanker Truck supports the transportation of diesel, gasoline, kerosene and edible oil in separate compartments. It is equipped with a Cummins B190 30 (190 horsepower, EuroIII) or ISB180 50 (EuroV) engine with a maximum torque of 650N·m and a Fast 8-speed gearbox, taking into account both power output and fuel efficiency. The maximum load of the front axle is 4.5 tons, and the rear axle is 9-11.5 tons. The number of spring leaves is 10/10/10+8, and it is equipped with a 10.00R20 steel tire, which has strong stability under complex road conditions.
| Name of Vehicle | DONGFENG KR 15000L Fuel Tanker Truck | |
| Model of Vehicle | CLW5166GYYD5 | |
| Model of Chassis | DFL1185 | |
| Drive Type | 4*2, LHD | |
| Oversize of Vehicle | 8500*2460*3150mm | |
| Wheelbase | 4500mm | |
| Curb Weight | 7705kg | |
| Engine | Model | B190 33 or ISB180 50 |
| Power | 140kw/190HP, 180HP | |
| Displacement | 5.9L | |
| Emission Standard | Euro III or Euro V | |
| Transmission | Type | FAST, Manual |
| Number of gears | 8-Gear | |
| Tire | Number | 6+1 |
| Size | 10.00R20 Steel wire tyre | |
| Axle | Front | 4.5T |
| Rear | 10T | |
| Fuel Tank | 220L | |
2

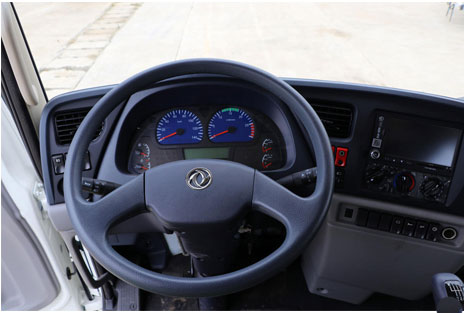

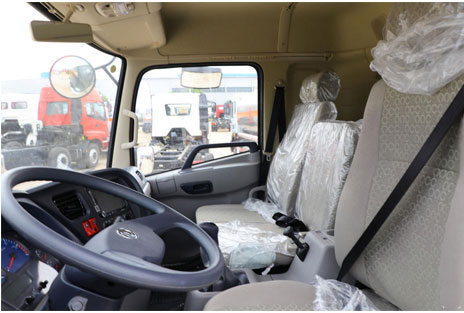

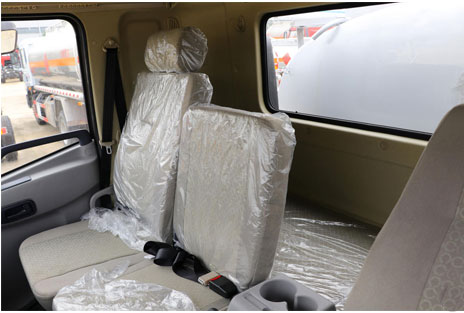

Cabin of DONGFENG KR 15000L Fuel Tanker Truck
Cabin
Cabin
Cabin
3
Standard Equipment of DONGFENG 15000L Fuel Tanker Truck
| Volume of Tank | 15000L |
| Material of Tank | High quality carbon steel Q235B |
| Thickness of Tank | Body: 5.5mm, Head:6mm |
| Manhole | Aluminum alloy Europe standard Manhole. |
Oil Pump | Model: 60YHCB-30, The flow is 28m³/h, working height is 6m |
Breath Valve | One |
| Subsea valve | 3 inches Aluminum alloy emergency shut-off valve with automatic closing device. |
Unloading Valve | Right of middle parts of tank |
Guardrail of top tank | Manual guardrail |
Horse bo | PVC soft pipe box with both side |
Unloading Pip | L=3500,2.5 inches steel wire pipe |
Ladde | Rear ladder |
Kitbox | One |
Fire extinguishe | 2kg fire extinguisher with two |
Anti static device | One electrostatic conductive drag belt and one electrostatic conductive terminal block |
4

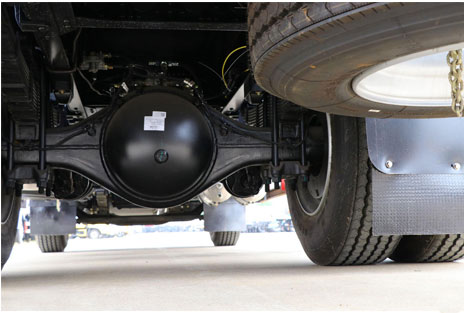

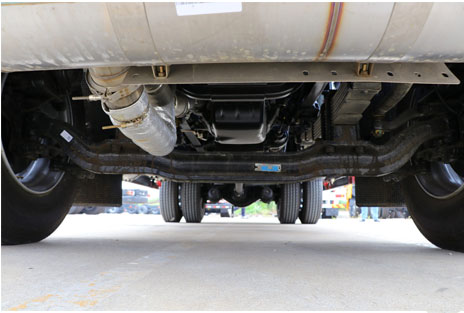

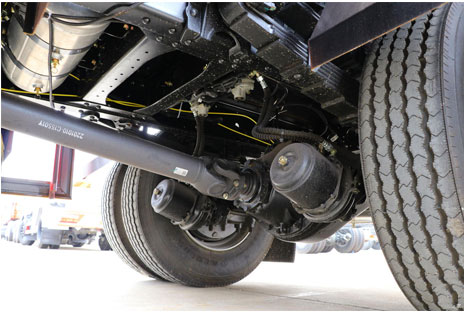

Chassis of DONGFENG KR 15000L Fuel Tanker Truck
Chassis
Chassis
Chassis
5
Optional Equipment of DONGFENG 15000L Fuel Tanker Truck
Filling Machine | Optional install Zhengxing big flow refueller with 15 meters reel and gun. |
Flow mete | Optional install |
Lower loading and unloadin | optional |
Oil and gas recover | optional |
Anti overflo | optional |
Liquid Level Gauge | optional |
6
Pictures of Standard Equipment
Manhole
Emergency Cut-off
Fuel in and out
7
Optional Equipment of DONGFENG 15000L Fuel Tanker Truck
Depth Gauge
Fuel Dispenser
Flow Meter
8
Maintenance of Fuel tank truck
Standard Operation: After starting the generator, the throttle frequency should be controlled between 50-52 Hz, the voltage indicator should be at 400V, and the throttle position should be fixed. When operating the PTO hand valve, the clutch must be depressed. During normal operation, the PTO hand valve should remain closed.
Overload Prevention: The tank level must be monitored through the sight glass or level alarm. Once it reaches three-quarters full or the alarm sounds, immediately shut off the PTO and turn the four-way valve to the neutral position to release the vacuum in the tank. "Tank explosion" is strictly prohibited. Otherwise, waste may enter the vacuum pump, causing serious damage that is not covered under warranty.
Safe Lifting: When lifting the tank to discharge waste, ensure the ground is relatively level. Lifting with one side higher than the other is strictly prohibited to avoid damaging the cylinder or cover. Before lifting, open the four locking hooks on the rear cover.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
