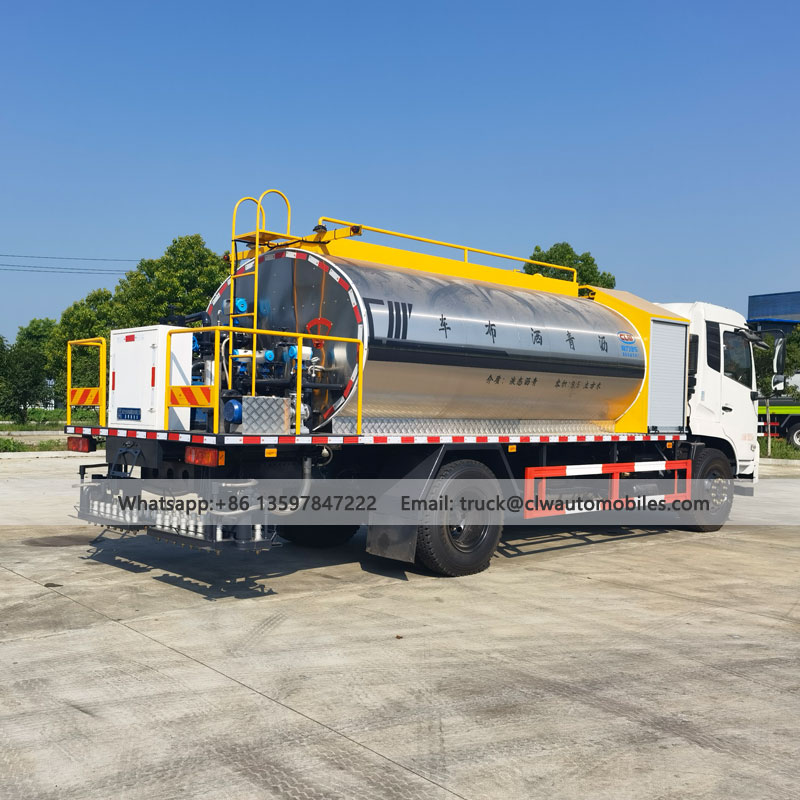

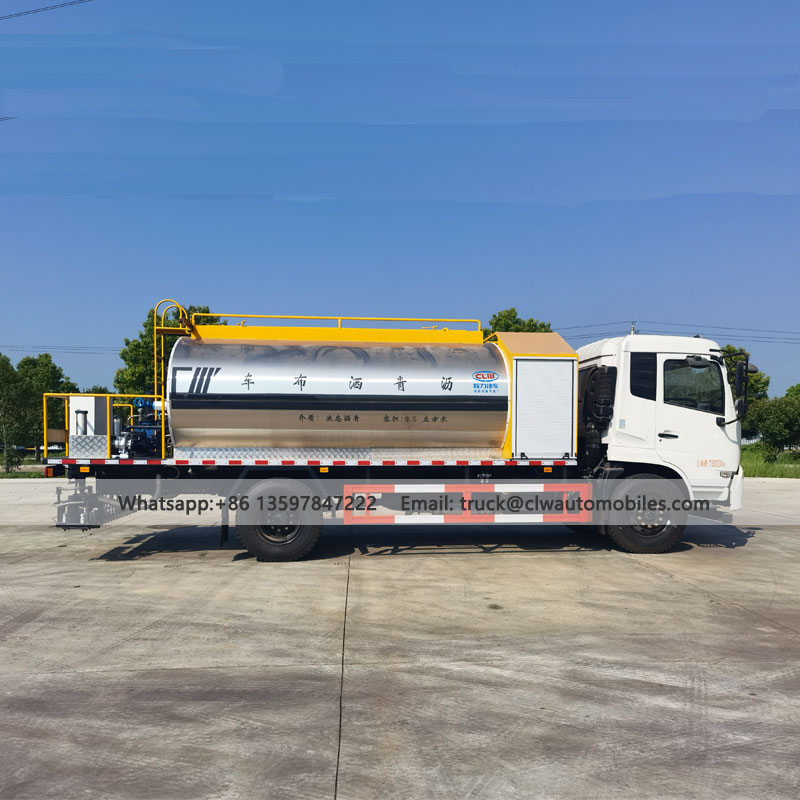

DONGFENG 12000L Asphalt Distributor Truck For Sale | Road Construction

The 12000L Asphalt Distributor Truck is a specialized smart technology product designed for spraying emulsified asphalt, diluted asphalt, hot asphalt, and high-viscosity modified asphalt. It is used for applying tack coats, waterproofing layers, and bonding layers during the construction of asphalt pavement bases for high-grade highways. The spreader comprises a truck chassis, asphalt tank, asphalt pumping and spraying system, hydraulic system, combustion and thermal oil heating system, control system, pneumatic system, and operator platform. Featuring user-friendly operation, this vehicle incorporates advanced technologies from domestic and international counterparts while enhancing construction quality and improving working conditions through ergonomic design. Its rational and reliable construction ensures uniform asphalt distribution, with overall technical performance reaching world-class standards.

12000L Asphalt Distributor Truck

12000L Asphalt Distributor Truck

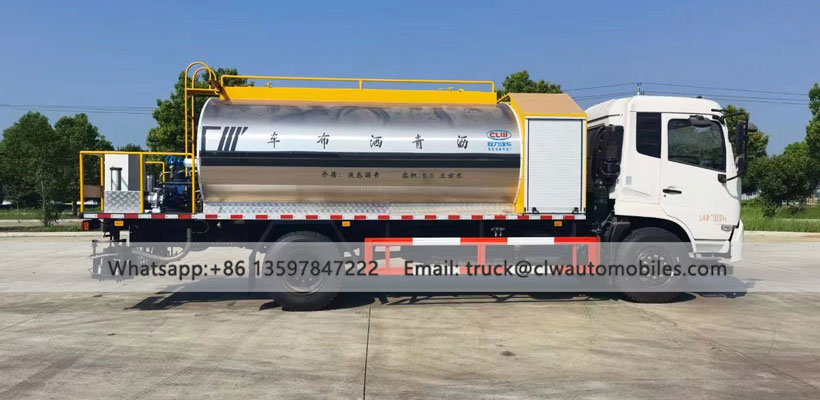

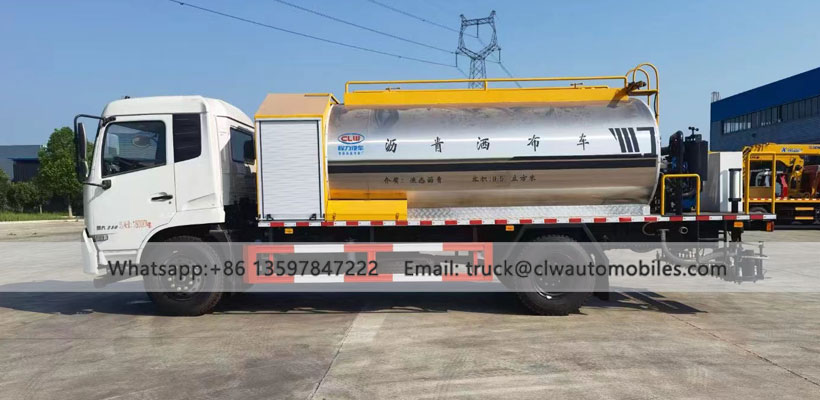

Asphalt Distributor Truck

Asphalt Distributor Truck

Cab Control

You can independently control the nozzles from both the cab and the rear platform, allowing for variable spreading width.

Control System

The standard model requires manual control from the rear platform; the intelligent model supports touchscreen computer control from the cab (Siemens system, Germany), enabling real-time adjustment of spread rate, vehicle speed, and asphalt pump speed.

Spreading Width and Nozzles

Spreading width: 4-6 meters (adjustable), spreading density range 0.2~3.0kg/m² (or 0.25~3L/㎡), number of nozzles 15-39 (intelligent type supports independent control).

Thermal oil automatic heating system

Thermal oil automatic heating system (Italy Riello G10 burner, 100,000 kcal/hour), thermal oil pump model RY40-25-160, heating efficiency 10-15℃/hour.

Asphalt Pump

High viscosity asphalt pump, can pump in and out.

Ordinary type: QGB270 emulsified asphalt pump (270L/min);

Intelligent type: QGB680 high viscosity asphalt pump (680L/min) or Belgian TGGP imported pump, supporting self-priming and pumping functions.

1. The Asphalt Distributor Truck adopts Dongfeng chassis, with excellent and strong load-bearing capacity, flexible and lightweight maneuverability, and a beautiful and atmospheric appearance, providing safe, efficient, and reliable services for intercity logistics customers; According to the needs of spraying amount and operation width, the asphalt spraying amount can be set by oneself;

2. The spraying control of Asphalt Distributor Truck is completed in the cab (the backup operating platform at the rear can also be completed), which can achieve one-to-one control of the rear nozzle, thus realizing arbitrary adjustment of the spraying width. Convenient for the driver to operate alone;

3. Heating method, diesel burner (Italian Riyalu) heating and circulating heat transfer oil heating, automatically shuts off when the temperature reaches the set value;

4. Adopting internationally advanced high viscosity asphalt pumps, external asphalt can be pumped into the tank to achieve "self-priming", and asphalt inside the tank can also be pumped out;

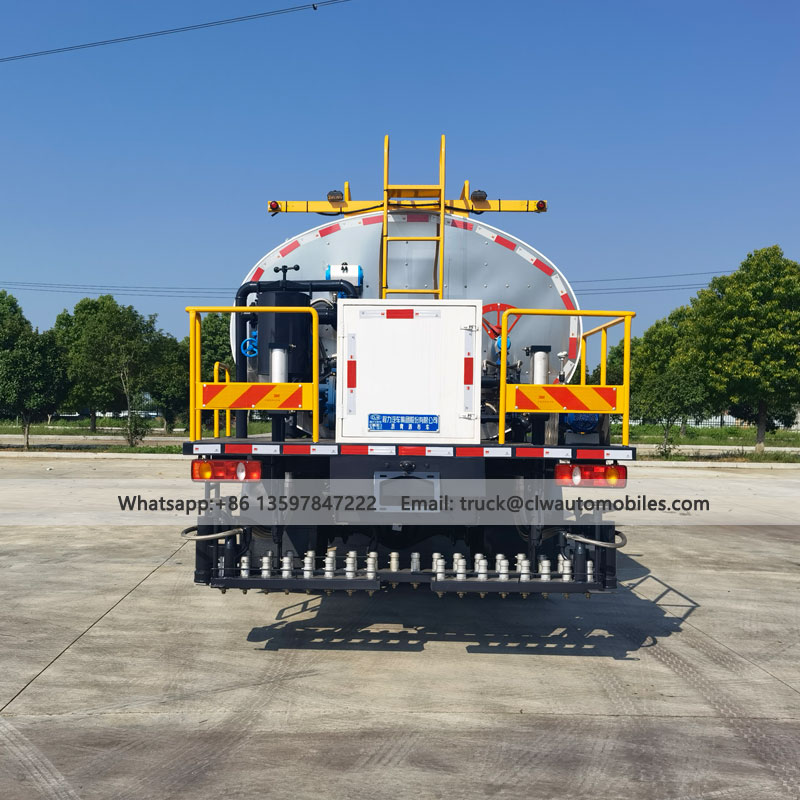

5. The asphalt spraying rod adopts a three-stage folding structure, which can be unfolded left and right to expand the spraying range, and can effectively avoid obstacles.
