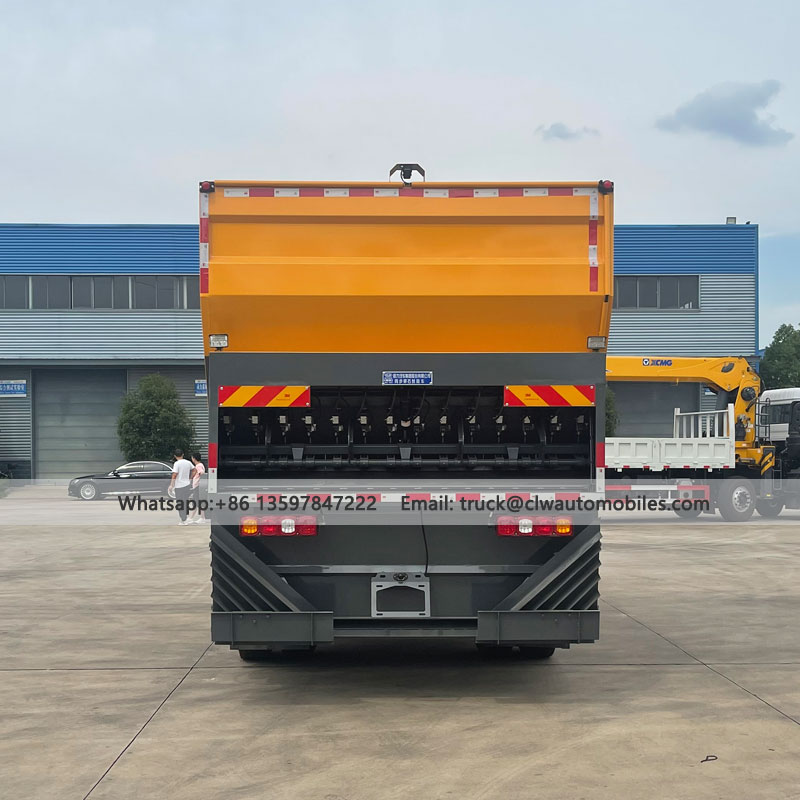

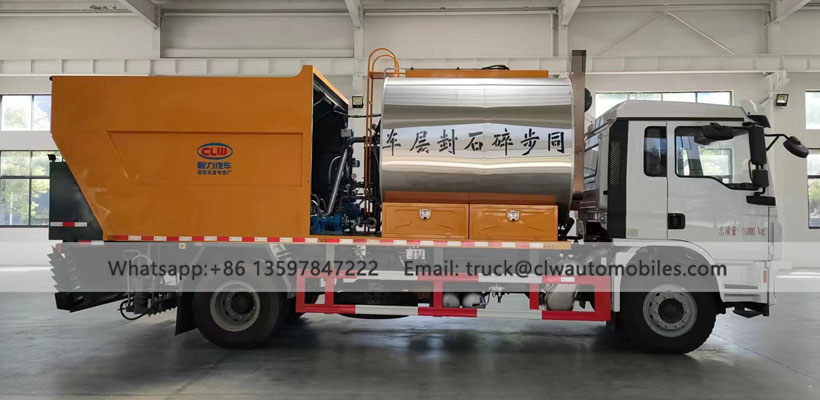

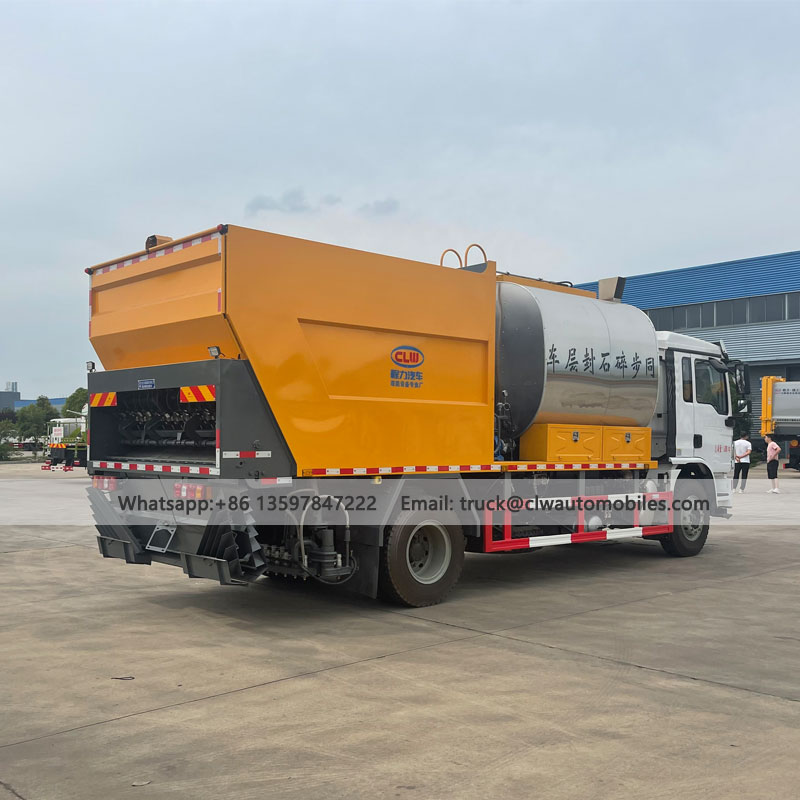

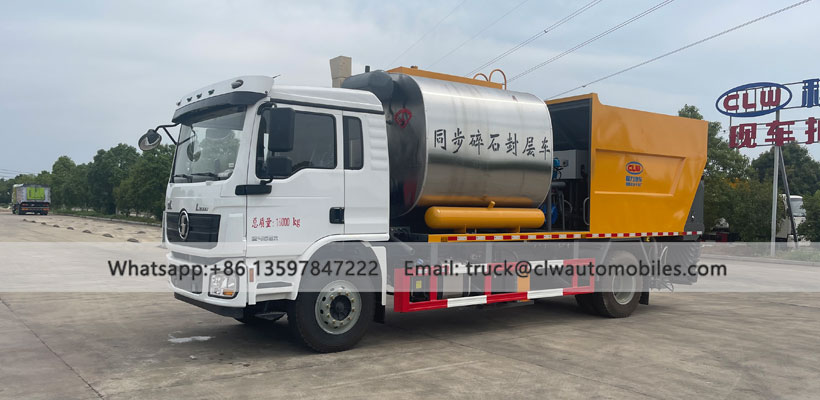

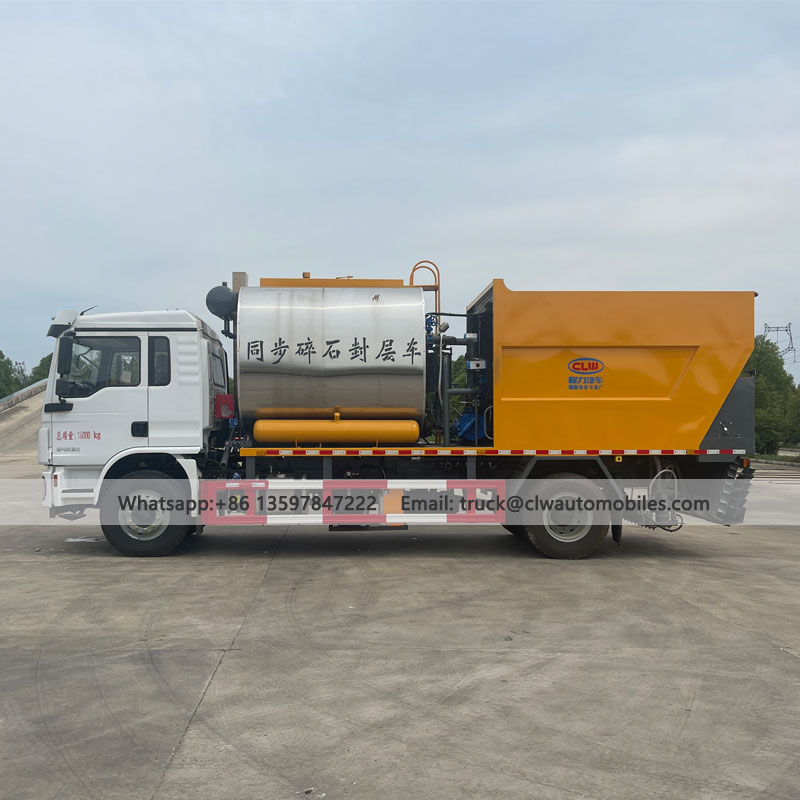

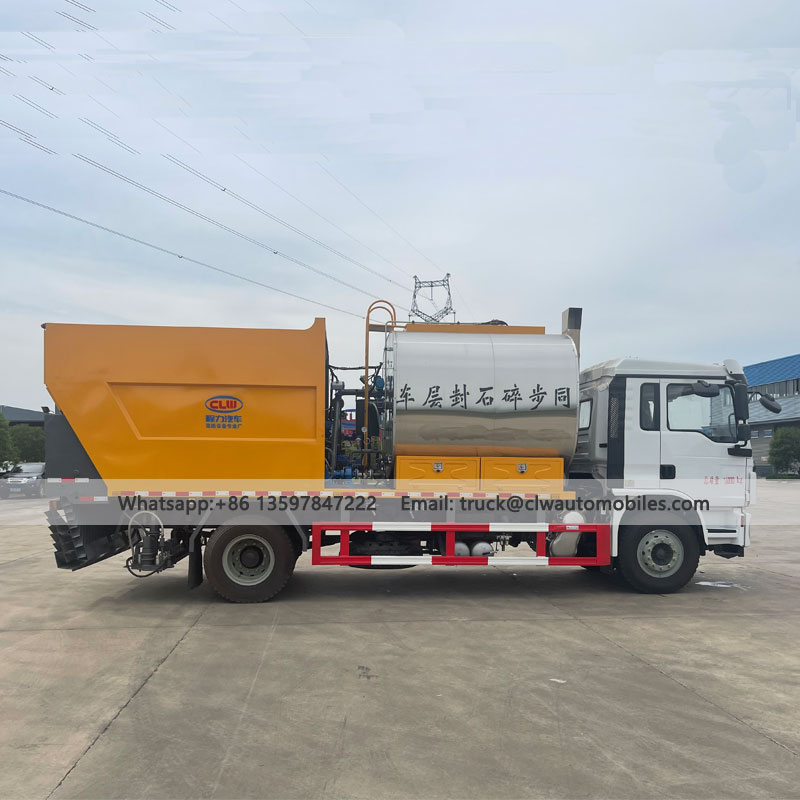

SHACMAN 6000L Asphalt Tank 8000L Stone Tank Synchronous Chip Seal Truck

Synchronous chip seal is a technique that involves simultaneously spreading chipped aggregate and binder (modified asphalt or modified emulsified asphalt) onto the road surface using a synchronous chip seal vehicle, followed by natural vehicle compaction to form a single-layer asphalt chip seal wearing course. This process is primarily used for newly constructed asphalt pavement surfaces or maintenance overlays of grade II and below, and also provides waterproofing, crack resistance, skid resistance, and stress absorption. Its core advantage lies in the fact that synchronous construction ensures full bonding between the asphalt and aggregate, increasing the contact area and forming a high-strength, impermeable structural layer.

Synchronous Chip Seal Truck

Synchronous Chip Seal Truck

 Synchronous Chip Seal Truck

 Synchronous Chip Seal Truck

Asphalt Pump

Spray Cylinder

Burner

Thermal oil pump

heat sink

Hydraulic motor

Start butterfly valve

Cab Control Panel

Tail control system

New highway surface layer or preventative maintenance overlay;

bridge deck sealing layer and mid-term maintenance of high-grade highways.

Synchronous Chip Seal Truck

Synchronous Chip Seal Truck

Synchronous Chip Seal Truck

1. Synchronous Chip Seal Truck adopts a fully hydraulic drive mode, which eliminates the need for any auxiliary power, making operation simpler and more convenient. 1. Utilizing highly efficient heat transfer oil circulation for heating significantly improves the heating rate, breaking away from traditional flue heating methods;

2. The equipment uses an internal lifting hopper for aggregate spraying, making it more convenient for culvert construction, bridge underpass construction, and curve construction; it is fully electrically controlled, highly automated, and can accurately calculate the amount of asphalt and aggregate sprayed during construction;

3. The material gate control uses an angle gauge to ensure the accuracy of material feeding; this reduces labor intensity, saves manpower, lowers construction costs, and improves work efficiency and quality; the machine operates stably, sprays evenly, and the asphalt spraying width can be freely adjusted;

4. A good insulation layer ensures an insulation performance index ≤20℃/8h and is corrosion-resistant and durable; it can spray various asphalt media and aggregates from S3-S24mm; the equipment uses high-precision nozzles, ensuring consistent spraying and optimal spraying effect from each nozzle.
