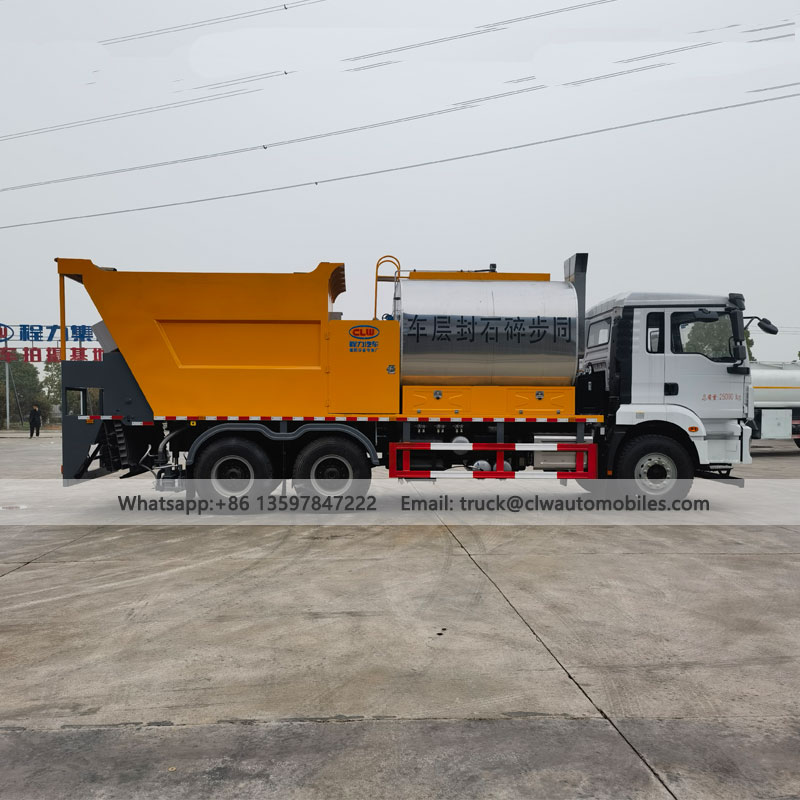

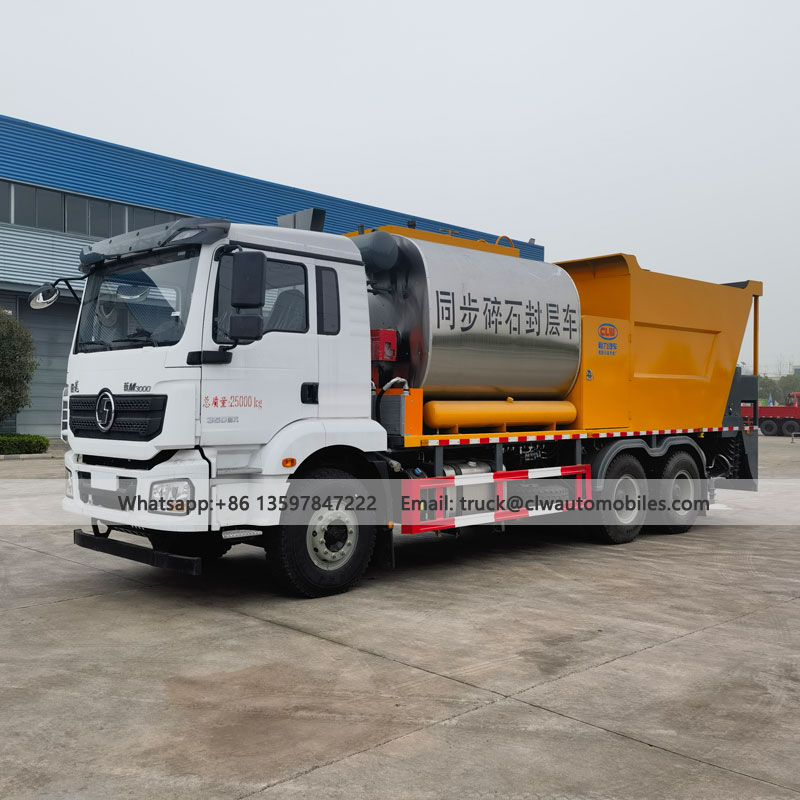

SHACMAN 7000L Asphalt Tank 12000L Stone Tank Synchronous chip seal Vehicle
- CLW/SHACMAN
- Suizhou city, Hubei Province
- 90 working days after received your payment
- 50 units per month
- 45000-50000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
The Shaanxi 6*4 Synchronized Stone Chip Seal Machine is a highly efficient piece of equipment specifically designed for medium to large-scale road maintenance. Its core features are reflected in structural design, construction performance, and intelligent control systems.
Robust Load Capacity and Construction Capability
Featuring a rear dual-axle chassis (e.g., SX1259MC4C1 model), this vehicle boasts a gross vehicle weight of 25,000 kg, a rated payload capacity of approximately 6,670 kg, and a curb weight of 18,200 kg, delivering exceptional load-bearing capability. Equipped with an 8-cubic-meter asphalt tank and a 12-cubic-meter aggregate hopper, it meets the continuous construction demands of medium to large-scale road projects. Asphalt application ranges from 0.2-4.0 L/m², with a maximum spraying width of 4 meters, enabling precise material consumption control.
Intelligent and Automated Control
Fully Computerized Operation: Utilizes the German SWT control system and Siemens intelligent control modules, supporting touchscreen operation from the cab. Enables individual control of 32 asphalt nozzles and 16 aggregate gates.
Precision Spraying: Equipped with intelligent nozzles (one-to-one control) for synchronized asphalt and aggregate spraying. The landing time interval does not exceed 1 second, ensuring optimal bonding.
Safety Protection: Rear spray system incorporates collision-resistant design with video surveillance for real-time construction monitoring.
High-Efficiency Power & Eco-Friendly Configuration
Powertrain System: Features a Weichai 336-horsepower six-cylinder engine (meeting China V/VI emission standards) paired with a Fast 9-speed transmission, achieving a maximum speed of 100 km/h.
Heating System: Utilizes an Italian-imported burner (200,000 kcal/h) and automatic thermal oil heating technology to maintain constant temperature for the asphalt tank, pipelines, and other components throughout the process.
Flexibility and Adaptability
The vehicle offers multiple wheelbase options, including 4375+1400mm, to accommodate varying road conditions. Protective materials utilize Q235A carbon steel, with a rear guard clearance height of 480mm, meeting safety standards.
1
Basic Parameters of SHACMAN Synchronous Chip Seal Vehicle
| Model of Vehicle | CL5250TFC6BLS |
| Model of Chassis | SX1259MC4C1 |
| Wheelbase | 4575+1400mm |
| Drive type | 6*4,LHD |
| G.V.W. | 25000kg |
| Curb Weight | 17800kg |
| Engine Model | WP8.350E61 |
| Engine Power | 350HP |
| Engine Displacement | 7800ml |
| Tire Numbers | 10+1 |
| Tire Size | 12.00R20 |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 380L |
| Transmission | FAST,10-Gear |
| Passengers | 3 |

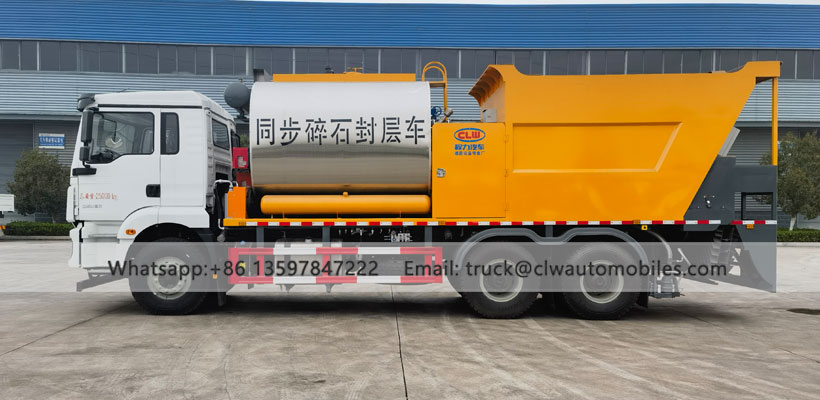

Synchronous Chip Seal Truck
Synchronous Chip Seal Truck
2
Special Function of SHACMAN Synchronous Chip Seal Vehicle
| Asphalt Tank Capacity | 7000L |
| Stone Tank Capacity | 12000L |
| Tank Inner Materials | Q235 Carbon Steel |
| Tank Outter Materials | Stainless Steel (1mm) |
| Isulation Layer | Rock Wool(50mm) |
| Tail nozzle | 28 PCS(pneumatic control) |
| Stone gate | 16 PCS(ONE BY ONE) |
| Spray width | ≤4.5m |
| Stone Size | S3-S24(MM) |

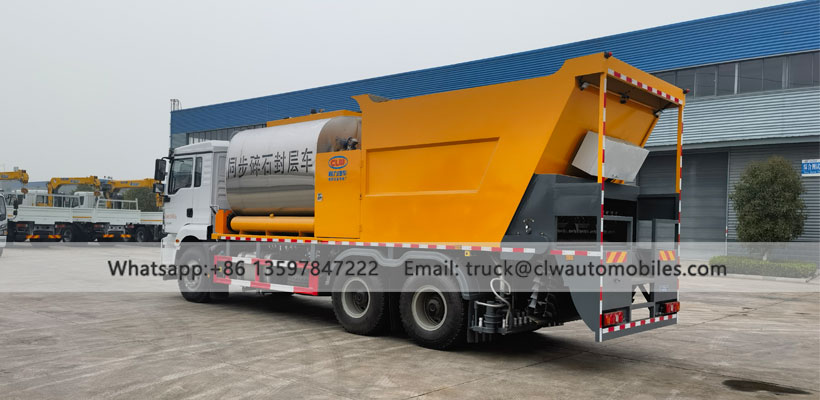

Synchronous Chip Seal Vehicle
Synchronous Chip Seal Vehicle
3
Special Equipments of Synchronous Chip Seal Vehicle
| Flow of Asphalt Pump | 950L/min |
| Asphalt spraying amount | 0.25-3L/㎡ |
| Pneumatic butterfly valve | CLD6H3-16C |
| Gate valve | PN16DN50 |
| Proportional valve | CL-BLTS120.00 |
| Thermal oil pump | RY40-25-160 |
| Control system | PLC |
| Operation method | Cab + Rear Backup Control |
| Auxiliary tank | 100L |
| Burner | Rijal G20 |
| Heating method | Heat transfer oil circulation heating |
4
Some specialized equipment of Synchronous Chip Seal Vehicle
Asphalt Pump
Spray Cylinder
Burner
Thermal oil pump
heat sink
Hydraulic motor
Start butterfly valve
Cab Control Panel
Tail control system
5
Application scenarios
New highway surface layer or preventative maintenance overlay;
bridge deck sealing layer and mid-term maintenance of high-grade highways.
Synchronous Chip Seal Vehicle
Synchronous Chip Seal Vehicle
Synchronous Chip Seal Vehicle
6
Advantages of Synchronous Chip Seal Vehicle
1. Synchronous Chip Seal Vehicle adopts a fully hydraulic drive mode, which eliminates the need for any auxiliary power, making operation simpler and more convenient. 1. Utilizing highly efficient heat transfer oil circulation for heating significantly improves the heating rate, breaking away from traditional flue heating methods;
2. The equipment uses an internal lifting hopper for aggregate spraying, making it more convenient for culvert construction, bridge underpass construction, and curve construction; it is fully electrically controlled, highly automated, and can accurately calculate the amount of asphalt and aggregate sprayed during construction;
3. The material gate control uses an angle gauge to ensure the accuracy of material feeding; this reduces labor intensity, saves manpower, lowers construction costs, and improves work efficiency and quality; the machine operates stably, sprays evenly, and the asphalt spraying width can be freely adjusted;
4. A good insulation layer ensures an insulation performance index ≤20℃/8h and is corrosion-resistant and durable; it can spray various asphalt media and aggregates from S3-S24mm; the equipment uses high-precision nozzles, ensuring consistent spraying and optimal spraying effect from each nozzle.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
