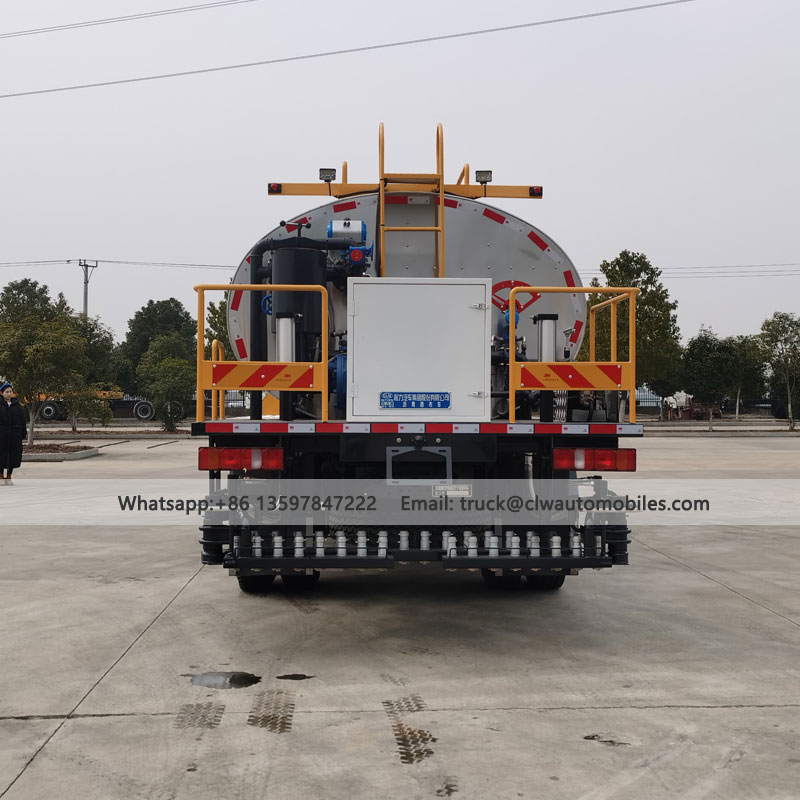

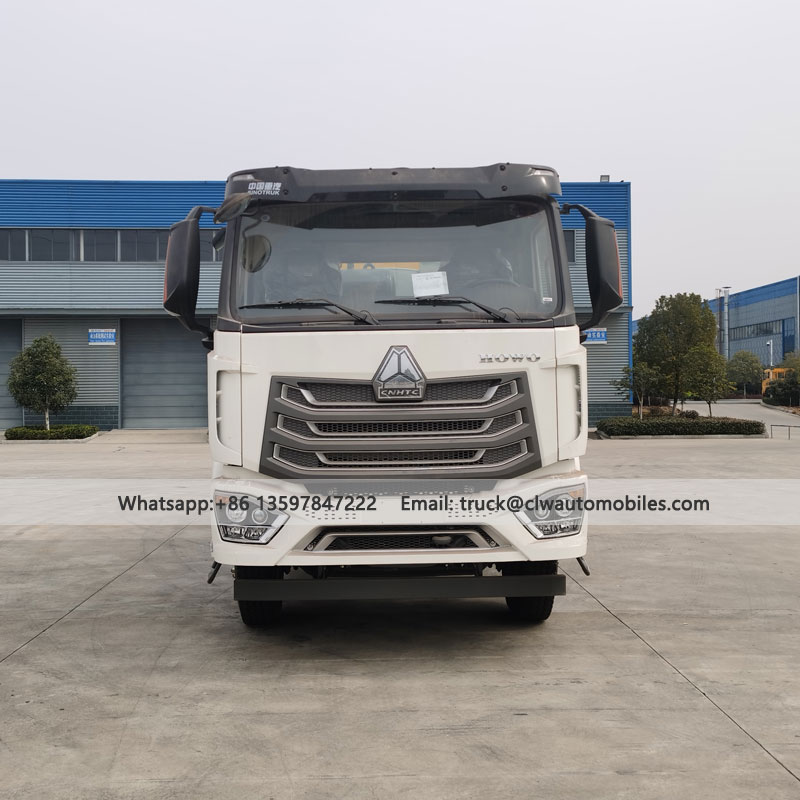

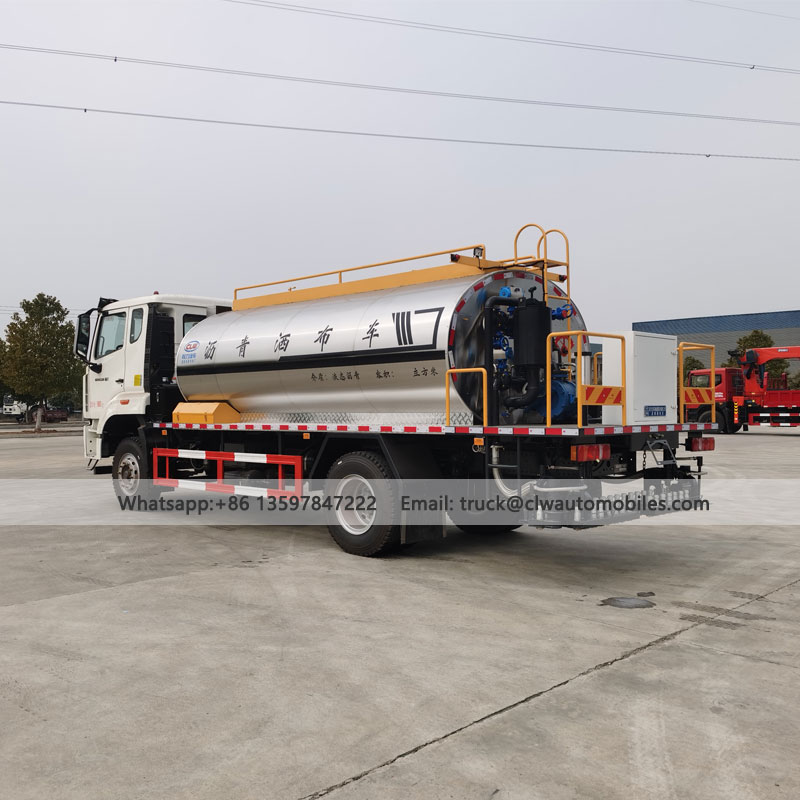

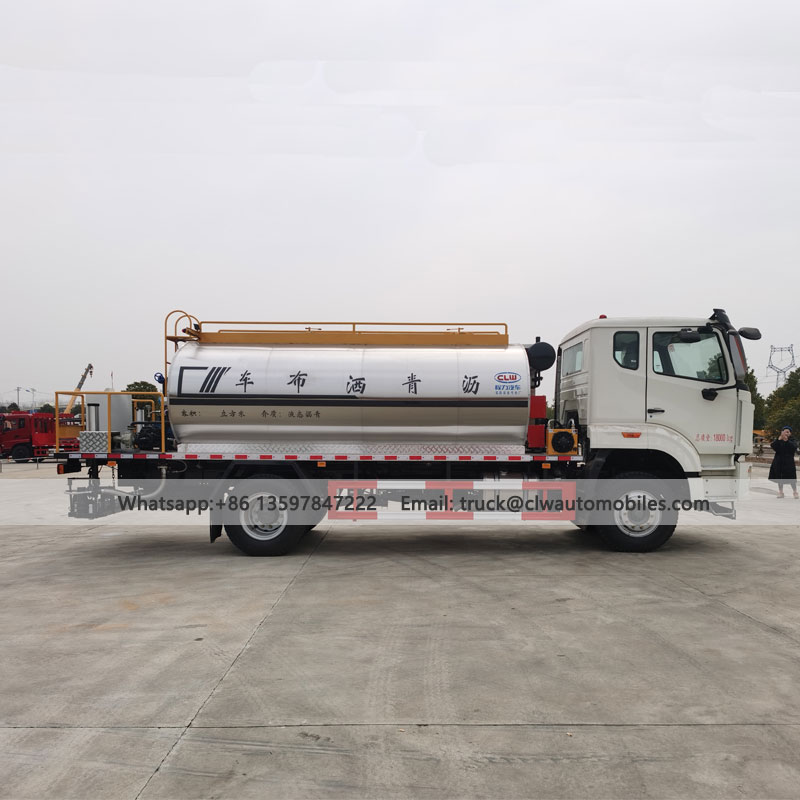

HOWO 12000L Asphalt Distributor Truck For Sale From Manufacturer
- CLW/HOWO
- Suizhou city, Hubei Province
- 90 working days after received your payment
- 50 units per month
- 55000USD-60000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
1
Equipment usage and brief introduction
Asphalt distributor truck is a professional product for distributing emulsified asphalt, cut back asphalt, hot asphalt, etc. It is used for spreading prime coat oil, waterproof layer and adhesive layer of asphalt pavement bottom layer of medium and high grade highway. The distributor consists of chassis, asphalt tank, asphalt pumping and spraying system, combustion system and pneumatic system. The car adopts mechanical transmission, with low failure rate and easy maintenance. After the improvement of our company, the car can work under worse conditions.

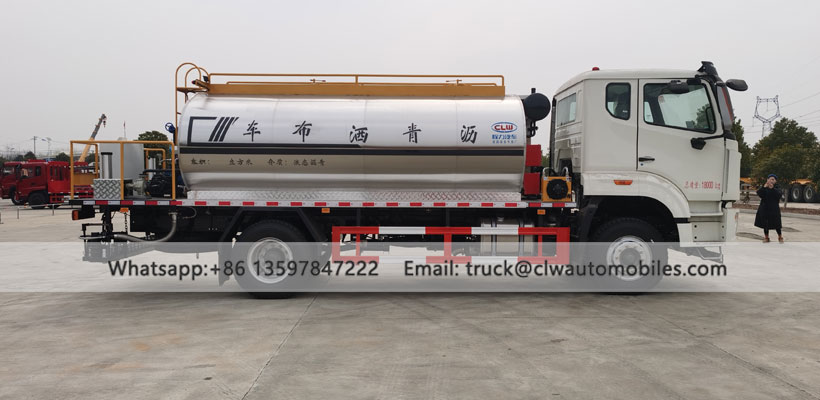

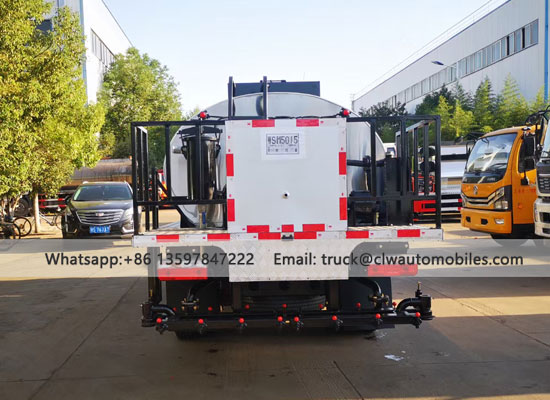

HOWO Asphalt Distributor Truck
HOWO Asphalt Distributor Truck
2
Parameters of Asphalt Distributor Truck
Brand of Vehicle | CLW/HOWO(New) | |
Vehicle Model | CLW5181GLQ6LS | |
| Chassis Model | ZZ1187K511JF1 | |
Drive type | 4×2,LHD | |
Passages | 2 | |
Overall Length | 8800mm | |
Overall width | 2530mm | |
Overall height | 3250mm | |
G.V.W | 18000KG | |
Curb weight | 10200KG | |
Wheelbase(mm) | 4700mm | |
Engine | Type | WP4.6NQ220E61 / 220HP |
Emission level | Euro VI | |
Maximum power | 162kw | |
Number of cylinders | 4 | |
Displacement (lit) | 4.58 | |
Transmission | Type | FAST |
Number of gears | 8-Gear Gearbox | |
Tire specification | 10.00R20 Steel wire tyre | |
3
Special Function Of Asphalt Distributor Truck
Capacity of asphalt tank | 12000L |
Insulation layer thickness | 40mm |
Inner material | Carbon steel |
Exterior material | 1mm Stainless steel |
Spreading width | 4000mm |
Asphalt spreading amount | 0.25～3.0L/m2 |
Number and control mode of nozzles | 34 (one control and two intelligent nozzles) |
Heating mode | diesel burner imported from Italy (100000 kcal / h) |
Spray medium | Hot asphalt, cut back asphalt and emulsified asphalt. |

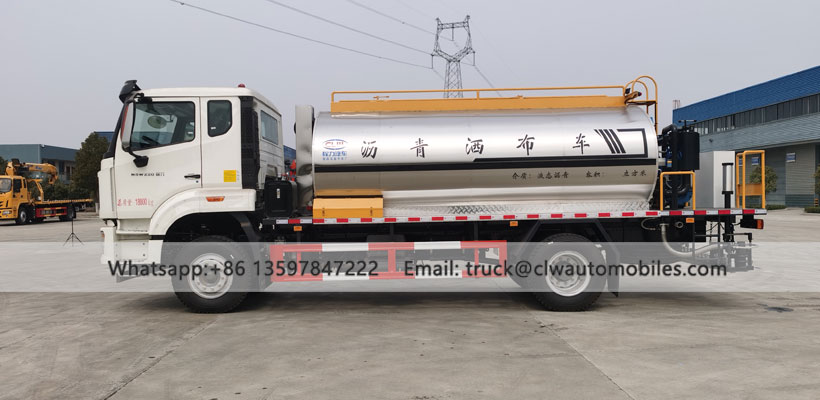

Asphalt Distributor Truck
Asphalt Distributor Truck
4
Parts of Asphalt Distributor Truck
Name | Model and specification | quantity |
Hydraulic pump | CBQ540-L（tianjin） | 1 |
Hydraulic motor of asphalt pump | 05-90-BD31（Thalems） | 1 |
Combustor | Liyalu, Italy（G10) | 1 |
Asphalt pump | Shanggui qgb680 (maximum displacement 680l / min) | 1 |
control mode | Rear work platform control (1 control 2) | 1 |
alternatot | 6kW gasoline generator | 1 |
5
Main parts of Asphalt Distributor Truck

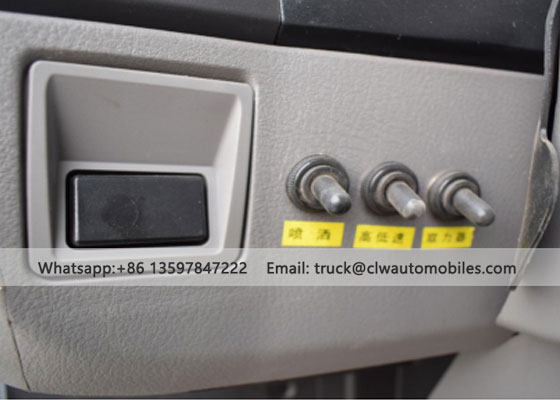

Cab Control
You can independently control the nozzles from both the cab and the rear platform, allowing for variable spreading width.

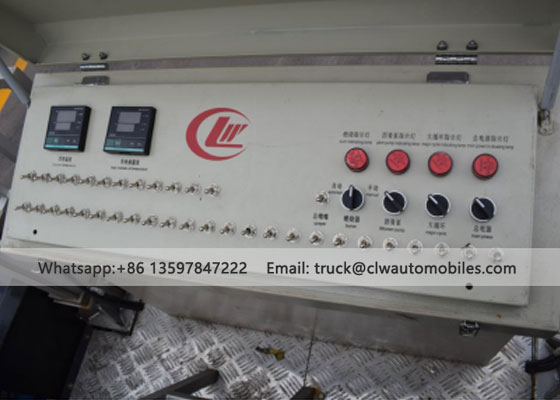

Control System
The common type needs manual control from the rear platform; the intelligent type supports touch screen computer control in the cab (Siemens system from Germany), which can adjust the spreading amount, vehicle speed and asphalt pump speed in real time.

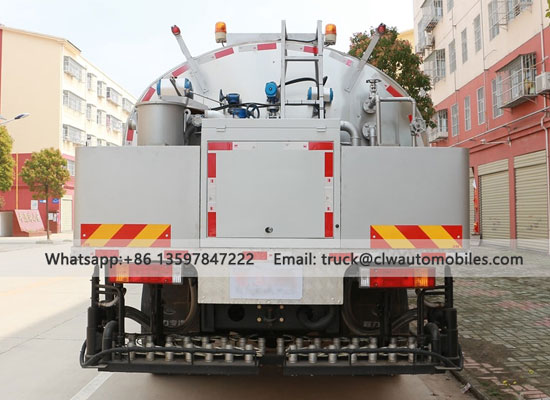

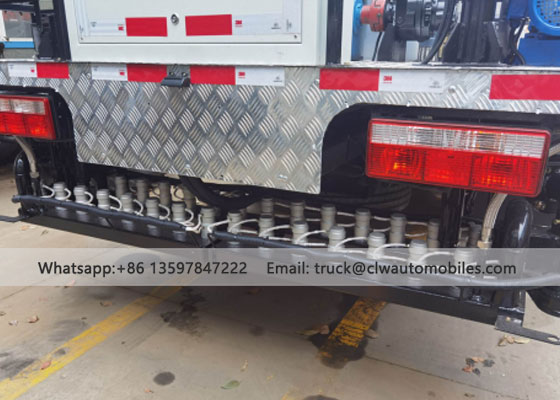

Spreading Width and Nozzles
Spreading width: 4-6 meters (adjustable), spreading density range 0.2~3.0kg/m² (or 0.25~3L/㎡), number of nozzles 15-39 (intelligent type supports independent control).
Thermal oil automatic heating system
Thermal oil automatic heating system (Italy Riello G10 burner, 100,000 kcal/hour), thermal oil pump model RY40-25-160, heating efficiency 10-15℃/hour.

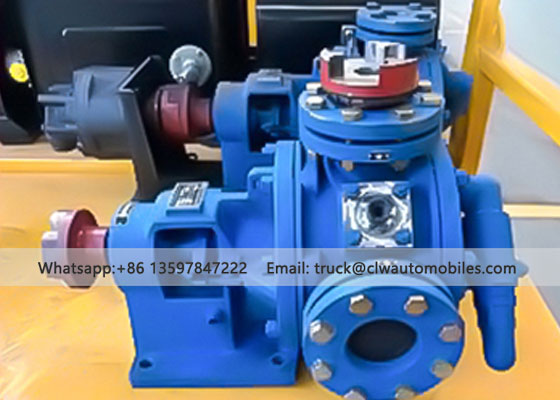

Asphalt Pump
High viscosity asphalt pump, can pump in and out.
Ordinary type: QGB270 emulsified asphalt pump (270L/min);
Intelligent type: QGB680 high viscosity asphalt pump (680L/min) or Belgian TGGP imported pump, supporting self-priming and pumping functions.
6
Equipment performance characteristics
1. The car adopts small Dorica chassis, flexible and light handling, beautiful appearance, to provide safe, efficient and reliable service for the majority of intercity logistics customers;
2. The manual control mode realizes the manual control of each nozzle separately, so as to realize the general adjustment of spraying width.
3. The heating system adopts the burner imported from Italy, which has the functions of automatic ignition and temperature control;
4. The domestic advanced asphalt pump can pump the external asphalt into the tank to realize "self suction" and also pump the asphalt out of the tank;
5. On the premise of ensuring that the maintenance and disassembly of other parts will not be hindered, each part of the ladder and handrail are arranged to facilitate operation;
6. Vehicle mounted rapid heating system (10-15 ℃ / h) can improve heating efficiency and reduce construction auxiliary time to ensure spraying temperature;
7. The asphalt spray rod adopts a three-stage folding structure. The double or multiple spraying can be realized by moving the spray rod up and down. The spraying range can be expanded by moving the spray rod left and right, and the obstacles can be avoided effectively;
9. The manual spraying function enables the asphalt to be sprayed through the hand nozzle, which is flexible and convenient. It is suitable for small-scale and corner construction. Connect the hand spray gun. Open the main oil outlet valve, Opener transfer valve, open the oil return valve, and use the oil return valve to adjust the pressure of the spray gun.
10. Good insulation layer can ensure the static insulation performance index ≤ 12 ℃ / 8 hours, and the corrosion resistance is durable;
7

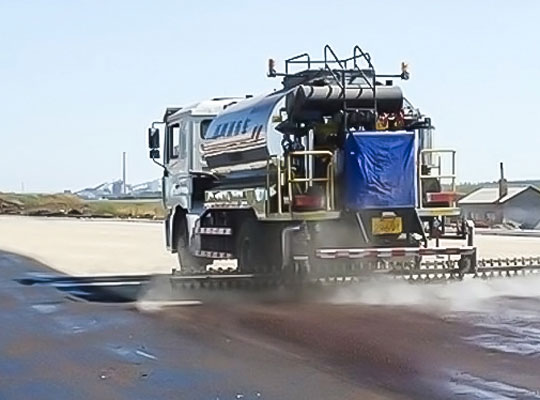

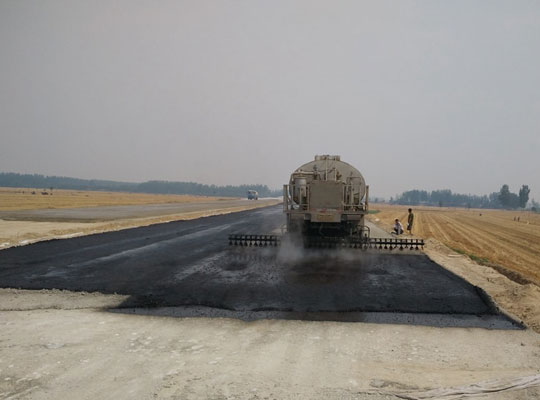

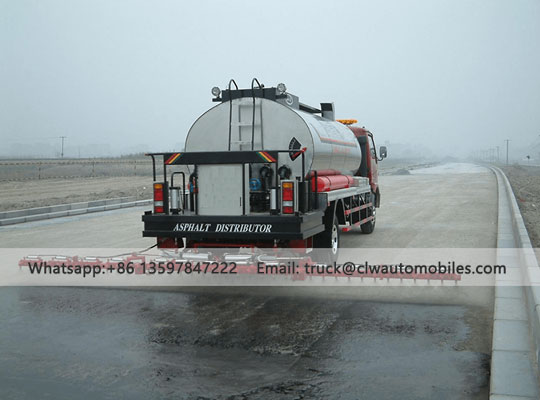

Working Site
Asphalt Distributor Truck
Asphalt Distributor Truck
Asphalt Distributor Truck
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
