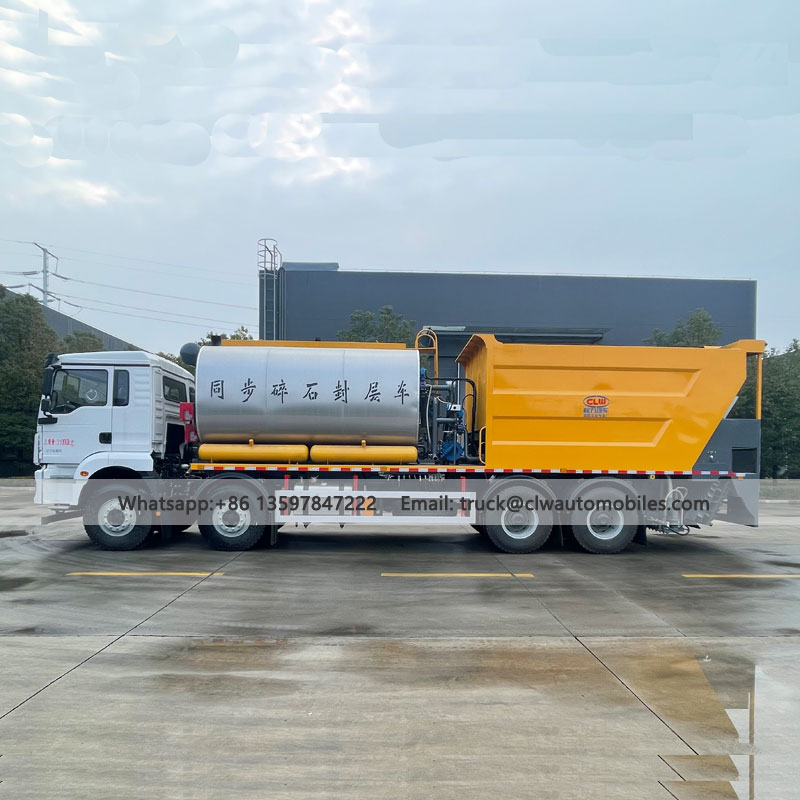

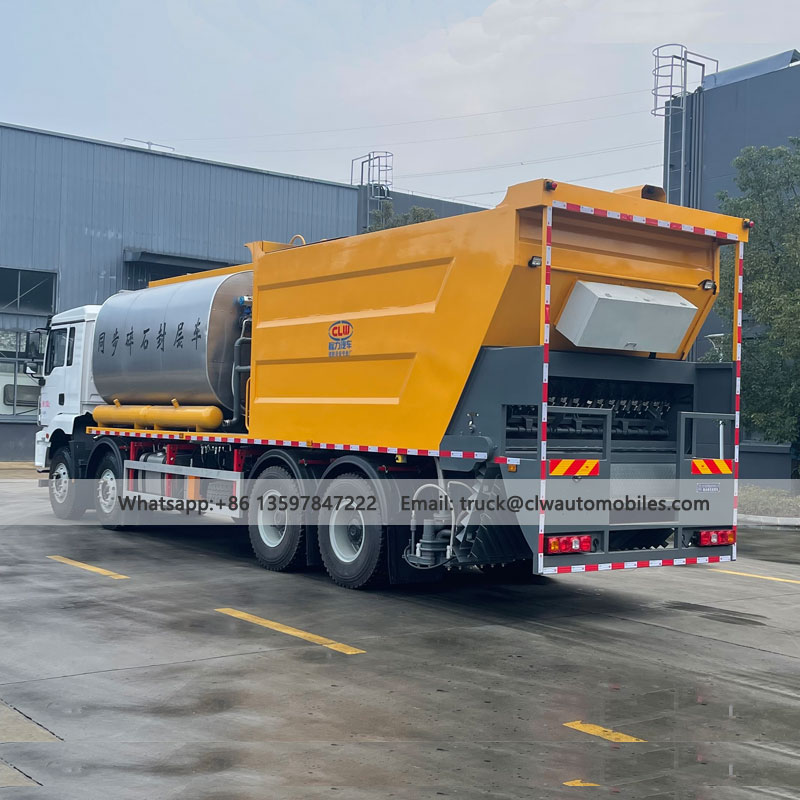

SHACMAN 12000L Asphalt Tank 14000L Stone Tank Synchronous Chip Seal Truck
- CLW/SHACMAN
- Suizhou city, Hubei Province
- 55 working days after received your payment
- 50 units per month
- 70000-75000USD
- 30% Payment In Advance, 70% Payment Before Shipping From Factory
The Shaanxi Automobile 8×4 Synchronous Stone Chip Seal truck (such as the 4x4 front-wheel drive, 8x4 rear-wheel drive model) is a high-efficiency machine specifically designed for large-scale road maintenance. Its core features include large-capacity loading, intelligent control, efficient construction, and a powerful chassis. Below is a detailed analysis:
Large-Capacity Loading
Asphalt Tank and Aggregate Hopper: Typically configured with a 12-cubic-meter asphalt tank and a 14-cubic-meter aggregate hopper, it supports continuous operation, reduces refill frequency, and enhances work efficiency.
Payload and Dimensions:
Total mass reaches 31 tons, with a curb weight of 17.9 tons. Its flexible wheelbase (e.g., 1800+4575+1400mm) adapts to diverse road conditions.
Intelligent and Precise Control
Touchscreen Cab Operation: Utilizes a German Siemens control system supporting independent control of 32 asphalt nozzles (one-to-one control) and 16 aggregate gates, enabling precise adjustment of spread rates (asphalt: 0.25-4.0 L/m², aggregate: adjustable).
Video Monitoring and Anti-Collision Design: Equipped with rear spray anti-collision protection and real-time monitoring systems to enhance construction safety.
Efficient Construction and Power Performance
Synchronized Operation: Asphalt and aggregate placement interval ≤1 second ensures optimal bonding strength.
Power Configuration: Powered by a Weichai 350-horsepower National VI engine (WP10H375E62), 10-speed transmission, and 16T MAN rear axle, achieving a top speed of 89 km/h for complex terrain adaptation.
1
Basic Parameters of SHACMAN Synchronous Stone Chip Seal Truck
| Model of Vehicle | CL5310TFC6BLS |
| Model of Chassis | SX1319MC6Z |
| Wheelbase | 1800+4575+1400mm |
| Drive type | 8*4,LHD |
| G.V.W. | 31000kg |
| Curb Weight | 21280kg |
| Engine Model | WP10H375E62 |
| Engine Power | 375HP |
| Engine Displacement | 9500ml |
| Tire Numbers | 12+1 |
| Tire Size | 12.00R20 |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 380L |
| Transmission | FAST,12-Gear |
| Passengers | 3 |

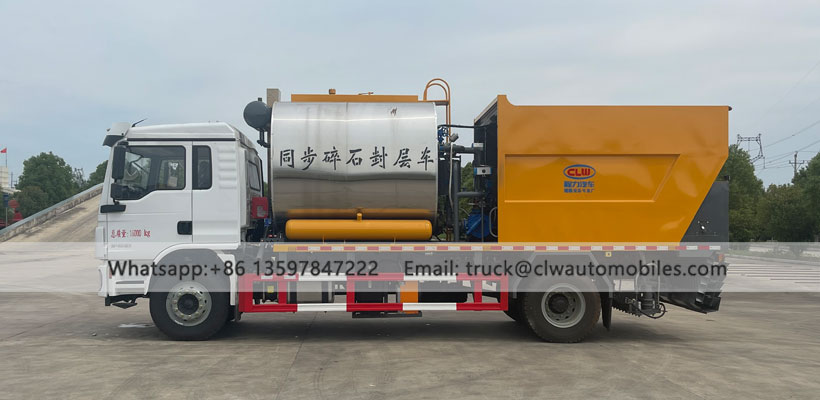

Synchronous Chip Seal Truck
Synchronous Chip Seal Truck
2
Special Function of SHACMAN Synchronous Stone Chip Seal Truck
| Asphalt Tank Capacity | 12000L |
| Stone Tank Capacity | 14000L |
| Tank Inner Materials | Q235 Carbon Steel |
| Tank Outter Materials | Stainless Steel (1mm) |
| Isulation Layer | Rock Wool(50mm) |
| Tail nozzle | 32 PCS(pneumatic control) |
| Stone gate | 16 PCS(ONE BY ONE) |
| Spray width | ≤4m |
| Stone Size | S3-S24(MM) |

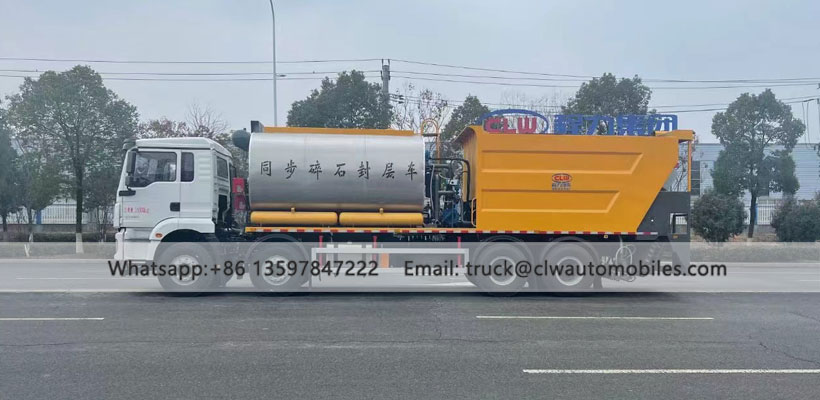

Synchronous Chip Seal Truck
Synchronous Chip Seal Truck
3
Special Equipments of Synchronous Stone Chip Seal Truck
| Flow of Asphalt Pump | 950L/min |
| Asphalt spraying amount | 0.25-3L/㎡ |
| Pneumatic butterfly valve | CLD6H3-16C |
| Gate valve | PN16DN50 |
| Proportional valve | CL-BLTS120.00 |
| Thermal oil pump | RY40-25-160 |
| Control system | PLC |
| Operation method | Cab + Rear Backup Control |
| Auxiliary tank | 110L |
| Burner | Rijal G20 |
| Heating method | Heat transfer oil circulation heating |
4
Some specialized equipment of Synchronous Stone Chip Seal Truck
Asphalt Pump
Spray Cylinder
Burner
Thermal oil pump
heat sink
Hydraulic motor
Start butterfly valve
Cab Control Panel
Tail control system
5

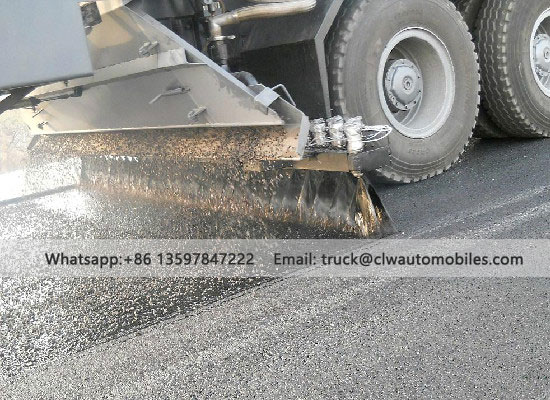

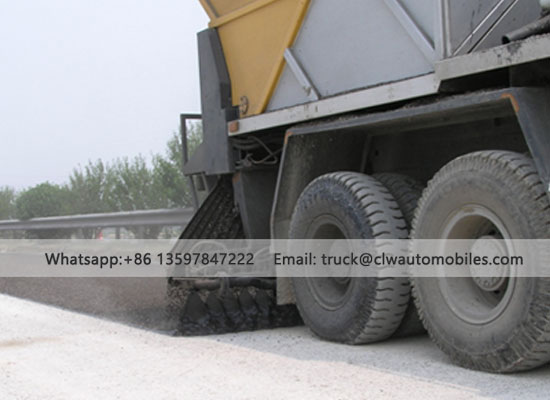

Application scenarios
New highway surface layer or preventative maintenance overlay;
bridge deck sealing layer and mid-term maintenance of high-grade highways.

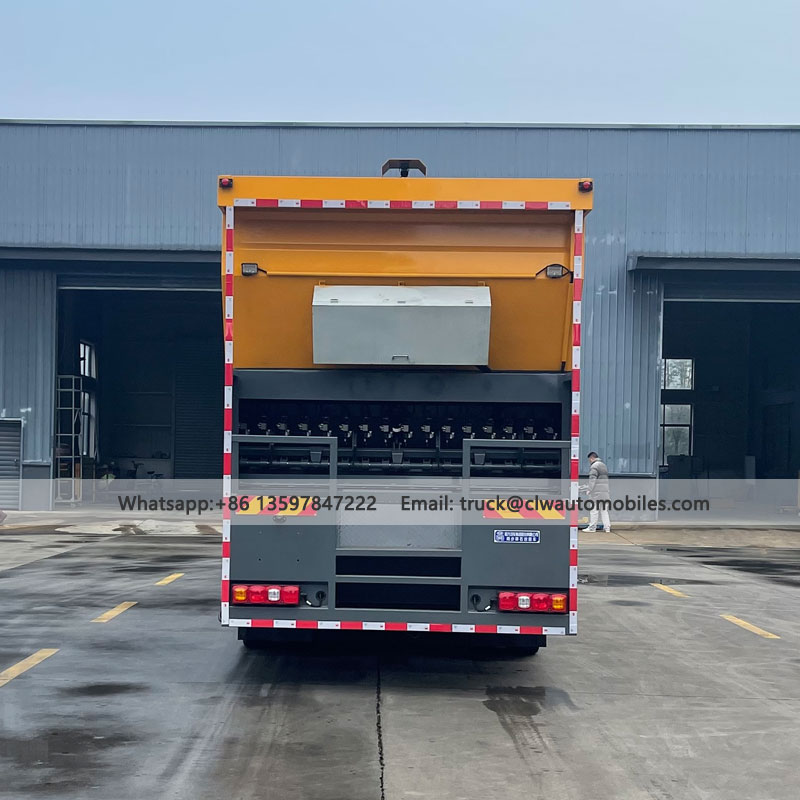

Synchronous Chip Seal Truck
Synchronous Chip Seal Truck
Synchronous Chip Seal Truck
6
Advantages of Synchronous Stone Chip Seal Truck
1. Utilizes a fully hydraulic drive system, eliminating the need for auxiliary power sources for simpler and more convenient operation. Features an efficient thermal oil circulation heating system that significantly accelerates heating speed, surpassing traditional flue heating methods;
2. This Synchronous Stone Chip Seal Truck enables aggregate spreading operations using an internal lifting hopper, facilitating culvert construction, bridge-under construction, and curve construction; employs fully electrical control with high automation, precisely calculating asphalt spray volume and aggregate spread quantity during construction;
3. Synchronous Stone Chip Seal Truck equipped with a high-efficiency material door that automatically calculates the precise amount of asphalt sprayed and aggregate spread during construction;
under bridges, and on curves. Fully electrically controlled with high automation, it precisely calculates asphalt spray volume and aggregate spread rate during operation.
3. Material gate control utilizes an angle sensor to ensure precise discharge. This reduces labor intensity, conserves human resources, lowers construction costs, and enhances work efficiency and quality.
The entire machine operates stably with uniform spreading, allowing free adjustment of asphalt and aggregate spreading widths.
4. The robust insulation layer ensures thermal performance index ≤20°C/8h while offering corrosion resistance and durability.
It can spray various asphalt media and spread aggregates ranging from S3 to S24mm.
The equipment utilizes high-precision nozzles, fully guaranteeing consistent spray performance and optimal results from each nozzle.
7
Advantages of SHACMAN 8*4
Exceptional Load-Carrying and Towing Capabilities
The 4x8 configuration distributes traction through four front drive wheels while the rear eight load-bearing wheels support the weight, delivering load capacity far exceeding single-axle drive vehicles. This meets heavy-duty cargo transport demands in construction, logistics, and other industries. On challenging terrain—such as mountainous or muddy roads—all four drive wheels work in unison with optimized traction distribution to prevent slippage and ensure smooth passage.
Exceptional Stability and Safety
The steering system employs a dual-axle, four-wheel configuration, significantly enhancing handling stability and reducing the risk of vehicle loss of control. Simultaneously, reduced load per tire improves braking performance and elevates driving safety. Uniform tire wear extends service life, lowering long-term transportation costs.
