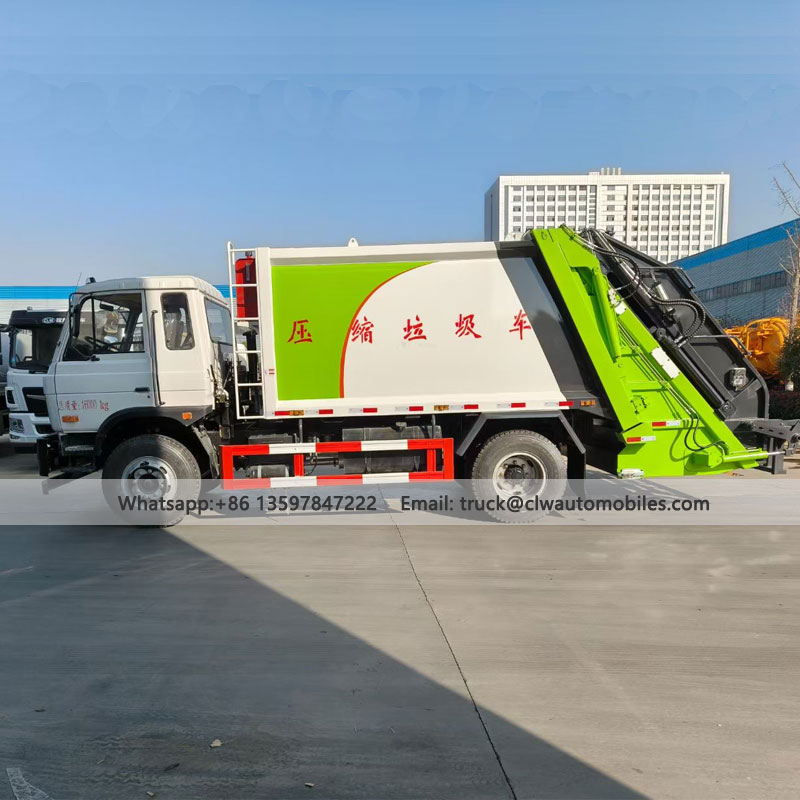

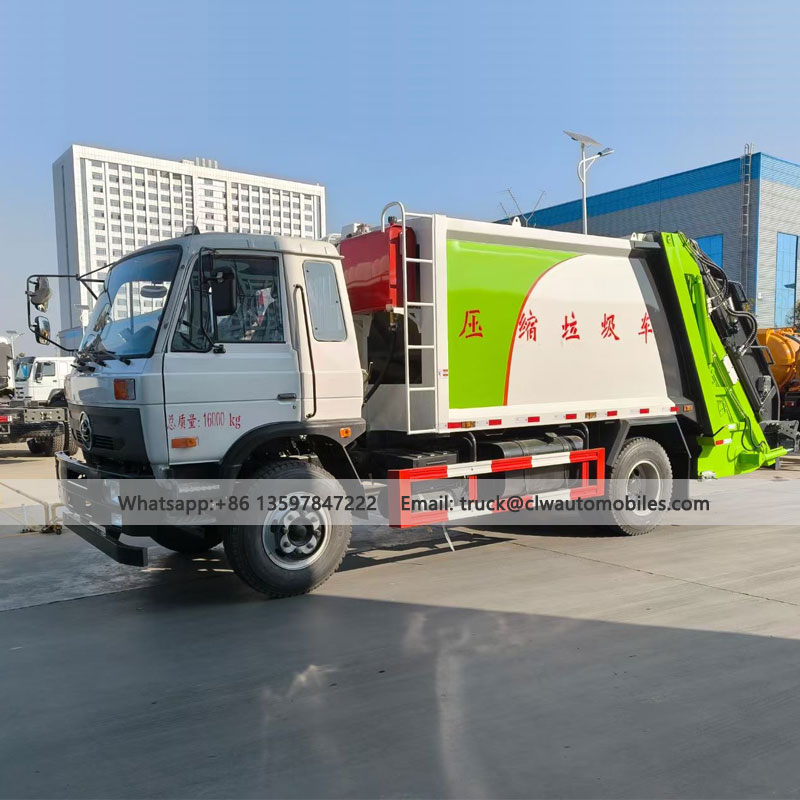

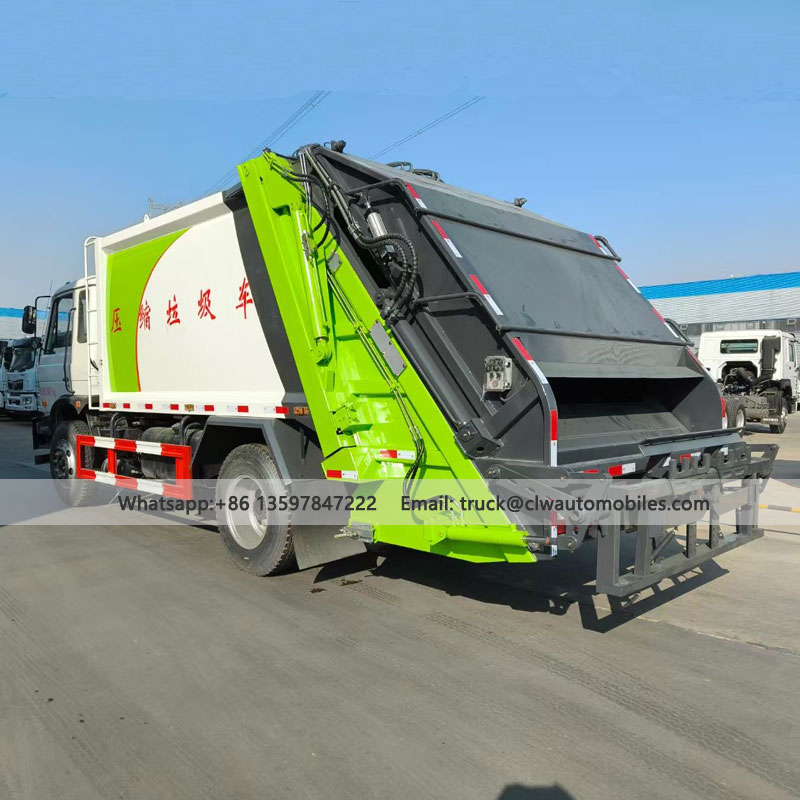

CLW 14cbm Trash Collector Truck From Supplier
- CLW
- Suizhou
- 30 days
- 100 units per month
The loading capacity of the CLW 14cbm Trash Collector Truck is 5-7 cubic meters, and the rated load capacity is 12 tons. After compression, the volume of garbage can be reduced to 1/3 of the original volume, significantly improving transportation efficiency.
The CLW 14cbm/12Tons CLW 14cbm Trash Collector Truck is equipped with a 190HP CUMMINS (Euro II Standard) engine, matched with a 8-speed Wanliyang gearbox, with stable power output and excellent fuel economy, adapting to complex road conditions.
1
Basic Parameters of CLW 14cbm Trash Collector Truck
| Model of Truck |
CLW5183ZYSD3 |
|
| Name of Truck | CLW 14cbm Trash Collector Truck | |
| Size of Truck | 8730*2550*3300mm | |
| Capacity of Truck | 14cbm/12Tons | |
| Drive Type | 4*2, Left Hand Drive | |
| Total Weight | 18000kg | |
| Curb Weight | 11000kg | |
| Engine |
Model |
B190 33 |
| Power | CUMMINS 140kw/190HP | |
| Fuel Type | Diesel | |
| Displacement | 5.9L | |
| Emission Standard | Euro II | |
|
Transmission |
8-gear, Manual | |
|
Tires |
6+1, 10.00R20 | |
2
Parameters of Upper Strcuture of CLW 14cbm Trash Collector Truck
| Garabage Van | Volume | 14cbm/12tons |
| Material | Q345 | |
| Thinkness(side/bottome) | 5mm/6mm | |
| Hydraulic Pump |
1 set |
|
| Multi-Valve | 1 set | |
| Flap Cylinder | 2 sets | |
| Lifting Cylinder | 2 sets | |
| Push Plate Cylinder | 1 set | |
| Diry Tank Volume |
100L |
|
| Filiing Time |
8-10s |
|
| Filling cycle time | ≤20s each time | |
| Hydraulic Pressure | 18Mpa | |
| Compactor Ratia |
1:4 |
|
3
Exploded View Of CLW 14cbm Trash Collector Truck
Our advantage
Overall slider
Integrally molded, the structure is more stable and durable.
Skateboard external
the external skateboard cylinder has a faster single cycle speed and higher pressure.
Electronic control system
American Eaton keypad has a lower failure rate than ordinary panels.
Axis pin thickening
Made of 40 chrome material, it can effectively prevent the skateboard from breaking.
4
Applicable scenarios of CLW 14cbm Trash Collector Truck
Urban sanitation, community garbage collection, construction site cleaning and other scenarios, especially suitable for areas with medium daily garbage volume
5
Repair and Maintenance
Whole vehicle cleaning
Wash the vehicle body surface, the inside of the trash box and the inner cavity of the tamping device thoroughly to remove residual garbage and dirt to avoid corrosion of the box.
When flushing, avoid direct impact of water flow on electrical components (such as sensors, control panels) and the air inlet of the hydraulic oil tank.
Key system inspection
Hydraulic system: Check the hydraulic oil reserve to ensure that the oil level meets the standard; observe whether the oil pipe and joints are leaking and repair them in time.
Engine: Check the oil level and coolant volume, and replenish if necessary; observe whether the engine runs smoothly and whether there is any abnormal sound or odor.
Tire: Check tire pressure, wear and whether there is foreign matter embedded to ensure driving safety.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
