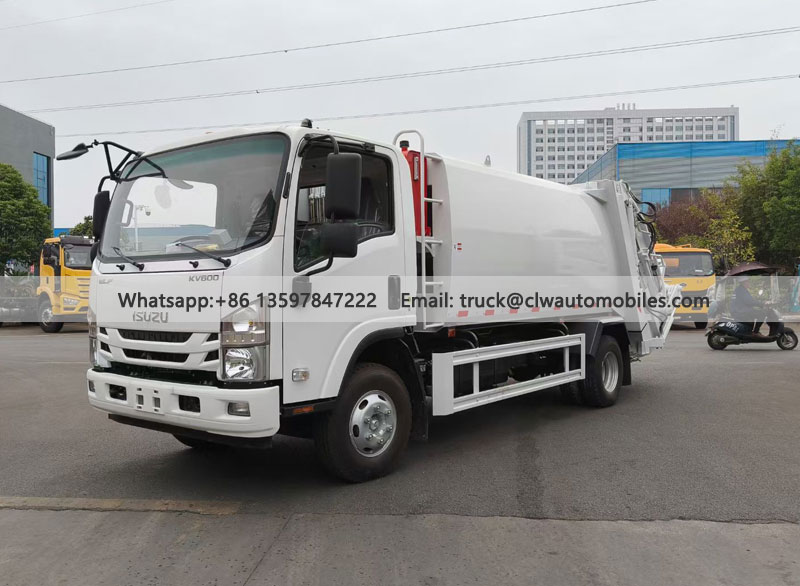

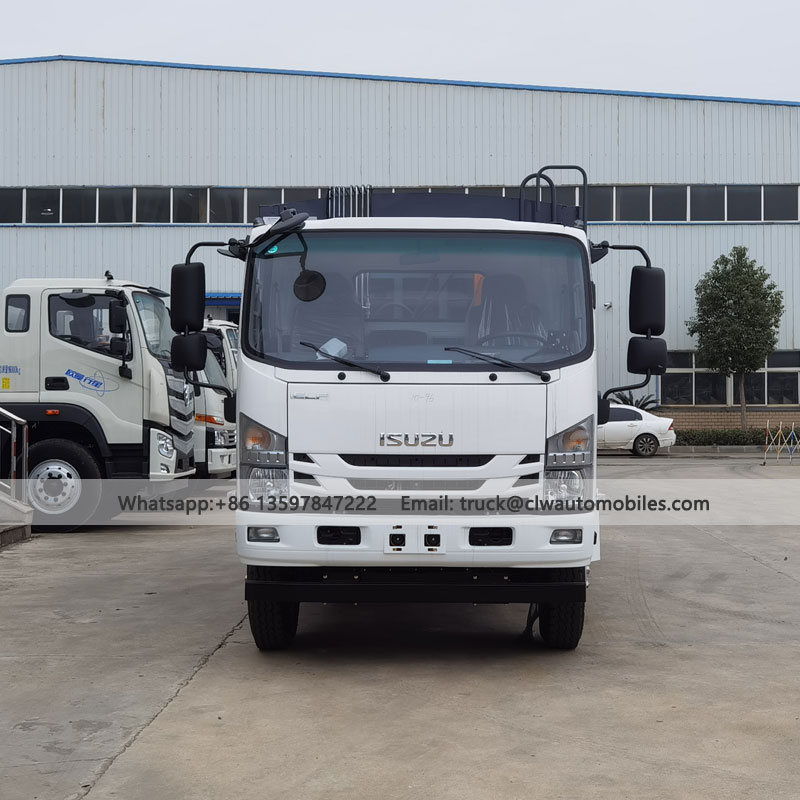

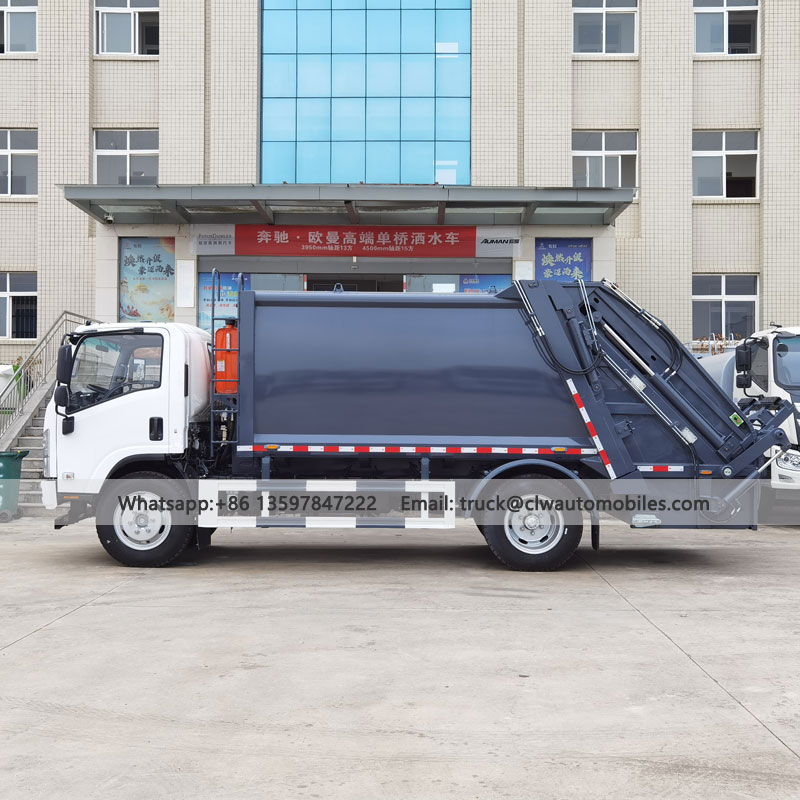

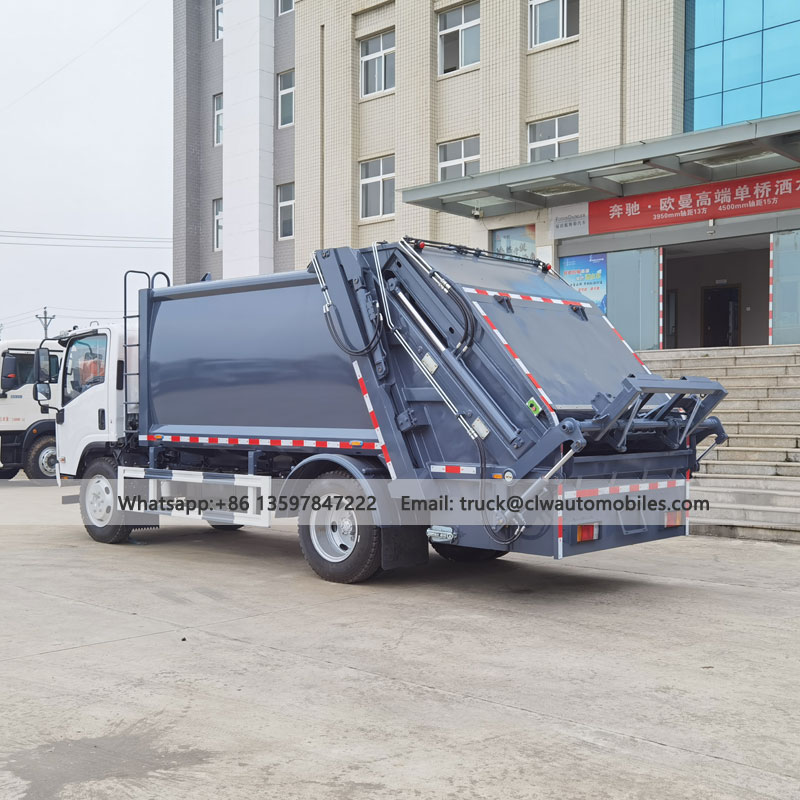

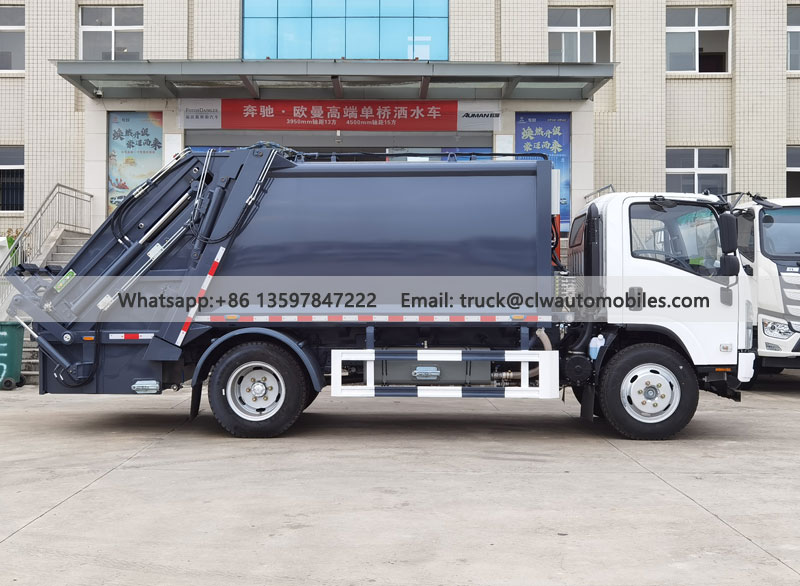

ISUZU 700P 10cbm Rear Loading Compressed Garbage Truck

The loading capacity of the ISUZU 700P 10cbm Rear Loading Compressed Garbage Truck is equipped with a 4HK1-TCG61 engine, it meets the National VI emission standards, has a maximum power of 190 horsepower, and has stable and efficient power output.

Matched with an Isuzu MLD six-speed gearbox, it has smooth shifting, quick response, and can adapt to complex working conditions.

The chassis adopts the Qingling Isuzu 700P special platform, with a wheelbase of 3815mm, and the front and rear axle loads are 4 tons and 7 tons respectively, with excellent carrying capacity.

Superstructure

The box body is fully sealed and welded with Q345 high-strength manganese steel plate, with a volume of 10 cubic meters, and a four-side and five-bottom design to ensure structural strength.

Equipped with an arc-shaped streamlined box body, it optimizes the garbage compression space and reduces the frequency of transportation.

The hydraulic system integrates the Xingguang cylinder, Wanye oil pump, and Zhongmei multi-way valve, and cooperates with high-density hydraulic oil pipes and Jiashan power take-offs to achieve efficient compression and transmission.

Our advantage

Overall slider

Integrally molded, the structure is more stable and durable.

Skateboard external

 the external skateboard cylinder has a faster single cycle speed and higher pressure.

Electronic control system

American Eaton keypad has a lower failure rate than ordinary panels.

Axis pin thickening

Made of 40 chrome material, it can effectively prevent the skateboard from breaking.

‌

Urban sanitation, community garbage collection, construction site cleaning and other scenarios, especially suitable for areas with medium daily garbage volume‌

‌Whole vehicle cleaning‌

Wash the vehicle body surface, the inside of the trash box and the inner cavity of the tamping device thoroughly to remove residual garbage and dirt to avoid corrosion of the box.

When flushing, avoid direct impact of water flow on electrical components (such as sensors, control panels) and the air inlet of the hydraulic oil tank.

‌Key system inspection‌

‌Hydraulic system‌: Check the hydraulic oil reserve to ensure that the oil level meets the standard; observe whether the oil pipe and joints are leaking and repair them in time.

‌Engine‌: Check the oil level and coolant volume, and replenish if necessary; observe whether the engine runs smoothly and whether there is any abnormal sound or odor.

‌Tire‌: Check tire pressure, wear and whether there is foreign matter embedded to ensure driving safety.
