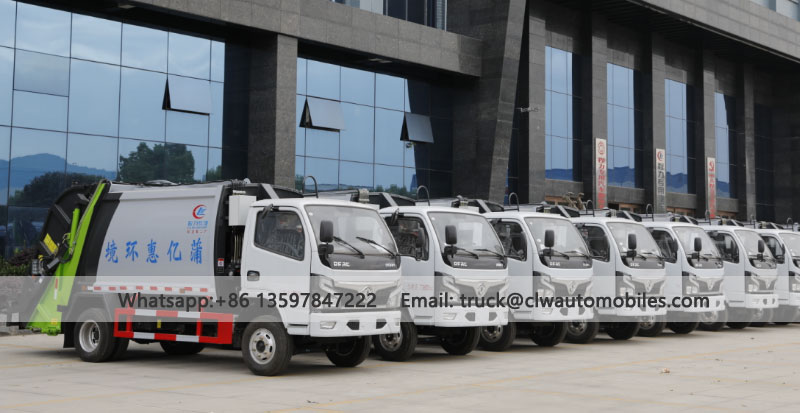

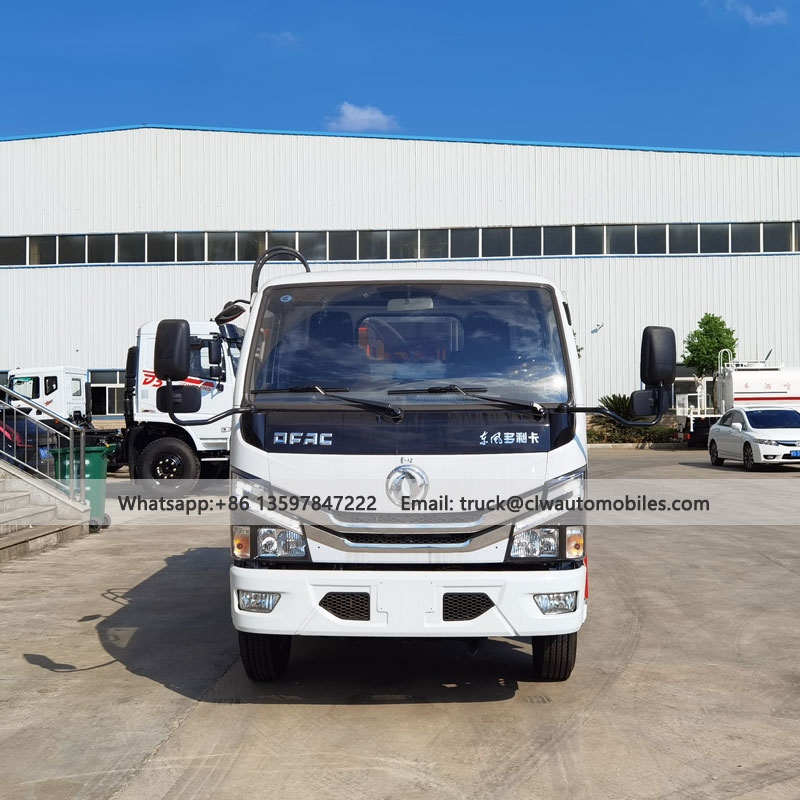

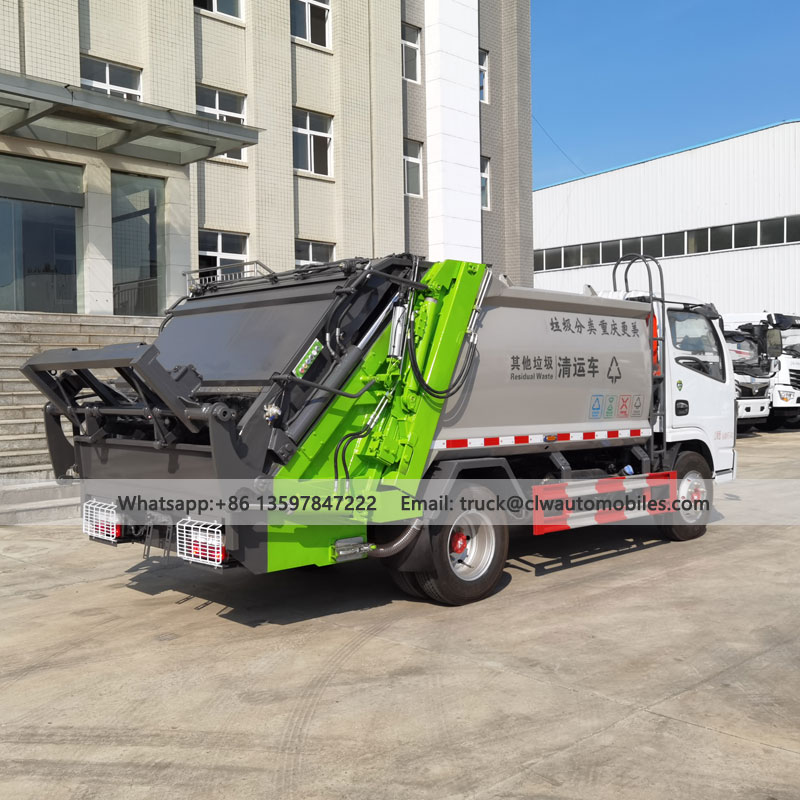

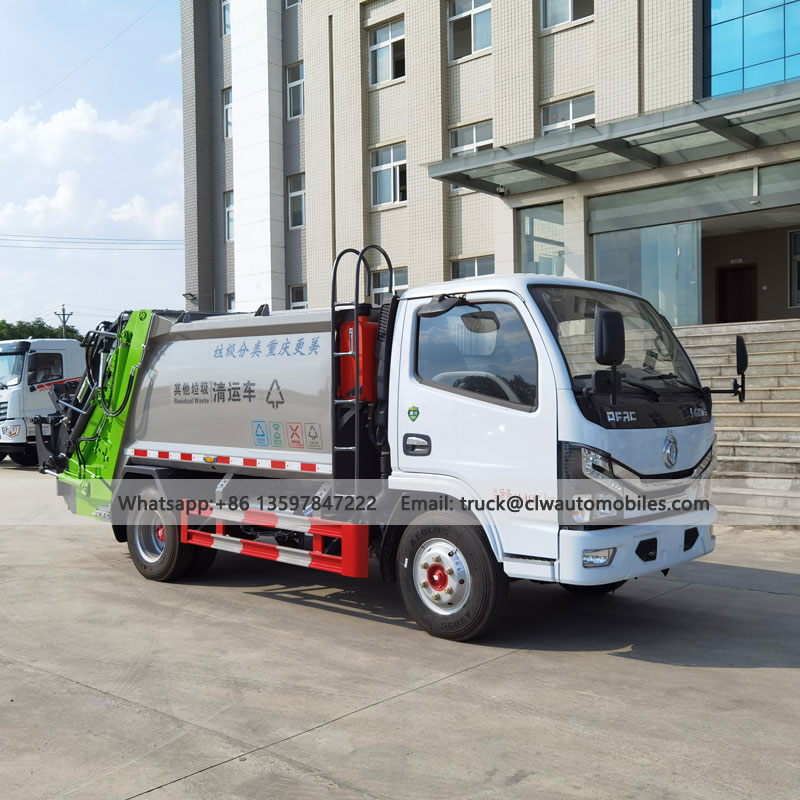

DFAC 6cbm/5Tons Garbage Compactor Truck

The loading capacity of the DFAC Garbage Compactor Truck is 5-7 cubic meters, and the rated load capacity is 5 tons. After compression, the volume of garbage can be reduced to 1/3 of the original volume, significantly improving transportation efficiency.

The DFAC 6cbm/5Tons Garbage Compactor Truck  is equipped with a 126HP Yunnei  (Euro VI Standard) engine, matched with a 5-speed/6-speed Wanliyang gearbox, with stable power output and excellent fuel economy, adapting to complex road conditions.

Our advantage

Overall slider

Integrally molded, the structure is more stable and durable.

Skateboard external

 the external skateboard cylinder has a faster single cycle speed and higher pressure.

Electronic control system

American Eaton keypad has a lower failure rate than ordinary panels.

Axis pin thickening

Made of 40 chrome material, it can effectively prevent the skateboard from breaking.

The rear flap bucket hanging device consists of a hydraulically driven flip frame, a clamp mechanism and a locking device. It is suitable for 240L/660L standard trash cans and can simultaneously hang two plastic buckets for dumping. It is suitable for urban standardized garbage sorting scenarios and can handle 50-80 barrels of garbage (total weight of about 8-12 tons) per day, reducing the manpower demand by 60% compared with manual bulk loading. After the trash can is embedded in the bucket hanging frame, the hydraulic cylinder drives the flip frame to lift (angle ≥120°), and the garbage slides into the filler hopper at the front of the compression box by gravity, and is compressed with the scraper and slide plate. Single dumping cycle ≤30 seconds, PLC electronic control system supports one-button cycle operation, reducing the complexity of manual operation.

Triangle bucket

It is suitable for Garbage Compactor Trucks with a small volume range (usually ≤10 cubic meters), and is suitable for small and medium-sized sanitation vehicles. The community garbage sorting station is connected to 240L plastic barrels to achieve seamless "barrel-to-vehicle" transfer.

large landing bucket

It is mostly used in medium and large Garbage Compactor Trucks (volume 14-23 cubic meters), compatible with a variety of loading tools (such as forklifts, grab buckets), construction sites and decoration waste collection points, and can quickly process mixed waste through loaders.

Urban sanitation, community garbage collection, construction site cleaning and other scenarios, especially suitable for areas with medium daily garbage volume‌

‌Whole vehicle cleaning‌

Wash the vehicle body surface, the inside of the trash box and the inner cavity of the tamping device thoroughly to remove residual garbage and dirt to avoid corrosion of the box.

When flushing, avoid direct impact of water flow on electrical components (such as sensors, control panels) and the air inlet of the hydraulic oil tank.

‌Key system inspection‌

‌Hydraulic system‌: Check the hydraulic oil reserve to ensure that the oil level meets the standard; observe whether the oil pipe and joints are leaking and repair them in time.

‌Engine‌: Check the oil level and coolant volume, and replenish if necessary; observe whether the engine runs smoothly and whether there is any abnormal sound or odor.

‌Tire‌: Check tire pressure, wear and whether there is foreign matter embedded to ensure driving safety.
