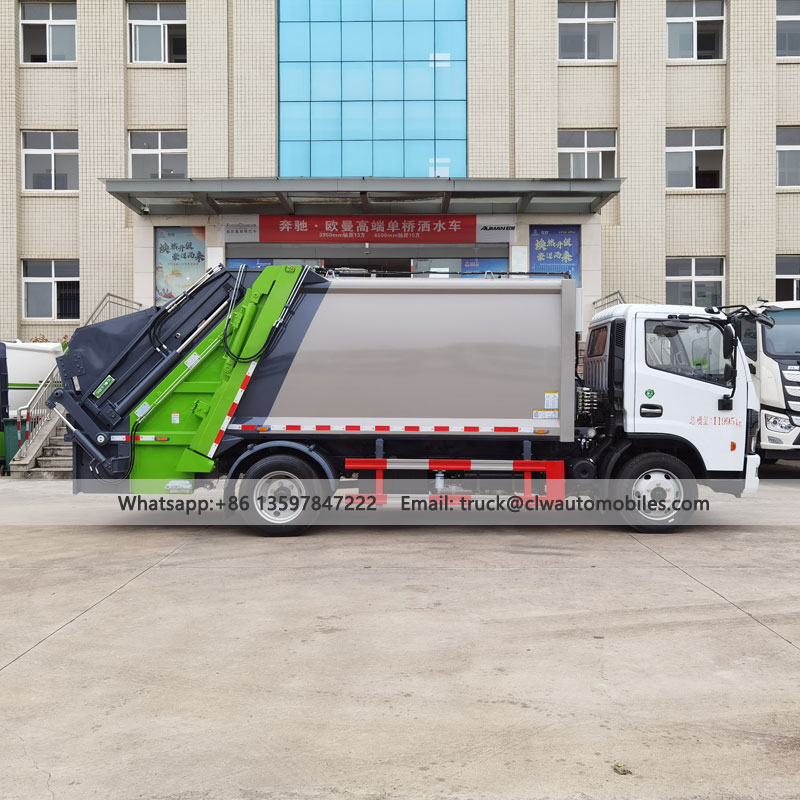

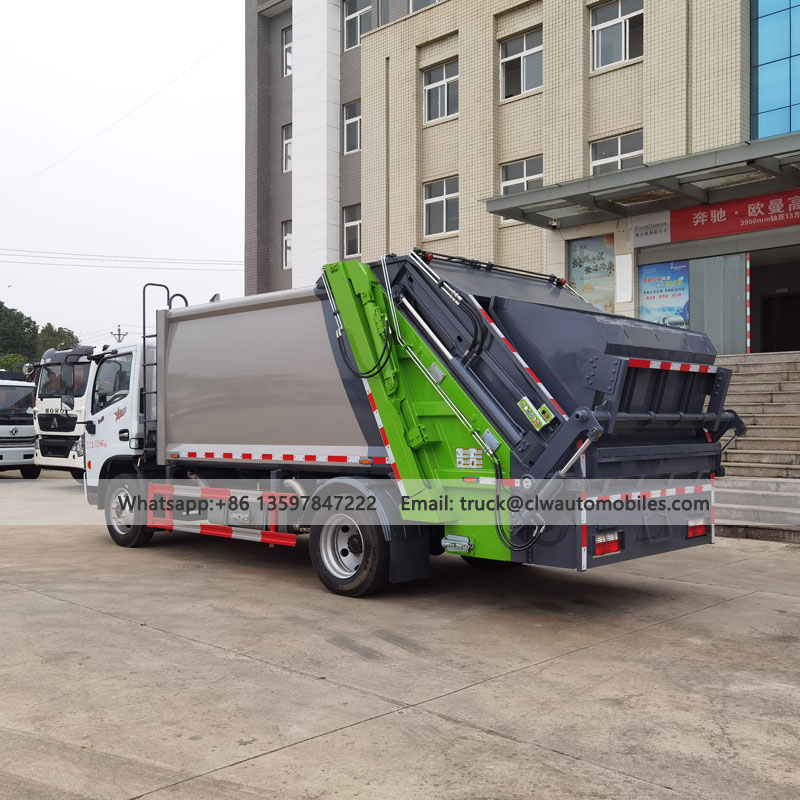

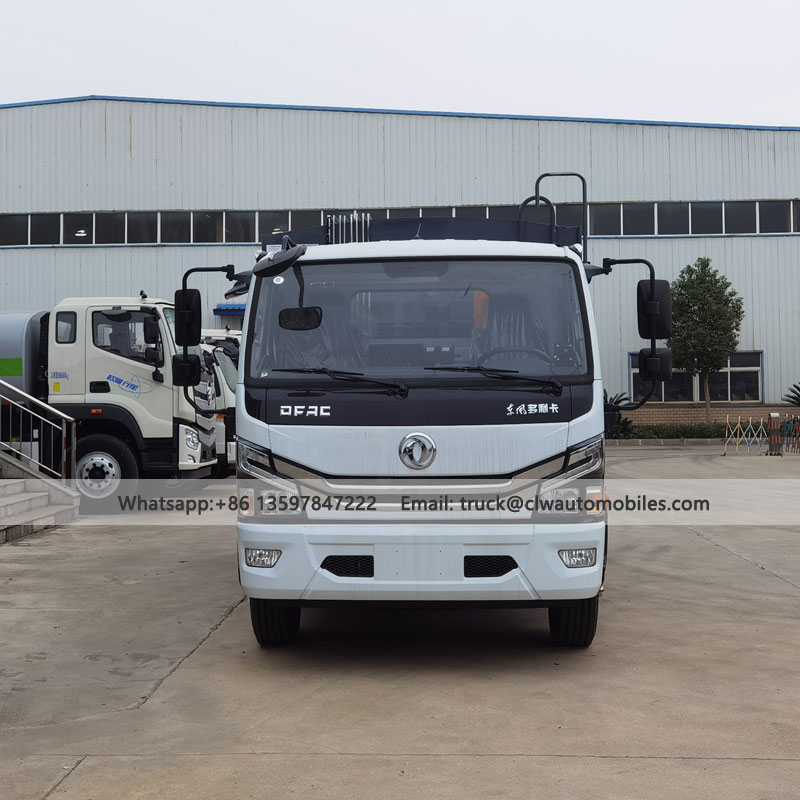

DFAC 10CBM Compactor Garbage Truck
- CLW/DFAC
- Suizhou
- 30 days
- 100 units per month
The DFAC 10CBM Compactor Garbage Truck is equipped with a Yunnei 170-horsepower engine and a Wanliyang 6-speed gearbox. It has excellent fuel economy, a wheelbase of 3,800 mm, and a box volume of 10 cubic meters, making it suitable for short-distance transportation in urban and rural areas.
DFAC 10CBM Compactor Garbage Truck adopt Q345 manganese steel sealing welding, four-side and four-bottom/five-bottom structure to prevent leakage, sewage tank independently collects compressed wastewater.
1
Basic Parameters of DFAC 10CBM Compactor Garbage Truck
| Model of Truck |
CL5120ZYSD6 |
|
| Name of Truck | DFAC 10CBM Compactor Garbage Truck | |
| Size of Truck | 7700*2380*3000mm | |
| Capacity of Truck | 10cbm/8Tons | |
| Drive Type | 4*2, Left Hand Drive | |
| Total Weight | 11995kg | |
| Curb Weight | 6700kg | |
| Engine |
Model |
D30TCIF1 |
| Power | 125kw/170HP | |
| Fuel Type | Diesel | |
| Displacement | 2.977L | |
| Emission Standard | Euro VI | |
|
Transmission |
6-gear, Manual | |
|
Tires |
6+1, 7.50R16 | |
2
Parameters of Upper Strcuture
| Garabage Van | Volume | 10cbm/8tons |
| Material | Q345 | |
| Thinkness(side/bottome) | 5mm/6mm | |
| Hydraulic Pump |
1 set |
|
| Multi-Valve | 1 set | |
| Flap Cylinder | 2 sets | |
| Lifting Cylinder | 2 sets | |
| Push Plate Cylinder | 1 set | |
| Diry Tank Volume |
100L |
|
| Filiing Time |
8-10s |
|
| Filling cycle time | ≤20s each time | |
| Hydraulic Pressure | 18Mpa | |
| Compactor Ratia |
1:4 |
|
3
Exploded View Of DFAC 10CBM Compactor Garbage Truck
Our advantage
Overall slider
Integrally molded, the structure is more stable and durable.
Skateboard external
the external skateboard cylinder has a faster single cycle speed and higher pressure.
Electronic control system
American Eaton keypad has a lower failure rate than ordinary panels.
Axis pin thickening
Made of 40 chrome material, it can effectively prevent the skateboard from breaking.
4
Applicable scenarios of DFAC 10CBM Compactor Garbage Truck
Urban sanitation, community garbage collection, construction site cleaning and other scenarios, especially suitable for areas with medium daily garbage volume
5
Repair and Maintenance
Whole vehicle cleaning
Wash the vehicle body surface, the inside of the trash box and the inner cavity of the tamping device thoroughly to remove residual garbage and dirt to avoid corrosion of the box.
When flushing, avoid direct impact of water flow on electrical components (such as sensors, control panels) and the air inlet of the hydraulic oil tank.
Key system inspection
Hydraulic system: Check the hydraulic oil reserve to ensure that the oil level meets the standard; observe whether the oil pipe and joints are leaking and repair them in time.
Engine: Check the oil level and coolant volume, and replenish if necessary; observe whether the engine runs smoothly and whether there is any abnormal sound or odor.
Tire: Check tire pressure, wear and whether there is foreign matter embedded to ensure driving safety.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
