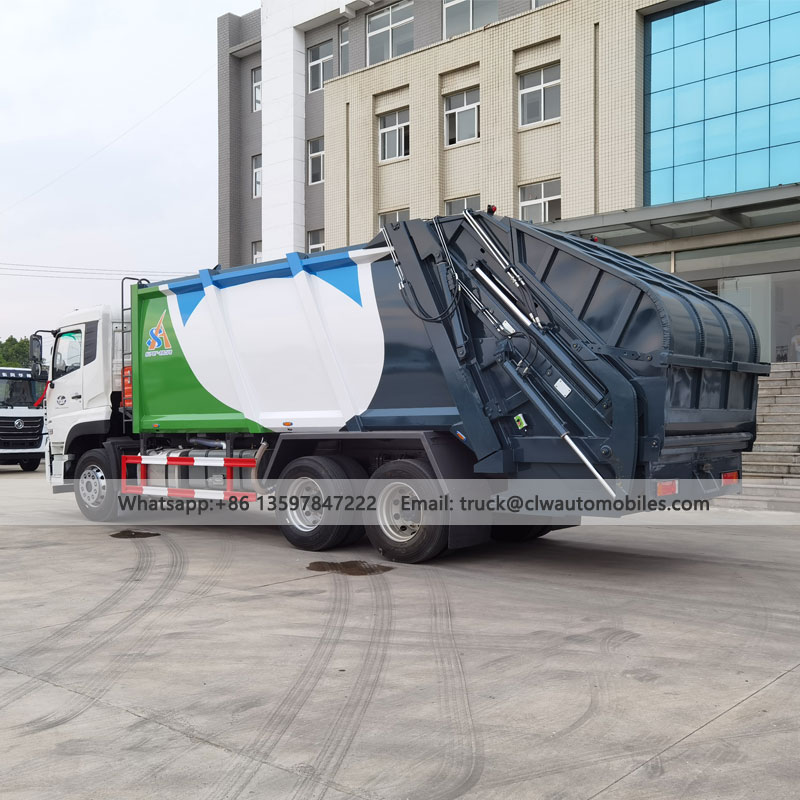

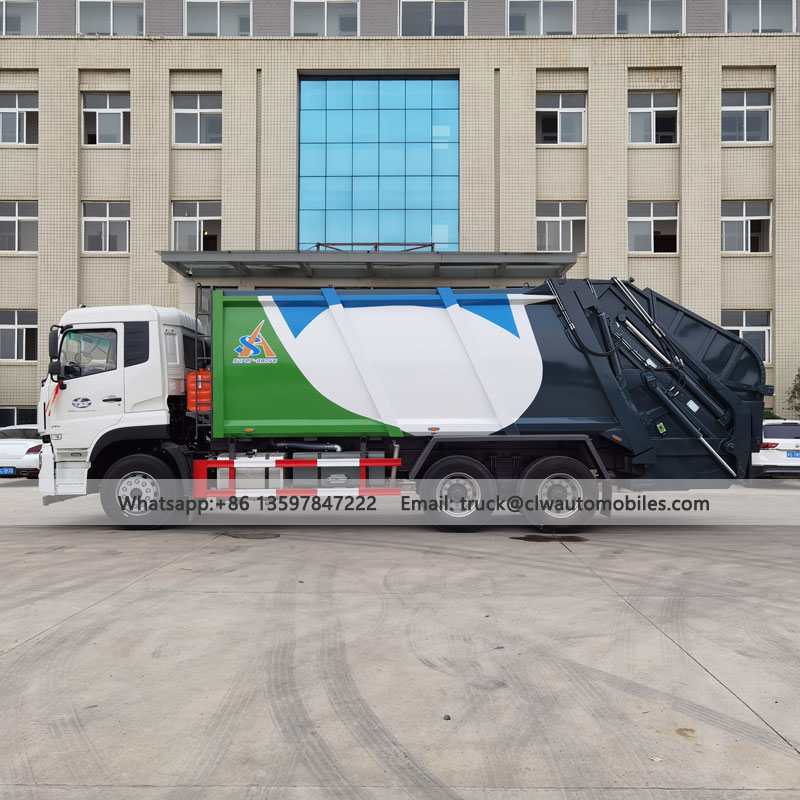

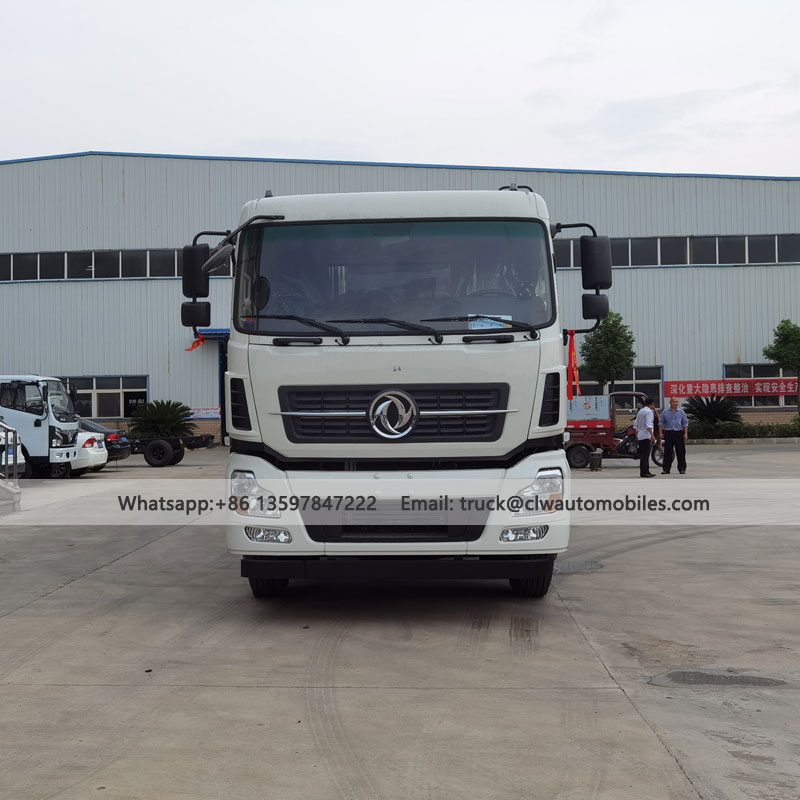

DONGFENG 20CBM Rear Loading Compressed Garbage Truck
- CLW/DONGFENG
- Suizhou
- 30 days
- 100 units per month
High-density community: DONGFENG Compressed Garbage Truck matching small loaders for collaborative operation, the opening width of the loader is 2.3 meters, suitable for hard garbage such as construction waste and furniture.
Industrial solid waste disposal: The box of DONGFENG Compressed Garbage Truck is equipped with explosion-proof observation windows and flame-retardant partitions to meet special needs such as metal waste and construction waste.
Urban and rural transfer hub: The rear of the vehicle is equipped with a 25-ton arm hook, which supports rapid replacement of mobile compression boxes and realizes seamless connection of "collection-transfer-processing".
1
Basic Parameters of 20CBM Compressed Garbage Truck
| Model of Truck |
CLW5250ZYS3AQC |
|
| Name of Truck | DONGFENG 20CBM Rear Loading Compressed Garbage Truck | |
| Size of Truck | 10350*2550*3250mm | |
| Capacity of Truck | 20cbm/18Tons | |
| Drive Type | 6*4, Left Hand Drive | |
| Total Weight | 25000kg | |
| Curb Weight | 13750kg | |
| Engine |
Model |
YC6A260-30 |
| Power | 191kw/260HP | |
| Fuel Type | Diesel | |
| Displacement | 7.255L | |
| Emission Standard | Euro II | |
|
Transmission |
10-gear, Manual, 10JSD160T | |
|
Tires |
10+1, 10.00R20 | |
2
Parameters of Upper Strcuture
| Garabage Van | Volume | 20cbm/18tons |
| Material | Q345 | |
| Thinkness(side/bottome) | 6mm/6mm | |
| Hydraulic Pump |
1 set |
|
| Multi-Valve | 1 set | |
| Flap Cylinder | 2 sets | |
| Lifting Cylinder | 2 sets | |
| Push Plate Cylinder | 1 set | |
| Diry Tank Volume |
100L |
|
| Filiing Time |
8-10s |
|
| Filling cycle time | ≤20s each time | |
| Hydraulic Pressure | 18Mpa | |
| Compactor Ratia |
1:4 |
|
3
Exploded View Of 20CBM Compressed Garbage Truck
Our advantage
Overall slider
Integrally molded, the structure is more stable and durable.
Skateboard external
the external skateboard cylinder has a faster single cycle speed and higher pressure.
Electronic control system
American Eaton keypad has a lower failure rate than ordinary panels.
Axis pin thickening
Made of 40 chrome material, it can effectively prevent the skateboard from breaking.
4
Applicable scenarios of 20CBM Compressed Garbage Truck
Urban sanitation, community garbage collection, construction site cleaning and other scenarios, especially suitable for areas with medium daily garbage volume
5
Repair and Maintenance
Whole vehicle cleaning
Wash the vehicle body surface, the inside of the trash box and the inner cavity of the tamping device thoroughly to remove residual garbage and dirt to avoid corrosion of the box.
When flushing, avoid direct impact of water flow on electrical components (such as sensors, control panels) and the air inlet of the hydraulic oil tank.
Key system inspection
Hydraulic system: Check the hydraulic oil reserve to ensure that the oil level meets the standard; observe whether the oil pipe and joints are leaking and repair them in time.
Engine: Check the oil level and coolant volume, and replenish if necessary; observe whether the engine runs smoothly and whether there is any abnormal sound or odor.
Tire: Check tire pressure, wear and whether there is foreign matter embedded to ensure driving safety.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
