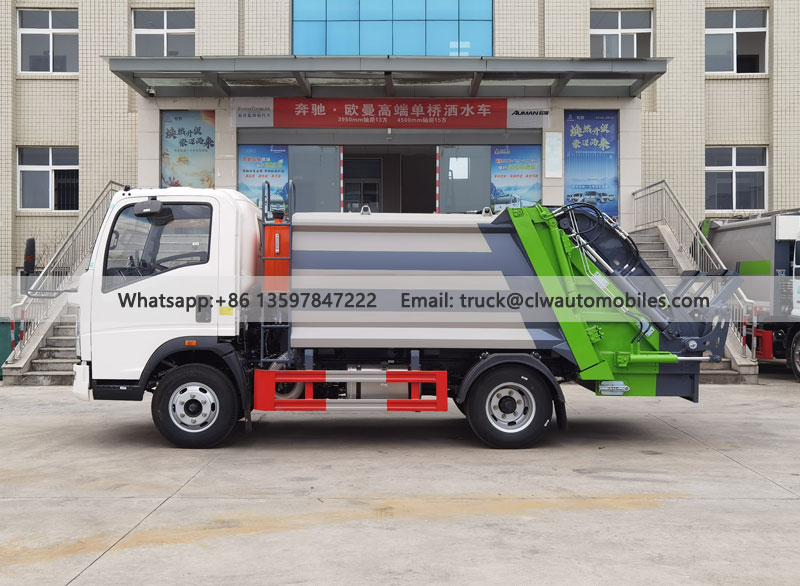

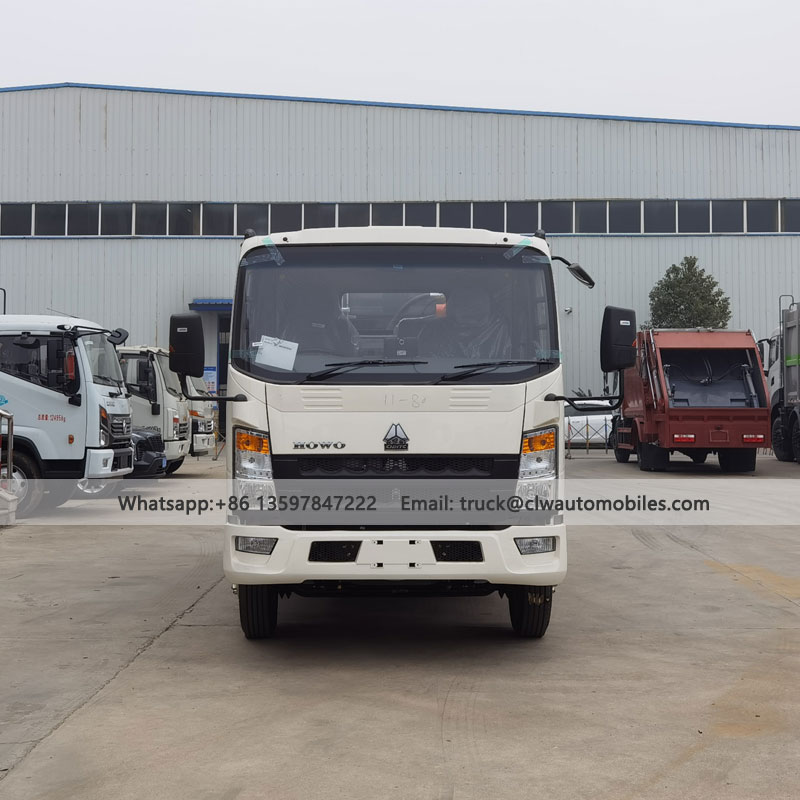

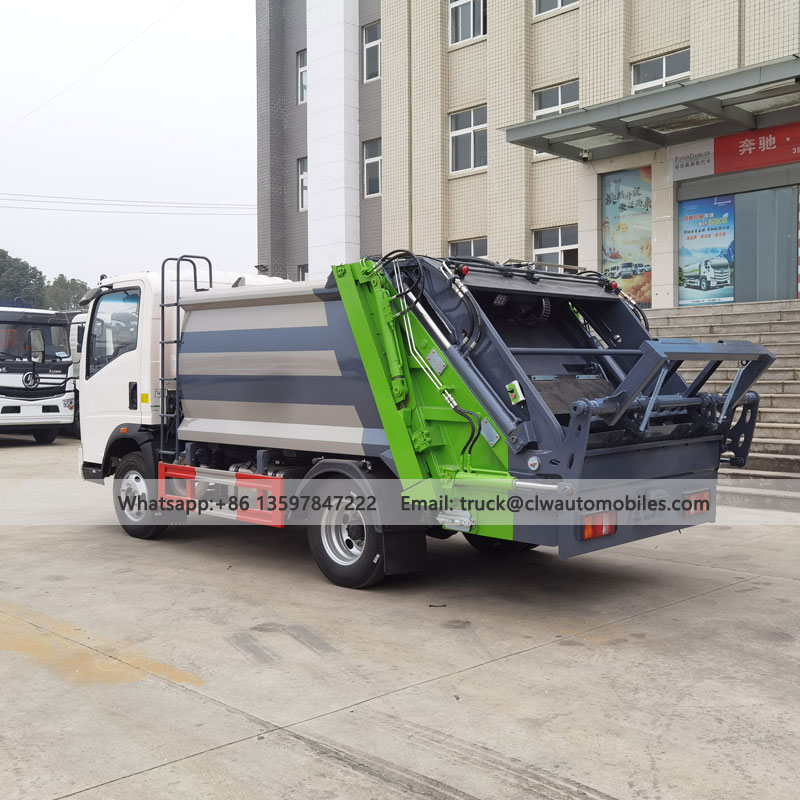

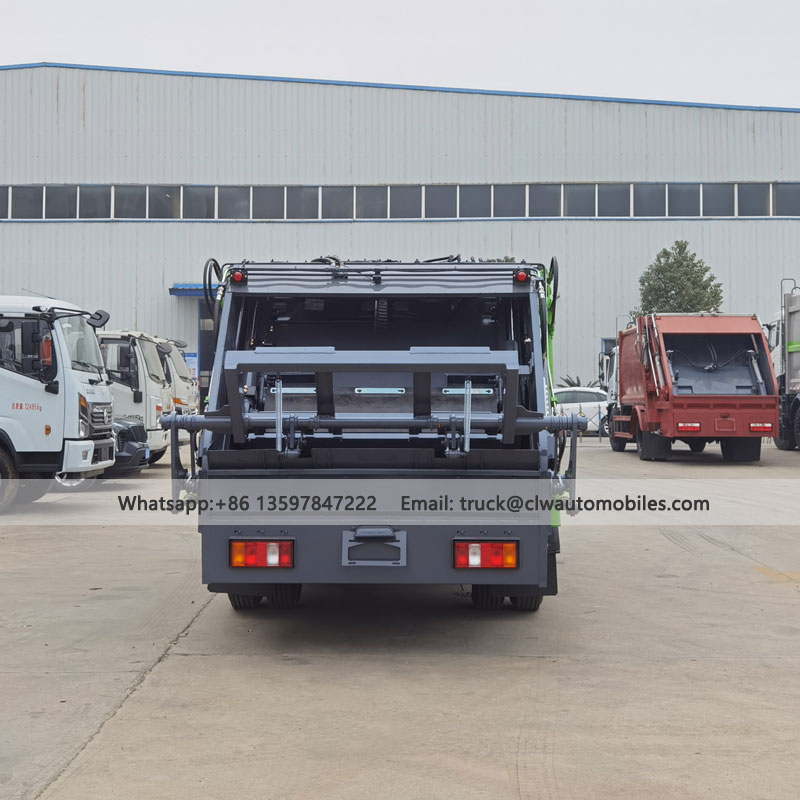

HOWO RHD 6tons/7cbm Compressed Garbage Truck
- CLW/HOWO
- Suizhou
- 30 days
- 100 units per month
Box design: The box volume of HOWO Compressed Garbage Truck is 6.5-18 cubic meters, using Q355 manganese steel plate for full sealing welding, four-side and four-bottom/five-bottom structure, and the standard arc streamline shape improves compression efficiency.
Compression performance: Supports two-way compression technology, garbage density reaches 700-800kg/m³, and the standard passive compaction valve increases the loading capacity, and the compression cycle time is ≤25 seconds.
Loading method: Optional hanging bucket, triangular bucket, floor bucket or swing arm flip mechanism, suitable for 240L standard barrel, 660L metal barrel and bulk garbage collection.
1
Basic Parameters of HOWO RHD 6tons/7cbm Compressed Garbage Truck
| Model of Truck | CLW5120ZYSBHJ | |
| Name of Truck | HOWO RHD 6tons/7cbm Compressed Garbage Truck | |
| Size of Truck | 6970*2280*2920mm | |
| Capacity of Truck | 6cbm/5Tons | |
| Drive Type | 4*2, Right Hand Drive | |
| Total Weight | 11995kg | |
| Curb Weight | 5900kg | |
| Engine |
Model |
YN4102QBZL |
| Power | 85kw/116HP | |
| Fuel Type | Diesel | |
| Displacement | 3.76L | |
| Emission Standard | Euro III | |
|
Transmission |
6-gear, Manual | |
|
Tires |
6+1, 7.50R16 | |
2
Parameters of Upper Strcuture
| Garabage Van | Volume | 7cbm/6tons |
| Material | Q345 | |
| Thinkness(side/bottome) | 4mm/5mm | |
| Hydraulic Pump |
1 set |
|
| Multi-Valve | 1 set | |
| Flap Cylinder | 2 sets | |
| Lifting Cylinder | 2 sets | |
| Push Plate Cylinder | 1 set | |
| Diry Tank Volume |
100L |
|
| Filiing Time |
8-10s |
|
| Filling cycle time | ≤20s each time | |
| Hydraulic Pressure | 18Mpa | |
| Compactor Ratia |
1:4 |
|
3

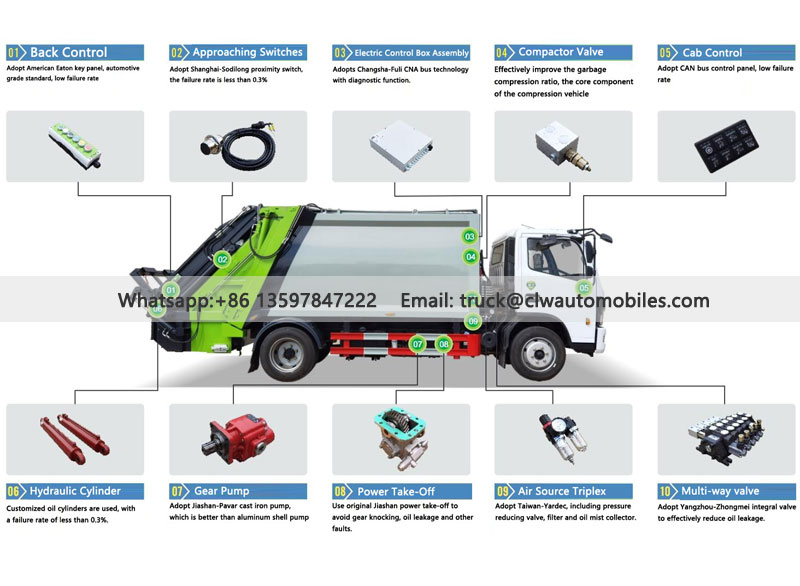

Exploded View Of HOWO RHD 6tons/7cbm Compressed Garbage Truck
Our advantage
Overall slider
Integrally molded, the structure is more stable and durable.
Skateboard external
the external skateboard cylinder has a faster single cycle speed and higher pressure.
Electronic control system
American Eaton keypad has a lower failure rate than ordinary panels.
Axis pin thickening
Made of 40 chrome material, it can effectively prevent the skateboard from breaking.
4
Applicable scenarios of HOWO RHD 6tons/7cbm Compressed Garbage Truck
Urban sanitation, community garbage collection, construction site cleaning and other scenarios, especially suitable for areas with medium daily garbage volume
5
Repair and Maintenance
Whole Vehicle Cleaning
Thoroughly clean the vehicle body surface, interior of the waste bin, and interior of the compaction mechanism to remove residual waste and dirt, preventing corrosion of the waste bin.
During rinsing, avoid direct water impact on electrical components (such as sensors and control panels) and the air intake of the hydraulic oil tank.
Key System Inspections
Hydraulic System: Verify hydraulic fluid reserve and ensure oil level meets specifications; inspect hoses and fittings for leaks and repair promptly.
Engine: Check engine oil level and coolant quantity, replenishing as needed; observe engine operation for smoothness, abnormal noises, or unusual odors.
Tires: Inspect tire pressure, wear condition, and presence of foreign objects to ensure driving safety.
What is your terms of payment?
T/T, 30% as deposit, and 70% before delivery. we’ll show you the phone and video of truck, before you pay the balanceHow about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Do you test all your goods before delivery?
yes of course, we have 100% test before delivery.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they com from.
